Southbend (Middleby)  |  Ultimate  |  SKU: 4601CC-2TR

Southbend (Middleby) 4601CC-2TR Ultimate Gas Ranges

$13,135.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

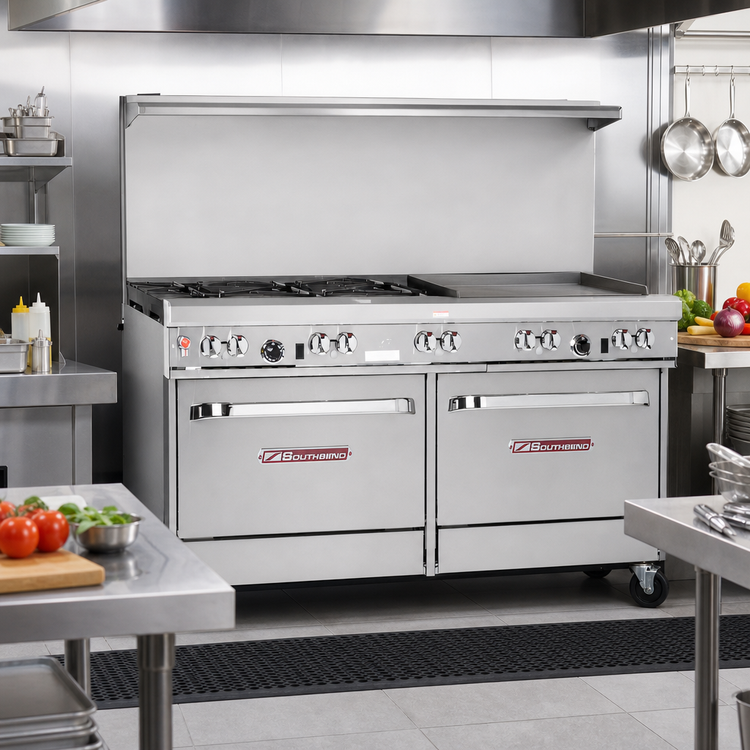

Southbend Ultimate 60″ Gas Restaurant Range with 6 Burners & 24″ Thermostatic Griddle – 246,000 BTU

Ultimate Series | Model 60″ Cabinet Base | NSF, cCSAus, CSA Flame & CSA Star

Engineered for the busiest commercial kitchens, the Southbend Ultimate 60″ range delivers relentless heat, uncompromising durability and the flexible cooktop every chef wants. From rapid-boil open burners to a precise thermostatic griddle, this single workstation handles breakfast rushes, à-la-carte service and everything in-between.

Key performance features

  • Six (6) 33,000 BTU one-piece non-clog cast-iron burners – lifetime clog-free design, perfect for high-volume sautéing or stock pots up to 14″.
  • Right-side 24″ thermostatic griddle with ½″ polished steel plate & raised side splashes for uniform browning and fast recovery.
  • Standard heavy-duty cast-iron grates; two removable drip trays simplify end-of-shift clean-up.
  • 22½″ flue riser with integrated stainless landing shelf keeps finished plates & utensils within arm’s reach.
  • Dual stainless steel cabinet bases provide dry storage below the cooktop (optional doors available at no charge).
  • 4″ stainless front rail, front-located manual gas shut-off and factory-installed regulator for quick, code-compliant installation.
  • 6″ adjustable stainless legs (casters available) for leveling on uneven floors.
  • Built in Fuquay-Varina, NC and backed by a 1-year parts & labor warranty.

Certifications

  • NSF
  • cCSAus
  • CSA Flame
  • CSA Star

At-a-Glance Specifications

Cooking width 60 ¾″ (1543 mm)
Depth 34″ (864 mm)
Cooktop height 37″ (940 mm)
Overall height (with riser) 59 ½″ (1511 mm)
Open burners 6 × 33,000 BTU non-clog (198,000 BTU total)
Griddle 24″ right, ½″ plate, thermostatic, 48,000 BTU
Total input 246,000 BTU/hr
Gas type Natural (field-convertible to LP)
Gas connection ¾″ NPT female (rear; opposite griddle side)
Base Two open stainless cabinets (doors optional)
Exterior finish Stainless front, sides, shelf & 4″ rail
Legs 6″ stainless, adjustable
Shipping weight ≈ 1,075 lb (488 kg)
Warranty 1-year parts & labor (see Southbend Limited Warranty)
Installation Note: This appliance is intended for commercial use only. Maintain 10″ clearance to combustible surfaces and install under a properly vented hood. If a flex gas hose is used, it must be a minimum ¾″ I.D. and fitted with a restraining device.

Looking for a different burner or base configuration? The Ultimate Series is built-to-order—contact our team for custom options.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Exterior Finish

stainless steel front & sides

Control Type

thermostatic controls

Plate Thickness

.500" = 1/2"

Base

(2) cabinets

Vent

backriser with hi-shelf

Top

(6) open burners, (1) 24" griddle with thermostat

Specifications

Ultimate Restaurant Range, gas, 60", (6) non-clog burners, standard grates, (1) 24" griddle right, thermostatic controls, standing pilot, (2) cabinets, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 246,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
