Southbend (Middleby) 4601CC-2GR Ultimate Gas Ranges
Description
Southbend Ultimate Series 60" Gas Restaurant Range – 6 Burners & 24" Right-Side Griddle
Model: 60" Cabinet-Base (6B-24GR)Engineered for nonstop, high-volume production, the Southbend Ultimate Range pairs six lifetime non-clog burners with a full 24-inch griddle to create an all-purpose powerhouse that tackles sauté, stock-pot work, and short-order favorites in one compact footprint.
Key Features

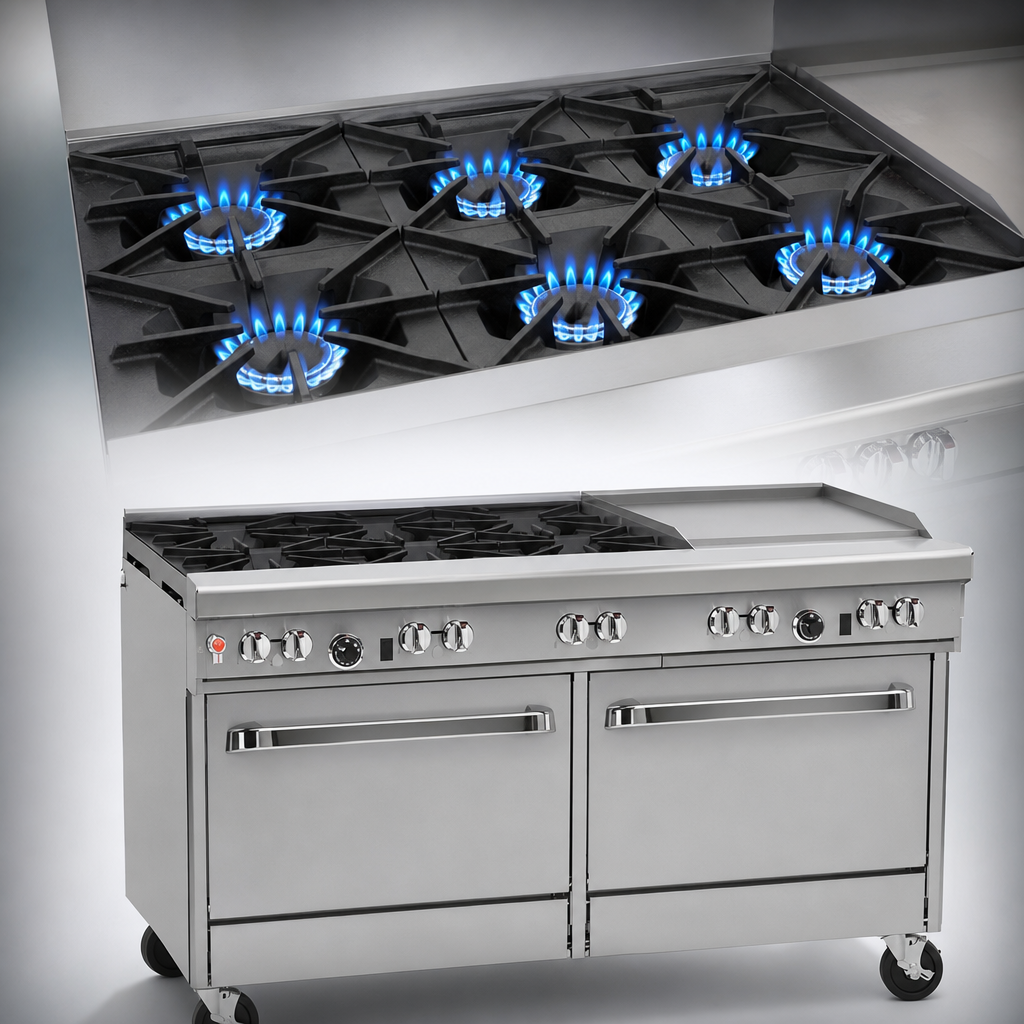

- Six (6) heavy-duty cast-iron non-clog burners for consistent flame and easy cleanup.

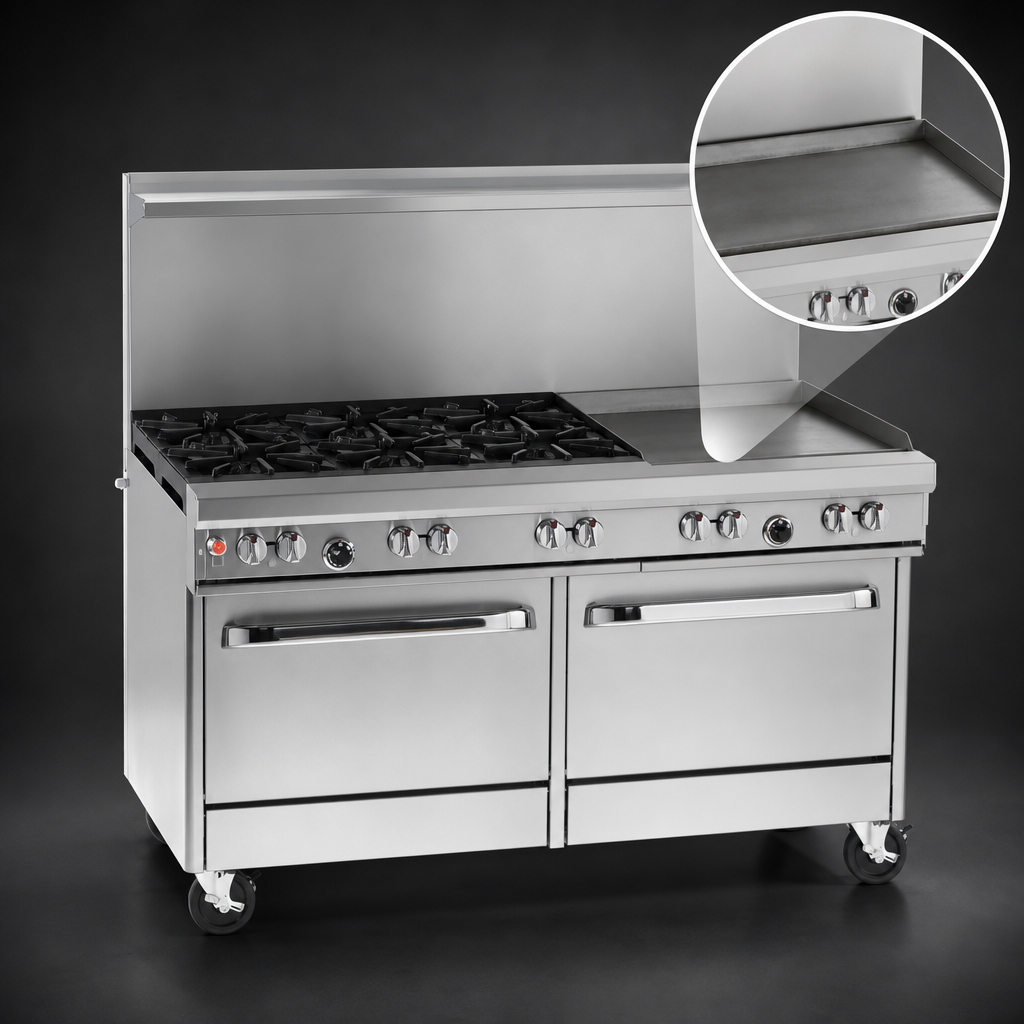

- Right-mounted 24" wide, ½" polished steel griddle with raised sides for superior heat retention and searing.
- Independent manual gas valves and reliable standing pilots for every open burner and the griddle.
- Two full-width stainless storage cabinets keep sheet pans, pots, and smallwares within arm’s reach.
- 22 ½" flue riser with integrated utensil shelf maximizes vertical workspace.
- 4" deep stainless front rail doubles as a convenient landing ledge.
- 246,000 BTU total input delivers rapid recovery during peak service.
- Factory-installed ¾" regulator & front-mounted manual shut-off simplify hookup and daily service checks.
- All-stainless front, sides, rail, shelf, and 6" adjustable legs for unmatched durability and easy sanitation.
- Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and food-service sanitation.
- Backed by Southbend’s 1-year parts & labor warranty.
At-a-Glance Specifications
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cook-top height | 37" (940 mm) |
| Flue riser height | 22 ½" (572 mm) w/ shelf |
| Open burners | 6 × cast-iron non-clog (manual control) |
| Griddle section | 24" W × 27" D, ½" plate, manual control (right side) |
| Base configuration | Two (2) open stainless cabinets |
| Total BTU input | 246,000 BTU/hr |
| Gas connection | ¾" NPT female (rear), regulator included |
| Required gas pressure | Nat 7" W.C. / LP 11" W.C. |
| Construction | Stainless front, sides, rail & shelf; welded frame |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year limited parts & labor |
Why Operators Love the Ultimate Series
- Lifetime non-clog burner design slashes downtime and cleaning labor.
- Modular platform accepts salamander or cheesemelter mounts without field fabrication.
- Southbend’s 125-year legacy of building rugged, service-friendly cooking equipment.
Need a different burner or oven configuration? The Ultimate 60" Series is available with griddles, charbroilers, convection or standard ovens, and various burner options. Contact our team for a tailored quote.
