Southbend (Middleby) 4601CC-2CR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
6 × 33,000 BTU Non-Clog Burners • 24" Right-Side Charbroiler • Cabinet Base • 262,000 BTUBuilt for high-volume kitchens that refuse to compromise, the Southbend Ultimate Series combines legendary durability with the flexible cooking power chefs demand. This 60" model unites six patented non-clog open burners with a full 24" charbroiler, giving you the freedom to boil, sauté, sear and char-grill on one rugged platform.
Why You’ll Love It

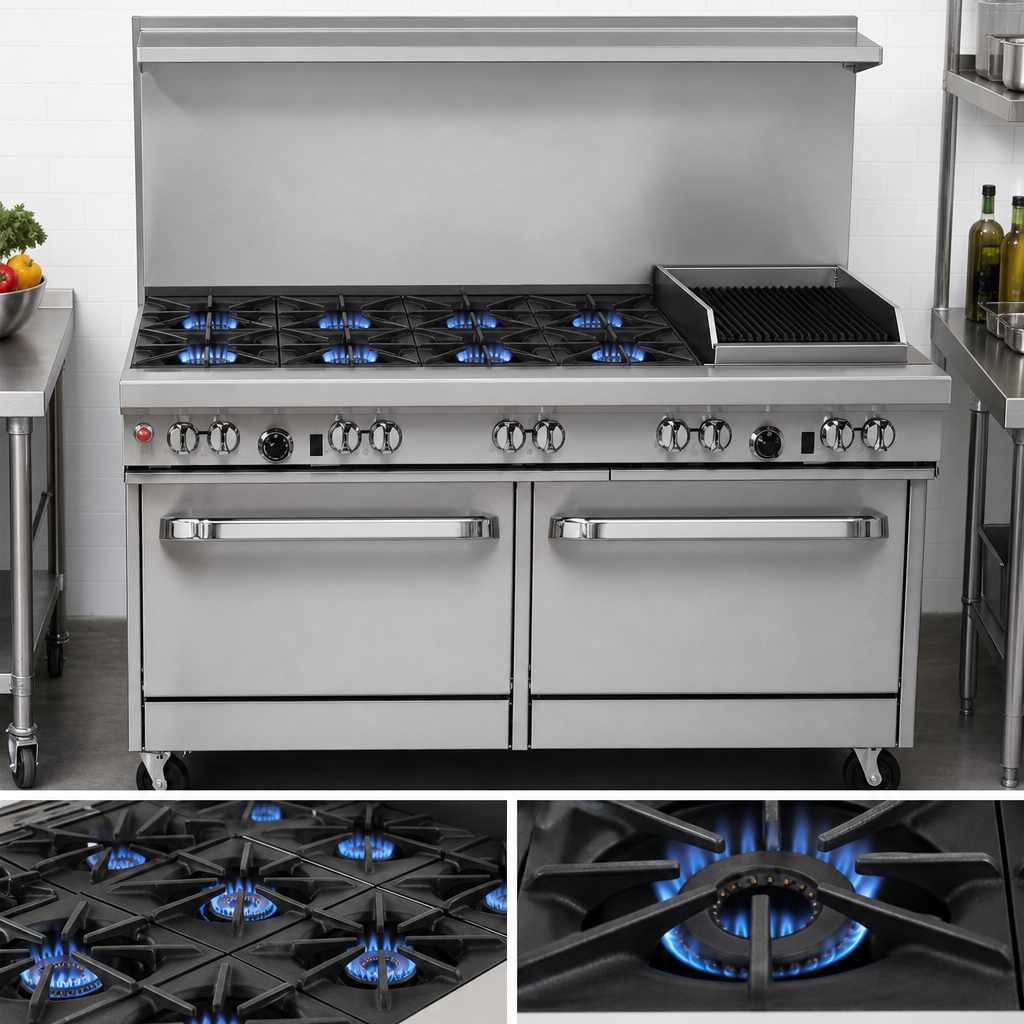

- All-purpose cooktop: Six 33,000 BTU cast-iron, lifetime non-clog burners handle everything from 1-qt saucepans to 14" stock pots.

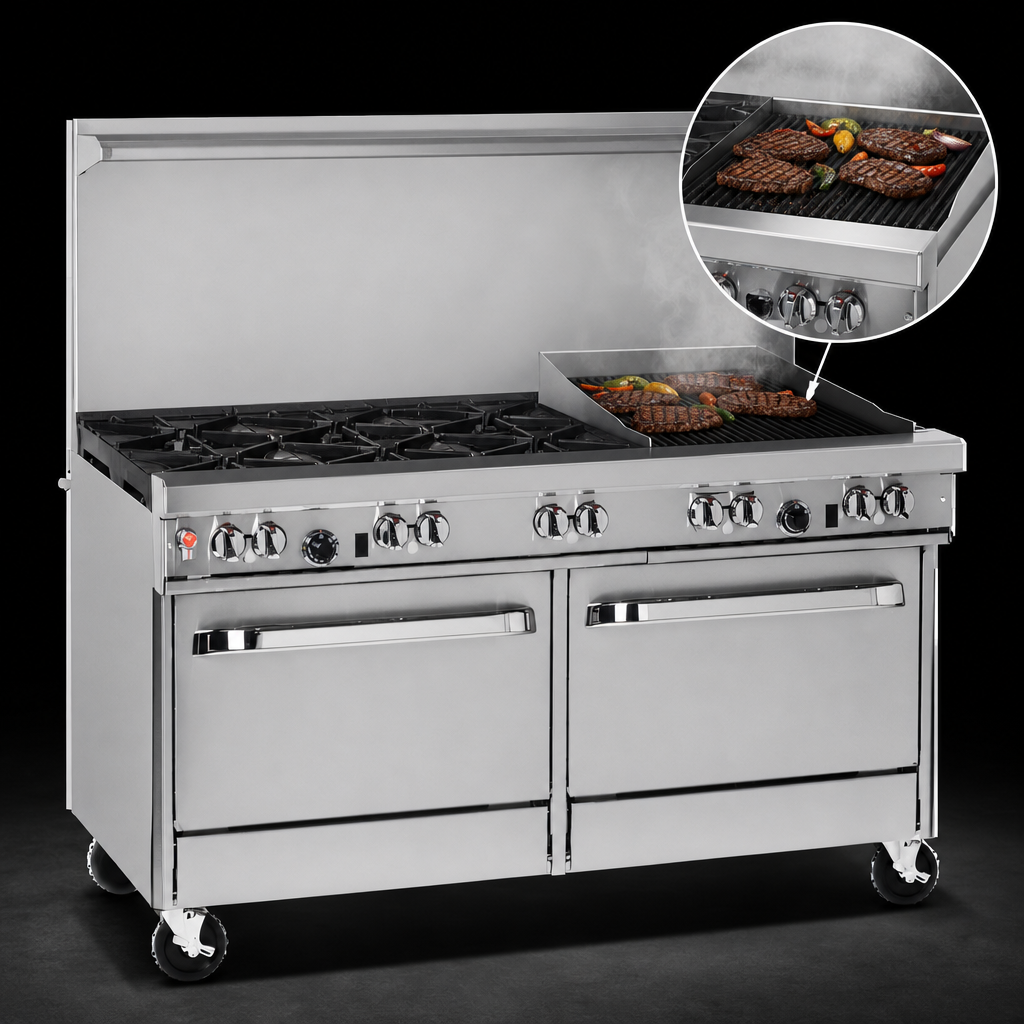

- Authentic grill flavor: 24" charbroiler (64,000 BTU) on the right side delivers steakhouse sear marks without stealing line space.
- True commercial build: 4" stainless front rail, stainless front & sides, and a 22-1/2" flue riser with heavy-duty storage shelf.
- Easy-access storage: Two full width stainless cabinet bases keep sheet pans, hotel pans or stock pots within arm’s reach. Optional doors available at no extra charge.
- Quick service uptime: Front-mounted gas shut-off and factory-installed 3/4" regulator simplify installation and maintenance.
- Standing pilots: Instant, reliable ignition on every open burner and charbroiler section.
- Adjustable 6" legs: Stainless legs level the range on uneven floors and meet local sanitation codes.
- Certified & backed: CSA & NSF listed, covered by a 1-year parts & labor warranty.
At-a-Glance Specifications
| Total Input | 262,000 BTU/hr (Natural Gas) |
|---|---|
| Open Burners | 6 × 33,000 BTU patented cast-iron non-clog burners |
| Charbroiler | 24" wide, right-side, 64,000 BTU |
| Cooking Surface | 27" deep; removable drip trays |
| Exterior Dimensions | 60-3/4" W × 34" D × 59-1/2" H (to top of riser) |
| Cooking Height | 37" |
| Base Configuration | Dual stainless cabinet bases (doors optional at no charge) |
| Gas Connection | 3/4" NPT female, 7" W.C. minimum inlet (Natural Gas) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty for details) |
Intended for commercial use only. Install under a properly sized vent hood and follow all local codes. Oversized cookware should be used on rear grates only to avoid excess front-rail heat.
