Southbend (Middleby) 4601AD-6R Ultimate Gas Ranges
Description

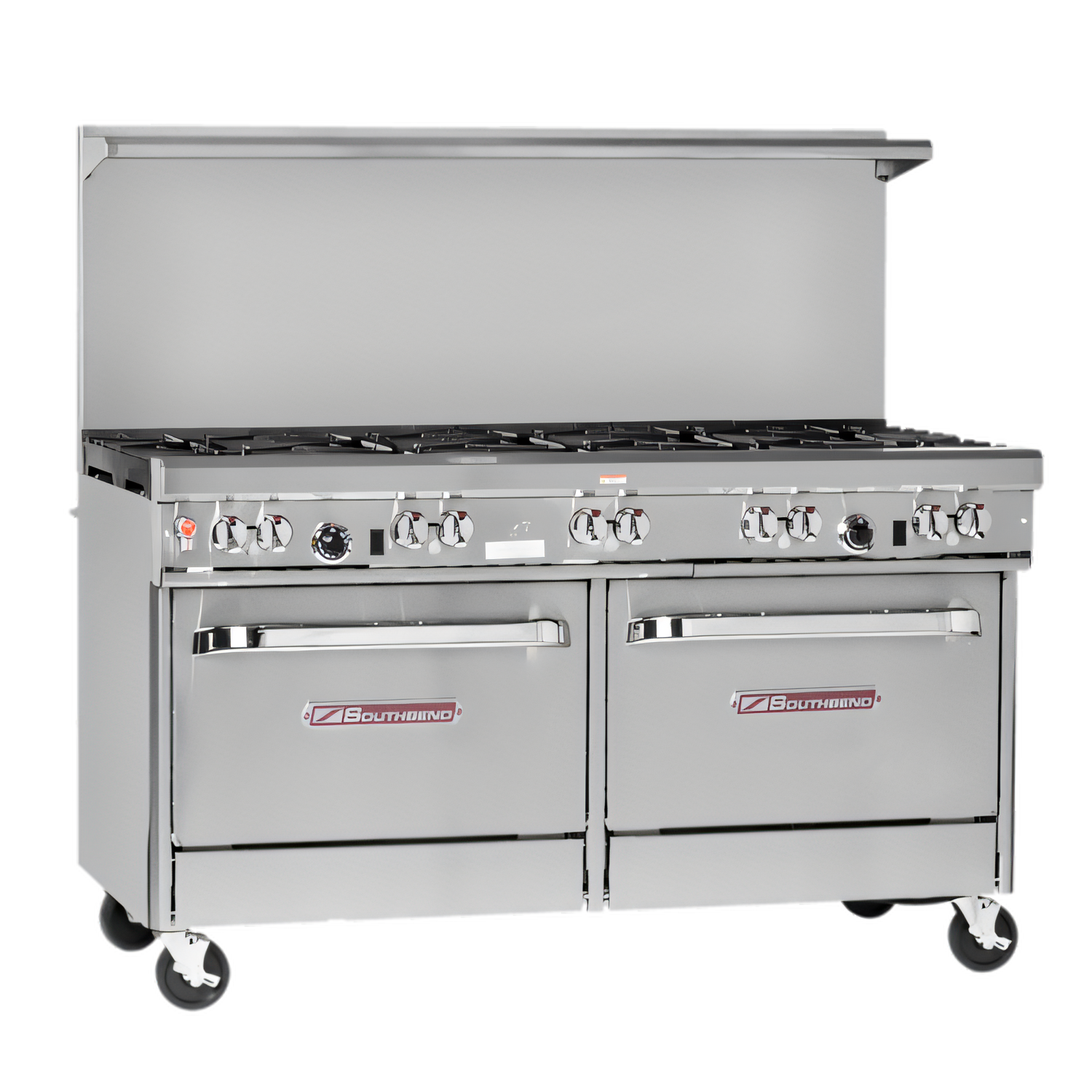

Southbend Ultimate 60" Restaurant Range – 9-Burner, Dual-Oven, 388,000 BTU
3 Star/Sauté • 2 Pyromax • 4 Non-Clog | Standard + Convection OvensPurpose-built for high-volume, all-day production, the Southbend Ultimate Series packs serious firepower and rugged construction into a single 60-inch footprint. With nine premium burners, a full-size standard oven, and a fast, fan-assisted convection oven, this range delivers the versatility chefs need to handle any ticket that hits the rail.
Key Performance Features

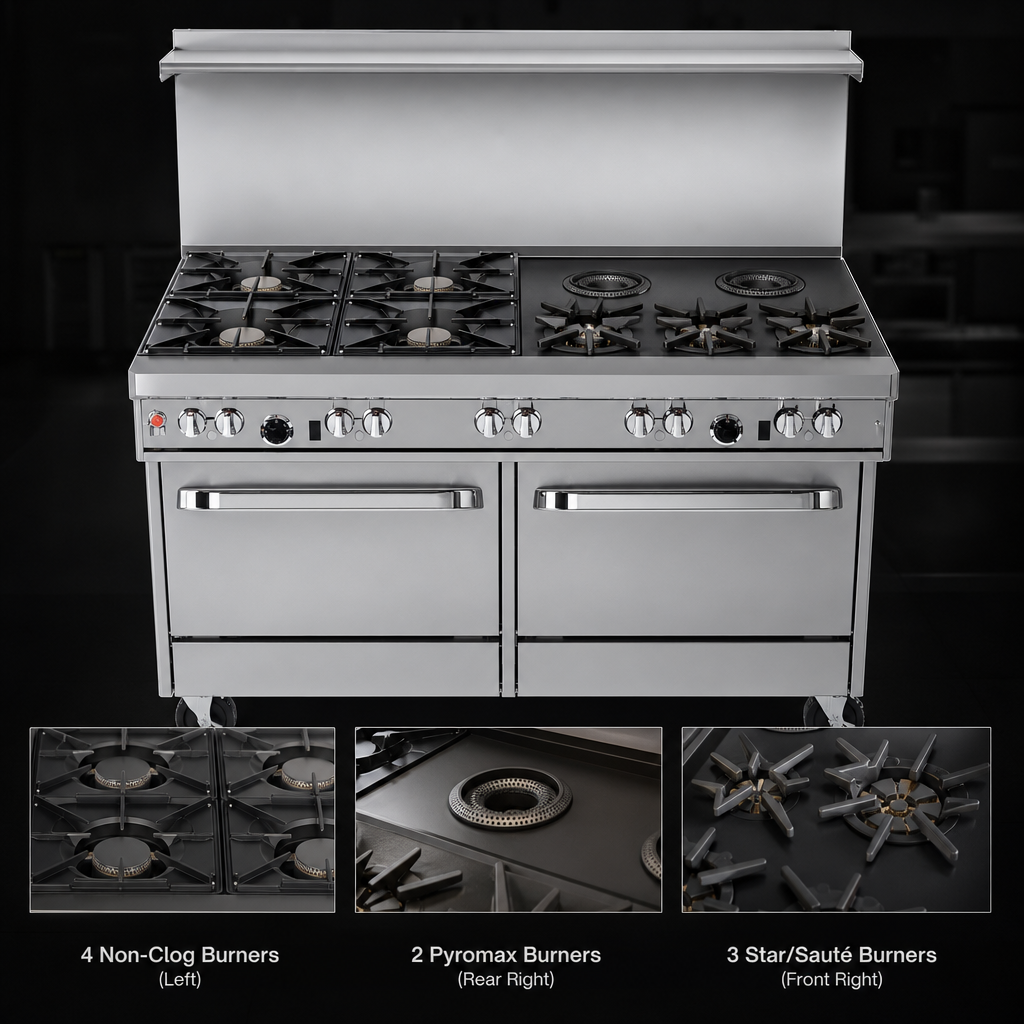

- High-output burner mix: 3 × 33 k BTU star/sauté, 2 × 40 k BTU Pyromax, 4 × 33 k BTU non-clog.
- Total open-top power: 311,000 BTU/h – instant heat for searing, wok cooking, stock, or sauté.

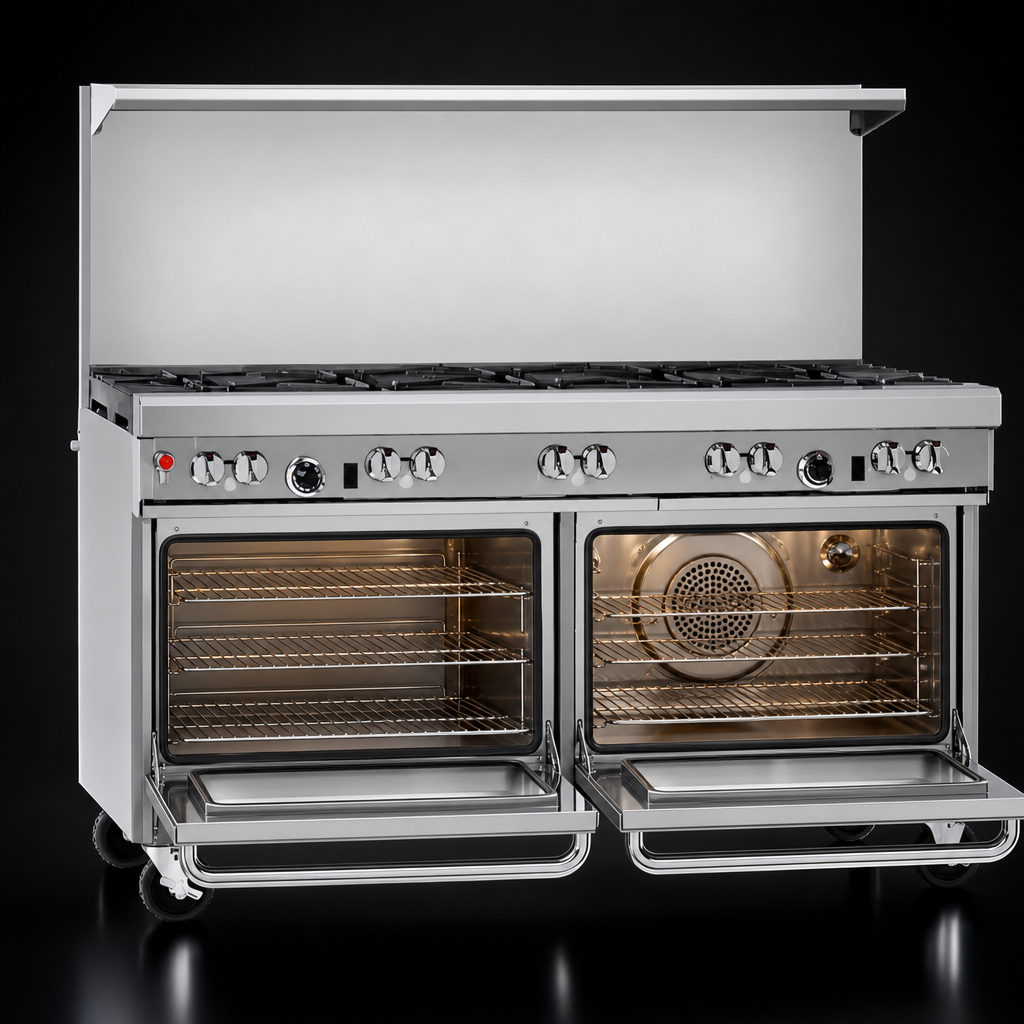

- Dual ovens: 45 k BTU baking deck + 32 k BTU convection (115 V fan) for rapid, even results.
- Battery-spark ignition on both ovens; standing pilots keep burners ready to fire.
- One-piece cast-iron grates lift out for quick clean-ups and support 14" stock pots.
- Front-mounted manual gas shut-off and factory regulator simplify installation & service.
- Includes four heavy-duty oven racks (1 in the standard oven, 3 in the convection oven).
- CSA & NSF certified for commercial use.
Engineered for the Rush
- Pyromax burners concentrate a 40 k BTU flame for rapid stir-fry and stock reduction.
- Patented non-clog design keeps ports clear of grease—no downtime for cleaning.
- Star/sauté burners spread heat evenly across pan bottoms, reducing hot spots.
- 27"-deep cooking surface gives you ample real estate without crowding the line.
Heavy-Duty Build
- Stainless steel front, sides, 4" front rail & 22-1/2" flue riser with integrated shelf.
- 6" stainless, adjustable legs (casters available).
- Double-sided porcelain-enameled oven cavities with coved corners for easy wipe-downs.
- Spring-assisted, counter-weighted oven doors stay cool and close smoothly.
Certifications & Warranty
- Listings: CSA, NSF.
- Standard coverage: 1-year parts & labor backed by Southbend’s nationwide service network.
1. Supply with 3/4" NPT gas line; 7" W.C. minimum inlet pressure for natural gas.
2. For non-quarry tile floors, contact factory for approved mounting.
3. Use cookware 12" Ø + on rear burners only to prevent heat damage to the front rail.
At-a-Glance Specifications
| Model | Ultimate 60" Restaurant Range – Split Burner (Star / Pyromax / Non-Clog) |
|---|---|
| Overall width | 60.75" (1543 mm) |
| Overall depth | 42.13" (1070 mm) |
| Height to flue shelf | 59.5" (1511 mm) |
| Cooking height | 37" (940 mm) |
| Open burners | 9 total – 3 star (33 k BTU) • 2 Pyromax (40 k BTU) • 4 non-clog (33 k BTU) |
| Total open-top BTU | 311,000 BTU/h |
| Standard oven | 45 k BTU | 26" W × 26.5" D × 14" H | 1 rack |
| Convection oven | 32 k BTU | 26" W × 24" D × 14" H | 3 racks | 115 V fan (5.9 A) |
| Total input | 388,000 BTU/h (natural gas) |
| Gas connection | 3/4" female NPT |
| Electrical | 115 V / 60 Hz / 1-ph, 6' cord & 3-prong plug |
| Shipping weight | ≈ 1,075 lb (488 kg) crated |
