Southbend (Middleby) 4601AD-6L Ultimate Gas Ranges
Description

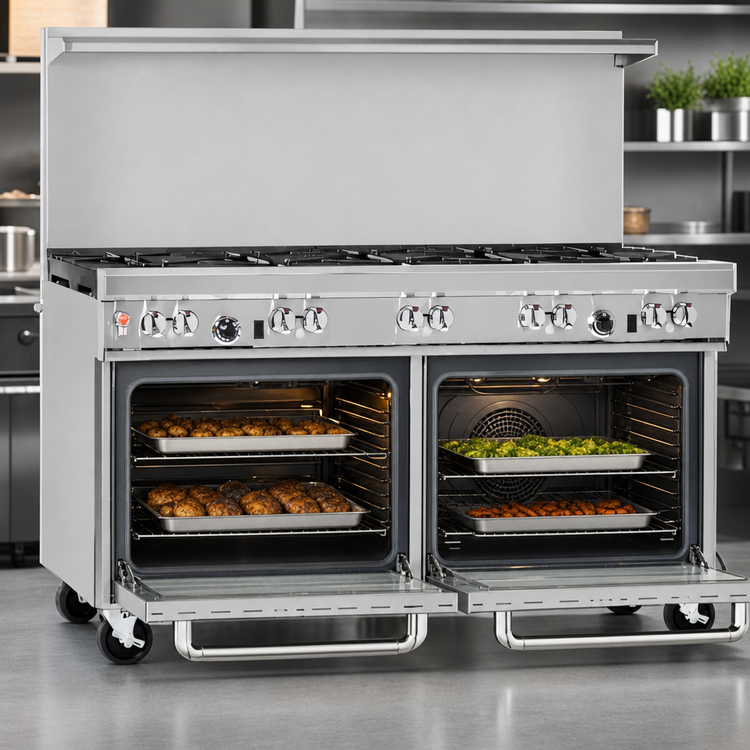

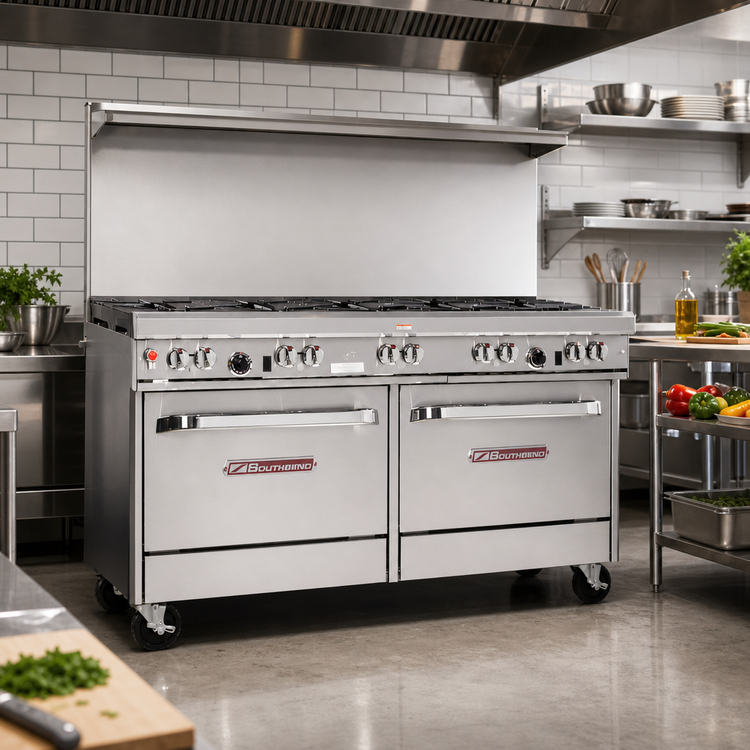

Southbend “Ultimate” 60" Gas Restaurant Range

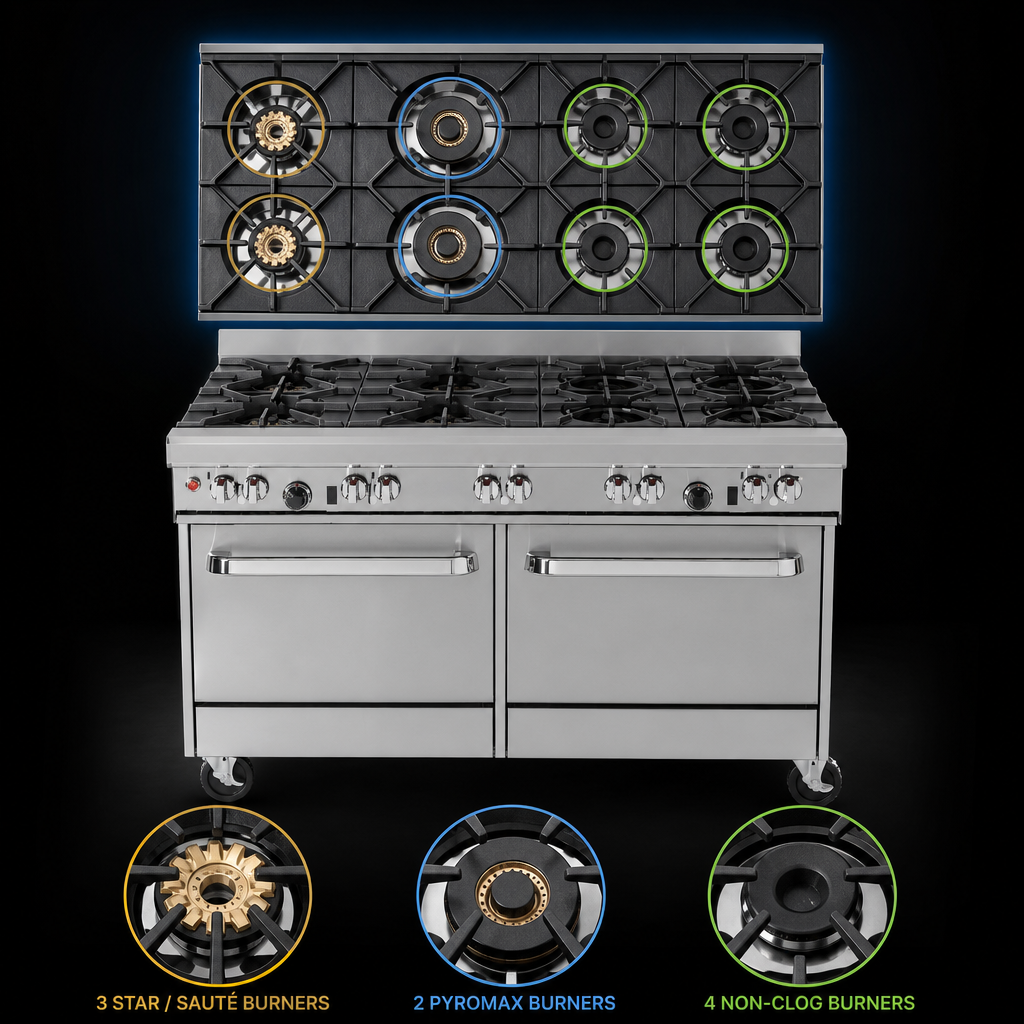

3 Star/Sauté • 2 Pyromax • 4 Non-Clog Burners | Dual Oven Base | 388,000 BTUBuilt for the busiest cook lines, Southbend’s Ultimate Series packs powerhouse BTU performance, dual-oven versatility, and a rugged stainless-steel build into one 60" footprint—so you can sauté, boil, braise, bake, and roast without ever leaving the range.
Top-End Performance
| Left Front (3) | 33,000 BTU Star/Sauté burners—wide flame pattern for ultra-fast, even heat |
|---|---|
| Left Rear (2) | 40,000 BTU Pyromax burners—patented high-output design with built-in drip ring |
| Right Side (4) | 33,000 BTU lifetime Non-Clog burners—one-piece cast iron, clog-free ports |
| Grates | Four removable, heavy-duty cast-iron sections (rear holds up to 14" stock pot) |
| Total Open-Top BTU | 311,000 BTU |

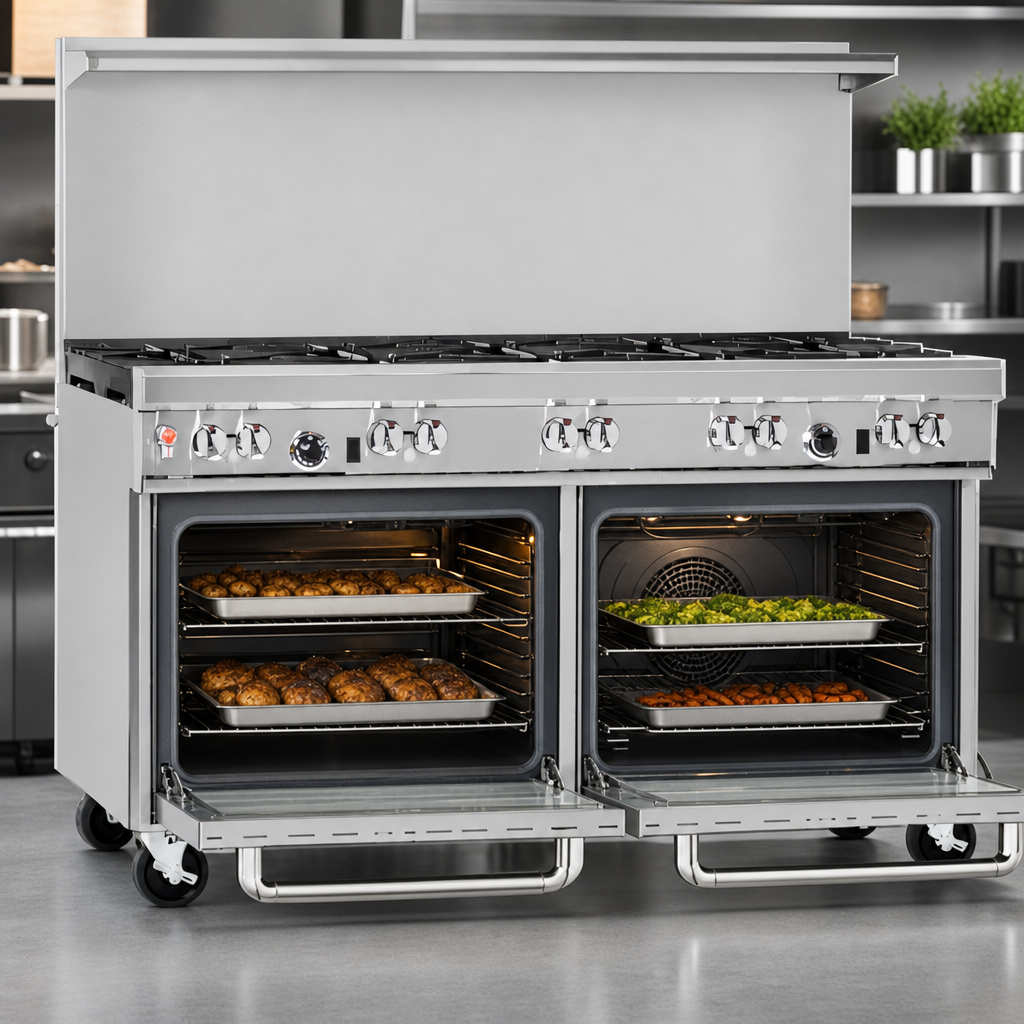

Dual Oven Power
| Standard Oven (left) | 45,000 BTU • 175 – 550 °F thermostat • porcelain 26"W × 26.5"D × 14"H cavity • (1) rack, 2 positions |
|---|---|
| Convection Oven (right) | 32,000 BTU • 175 – 550 °F thermostat • porcelain 26"W × 24"D × 14"H cavity • 1/2 HP fan, 115 V plug • (3) racks, 5 positions |
| Ignition | Battery spark (both ovens)—no hard-wiring required for lighting |
Key Specifications
| Overall width | 60-3/4" |
|---|---|
| Cooking surface depth | 27" |
| Overall depth (to door) | 42-1/8" |
| Work height | 37" cooking top |
| Flue riser / shelf | 22-1/2" with heavy-duty shelf |
| Total input | 388,000 BTU (open burners + ovens) |
| Gas connection | 3/4" NPT, NAT 7" W.C. minimum inlet |
| Electrical (conv. fan) | 115 V, 1-ph, 5.9 A, 6' cord w/ 3-prong plug |
| Legs | 6" adjustable stainless steel (casters optional) |
| Construction | Stainless front, sides, shelf, & rails; front-mounted gas shut-off; standing pilots |
| Certifications | CSA Gas, NSF |
| Warranty | 1-year parts & labor (see Southbend terms) |
Best-In-Class Benefits
- Front-mounted manual gas shut-off for the entire range.
- Battery spark ignition eliminates reliance on external power for oven lighting.
- All-stainless exterior cleans quickly and resists corrosion.
- Removable drip trays under the top simplify daily maintenance.
- Factory-installed pressure regulator ensures steady flame performance.
Looking for a different burner layout, salamander mount, or caster kit? Reach out—factory-configured options ship fast.
- Cookware larger than 12" in diameter should be kept to the rear grates to avoid excessive heat on front rail components.
- Install under a ventilated hood and on 6" legs or casters when placed on combustible floors.
