Southbend (Middleby) 4601AD-5L Ultimate Gas Ranges
Description

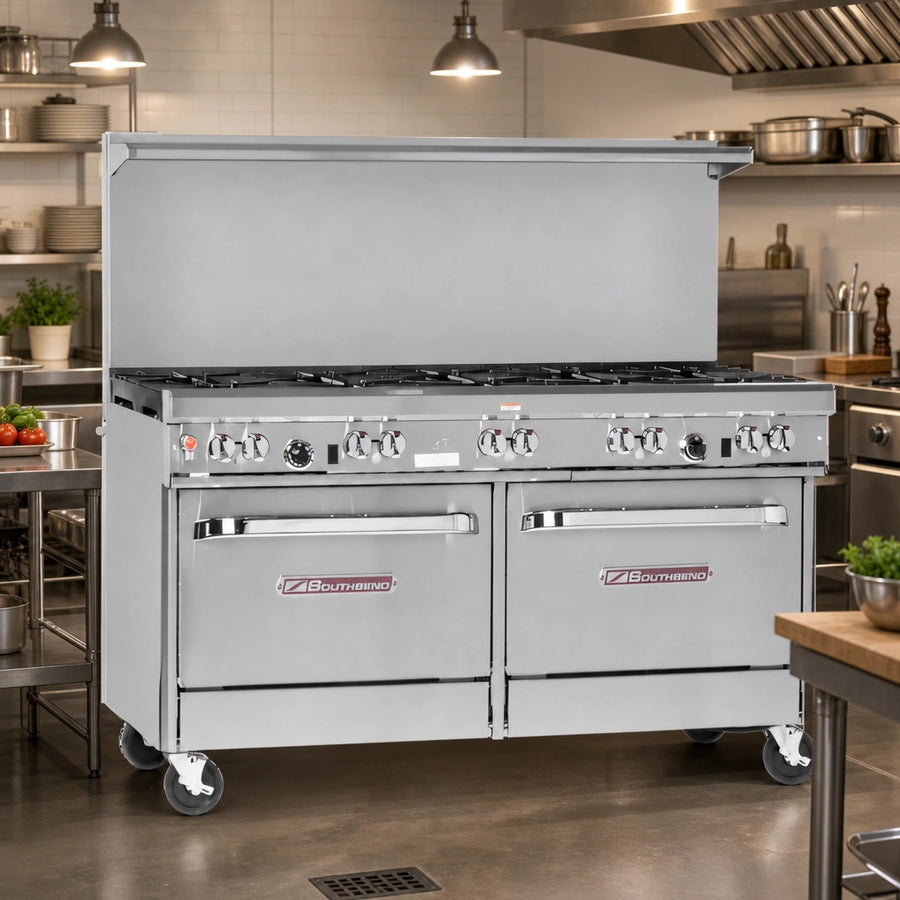

Southbend Ultimate 60" Restaurant Range – Pyromax/Non-Clog Top w/ Standard & Convection Ovens
Model 460 Series | 388,000 BTU | GasBuilt for kitchens that run full-tilt from breakfast to close, the Southbend Ultimate 60" range marries rugged construction with the power and versatility chefs demand. Seven high-efficiency non-clog burners team up with two patented Pyromax burners for rapid stock-pot boiling, high-heat sauté work, and everything in between—while a split oven base gives you both traditional and forced-air baking in one footprint.

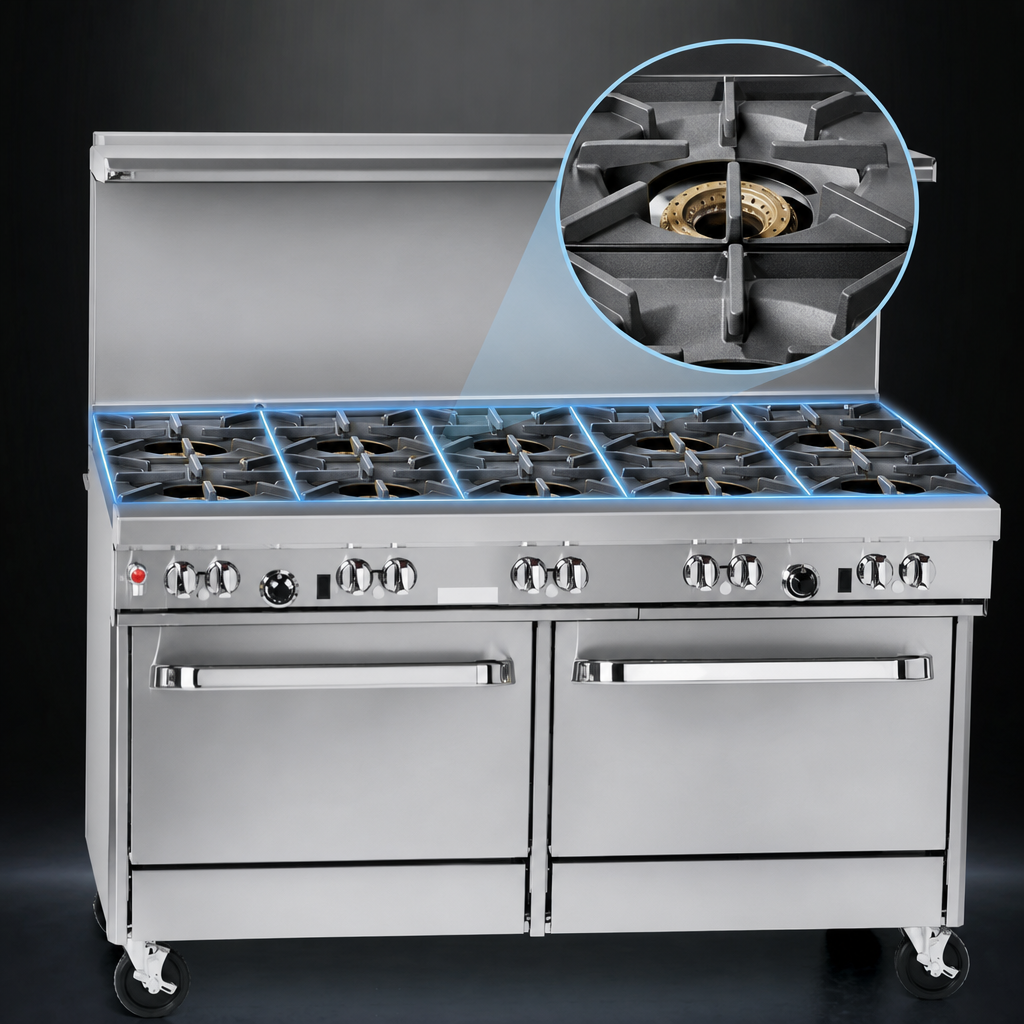

Key cooking power
- Left-hand section: 3 × 33,000 BTU non-clog burners (front) + 2 × 40,000 BTU Pyromax burners (rear)
- Right-hand section: 4 × 33,000 BTU non-clog burners
- Cast-iron, lifetime clog-free top grates—rear positions accept up to 14" stock pots
- Standing pilots for instant burner lighting; front manifold gas shut-off for one-touch shutdown
- Total open-top output: 311,000 BTU

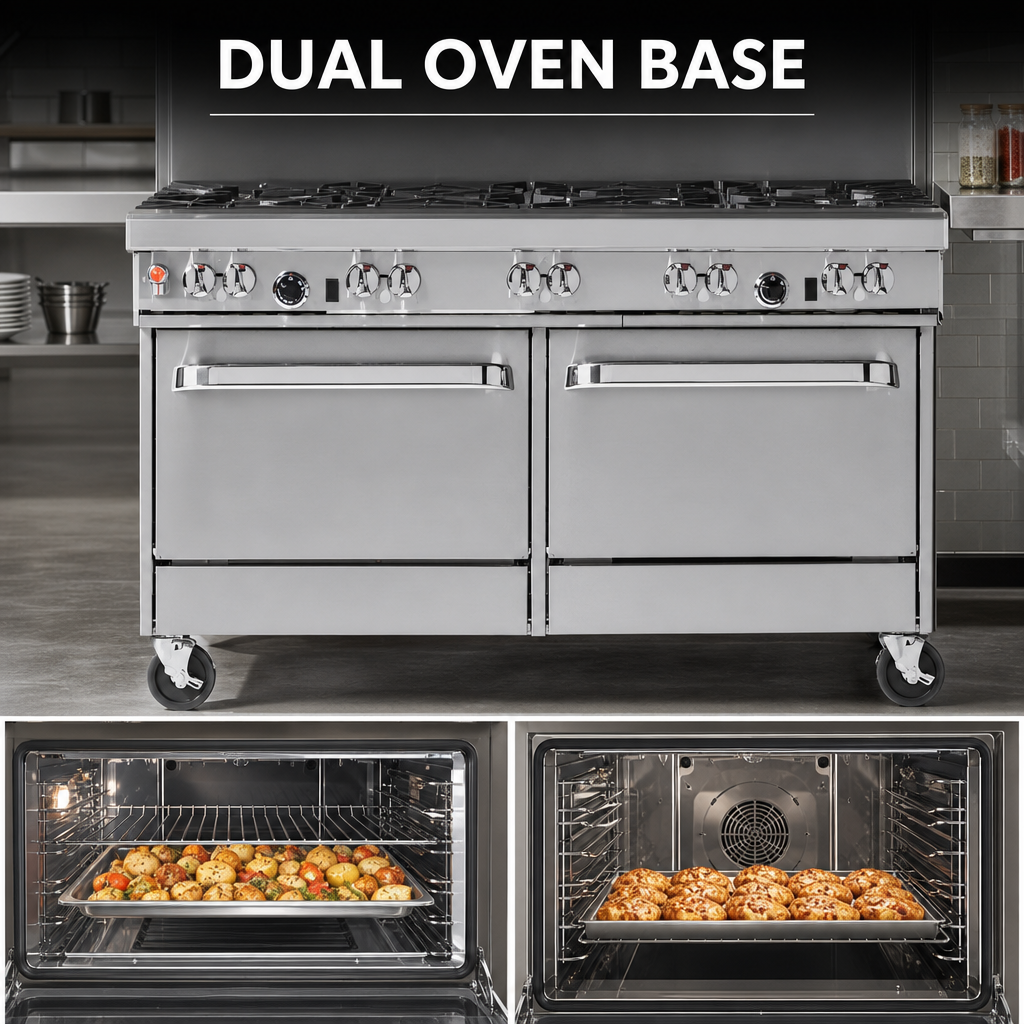

Dual oven flexibility
- Standard oven (left): 45,000 BTU, snap-action thermostat 175 °F–550 °F, includes 1 rack/2 positions
- Convection oven (right): 32,000 BTU, 1/2 hp fan motor, 175 °F–550 °F, includes 3 racks/5 positions
- Battery-spark ignition on both ovens—no external electric spark boxes to service
- Porcelain-enameled, coved-corner cavities for even airflow and quick wipe-down
Built to outlast the rush
- Stainless steel front, sides, 4" front rail, high-shelf & 22-1/2" flue riser
- 6" stainless steel legs with adjustable bullet feet (casters optional)
- Removable, full-width drip trays speed nightly clean-up
- Factory-installed 3/4" gas regulator & rear manifold connection
- CSA & NSF listed for open-top ranges and ovens
Specifications
| Overall width | 60 3/4" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cook-top height | 37" (940 mm) |
| Flue riser height | 22 1/2" with heavy-duty storage shelf |
| Total BTU input | 388,000 BTU/hr (Natural or LP—field convertible) |
| Gas connection | 3/4" NPT (female) – rear |
| Electrical (convection fan) | 115 V / 60 Hz / 1 ph, 5.9 A, 6' cord & 3-prong plug |
| Oven interiors | 26" W × 26 1/2" D × 14" H (standard) | 26" W × 24" D × 14" H (convection) |
| Included racks | 4 total (1 standard, 3 convection) |
| Warranty | 1-year parts & labor, factory-installed regulator included |
Popular add-ons (sold separately)
- All-swivel locking casters
- Quick-disconnect hose kits (3 ft, 4 ft, 5 ft)
- Shelf mounts for salamanders or cheesemelters
- Extra oven racks
