Southbend (Middleby) 4601AD-4TR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
with 48" Thermostatic Griddle & (2) Open Burners
Model 460 Series – Standard + Convection Oven Base • 223,000 BTU
Built to thrive on the toughest restaurant lines, the Southbend Ultimate range combines a massive, precision-controlled griddle, two clog-free open burners and a split oven base (standard + convection) in one 60 inch powerhouse. Rugged stainless-steel construction, quick-start battery spark ignition and a front gas shut-off keep your kitchen safe, efficient and easy to clean.
Performance & Design Highlights
- 48" right-side griddle, 1" polished steel plate with thermostatic controls (175 °F–550 °F).

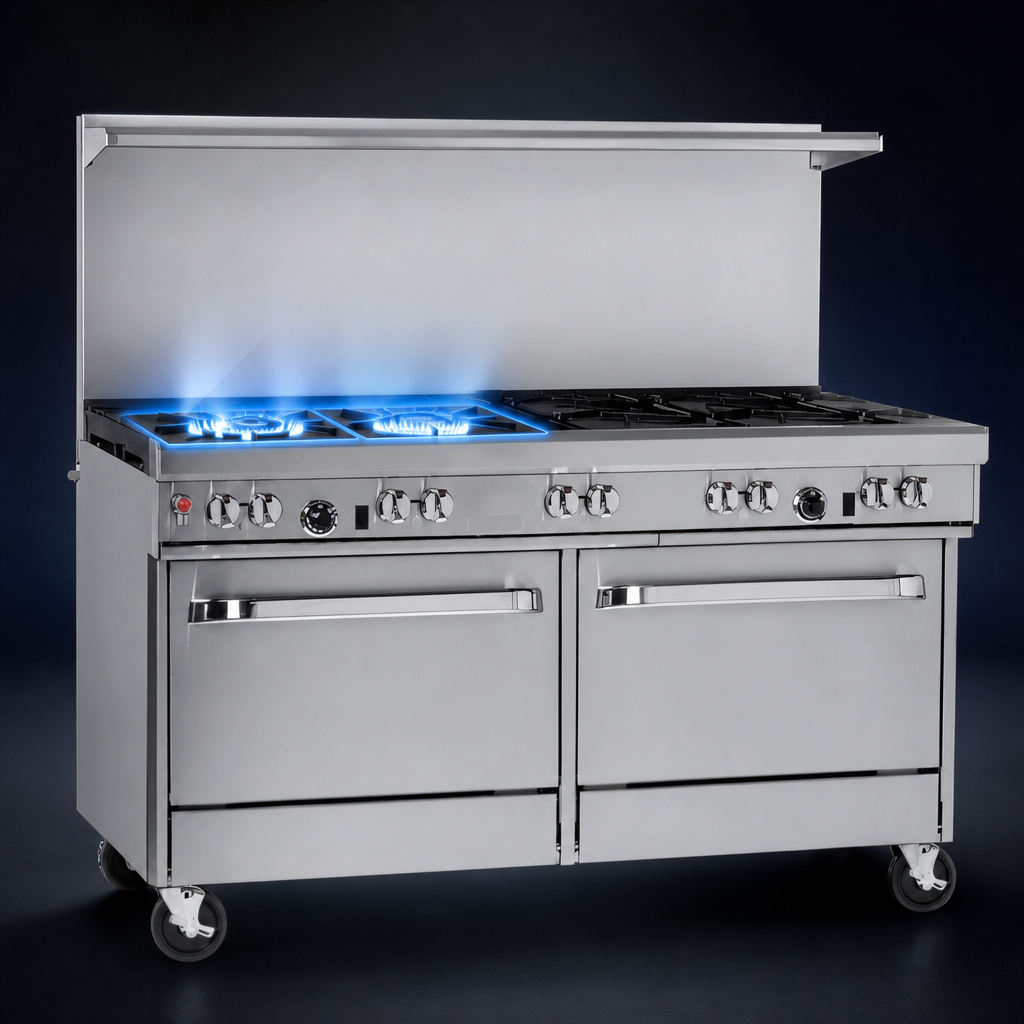

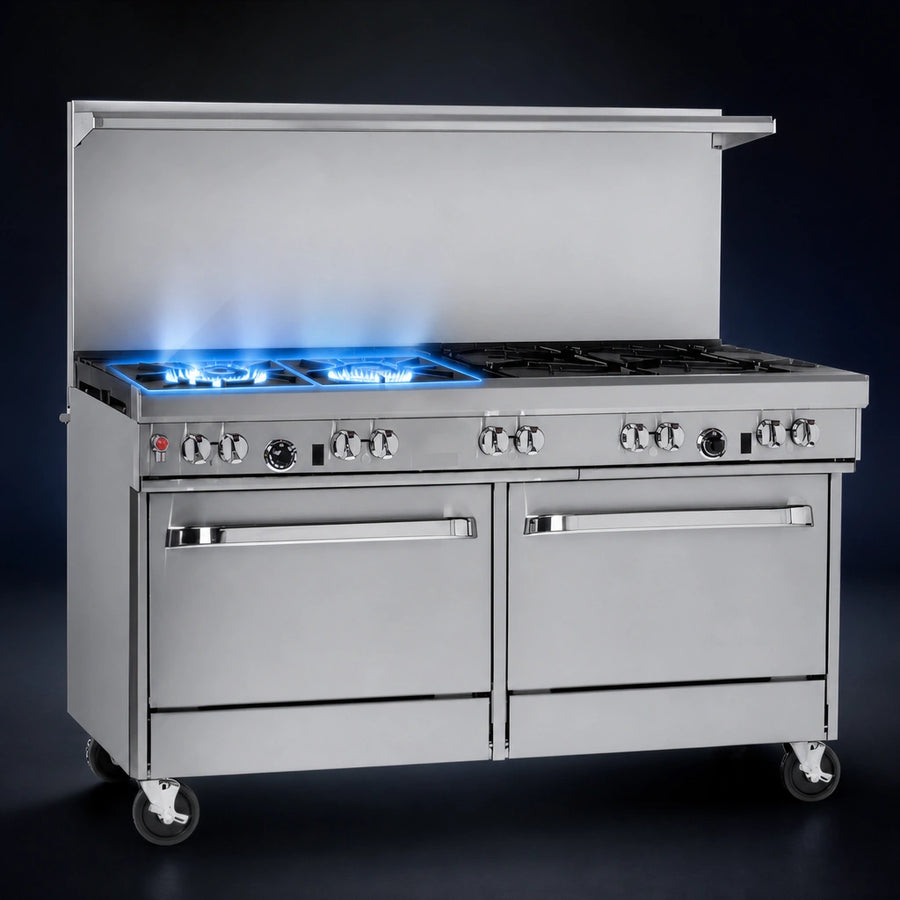

- (2) 33,000 BTU non-clog burners on the left with heavy-duty cast-iron grates and standing pilots.
- Split oven base:
- 45,000 BTU standard oven (porcelain interior, 1 rack, 2 positions).
- 32,000 BTU convection oven (porcelain interior, 3 racks, 5 positions, 115 V blower).
- Battery-spark ignition on both ovens – no external pilot lighting required.
- 22-1/2" flue riser with reinforced stainless shelf keeps plates and pans within reach.
- 4" full-width stainless front rail protects controls and doubles as a landing ledge.
- Factory-installed 3/4" regulator and front-mounted manual gas shut-off.
- All-stainless front, sides, shelf and 6" adjustable legs for quick wipe-downs and lasting durability.
- Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation.
Technical Specifications
| Overall width | 60.75" / 1543 mm |
|---|---|
| Overall depth | 42.13" / 1070 mm (convection base) |
| Cook-top height | 37" / 940 mm |
| Overall height (with flue) | 59.5" / 1511 mm |
| Total input | 223,000 BTU/hr (Natural or LP – field convertible) |
| Open burners | (2) × 33,000 BTU non-clog cast iron |
| Griddle | 48" W × 27" D, 1" thick plate, 64,000 BTU, thermostatic |
| Standard oven | 45,000 BTU, 175 °F–550 °F, 26" W × 26.5" D × 14" H cavity, 1 rack |
| Convection oven | 32,000 BTU, 175 °F–550 °F, 26" W × 24" D × 14" H cavity, 3 racks, 115 V/5.9 A blower |
| Gas connection | 3/4" NPT female, min. inlet pressure 7" W.C. (Natural) / 11" W.C. (LP) |
| Electrical (conv. fan) | 115 V, 1 ph, 6 ft cord & 3-prong plug, 5.9 A |
| Included oven racks | 4 (total) |
| Warranty | 1 year parts & labor (factory authorized service network) |
Warranty & Important Use Notes
- One-year limited parts & labor coverage direct from Southbend.
- Intended for commercial installations only.
- For best results, install on quarry tile, concrete or natural stone flooring. Contact factory for other floor types.
- When using cookware 12" or larger, keep vessels toward the rear burners to prevent excessive heat on the front rail.
