Southbend (Middleby) 4601AD-2CR Ultimate Gas Ranges
Description

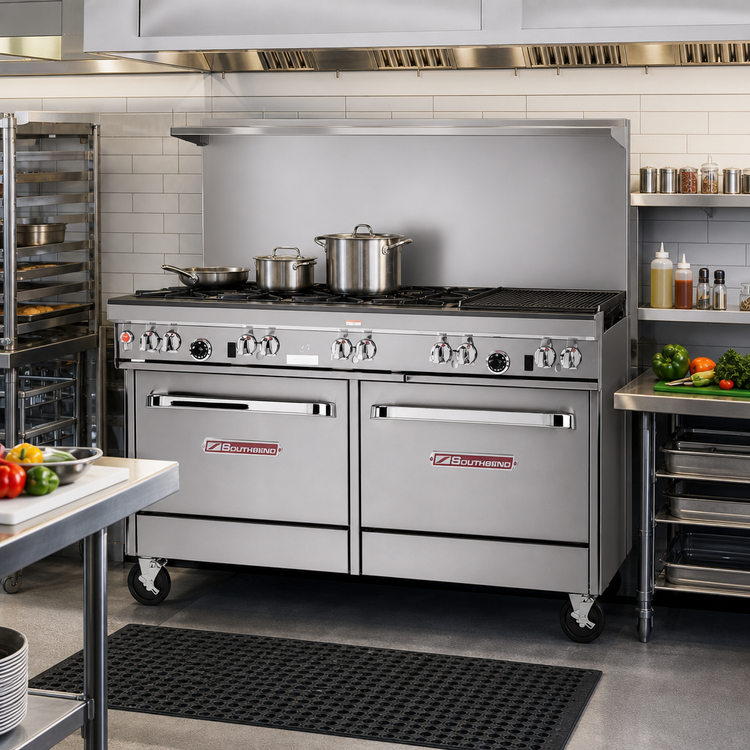

Southbend Ultimate 60" Gas Restaurant Range – 6 Burners + 24" Charbroiler, Convection & Standard Ovens
460 Series | Charbroiler-Right | Approx. 339,000 BTUBring maximum menu flexibility to a single 60" footprint. Six patented non-clog burners, a heavy-duty 24" charbroiler and a split convection/standard oven base give chefs the firepower to sauté, grill, bake and roast—all at the same time.
Why You’ll Love It
- 339,000 total BTU for rapid heat-up and fast recovery during peak service
- (6) 33,000 BTU lifetime-warranted cast-iron burners with standing pilots
- 24" right-side charbroiler—perfect for steaks, burgers and signature grill marks
- Dual oven base: 45,000 BTU standard oven + 32,000 BTU convection oven (battery spark ignition on both)
- Four oven racks included (1 × standard, 3 × convection) with multi-position side rails
- 22½" flue riser shelf keeps pans, spices and utensils within arm’s reach
- All-stainless front, sides, shelf & 4" front rail—built for daily wipe-down cleaning
- Front-mounted master gas shut-off and factory-installed ¾" regulator
- 6" adjustable stainless steel legs (optional casters available)
- CSA & NSF listed; made in the USA
Performance You Can Taste
Southbend’s one-piece, non-clog burners are engineered so grease and food debris can’t block the ports—meaning you get an even, consistent flame service after service. Pair that with a high-output charbroiler and you can caramelize, sear and grill without compromising open-top productivity.
Technical Specifications
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth | 42 ⅛" (1070 mm) with convection base |
| Cooking surface height | 37" (940 mm) |
| Flue riser height | 22 ½" with integrated shelf |
| Open burners | 6 × 33,000 BTU non-clog cast iron |
| Charbroiler | 24" manual control, 96,000 BTU |
| Standard oven | 45,000 BTU | 175 °F – 550 °F thermostat |
| Convection oven | 32,000 BTU | 175 °F – 550 °F thermostat & ½ HP fan |
| Total input | ≈ 339,000 BTU/hr |
| Gas connection | ¾" NPT, rear | Natural gas 7" W.C. minimum |
| Electrical (fan) | 115 V / 60 Hz / 1 ph, 5.9 A, 6′ cord & plug |
| Oven interior – standard | 26" W × 26 ½" D × 14" H (fits full-size sheet pans both ways) |
| Oven interior – convection | 26" W × 24" D × 14" H; 5-position rack guides |
| Shipping weight | ≈ 1,075 lb (488 kg) |
What’s in the Box
- Southbend Ultimate 60" gas range with 6 burners & 24" charbroiler (right)
- (4) oven racks total
- 22½" flue riser shelf (installed)
- 6" adjustable stainless legs
- User & installation manual
Popular Options & Accessories (sold separately)
- All-swivel locking casters
- 5" or 10" flue riser
- Extra oven racks
- Flame-failure safety system
- Rear step-up burners or hot-top plates
- Salamander / cheesemelter mounting kits
Warranty
Covered by Southbend’s 1-year parts & labor warranty. Full details available at southbendnc.com/service-and-parts.
