Southbend (Middleby) 4601AC-7R Ultimate Gas Ranges
Description

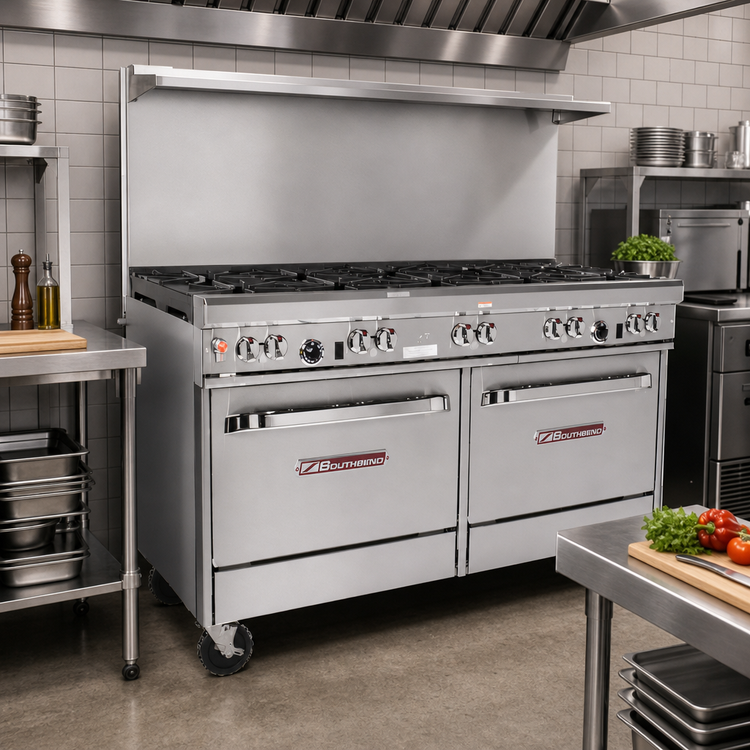

Southbend Ultimate 60" Gas Restaurant Range
4 Non-Clog Burners • 4 Pyromax Burners • Convection Oven & Cabinet Base • 324,000 BTUPower, capacity and versatility come together in Southbend’s Ultimate Series 60" range. With eight heavy-duty open burners, a high-performance convection oven and a spacious stainless-steel cabinet base, this single footprint becomes the workhorse every busy kitchen needs.
Highlights

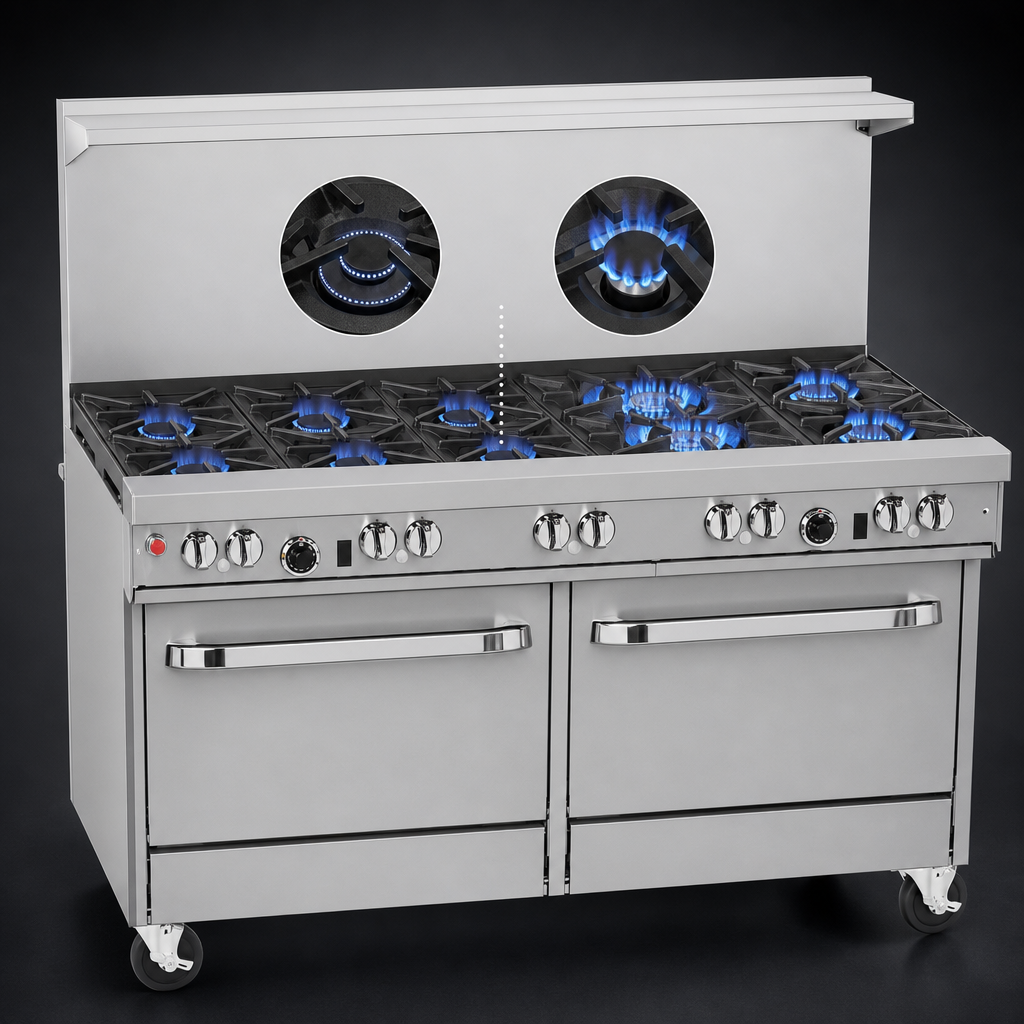

- Eight open burners: • (4) 33,000 BTU lifetime-clog-free cast-iron burners on the left • (4) 40,000 BTU patented Pyromax burners on the right for rapid boiling & high-heat sautéing
- 27"-deep cooking surface with cast-iron grates that hold up to a 14" stock pot on every rear grate
- 14 ga. stainless-steel construction on front, sides & 4" front rail for long-term durability
- Front-mounted manual gas shut-off and factory-installed regulator for fast, safe service access
- 22-1/2" flue riser with heavy-duty utensil shelf keeps pans and spices within arm’s reach

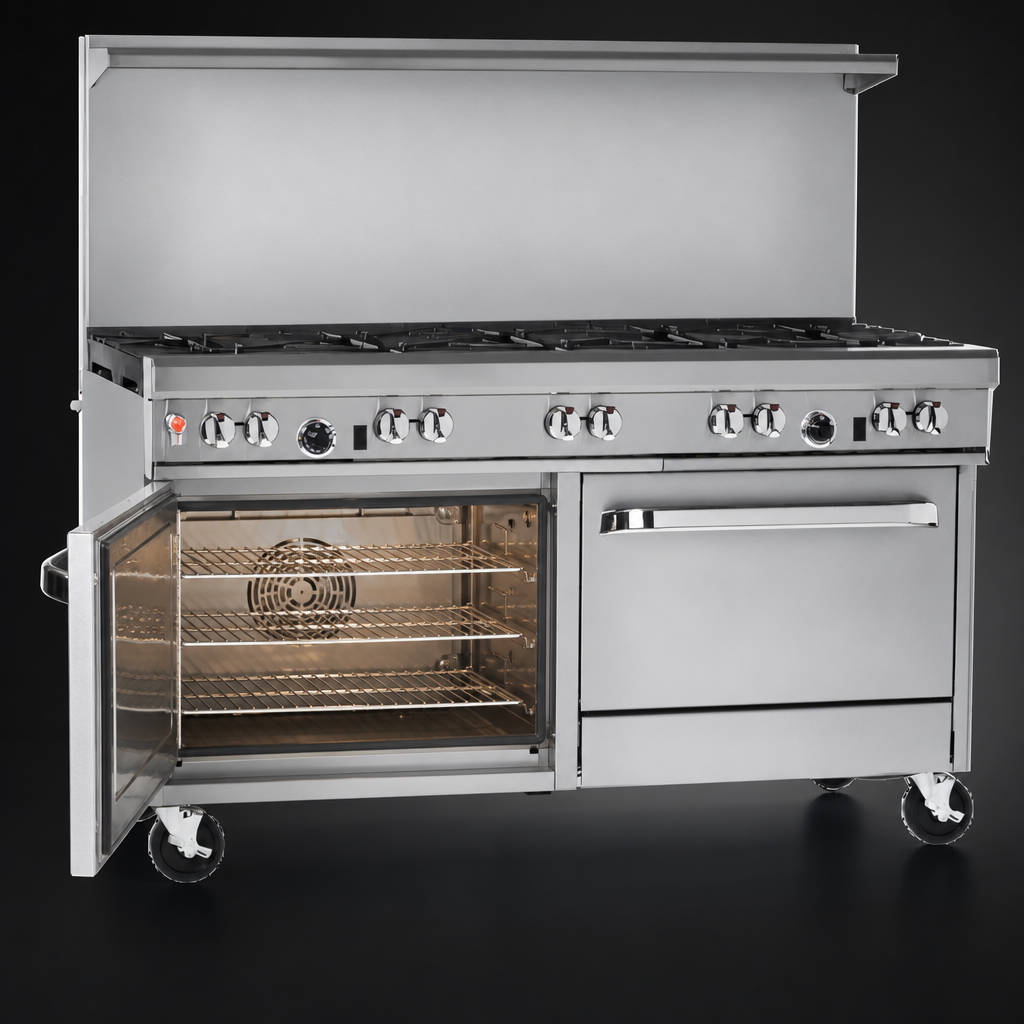

- Battery-spark ignition convection oven: 32,000 BTU, 3 racks, 5 rack positions & 175-550 °F thermostat
- 6" adjustable stainless-steel legs—meet local health codes and level the unit on uneven floors
- Certified to CSA & NSF standards and backed by a 1-year parts & labor warranty
Key Specifications
| Overall Width | 60 3/4" (1543 mm) |
|---|---|
| Overall Depth | 42 1/8" (1070 mm) |
| Cooking Height | 37" top surface |
| Total BTU (Natural Gas) | 324,000 BTU/hr |
| Burner Configuration | (4) 33 K non-clog + (4) 40 K Pyromax |
| Oven Type | 115 V convection, battery spark ignition |
| Oven Interior (WxDxH) | 26" × 24" × 14" porcelain-enamel cavity |
| Racks Included | 3 chrome racks, 5 positions |
| Gas Connection | 3/4" NPT (right or left depending on burner layout) |
| Electrical (Oven Fan) | 115 V / 5.9 A, 6' cord & 3-prong plug |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor |
What's Included
- (8) open burners with removable drip trays
- (3) oven racks
- 22-1/2" flue riser with integrated storage shelf
- Factory-installed pressure regulator & standing pilots on the cooktop
- Stainless-steel cabinet base for sheet pans, pots & dry storage
- 6" adjustable legs
- User & installation manual
Perfect For
- Full-service restaurants needing a versatile cookline anchor
- Catering venues requiring high-volume sautéing, boiling & baking
- Hotel kitchens consolidating multiple pieces into one durable range
- Meal-prep or commissary operations demanding nonstop reliability
Intended for commercial use only. Always install under a vented hood and follow local codes. Oversized cookware (12"+ diameter) should be used on rear burners to prevent heat damage to the front rail.
