Southbend (Middleby) 4601AC-7L Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range – Convection Oven & Cabinet Base
4 Non-Clog + 4 Pyromax Burners | 324,000 BTU TotalDominate every daypart with the range that puts raw power, smart workflow and Southbend’s legendary durability in one 60 inch footprint. Eight open burners—including four high-output Pyromax heads—sit above a full-size convection oven, while a stainless cabinet base keeps your most-used gear within arm’s reach.
Key Performance Features
- Eight open burners: 4 patented non-clog cast-iron burners (33,000 BTU ea.) and 4 Pyromax burners (40,000 BTU ea.) on the left for rapid boil & sear jobs.
- 32,000 BTU convection oven with battery spark ignition, 175 – 550 °F thermostat, porcelain interior, and 3 racks with 5 positions.
- Right-side stainless cabinet base for dry storage (optional doors available at no charge).
- 22-1/2" flue riser with heavy-duty shelf—ideal for finishing plates or staging smallwares.
- Front-mounted manual gas shut-off plus factory-installed regulator for fast, safe hookups.
- All-stainless exterior & 4" front rail; removable cast-iron grates accommodate up to 14" stock pots.
- CSA & NSF certified; ships with 6" adjustable stainless legs (casters optional).
Quick-Spec Table
| Overall width | 60-3/4" (1543 mm) |
|---|---|
| Overall depth | 42-1/8" (1070 mm) |
| Work-surface height | 37" |
| Flue riser height | 22-1/2" |
| Total input | 324,000 BTU/hr (natural gas) |
| Open burners | 4 × 33,000 BTU non-clog 4 × 40,000 BTU Pyromax |
| Oven | 32,000 BTU convection; fits 18" × 26" pans both directions |
| Gas connection | 3/4" NPT female (opposite oven side) |
| Electrical (blower) | 115 V / 60 Hz / 1 ph | 5.9 A | 6' cord & plug |
| Exterior finish | Stainless steel front, sides, shelf & rail |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (details) |
Engineered for the Line
- One-piece cast-iron burner heads are lifetime clog-free for reliable flame spread.

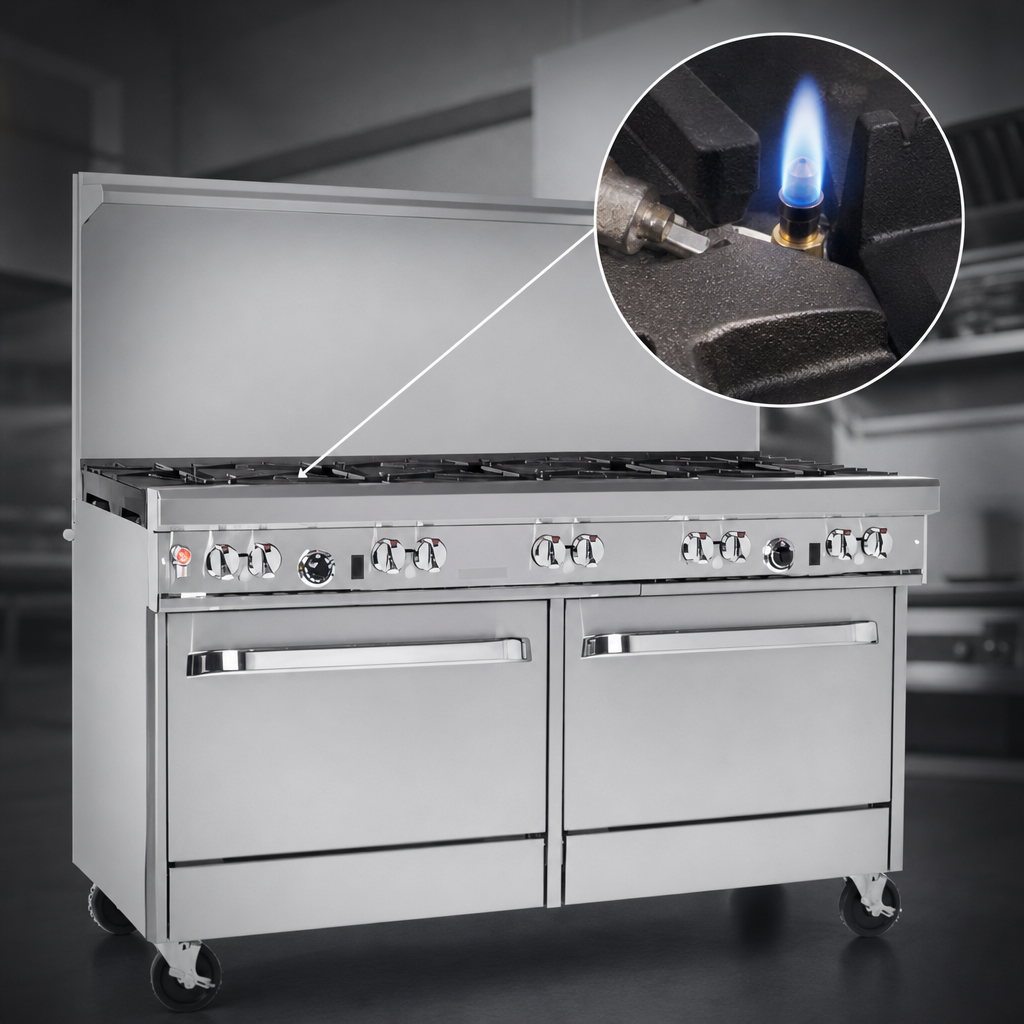

- Standing pilots keep every burner instantly ready for the rush.
- Counter-balanced oven door and coved-corner interior speed nightly clean-up.
- 4" stainless front rail lets you slide pans the full width of the range without lifting.
Looking for factory-installed doors, casters or other options? Contact us and we’ll configure a Southbend Ultimate Range that’s perfect for your workflow.
