Southbend (Middleby) 4601AC-6L Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range
3 Star/Sauté + 2 Pyromax + 4 Non-Clog Burners • Convection Oven & Cabinet Base • 343,000 BTUPurpose-built for high-volume kitchens that demand versatility, power, and rugged durability, the Southbend Ultimate 60" Restaurant Range combines three different burner technologies with a full-size convection oven and a stainless steel cabinet base—giving chefs a single platform for sautéing, high-heat stock work, gentle simmering, baking, and convenient storage.
Key Performance Features
- (3) 33,000 BTU cast-iron Star/Sauté burners (front-left) for rapid, even heat across small sauté pans.
- (2) 40,000 BTU Pyromax™ high-output burners (rear-left) engineered for stock pots and woks.
- (4) 33,000 BTU non-clog cast-iron burners (right side) with standing pilots for reliable, everyday production.

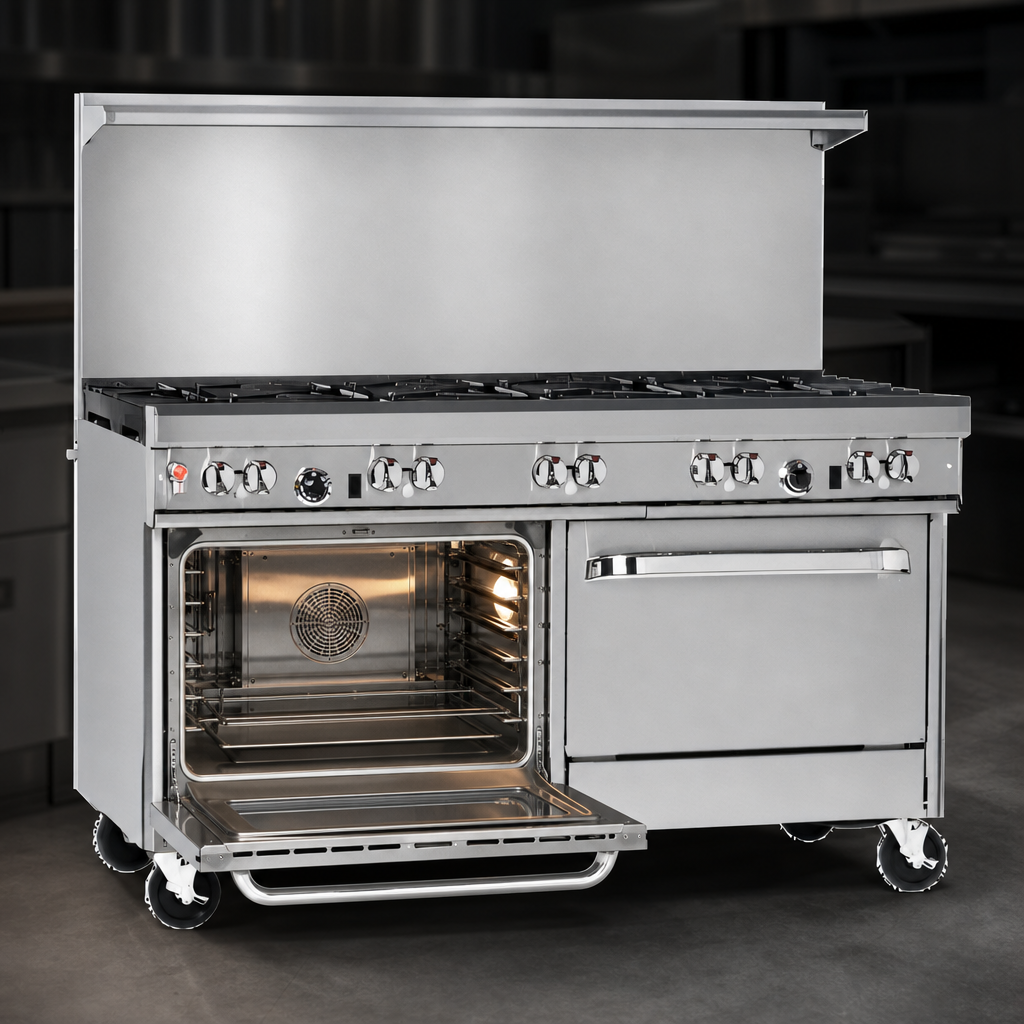

- Full-size, battery-spark-ignition convection oven (32,000 BTU) with 3 chrome racks & 5-position rails.
- Stainless steel cabinet base on the opposite side keeps sheet pans, lids, and utensils within arm’s reach.
- 22-1/2" flue riser with integrated heavy-duty shelf for plating or small-wares staging.
- 4" deep stainless steel front rail protects controls and doubles as a plate shelf.
- Factory-installed 3/4" regulator and front-mounted manual gas shut-off simplify installation & service.
- 6" stainless steel adjustable legs for easy leveling on uneven kitchen floors.
- CSA & NSF listed; built in the USA for commercial use.
At-a-Glance Specifications
| Total Input | 343,000 BTU/hr (Natural Gas) |
|---|---|
| Open Top Configuration | 3 Star/Sauté (front-left) • 2 Pyromax (rear-left) • 4 Non-Clog (right) |
| Cooking Surface | 27" deep cast-iron grates; rear sections accommodate up to 14" stock pots |
| Convection Oven Capacity | 14"H × 26"W × 24"D; accepts full-size sheet pans in either direction |
| External Dimensions | 60-3/4"W × 34"D × 37"H (to cooktop) • 59-1/2"H to top of flue shelf |
| Gas Connection | 3/4" NPT (7" W.C. Natural / 11" W.C. Propane minimum inlet pressure) |
| Electrical | 115 V, 60 Hz, 1 Ø, 5.9 A (factory-supplied 6' cord & NEMA 5-15P plug) — convection fan only |
| Construction | Stainless steel front, sides, shelf, & 6" adjustable legs; double-sided porcelain oven interior |
| Warranty | 1-year limited parts & labor (see Southbend terms for details) |
Why Choose This Configuration?
- Multi-Zone Productivity – Run high-BTU Pyromax burners for rapid boil or wok fire, while star and non-clog burners handle sautéing and simmering simultaneously.
- Space Optimization – Convection oven bakes evenly without hot spots; integrated cabinet base eliminates the need for standalone storage racks.
- Service-Ready Design – Front gas shut-off, removable cast-iron grates, and two full-length crumb trays speed nightly cleaning and maintenance.
Intended for commercial kitchens only. Follow local codes for installation under a properly sized and ventilated hood. Oversized cookware (12" +) should be kept to the rear grates to avoid excess front-rail heat.
