Southbend (Middleby) 4601AC-3TR Ultimate Gas Ranges
Southbend (Middleby) 4601AC-3TR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4601AC-3TR Ultimate Gas Ranges
Description
Ultimate 60" Gas Restaurant Range
4 open burners · 36" right-side thermostatic griddle · convection oven & cabinet baseBuilt for kitchens that never slow down, the Southbend Ultimate Series combines rugged construction with precision cooking power. From high-heat sauté to all-day pancakes and flawless baking, this 60" workhorse delivers 228,000 BTU of uncompromising performance in a single, space-saving footprint.
Why You’ll Love It
- 4 patented, one-piece non-clog cast-iron burners (33,000 BTU EA) – rear grates hold up to a 14" stock pot.

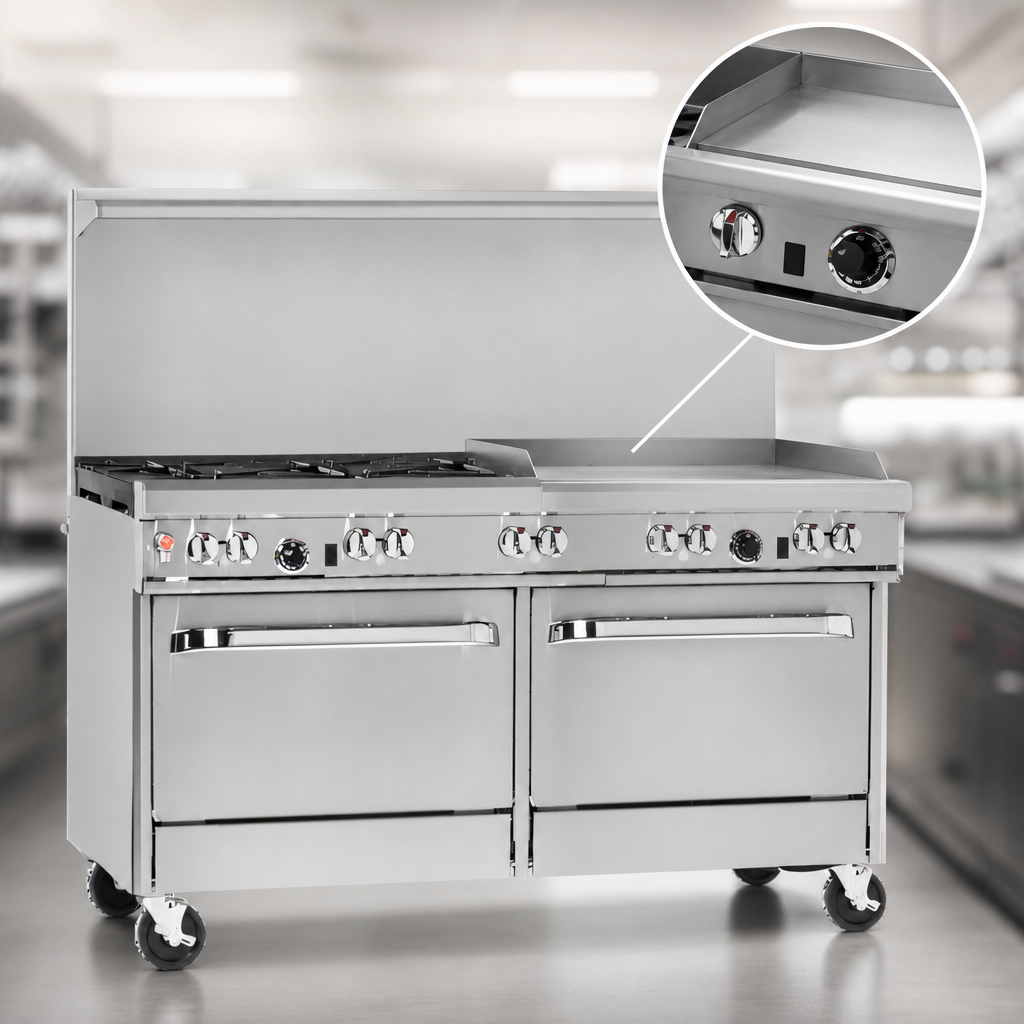

- 36" 1/2" thick polished steel griddle (right side) with thermostatic controls for consistent browning from 175 °F – 550 °F.
- Left-hand 32,000 BTU convection oven with battery-spark ignition; includes 3 chrome racks & 5 position rails.
- Right-hand stainless-steel cabinet base adds dry storage without increasing the range footprint.
- Front-mounted manual shut-off plus factory-installed ¾" regulator for quick, code-compliant hook-up.
- 22½" high flue riser with heavy-duty integrated shelf keeps plates warm and tools close at hand.
- Full stainless-steel front, sides, shelf & 6" adjustable legs stand up to daily high-volume use.
- Certified safe & sanitary – cCSAus, CSA Flame, CSA Star & NSF listed.
- Backed by a 1-year parts & labor warranty and nationwide Southbend service network.
Technical Specifications
| Overall width / depth / height (to cooktop) | 60 ¾" W × 34" D × 37" H |
|---|---|
| Cooking surface | 27" deep, heavy-duty cast-iron grates + 36" griddle plate |
| Total input (natural gas) | 228,000 BTU/hr |
| Open burners | 4 × 33,000 BTU non-clog burners (standing pilots) |
| Griddle section | 36" W × 24" D, 1/2" thick, thermostatic, 80,000 BTU |
| Convection oven | 32,000 BTU, 14" H × 26" W × 24" D cavity, porcelain interior, 115 V/5.9 A fan motor |
| Gas connection | ¾" NPT (rear); min. inlet 7" W.C. NAT / 11" W.C. LP |
| Electrical (oven fan) | Factory-wired 115 V cord & 3-prong plug |
| Ship weight | ≈1,075 lb crated |
| Warranty | 1-year parts & labor (see below) |
Need Financing?
Spread the cost with affordable, fixed monthly payments through Middleby Equipment Financing. Preserve your cashflow and keep other credit lines open. Ask us for today’s quick-approval application.
Warranty & Important Notes
Southbend warrants this range to be free from defects in materials and workmanship for one (1) year on parts and labor. Service must be performed by an authorized Southbend agency. See full warranty statement for exclusions and required maintenance.
