Southbend (Middleby) 4601AC-2TR Ultimate Gas Ranges
Description

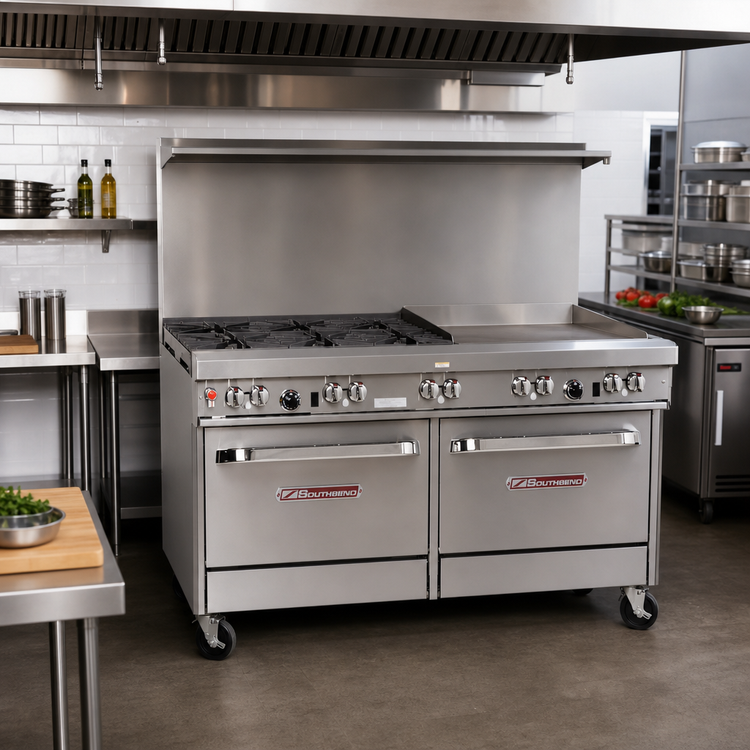

Southbend Ultimate 60" Gas Restaurant Range
6 Open Burners • 24" Right-Side Thermostatic Griddle • Convection Oven & Cabinet Base • 278,000 BTUGive your kitchen the power and flexibility of Southbend’s flagship 60" Ultimate Series range. Built for high-volume restaurants that refuse to compromise on performance, this all-in-one workstation combines clog-free burners, a precision-controlled griddle, high-capacity convection baking, and convenient dry storage— all wrapped in a heavy-gauge stainless-steel body that’s made to thrive in the toughest back-of-house environments.
Key Benefits
- Six 33,000 BTU non-clog burners – patented one-piece cast iron design for lifetime, clog-free performance.
- 24" thermostatic griddle (right) – ½" thick polished steel plate with snap-action controls for perfect browning every time.
- High-efficiency convection oven – 32,000 BTU burner, porcelain interior, five rack positions, and three adjustable racks included.
- Built-in cabinet base – stainless shelf storage keeps sheet pans, smallwares, or dry goods within arm’s reach.
- 278,000 BTU total output – enough muscle to power through the busiest rush.
- 22½" flue riser with overshelf adds plating and garnish space without expanding your footprint.
- Front manual gas shut-off and factory-installed regulator for safer, faster service calls.
- Battery-spark ignition on the oven—no electrical hookup needed for lighting.
- 6" adjustable stainless legs standard (all-swivel casters optional).
- Proudly built in the USA; cCSAus, CSA Flame, CSA Star & NSF listed for peace of mind.
At-a-Glance Specifications
| Model / Series | Ultimate 60" Series (460) |
|---|---|
| Overall Width | 60.75" / 1543 mm |
| Overall Depth | 42.13" / 1070 mm (to oven door handle) |
| Cooking Surface Height | 37" / 940 mm |
| Total BTU Input | 278,000 BTU/hr (Natural Gas) |
| Gas Connection | ¾" NPT (left rear, opposite griddle location) – 7" W.C. minimum inlet |
| Electrical (convection fan) | 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & NEMA 5-15P plug |
| Oven Interior (WxDxH) | 26" × 24" × 14" – porcelain enamel |
| Griddle Plate | 24" W × 27" D, ½" thick polished steel, right-hand, thermostatic |
| Shipping Weight | Approx. 1,075 lb / 488 kg |
| Certifications | cCSAus • CSA Flame • CSA Star • NSF |
What’s Included
- (3) chrome oven racks, five rack positions
- 22½" stainless flue riser with overshelf
- Factory-installed gas pressure regulator
- Owner’s manual & quick-start guide
- One-year limited parts & labor warranty
Ideal Applications
- Full-service restaurants & hotel kitchens
- Catering facilities and banquet halls
- College & corporate dining operations
- Any high-volume line requiring searing, sautéing, griddling, and baking in one compact footprint
