Southbend (Middleby) 4601AA Ultimate Gas Ranges
$15,222.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4601AA Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4601AA Ultimate Gas Ranges
$15,222.00
Unit price
/
Unavailable
Description

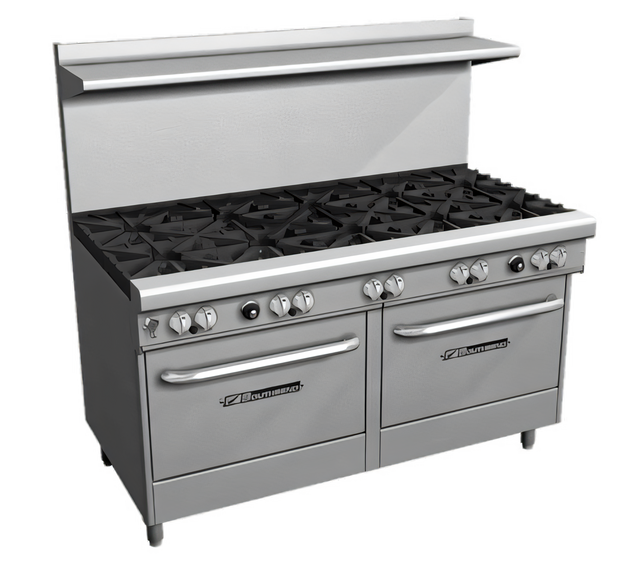

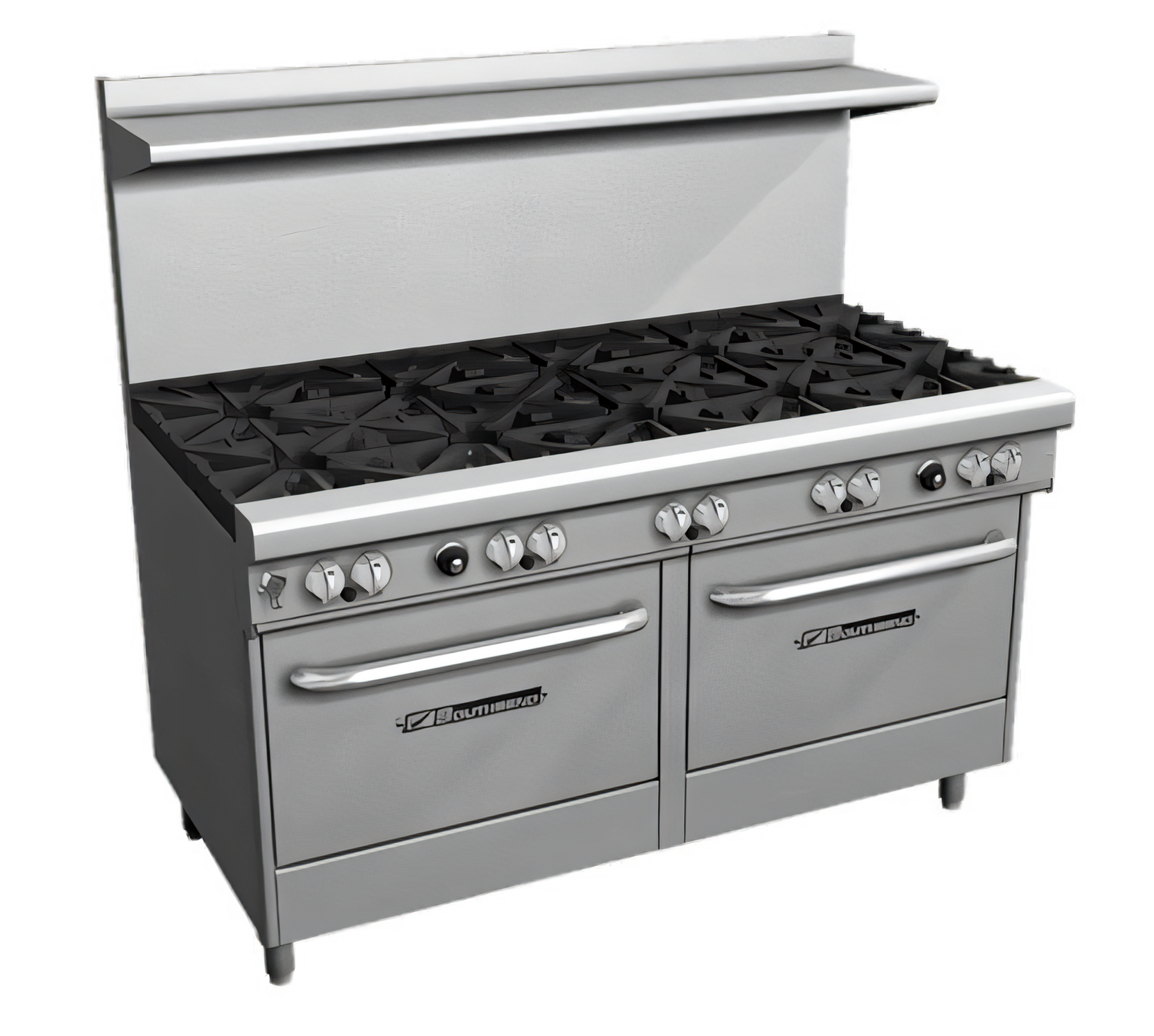

Southbend Ultimate 60" Gas Restaurant Range – 10 Non-Clog Burners & Double Convection Oven
Model 460AA-10NC | Natural Gas | 394,000 BTU/hrBuilt for relentless commercial duty, the Southbend Ultimate Range combines ten high-output open burners with twin convection ovens in a space-saving 60 inch footprint. Expect faster boils, even baking, and the rugged reliability chefs demand.
Key Performance Features

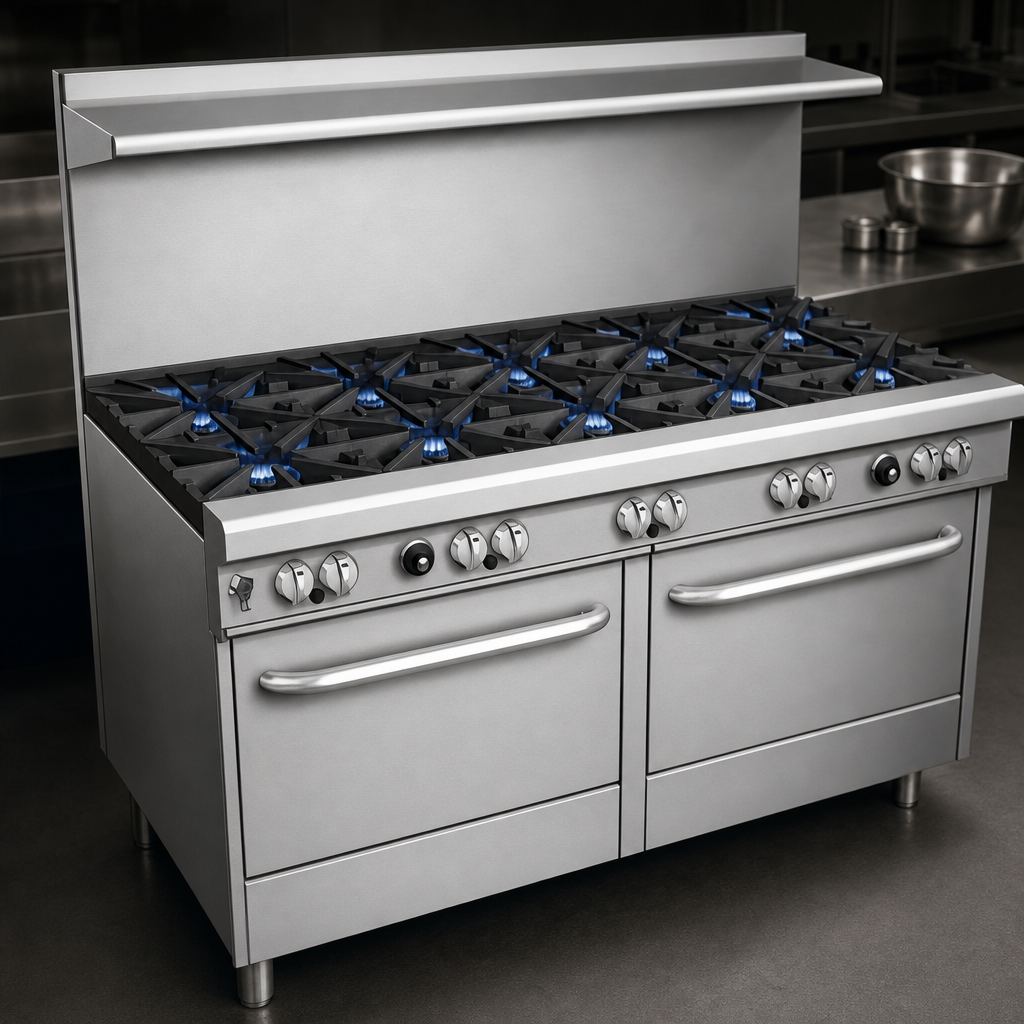

- Ten 33,000 BTU patented cast-iron non-clog burners – lifetime clog-free design with standing pilots.

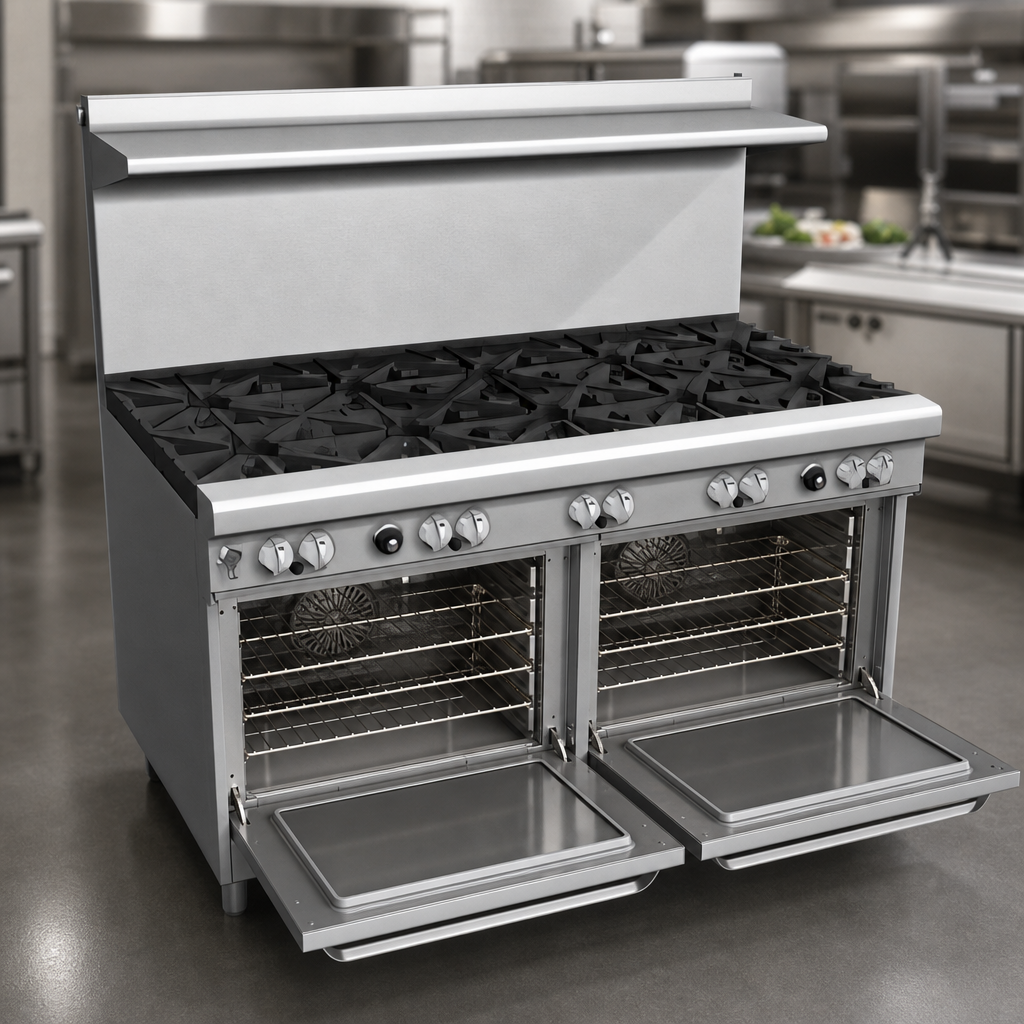

- Two 32,000 BTU convection ovens featuring battery-spark ignition and thermostats from 175 °F–550 °F.
- Ships with (3) chrome racks per oven; 5-position side rails fit full-size sheet pans both ways.
- 22-1/2 inch flue riser with integrated plate shelf keeps food hot and cookware close.
- Full stainless-steel front, sides, low-profile shelf and 6" adjustable legs for easy leveling and cleanup.
- Front-mounted manual gas shut-off and factory-installed regulator speed installation & service.
- Removable one-piece drip trays capture grease for a cleaner kitchen.
- CSA & NSF listed; backed by a 1-year parts & labor warranty and nationwide service network.
Specification Snapshot
| Cooking Surface | 60-3/4" W × 27" D with four heavy cast-iron grate sections |
|---|---|
| Burners | 10 × 33,000 BTU non-clog open burners (natural gas) |
| Oven Type | 2 × convection, battery-spark ignition |
| Oven Interior (each) | 26" W × 24" D × 14" H porcelain cavity, 5 rack positions |
| Included Racks | 3 per oven (6 total) |
| Total Input | 394,000 BTU/hr |
| Gas Connection | 3/4" NPT female (min. 7" W.C. NG) |
| Electrical | 115 V / 60 Hz / 1-phase, 6 A, 6' cord & plug (convection fans) |
| Overall Dimensions | 60-3/4" W × 34" D × 59-1/2" H (to flue top) – 37" cook height |
| Shipping Weight | Approx. 1,075 lb |
| Certifications | CSA, NSF |
Built to Last
- Double-sided porcelain oven liners with coved corners resist corrosion and wipe clean.
- Spring-assisted, counter-balanced doors stay open at any angle and close smoothly.
- 4" deep stainless front rail protects controls and doubles as a staging shelf.
- Rugged cast-iron grates support up to 14" stock pots on the rear burners.
Important: For commercial use only. Install on non-combustible floors—or use the supplied 6" legs on combustible surfaces. To avoid front-rail damage, keep cookware 12" Ø or larger on rear burners.
Need flexible payments? Middleby Equipment Financing offers fast approvals and fixed monthly terms. Learn more.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
60.75in
Depth
43.6in
Shipping Weight
1075.0lbs
Base
(2) convection ovens
Top
(10) open burners
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Specifications
Ultimate Restaurant Range, gas, 60", (10) non-clog burners, standard grates, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 394,000 BTU, CSA, NSF
