Southbend (Middleby) 4601AA-7R Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range
4 Non-Clog Burners • 4 Pyromax Burners • (2) Convection Ovens • 356,000 BTUWhen you need maximum fire-power, rock-solid construction and all-day reliability, nothing out-cooks the Southbend Ultimate. This 60-inch range combines eight open burners with twin convection ovens, giving chefs the speed of a sauté station and the capacity of a full bake line in one stainless-steel workhorse.
Why You’ll Love It

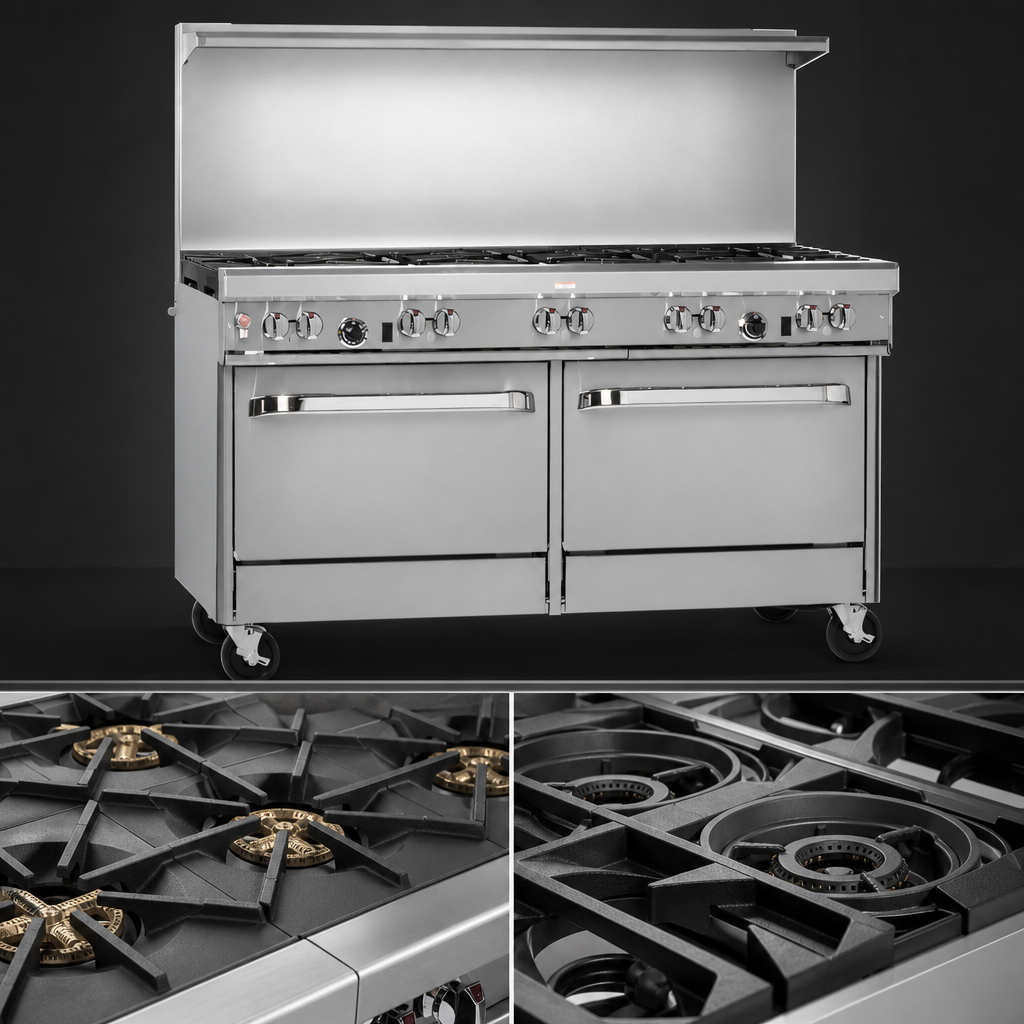

- Hybrid high-output top – 4 patented 33,000 BTU non-clog burners plus 4 ultra-powerful 40,000 BTU Pyromax burners (right side) for rapid boils & blazing sears.

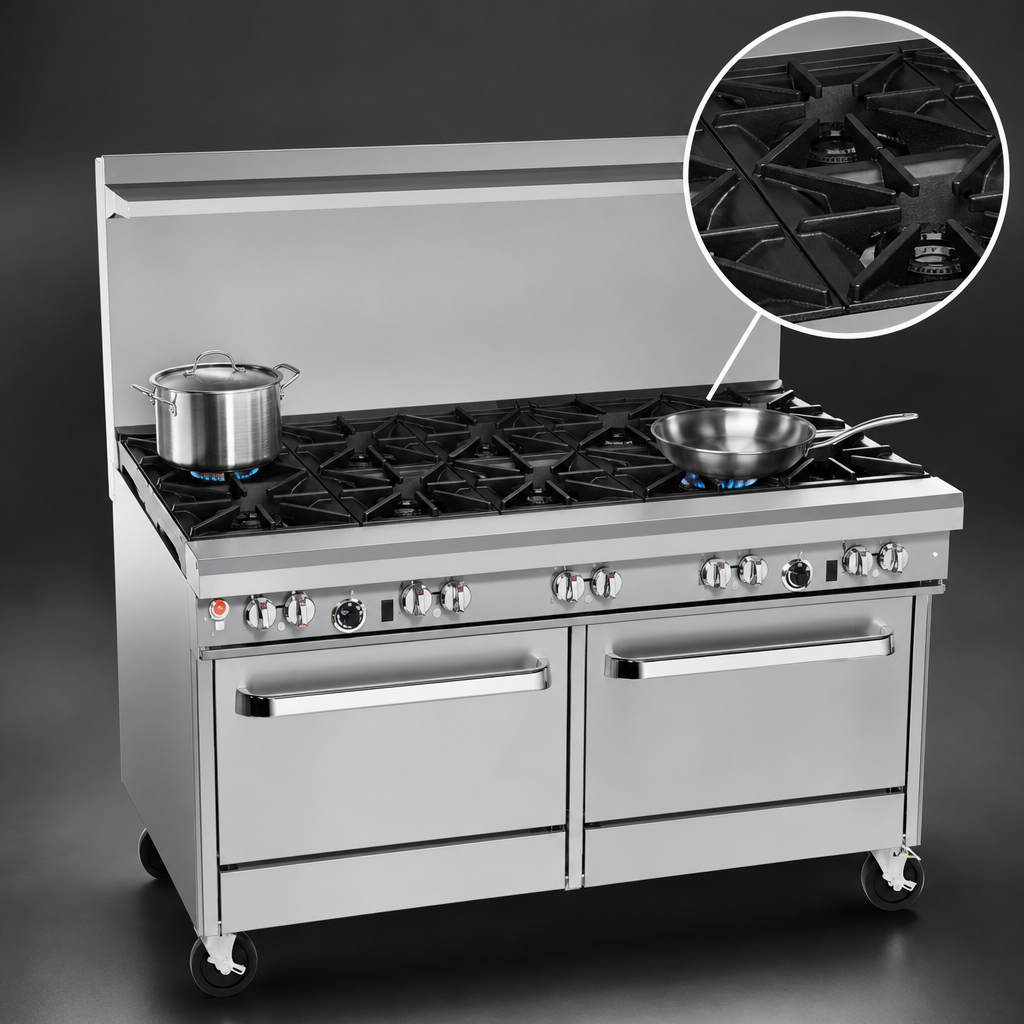

- All-cast-iron grates – removable, rear sections support up to a 14" stock pot; two one-piece drip trays simplify clean-up.
- Double convection base – each 32,000 BTU oven features a 1/2 HP fan, battery spark ignition and three nickel racks on five positions.
- Stainless inside & out – front, sides, shelf and 6" adjustable legs resist corrosion and wipe clean fast.
- Built-in safety & serviceability – front gas shut-off, factory regulator, standing pilots, and removable burner bowls keep downtime to a minimum.
- Ready for heavy volume – 27" deep cooking surface, 37" working height and 22.5" flue riser with storage shelf maximize usable space.
- Certified & covered – CSA & NSF listed and backed by a 1-year parts & labor warranty.
Specifications
| Model | Ultimate 460AA-PYRO-NC |
|---|---|
| Overall Width | 60.75" (1543 mm) |
| Overall Depth | 42.13" (1070 mm) |
| Cooking Height | 37" (940 mm) |
| Burners | 4 × 33,000 BTU non-clog (left) | 4 × 40,000 BTU Pyromax (right) |
| Cooktop BTU | 292,000 BTU/hr |
| Ovens | 2 countertop-height convection ovens, porcelain interior 14"H × 26"W × 24"D |
| Oven BTU | 2 × 32,000 BTU/hr |
| Total Input | 356,000 BTU/hr |
| Oven Racks | 3 per oven (5 rack positions) |
| Gas Connection | 3/4" NPT (rear, left or right depending on top configuration) |
| Gas Type / Pressure | Natural Gas, 7" W.C. minimum inlet |
| Electrical (fans) | 115 V / 60 Hz / 1 ph, 6 ft cord & plug – 5.9 A total |
| Construction | Stainless steel front, sides, 4" rail & flue shelf; 6" stainless adjustable legs |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty for details) |
What’s in the Box
- Southbend Ultimate 60" gas range (factory-installed regulator & flue shelf)
- Eight removable cast-iron grates & two drip trays
- Six oven racks (3 per oven)
- Owner’s/installation manual
For commercial use only. Install under a properly sized vent hood. Oversized cookware (12" +) should be placed over rear burners to prevent excess front-rail heat per manufacturer guidance.
