Southbend (Middleby)  |  Ultimate  |  SKU: 4601AA-6R

Southbend (Middleby) 4601AA-6R Ultimate Gas Ranges

$15,222.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

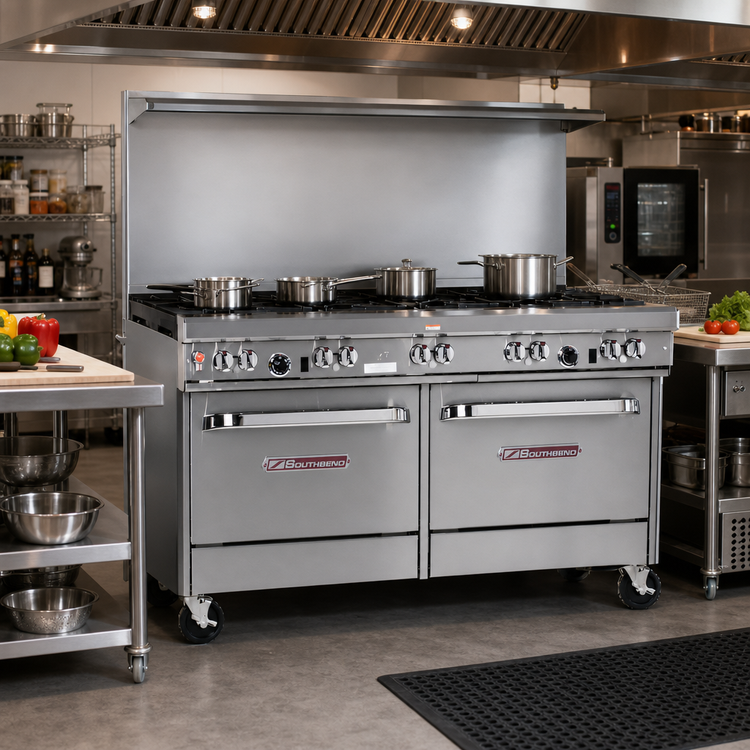

Southbend Ultimate 60" Gas Restaurant Range – Split Top w/ Double Convection Ovens

Model 460AA • 375,000 BTU • CSA & NSF Certified

Southbend’s flagship Ultimate Series delivers the horsepower chefs demand and the durability operators trust. This 60-inch range combines a high-performance 9-burner cooktop with two full-size convection ovens, all wrapped in heavy-gauge stainless steel for years of trouble-free service.

Unmatched Cooktop Versatility

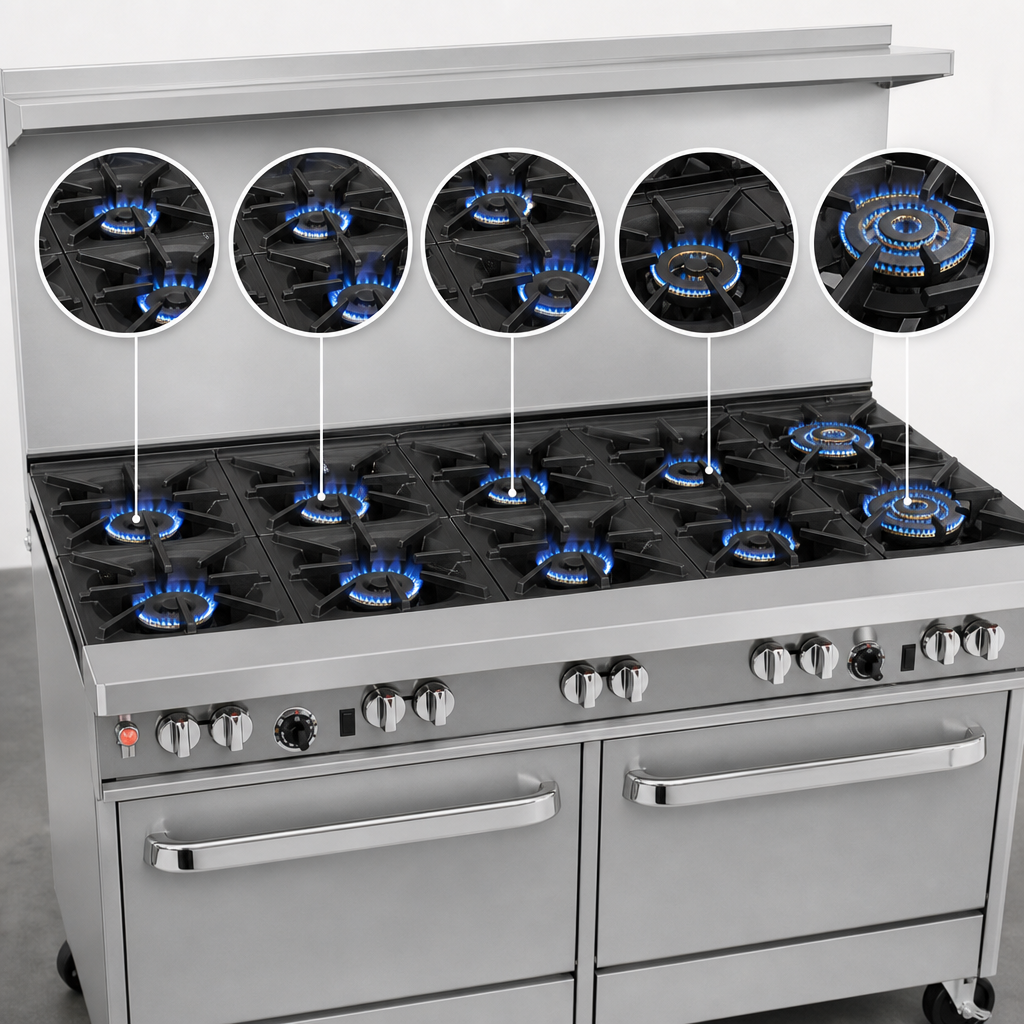

  • Right front: (3) 33,000 BTU cast-iron Star/Sauté burners for rapid, even heat distribution.
  • Right rear: (2) 40,000 BTU Pyromax burners – patented, high-output design with built-in port-protection drip rings.
  • Left section: (4) 33,000 BTU lifetime Non-Clog burners with removable heads for easy cleaning.
  • Heavy cast-iron grates (rear grate supports up to 14" stock pots).
  • Standing pilots on all open burners for instant ignition.
  • Two removable drip trays keep the work surface clean and safe.

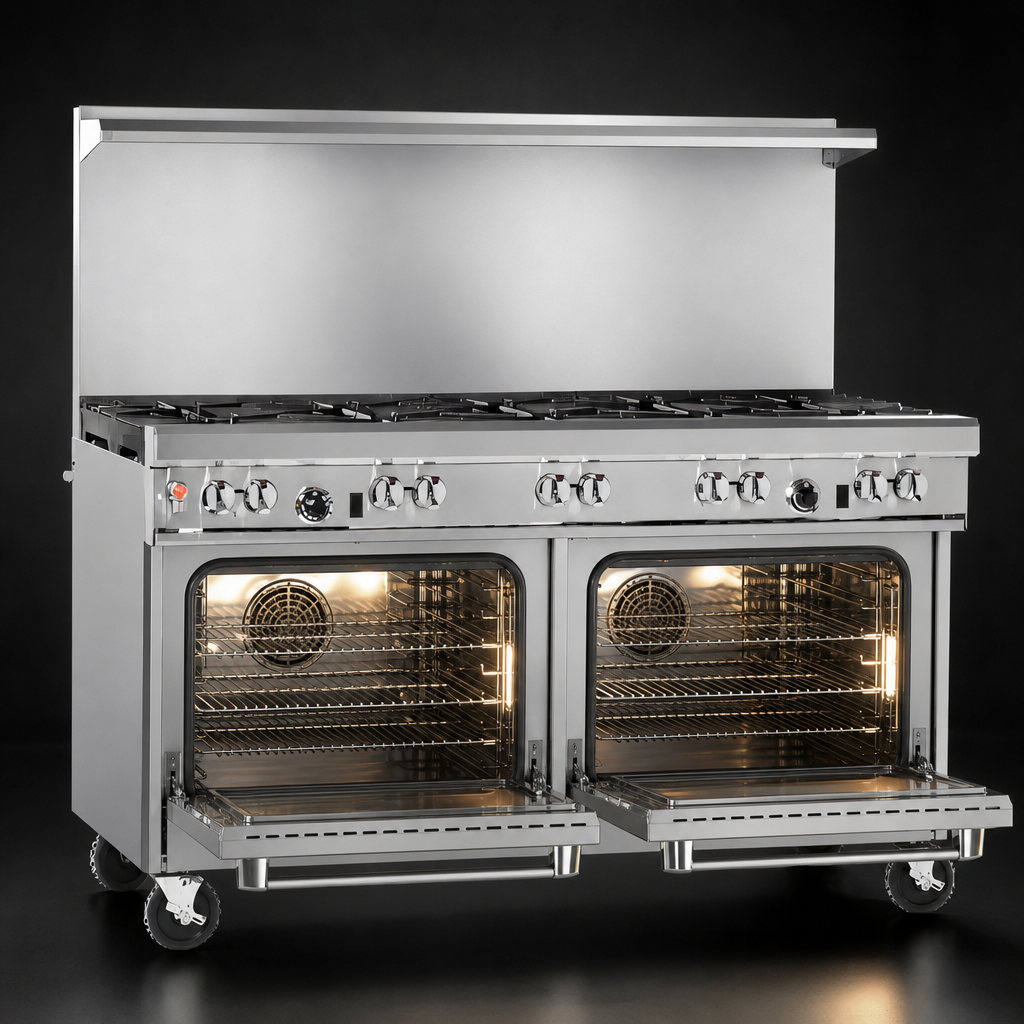

High-Efficiency Dual Convection Ovens
  • (2) 32,000 BTU convection ovens with battery-spark ignition & manual gas shut-off.
  • Thermostat range: 175 °F – 550 °F (79 °C – 288 °C).
  • 14"H × 26"W × 24"D porcelain-enameled cavities with coved corners for easy wipe-down.
  • Includes (3) chrome racks per oven with 5 rack positions.
  • 1/2 HP fan motors (115 V, 5.9 A total) for fast, even baking and roasting.
  • Spring-assisted, counter-balanced doors for smooth, one-hand operation.
Built for the Long Haul
  • Stainless steel front, sides, 4" front rail, 22-1/2" flue riser and integrated overshelf.
  • 6" stainless steel adjustable legs (casters optional).
  • Factory-installed gas regulator and front-mounted manual shut-off valve.
  • One-year limited parts & labor warranty backed by Southbend’s nationwide service network.
Specifications
Overall Width 60 3/4"  (1543 mm)
Overall Depth (incl. doors) 42 1/8"  (1070 mm)
Cooktop Height 37"  (940 mm)
Overall Height (to shelf) 59 1/2"  (1511 mm)
Total BTU Input 375,000 BTU/hr
Burner Breakdown (3) Star/Sauté @ 33 k  •  (2) Pyromax @ 40 k  •  (4) Non-Clog @ 33 k  •  (2) Convection Ovens @ 32 k
Gas Connection 3/4" NPT (rear)
Min. inlet: 7" W.C. NAT / 11" W.C. LP
Electrical 115 V / 60 Hz / 1 Ø, 5.9 A – 6' cord & 3-prong plug
Oven Interior (each) 14"H × 26"W × 24"D
Shipping Weight Approx. 1,075 lb (488 kg)
Certifications CSA, NSF
Standard Warranty 1 year parts & labor
Important: For commercial use only. When using cookware 12" or larger, place it on the rear grates to prevent excessive heat on the front rail. Install under a properly vented hood and follow all local codes.

Need new equipment without a large upfront cost? Ask about Middleby’s fast, affordable financing options.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

43.6in

Shipping Weight

1075.0lbs

Top

(9) open burners

Base

(2) convection ovens

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Specifications

Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front right, (2) pyromax burners rear right, (4) non-clog burners left, standard grates, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 375,000 BTU, CSA, NSF
