Southbend (Middleby) 4601AA-3GR Ultimate Gas Ranges
Description

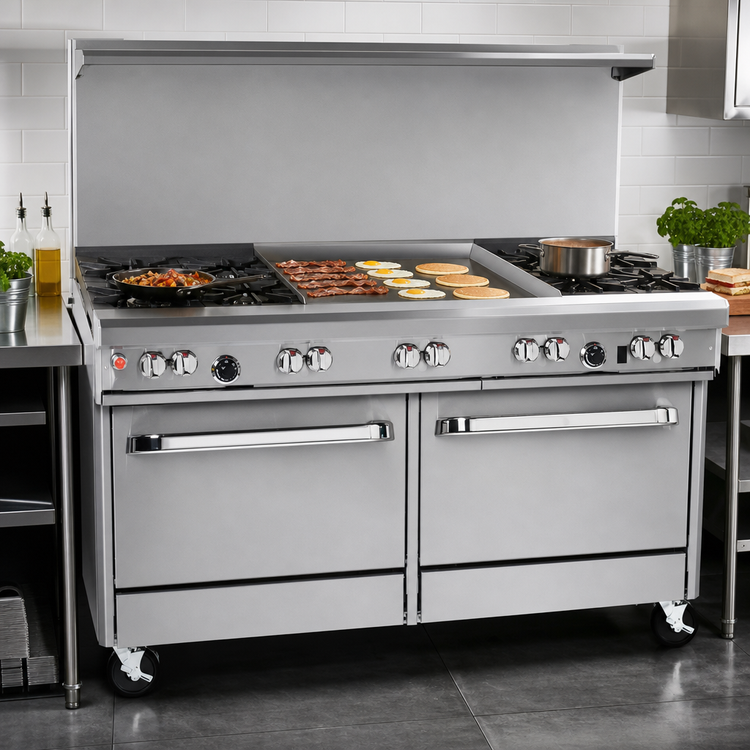

Southbend Ultimate 60" Gas Restaurant Range w/ 4 Burners, 36" Right-Side Griddle & Dual Convection Ovens
Model 4601DD • Natural Gas • 260,000 BTUPower, versatility, and rugged durability come together in the Southbend Ultimate 60" Restaurant Range. Four high-performance open burners, a full-width griddle, and two independent convection ovens give chefs the flexibility to sauté, sear, grill, bake, and roast-all on a single, space-saving footprint.
Key Features & Benefits
- 260,000 BTU total output handles the busiest rush with ease.
- Four 33,000 BTU non-clog, cast-iron burners with standing pilots; rear grates accept 14" stock pots.

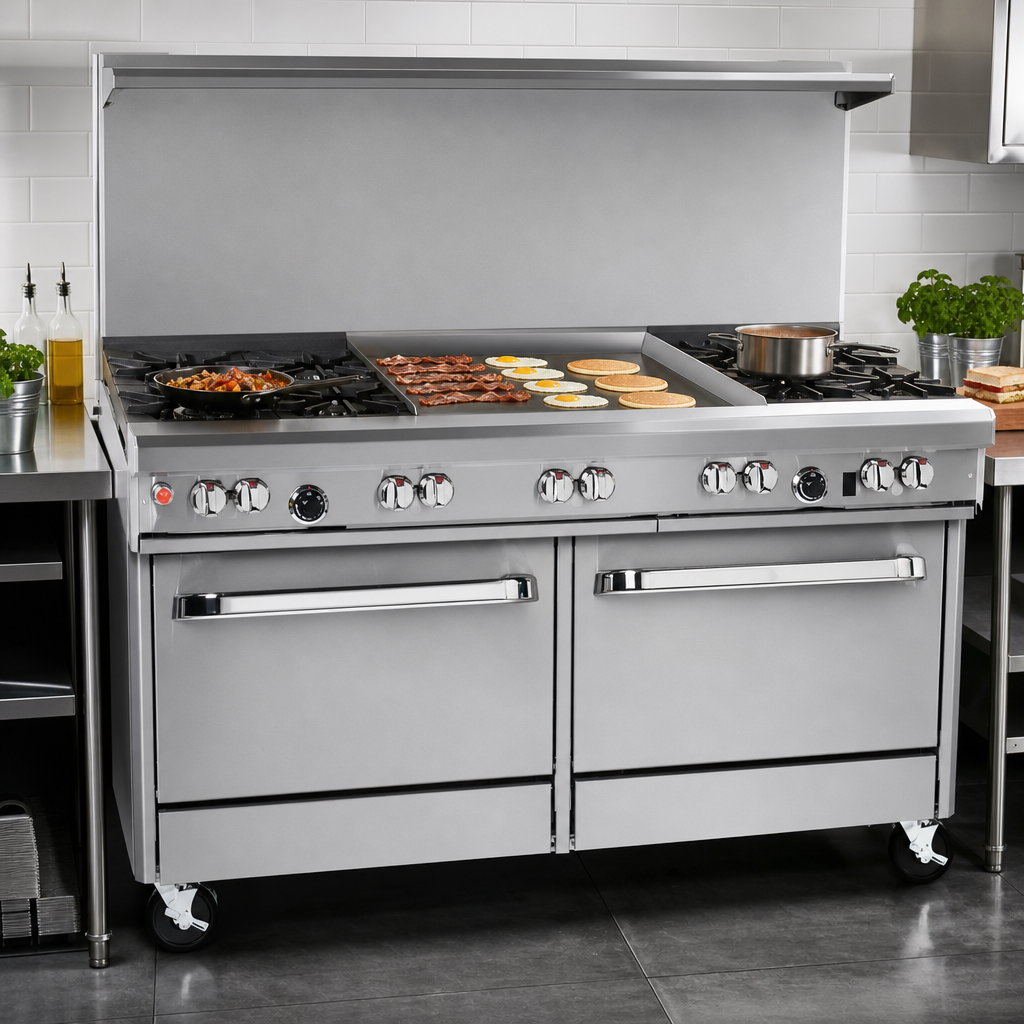

- 36" smooth polished-steel griddle (½" thick) on the right side delivers consistent heat across a 64,000 BTU zone.
- Dual 32,000 BTU convection ovens (175–550 °F) with battery spark ignition; each includes 3 racks and porcelain-enamel interiors for even baking and quick clean-up.
- Front-mounted manual gas shut-off lets you cut fuel to the entire range in seconds.
- 22 ½" flue riser with sturdy stainless shelf keeps plates, pans, and seasonings right where you need them.
- All-stainless front, sides, rail, shelf, and 6" adjustable legs stand up to daily commercial abuse.
- Factory-installed ¾" gas pressure regulator and plug-and-play 115 V connection for oven blowers simplify installation.
- Certified cCSAus, CSA Flame, CSA Star, and NSF for worry-free code compliance.
Specifications
| Model | 4601DD (AA base) |
|---|---|
| Overall width | 60 ¾" (1543 mm) |
| Overall depth | 34" (864 mm) |
| Cooktop height | 37" (940 mm) |
| Height w/ riser | 59 ½" (1511 mm) |
| Total BTU | 260,000 BTU/hr (Natural Gas) |
| Open burners | 4 × 33,000 BTU non-clog cast-iron |
| Griddle | 36" W × 27" D, ½" plate, 64,000 BTU |
| Ovens (2) | 32,000 BTU convection each; 14" H × 26" W × 24" D cavity, 3 racks, 5 positions |
| Gas connection | ¾" NPT (left or right, opposite griddle), 7" W.C. min. inlet |
| Electrical | 115 V / 60 Hz / 1 ph, 5.9 A, 6' cord & 3-prong plug |
| Shipping weight | Approx. 1,075 lb (488 kg) |
| Warranty | 1 year parts & labor (see warranty terms) |
What's Included
- (4) removable cast-iron grate tops
- (2) stainless steel crumb/drip trays
- (6) oven racks – three per cavity
- 22 ½" flue riser with integrated shelf
- Factory pressure regulator & operator manual
Popular Accessories (sold separately)
- All-swivel locking casters
- 3 ft, 4 ft, or 5 ft quick-disconnect gas hose
- Extra oven racks
- Rear-mounted salamander or cheesemelter
