Southbend (Middleby) 4601AA-2TR Ultimate Gas Ranges
Description

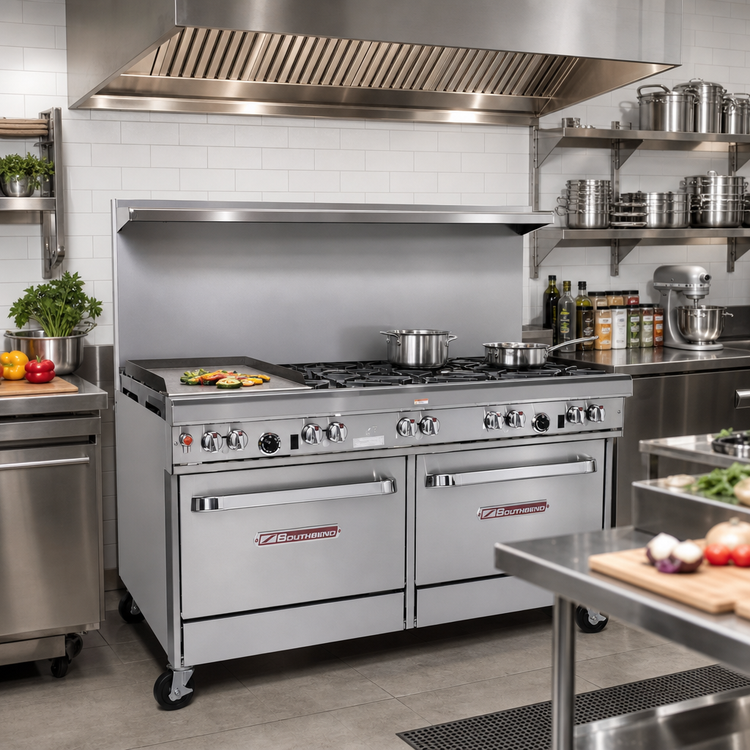

Southbend Ultimate 60" Gas Restaurant Range – 6 Burners, 24" Right-Side Thermostatic Griddle & Double Convection Ovens
Model 4601AA | Approx. 310,000 BTU | Natural GasBring uncompromising power, precision and durability to your cookline. The Southbend Ultimate 60" range merges a high-output open-top, a thermostat-controlled griddle and two full-size convection ovens in one all-stainless platform—giving chefs everything they need to crush the rush in a single footprint.
Why You’ll Love It
- 6 × 33,000 BTU non-clog burners – patented one-piece cast iron design stays clog-free for life and lifts out for fast cleaning.

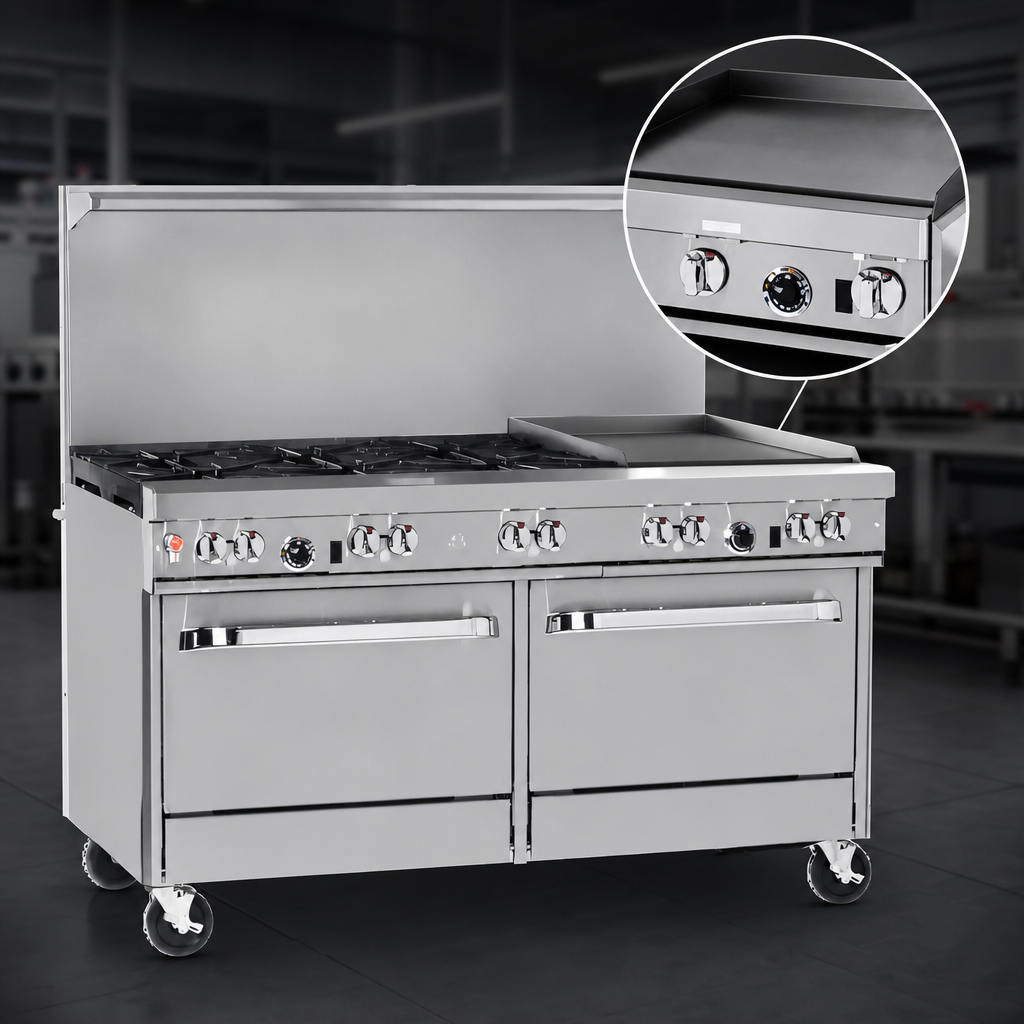

- 24" right-hand griddle – ½" smooth, polished steel plate with thermostatic controls for a steady 175–550 °F sear zone.
- Twin 32,000 BTU convection ovens – porcelain interiors, battery spark ignition and (3) heavy-duty racks per cavity (5 positions).
- 22.5" flue riser & shelf – plate, garnish or keep pans warm right where you work.
- Front-mounted manual gas shut-off and factory preset regulator included.
- 4" deep stainless front rail plus removable drip trays for a cleaner, cooler line.
- All-stainless exterior (front, sides & shelf) on sturdy 6" adjustable legs for easy leveling and hose-out cleaning.
- Certified cCSAus, CSA Flame, CSA Star & NSF for peace of mind and code compliance.
- Backed by a 1-year parts & labor warranty and nation-wide Southbend service network.
Technical Specifications
| Overall width | 60 ¾" / 1543 mm |
|---|---|
| Overall depth | 42 ⅛" / 1070 mm |
| Cook surface height | 37" / 940 mm |
| Open-top burners | 6 × 33,000 BTU non-clog cast iron (standing pilots) |
| Griddle section | 24" right, ½" plate, thermostatic, 64,000 BTU |
| Convection ovens | 2 × 32,000 BTU each, 175–550 °F, 3 racks (5 positions) per oven |
| Total gas input | Approx. 310,000 BTU/hr |
| Oven cavity (each) | 14" H × 26" W × 24" D – fits full-size pans both directions |
| Gas connection | ¾" NPT (rear; opposite of griddle side) |
| Minimum gas pressure | Natural gas 7" W.C. |
| Electrical (ovens) | 115 V / 60 Hz / 1 ph, 5.9 A, 6′ cord & 3-prong plug |
| Shipping weight | Approx. 1075 lb / 488 kg |
Installing on flooring other than quarry tile? Contact Southbend for approved options. Limiting 12"+ stockpots to the rear burners helps prevent excessive front-rail heat build-up and extends component life.
