Southbend (Middleby) 448EE-4T Ultimate Gas Ranges
Description
Southbend Ultimate 48" Gas Griddle Range with Double Space-Saver Ovens
Model 4481EE | Natural Gas | 170,000 BTUPut an entire short-order battery in just four feet of line space. The Southbend Ultimate 48" Restaurant Range combines a full-width thermostatic griddle with two powerful space-saving ovens—perfect for high-volume diners, cafés and catering operations that need versatility without sacrificing square footage.
Key Features

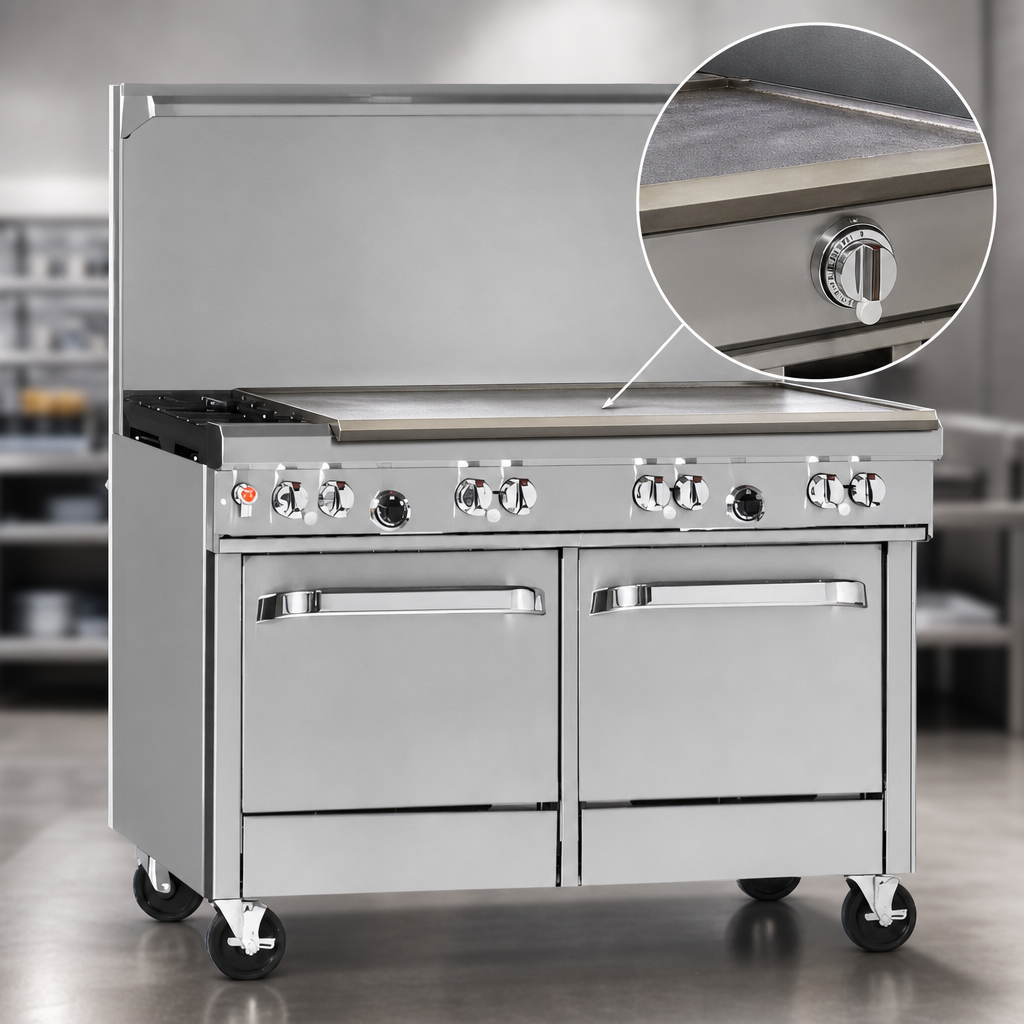

- 1" thick, polished steel griddle plate spans the entire 48" cooktop for maximum usable space.
- Four independent thermostatic zones (175 °F – 550 °F) let you sear, sauté or hold anywhere on the plate.

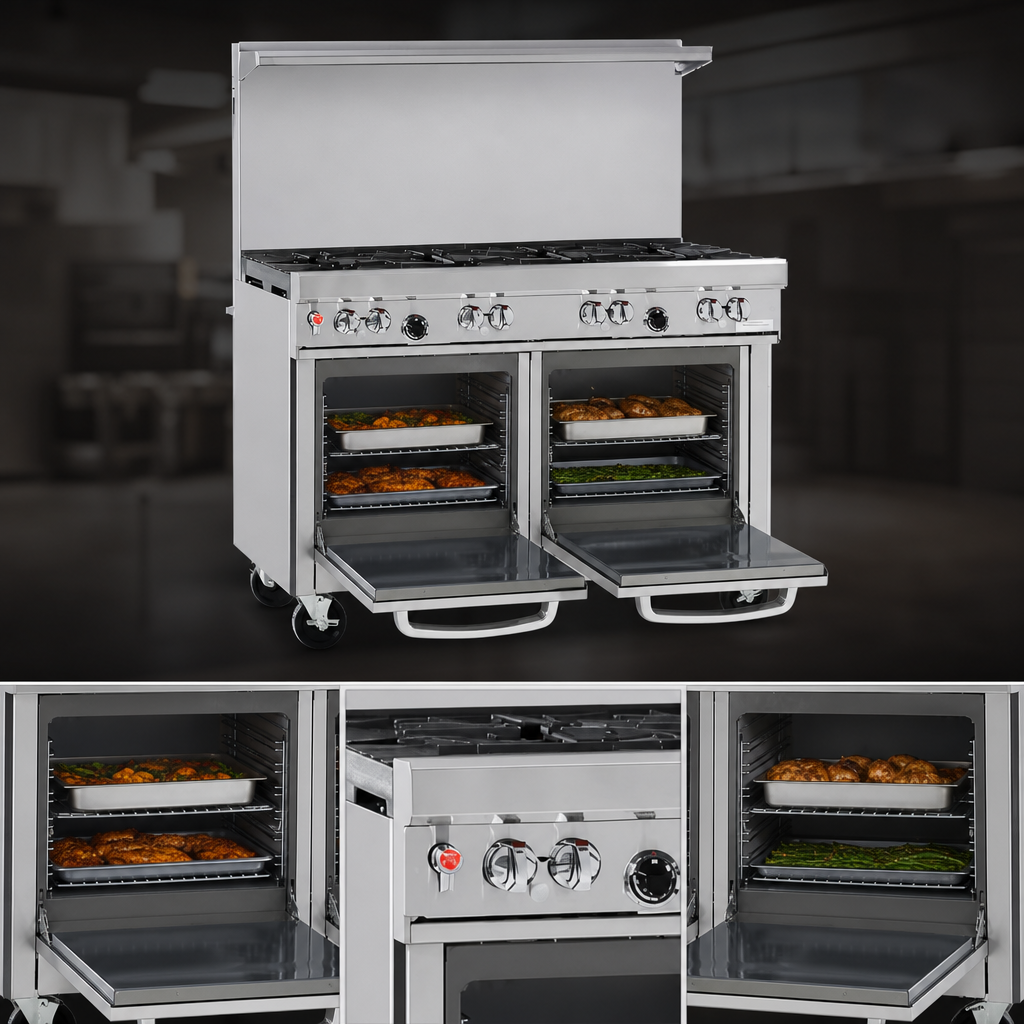

- (2) 45,000 BTU space-saver ovens with battery spark ignition —no electrical hookup required.
- Oven cavities accept full-size sheet pans front-to-back or left-to-right; one rack included per oven.
- Spring-assisted doors stay cool to the touch and open smoothly even on a busy line.
- Heavy-duty 22.5" flue riser with integrated stainless shelf keeps plates and smallwares within reach.
- Front-mounted ¾" manual shut-off for instant, whole-range gas control.
- All-stainless front, sides, shelf and 6" adjustable legs for unbeatable durability and easy cleaning.
- Listed by cCSAus, CSA Flame, CSA Star and NSF for code-compliant installation.
At-a-Glance Specifications
| Overall width | 48 5/8 in (1235 mm) |
|---|---|
| Depth | 34 in (864 mm) |
| Height – cook surface | 37 in (940 mm) |
| Height – top of flue shelf | 59 1/2 in (1511 mm) |
| Griddle plate | 48" W × 27" D, 1" thick polished steel, 4 zones |
| Griddle input | 80,000 BTU/hr |
| Ovens | (2) space-saver, 45,000 BTU each, 175 °F – 550 °F thermostat |
| Oven interior (each) | 14" H × 19 1/2" W × 26 1/2" D; 1 rack, 2 positions |
| Total input | 170,000 BTU/hr |
| Gas connection | ¾" NPT (opposite the griddle side) |
| Clearances | 0" sides & rear to non-combustible / 10" to combustible |
| Construction | Stainless steel front, sides, shelf & legs |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor |
Looking for casters, salamander mounts or LP conversion kits? Our team can configure any Ultimate series range to match your kitchen’s exact workflow.
