Southbend (Middleby)  |  Ultimate  |  SKU: 4484EE-7R

Southbend (Middleby) 4484EE-7R Ultimate Gas Ranges

$11,160.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

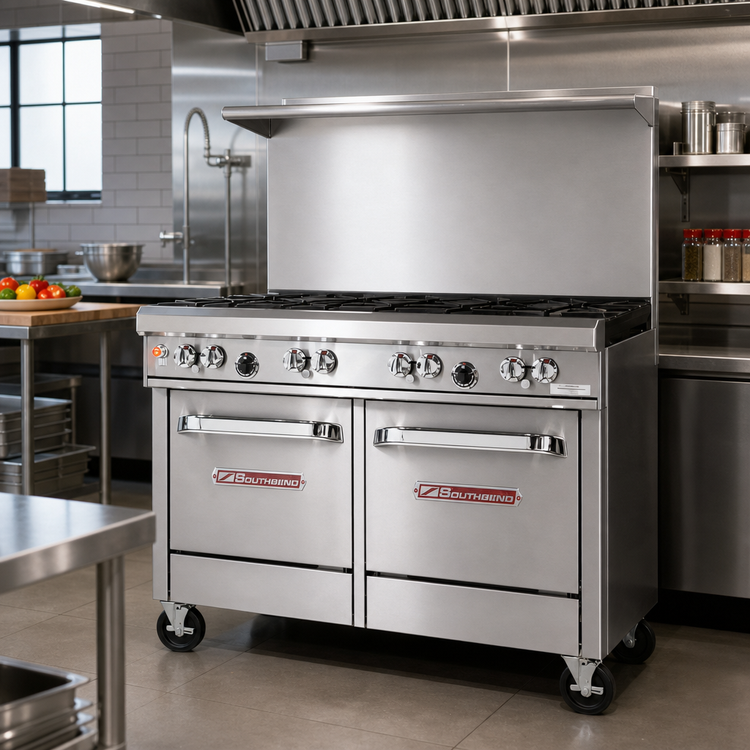

Southbend Ultimate 48" Gas Restaurant Range – Custom 6-Burner Top & Double Space-Saver Ovens

Model 448EE | 316,000 BTU | CSA & NSF Listed

Bring maximum fire-power to a compact 48" footprint. Southbend’s Ultimate Series couples four high-output Pyromax burners with versatile star and non-clog burners, then adds two space-saving ovens – all wrapped in all-stainless construction built for life on the line.

At-a-Glance Benefits

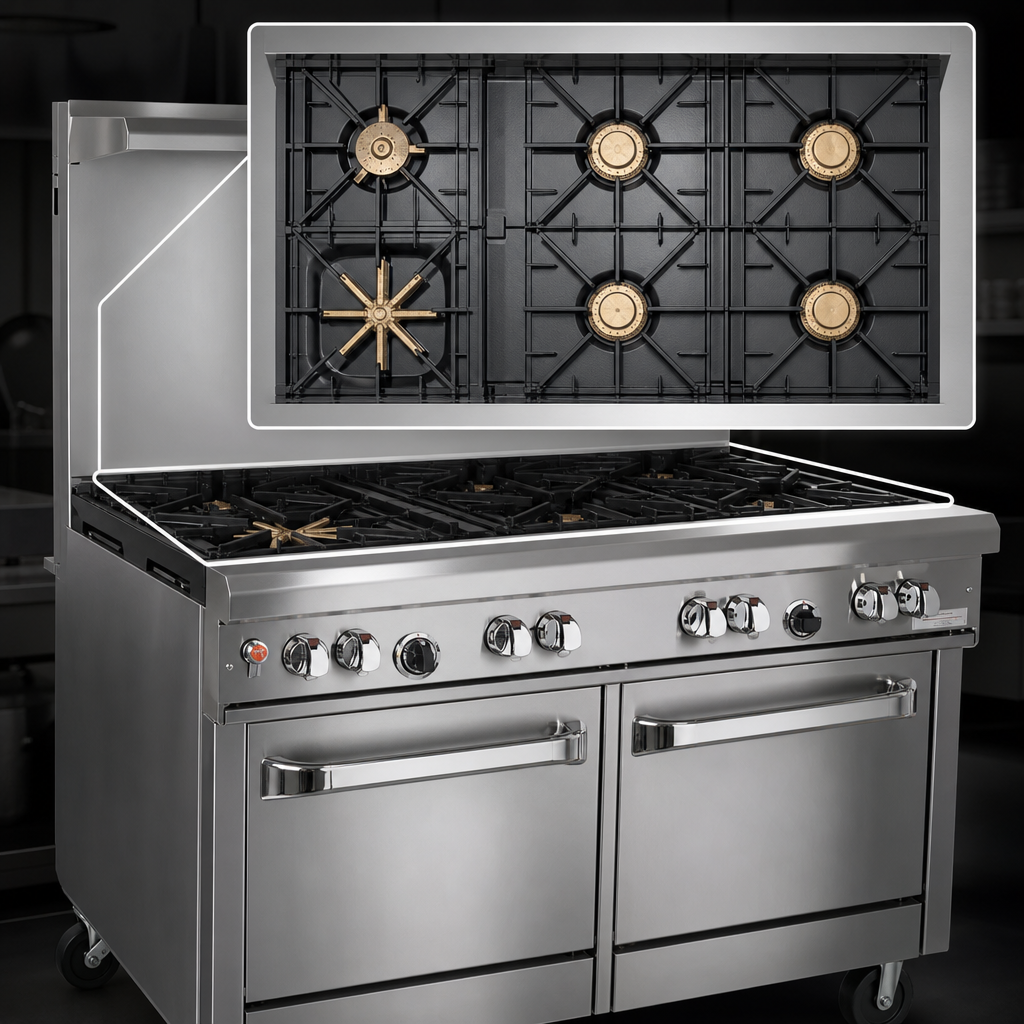

  • Six open burners designed for every task:
    • (4) Pyromax 40,000 BTU clog-free burners – instant boil & skillet-melting sear power.
    • (1) Star/Sauté 33,000 BTU burner (front left) – wide flame pattern for even pan coverage.
    • (1) Non-clog 33,000 BTU burner (rear left) – handles stock pots up to 14".

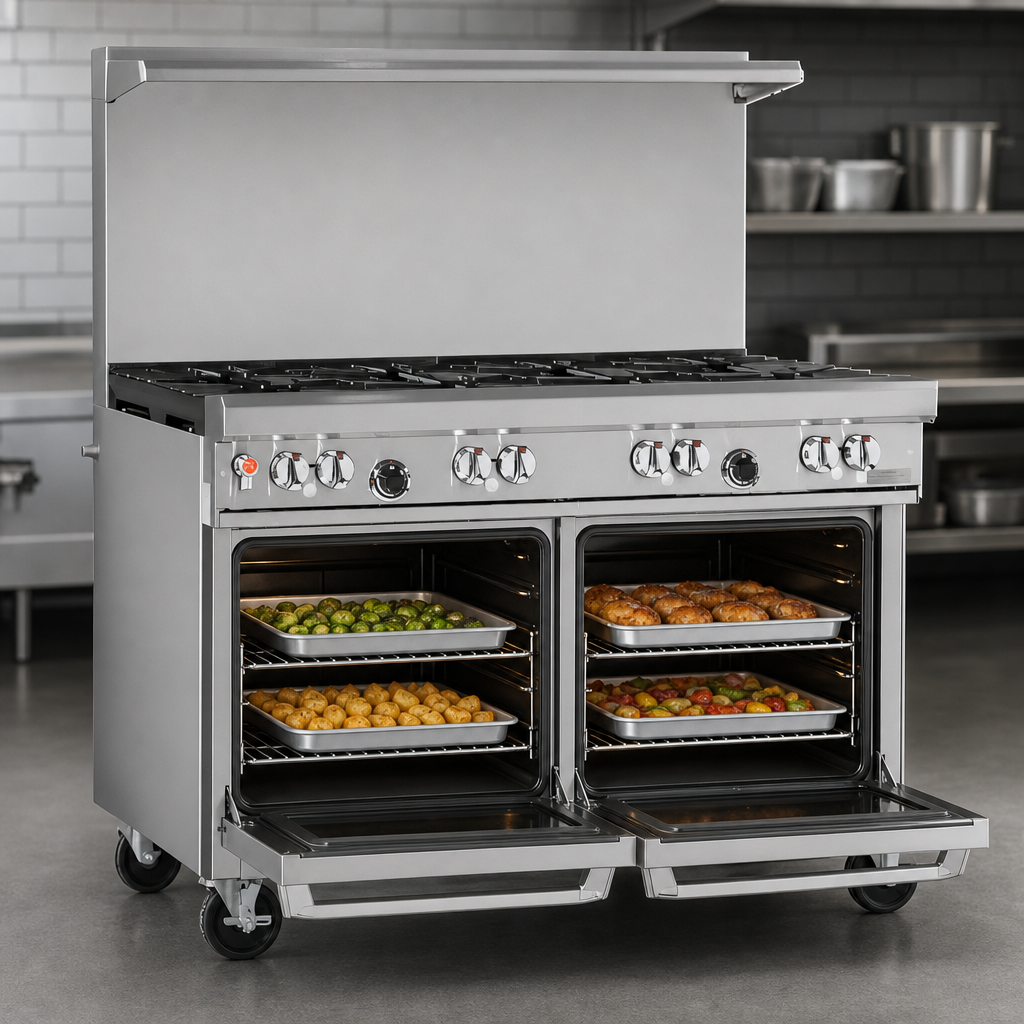

  • Two 45,000 BTU space-saver ovens with battery-spark ignition, 175-550 °F thermostat and porcelain interiors.
  • 22-1/2" flue riser with heavy-duty shelf – perfect for small pans & plating.
  • Front-mounted ¾" gas shut-off and factory regulator for fast service access.
  • 4" deep stainless front rail, removable cast-iron grates & full stainless exterior for easy clean-ups.
  • 6" adjustable stainless legs standard (casters optional).
  • Backed by Southbend’s 1-year parts & labor warranty.

Technical Specs

Series / Platform Ultimate 48" (Restaurant Range)
Overall Width 48 5/8" / 1235 mm
Overall Depth 34" / 864 mm
Cooking Surface Height 37" / 940 mm
Overall Height (with riser) 59 1/2" / 1511 mm
Open Burner BTU 4 × 40 k + 2 × 33 k = 226,000 BTU/hr
Ovens 2 × 45,000 BTU space-saver, battery spark, 14"H × 19.5"W × 26.5"D
Total Input 316,000 BTU/hr (Natural Gas)
Gas Connection ¾" NPT (female) – min. inlet 7" W.C. natural
Ignition Standing pilot (top) / battery spark (ovens)
Construction Stainless front, sides, shelf & removable cast-iron grates
Shipping Weight ≈ 735 lb / 334 kg
Certifications CSA, NSF
Warranty 1-year parts & labor

What’s in the Box

  • Southbend Ultimate 448EE range with 22-1/2" flue riser & shelf
  • 2 chrome-plated oven racks (one per oven)
  • Factory-installed pressure regulator
  • Installation & operation manual
Installation Notice: Maintain 10" clearance from combustible surfaces and use supplied 6" legs (or optional casters) on combustible floors. For oversized cookware (12" Ø+), use the rear grates to prevent excess heat on the front rail.

Want to spread out the cost? Ask us about Middleby Equipment Financing for fast credit decisions and predictable monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Exterior Finish

stainless steel front & sides

Top

(6) open burners

Vent

backriser with hi-shelf

Base

(2) standard / space saver ovens

Specifications

Ultimate Restaurant Range, gas, 48", (4) pyromax burners right, (1) star/sauté burner front left, (1) non-clog burner rear left, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 316,000 BTU, CSA, NSF
