Southbend (Middleby) 4484EE-7L Ultimate Gas Ranges
Description

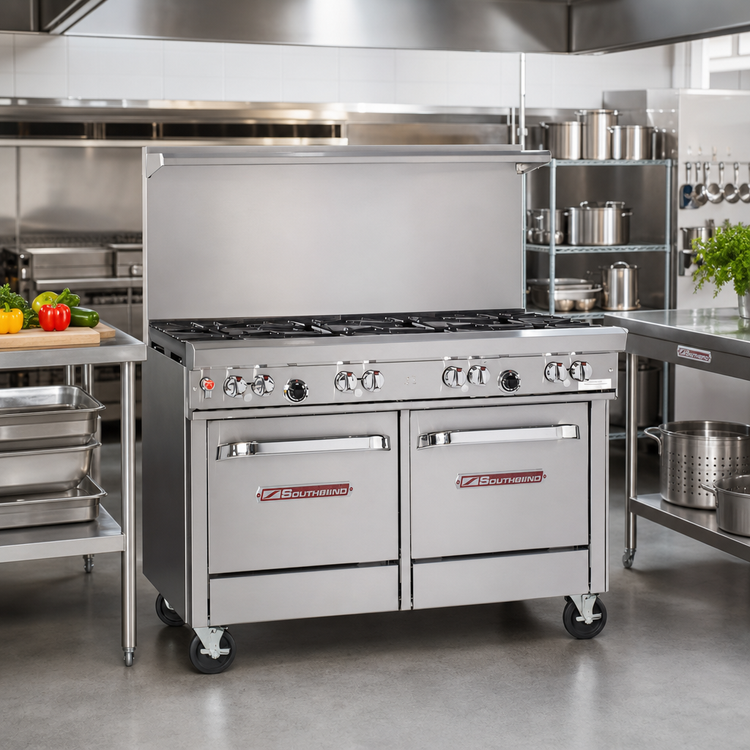

Southbend Ultimate 48" Gas Restaurant Range
4 × Pyromax • 1 × Star/Sauté • 1 × Non-Clog • Twin Space-Saver OvensBring uncompromising fire-power and reliability to the cook-line with Southbend’s Ultimate 48 inch range. A bank of four 40 kBTU Pyromax burners is paired with a star/sauté and a non-clog burner, delivering a combined 316,000 BTU/h through a single 48" footprint. Two space-saver ovens, stainless steel construction and a heavy-duty 22.5" flue riser shelf make this the do-everything workhorse your kitchen has been waiting for.
Why You’ll Love It

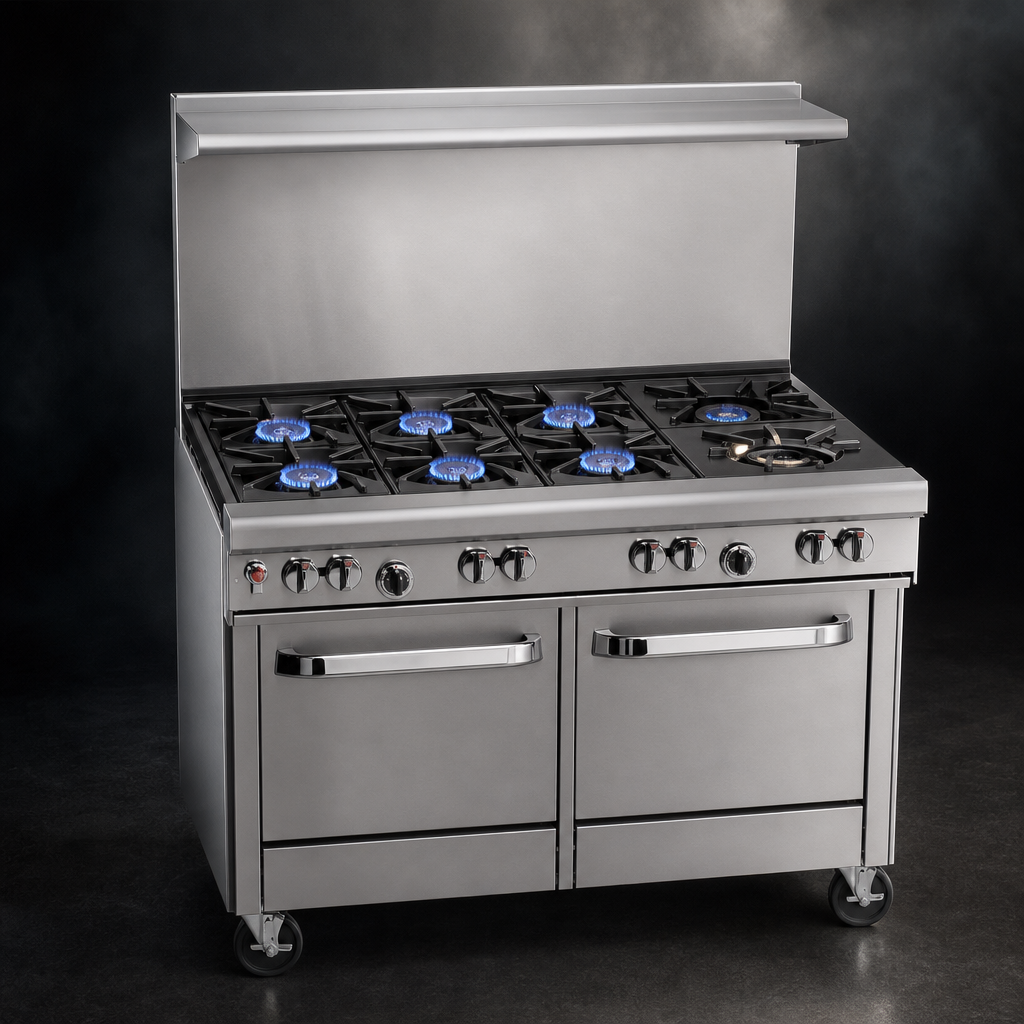

- Open-top versatility – 6 open burners total: 4 × 40 kBTU Pyromax (left bank), 1 × 33 kBTU star/sauté (front right), 1 × 33 kBTU non-clog (rear right).

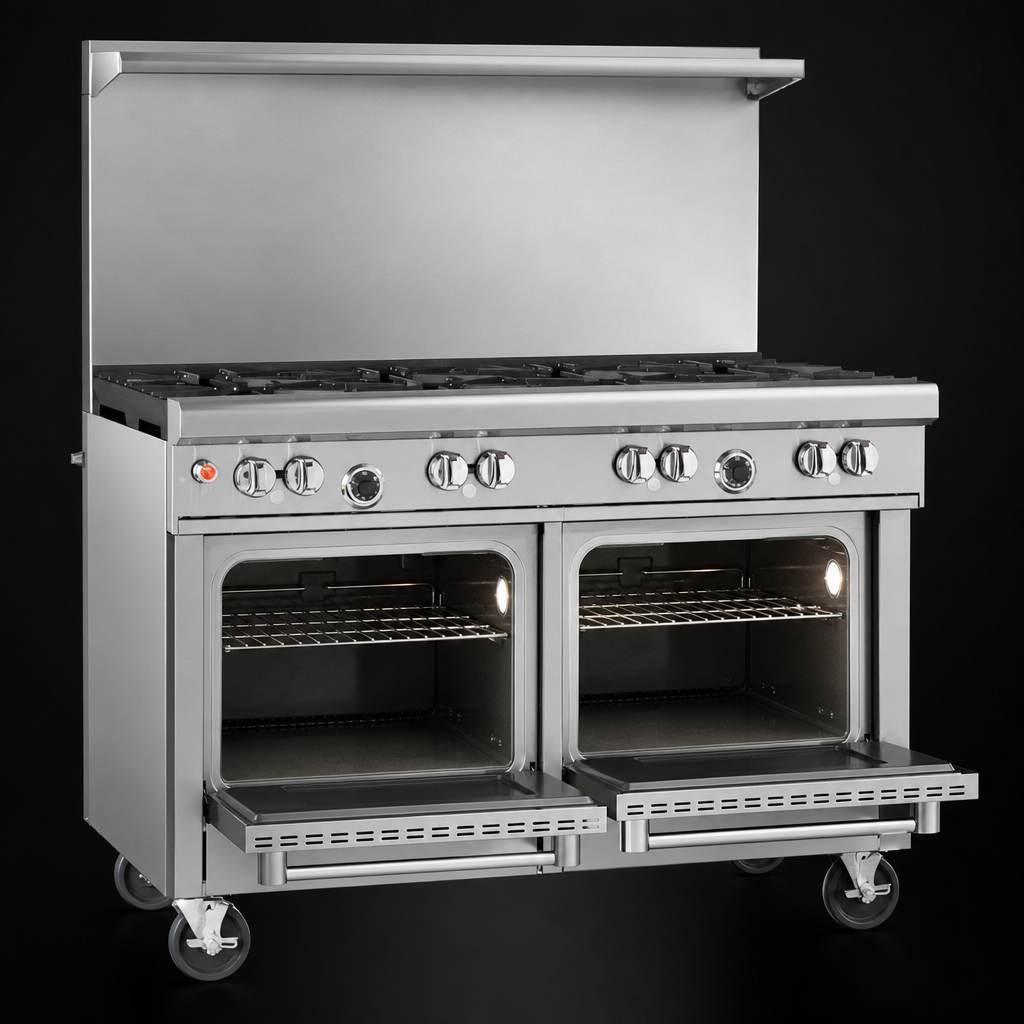

- Twin space-saver ovens – 45 kBTU each with battery-spark ignition, 175-550 °F thermostats and one rack per cavity.
- Heavy-duty 27" cook surface – cast-iron grates; rear sections accept 14" stock pots.
- All-stainless exterior – front, sides, 4" rail, 22.5" flue riser shelf and 6" adjustable legs withstand daily punishment.
- Front-mounted shut-off & factory regulator for quick service access and consistent pressure.
- CSA & NSF listed for commercial kitchens.
- Backed by Southbend’s 1-year parts & labor warranty.
At-a-Glance Specifications
| Manufacturer / Series | Southbend – Ultimate 48" Restaurant Range |
|---|---|
| Total BTU | 316,000 BTU/h (Natural Gas) |
| Burner Layout | (4) 40 kBTU Pyromax • (1) 33 kBTU Star/Sauté • (1) 33 kBTU Non-Clog |
| Ovens | (2) Space-Saver standard ovens, 45 kBTU each, battery spark ignition |
| Thermostat Range | 175 °F – 550 °F (79 °C – 288 °C) |
| Cooking Surface | 27" deep cast-iron grates; 37" working height |
| Exterior Dimensions | 48⅝" W × 34" D × 59½" H (to top of flue shelf) |
| Gas Connection | ¾" NPT, left or right side (factory regulator installed) |
| Electrical | None required (battery ignition) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see details) |
