Southbend (Middleby) 4484EE-6L Ultimate Gas Ranges
$11,160.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4484EE-6L Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4484EE-6L Ultimate Gas Ranges
$11,160.00
Unit price
/
Unavailable
Description

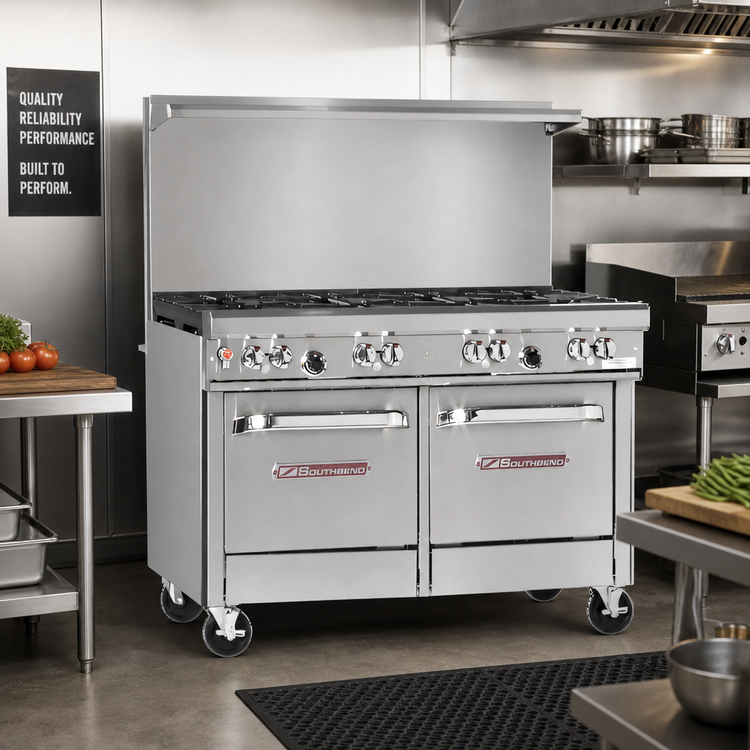

Southbend Ultimate 48" Gas Restaurant Range
7-Burner Mixed Top | Dual Space-Saver Ovens | 335,000 BTUPurpose-built for high-volume, multi-menu kitchens, the 48" Southbend Ultimate Range delivers sizzling sauté performance, extreme stock-pot power and dependable baking — all in one rugged, stainless-steel platform that fits under a standard 4-ft hood.
Why You’ll Love It

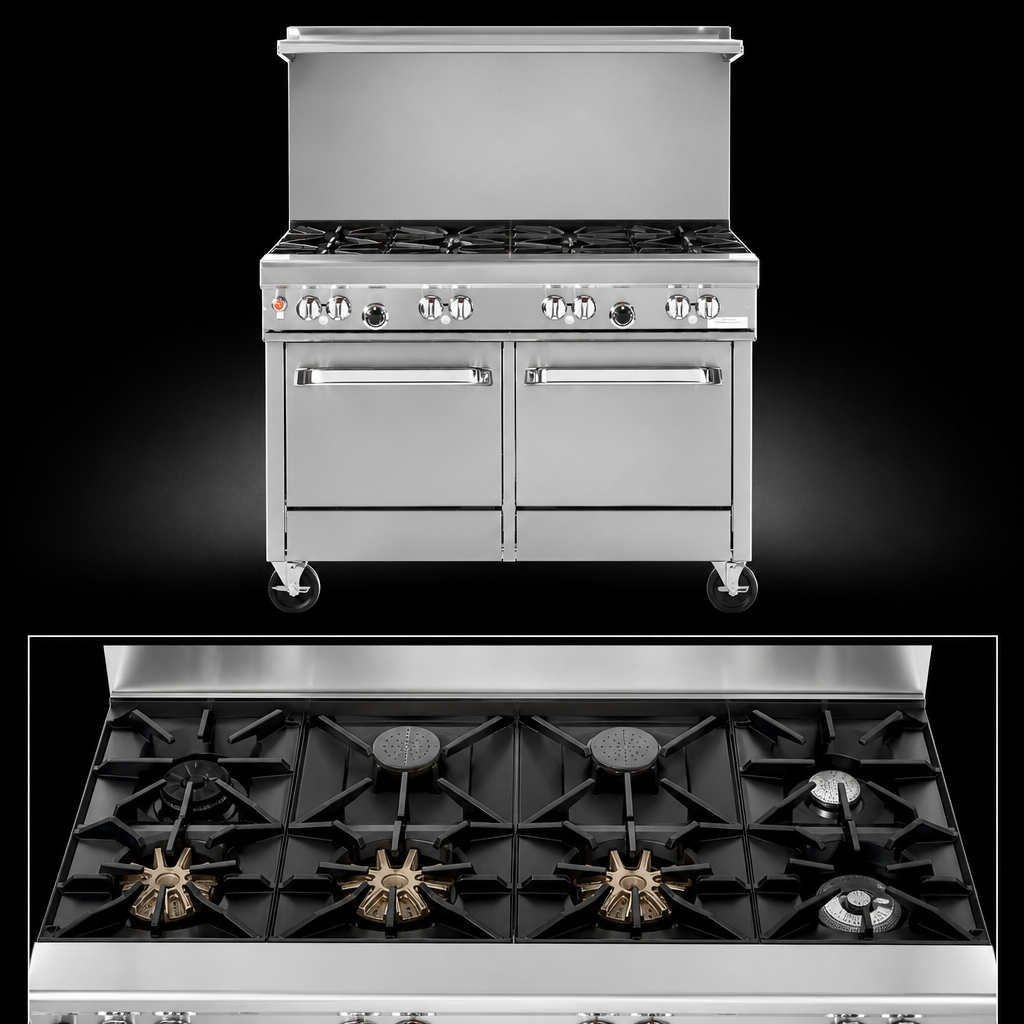

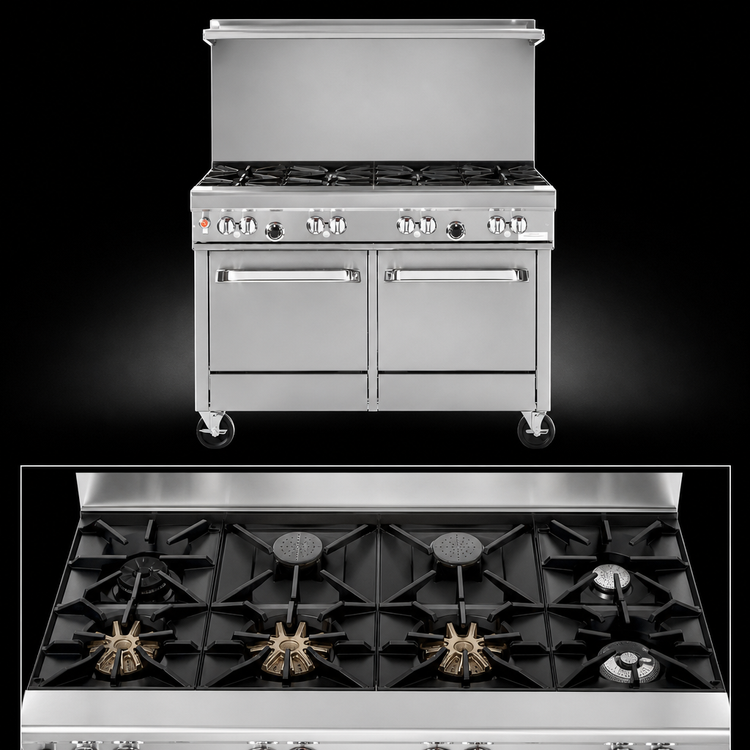

- Mixed Performance Cooktop – (3) 33 k BTU star/saute burners (front left), (2) 40 k BTU Pyromax burners (rear left), (1) 33 k BTU star/saute burner (front right) and (1) 33 k BTU non-clog burner (rear right) for a combined 335 k BTU punch.
- Heavy-Duty Cast-Iron Grates – Four removable sections handle pans up to 14" and sit over a 27" deep cooking surface.

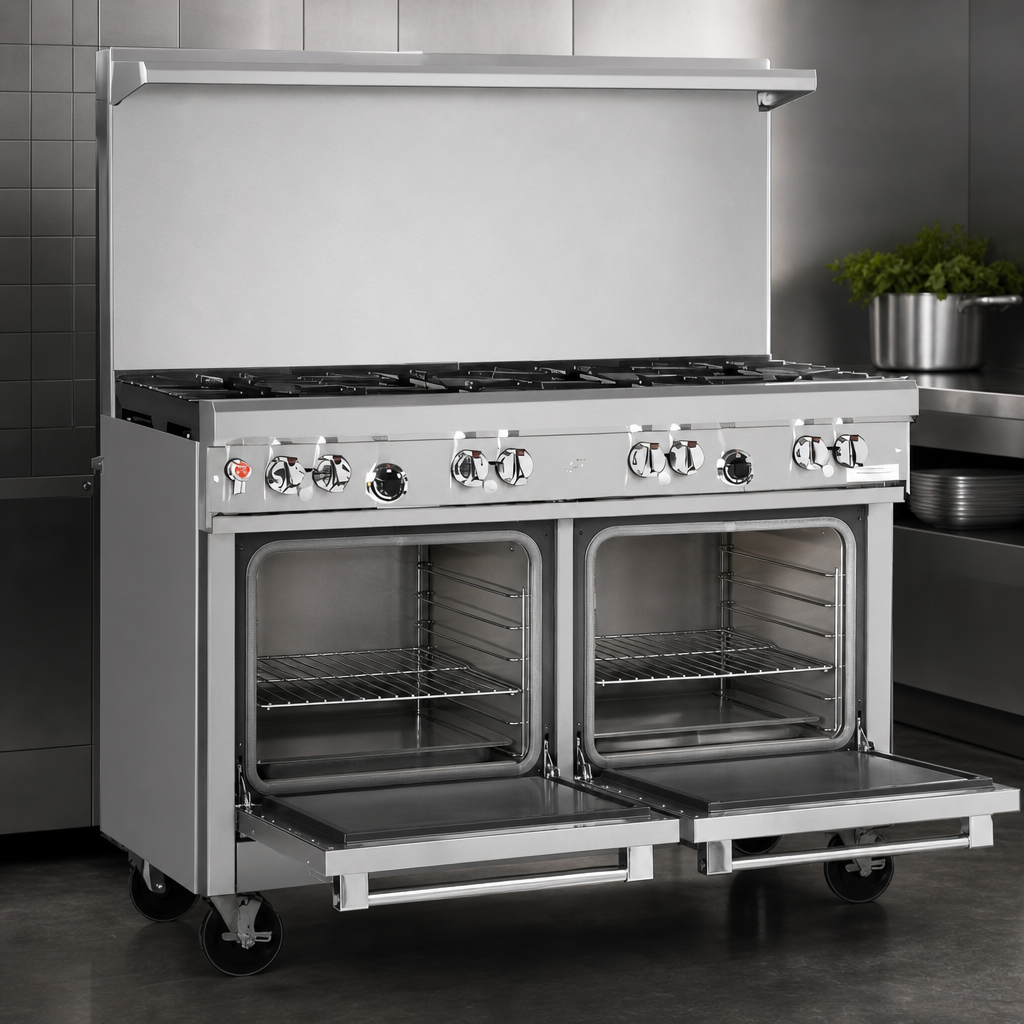

- Dual Space-Saver Ovens – Independent 45 k BTU ovens (battery spark ignition) with porcelain interiors; each includes one rack with two positions.
- Operator-Focused Details – 4" front rail, front-mounted manual gas shut-off, standing pilots for open tops, factory-installed regulator.
- Built for the Long Haul – All-stainless front, sides, shelf & 22-½" flue riser, plus 6" adjustable legs for level installation on any commercial floor.
- Certified & Protected – CSA & NSF listed; backed by Southbend’s one-year parts & labor warranty.
Technical Specifications
| Manufacturer / Series | Southbend – Ultimate Restaurant Range |
|---|---|
| Model Configuration | 48-5/8" mixed-top range with (2) space-saver ovens, 22-½" flue riser & shelf |
| Overall Dimensions (W × D × H) | 48.63" × 34" × 59.5" (to top of flue shelf) Cooking height: 37" |
| Total Input | 335,000 BTU/hr (Natural Gas) |
| Gas Connection | 3/4" NPT, 7" W.C. minimum inlet pressure (Natural) |
| Electrical | None required – battery spark ignitions |
| Oven Interiors (each) | 14" H × 19.5" W × 26.5" D, 175 °F – 550 °F thermostat, 45 k BTU |
| Top Burners | (4) Star/Sauté 33 k BTU · (2) Pyromax 40 k BTU · (1) Non-Clog 33 k BTU |
| Construction | Stainless steel front, sides, rail, flue shelf & legs; cast-iron grates & burners |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
Popular Factory Options (sold separately)
- 5" or 10" flue riser
- Rear step-up burner set
- Wavy grates or full star-top conversion
- Casters – all swivel, front locking
- Additional oven racks
- Salamander / cheesemelter mounts
Commercial Use Only: This equipment is intended for professional kitchens and must be installed under a properly sized, vented hood by a qualified technician. Follow Southbend’s oversize cookware and non-quarry tile floor guidelines to maintain warranty coverage.
Need flexible payment options? Ask us about Middleby Equipment Financing for fast credit decisions and affordable monthly terms.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
48.63in
Depth
34.0in
Shipping Weight
735.0lbs
Exterior Finish
stainless steel front & sides
Top
(7) open burners
Vent
backriser with hi-shelf
Base
(2) standard / space saver ovens
Specifications
Ultimate Restaurant Range, gas, 48", (3) star/sauté burners front left, (2) pyromax burners rear left, (1) star/sauté burner front right, (1) non-clog rear right, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 335,000 BTU, CSA, NSF
