Southbend (Middleby) 4484EE-5R Ultimate Gas Ranges
Description

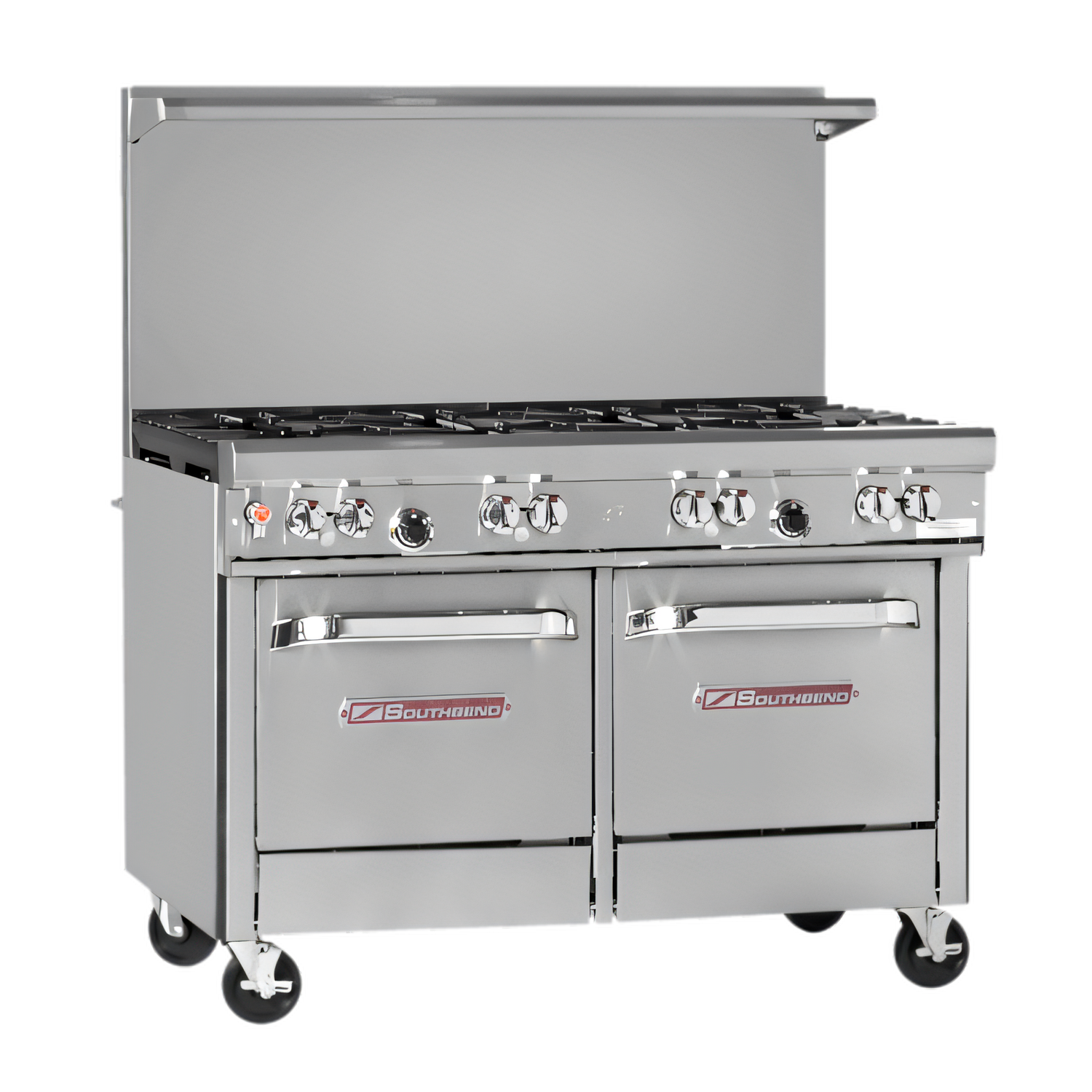

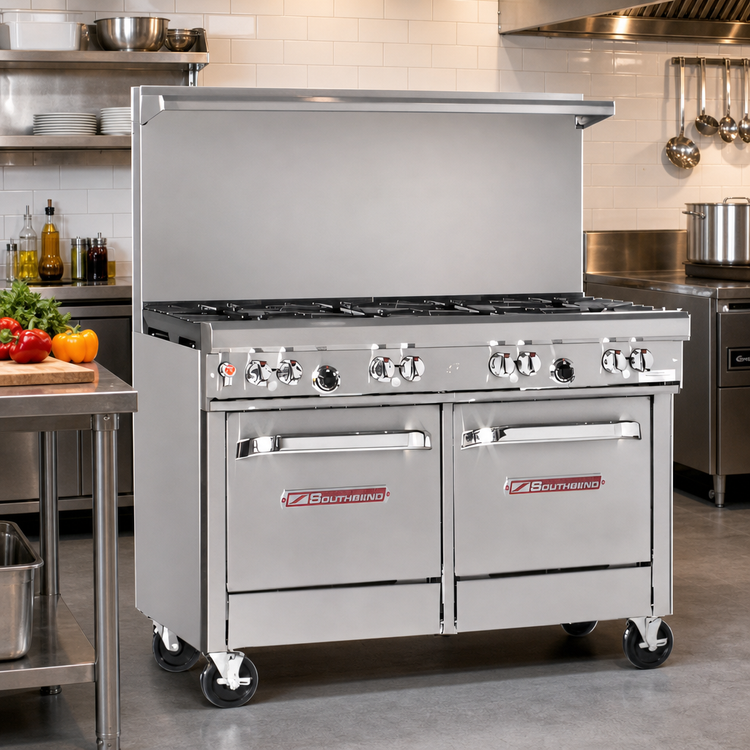

Ultimate 48" Gas Restaurant Range
Custom Burner Top • Dual Space-Saver Ovens • 335,000 BTUBuilt in the USA by Southbend, this Ultimate Series 48-inch range is engineered for kitchens that refuse to compromise on power, flexibility, or durability. A unique 7-burner configuration pairs blistering 40 kBTU Pyromax® outputs with clog-free and star/sauté burners, while two space-saver ovens keep entrées, sides, and baked items moving at peak service times—all in a single, heavy-duty footprint.
Top Features & Benefits
-

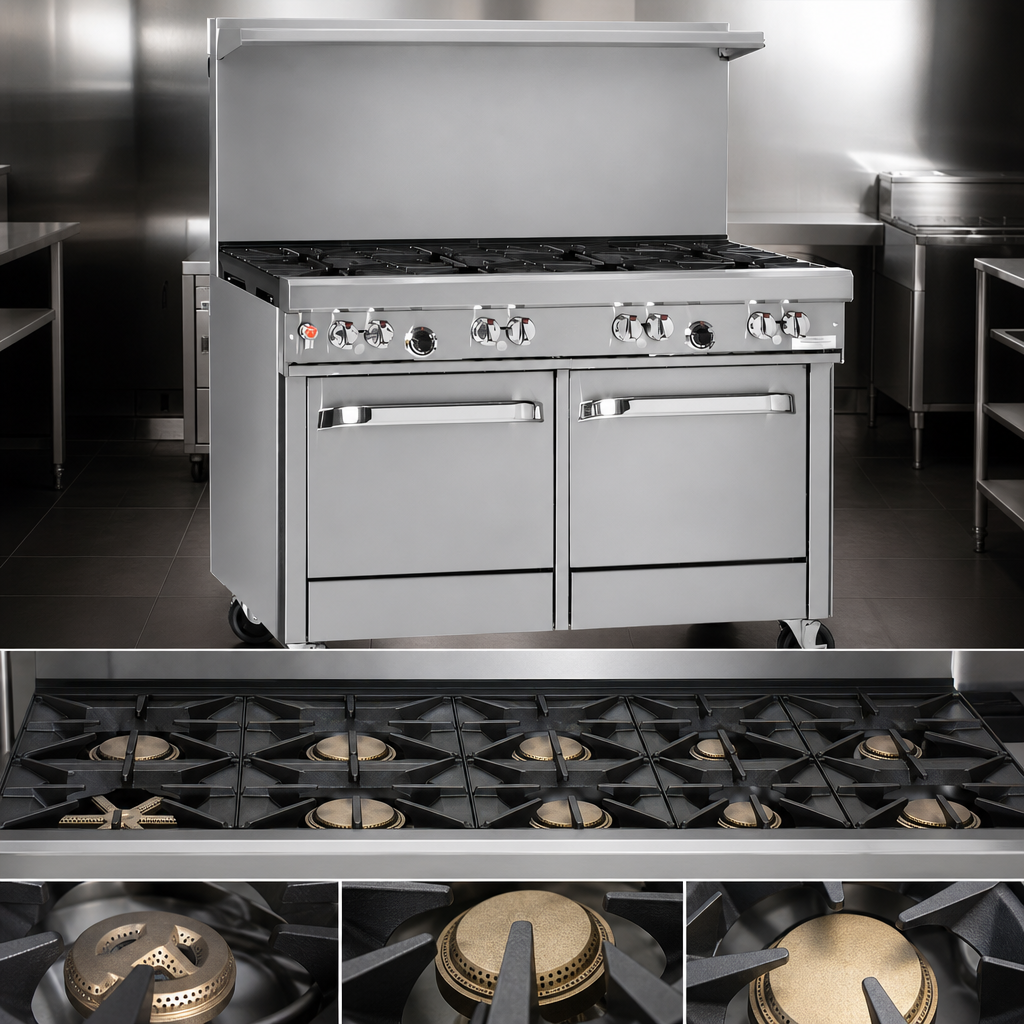

Custom 7-burner layout
- Front right: (3) 33 kBTU non-clog burners
- Rear right: (2) 40 kBTU Pyromax® high-output burners
- Front left: (1) 33 kBTU cast-iron star/sauté burner for even heat spread
- Rear left: (1) 33 kBTU non-clog burner
- 27"-deep cooking surface with four removable cast-iron grate tops (rear grate holds up to a 14" stock pot)
- Standing pilots for open tops; front-mounted master gas shut-off and factory-installed pressure regulator

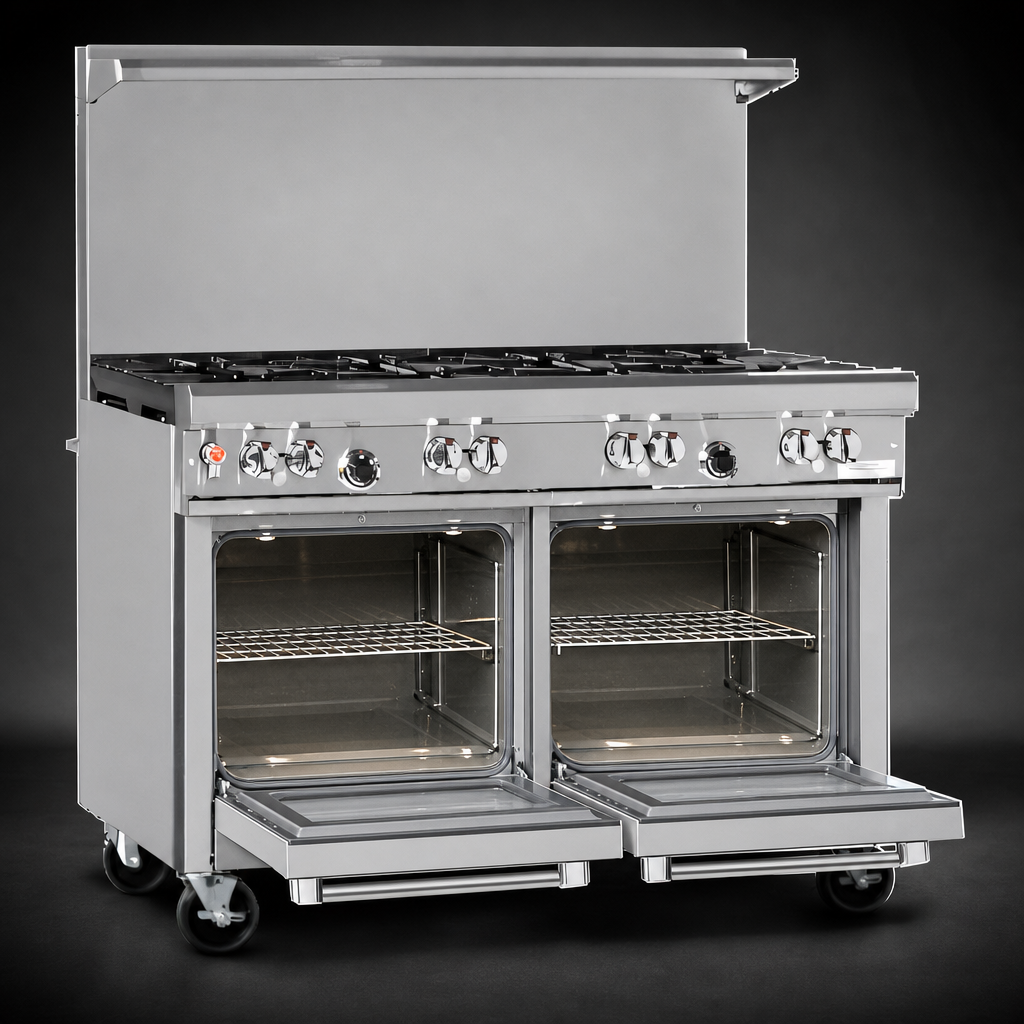

- (2) 45 kBTU Space-Saver ovens with battery spark ignition & porcelain interiors (rack included with each)
- 22 ½" flue riser with heavy-duty stainless shelf—perfect for resting pans & smallwares
- Stainless steel front, sides & 4" front rail plus 6" adjustable stainless legs for easy leveling and cleaning below
- Certified CSA & NSF for commercial use; backed by a 1-year parts & labor warranty
Specifications at a Glance
| Model | 448EE (custom burner configuration) |
|---|---|
| Overall width | 48 5⁄8" (1235 mm) |
| Overall depth | 34" (864 mm) |
| Cooking height | 37" to cook surface |
| Flue height / overall height | 22 ½" riser / 59 ½" overall |
| Total BTU | 335,000 BTU (open top + ovens) |
| Open-top burners |
(4) 33 kBTU non-clog (2) 40 kBTU Pyromax® (1) 33 kBTU star/sauté |
| Ovens (2) | 45 kBTU each • 14" H × 19.5" W × 26.5" D interior • 2-position rack rails |
| Gas connection | ¾" NPT (rear) |
| Gas type | Natural or LP (field-convertible; specify at order) |
| Ignition | Standing pilot (top) • Battery spark (ovens) |
| Certifications | CSA Flame & Sanitation • NSF |
| Warranty | 1-year limited parts & labor |
What’s in the Box
- Ultimate 48" gas range with 22 ½" flue riser shelf
- (2) Oven racks (1 per oven)
- 6" adjustable stainless legs
- Factory-installed pressure regulator & battery pack for spark ignition
- Owner’s manual & warranty registration
For optimal performance and warranty coverage, install under a properly vented hood and use cookware 12" Ø or larger only on rear burners.
