Southbend (Middleby) 4484EE-5L Ultimate Gas Ranges
Description

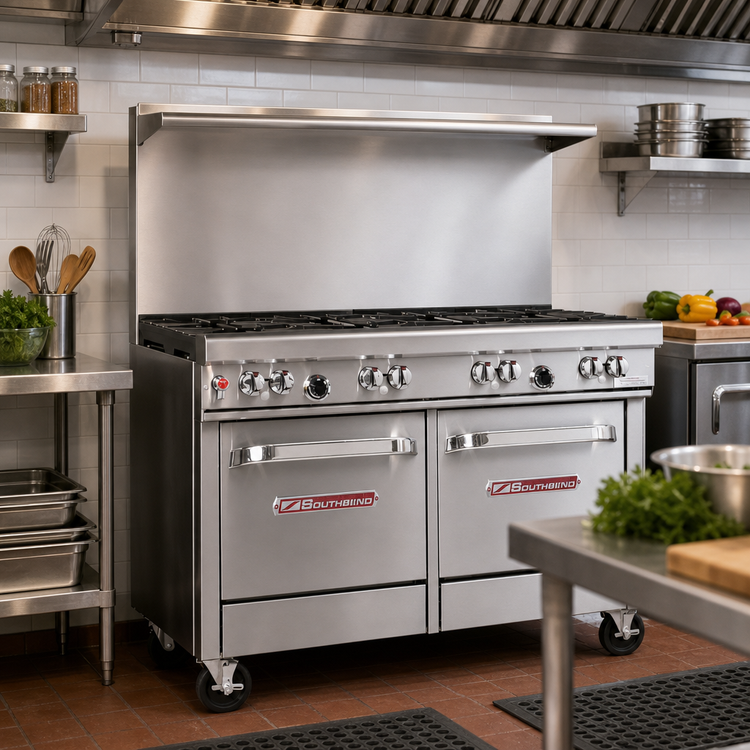

Southbend “Ultimate” 48" Gas Restaurant Range
3 Non-Clog + 2 Pyromax + 1 Star/Sauté + 1 Non-Clog Burners | Double Space-Saver Ovens | 335,000 BTUBuilt to outperform the busiest commercial kitchens, the Southbend Ultimate 48" range pairs a powerful, split-style open top with two independent space-saver ovens—all in a stainless-steel chassis that fits under a standard 48" hood. Seven patented, lifetime-clog-free burners deliver instant, even heat, while dual 45,000 BTU ovens keep entrées, sides and desserts moving without missing a beat.
Features at a Glance

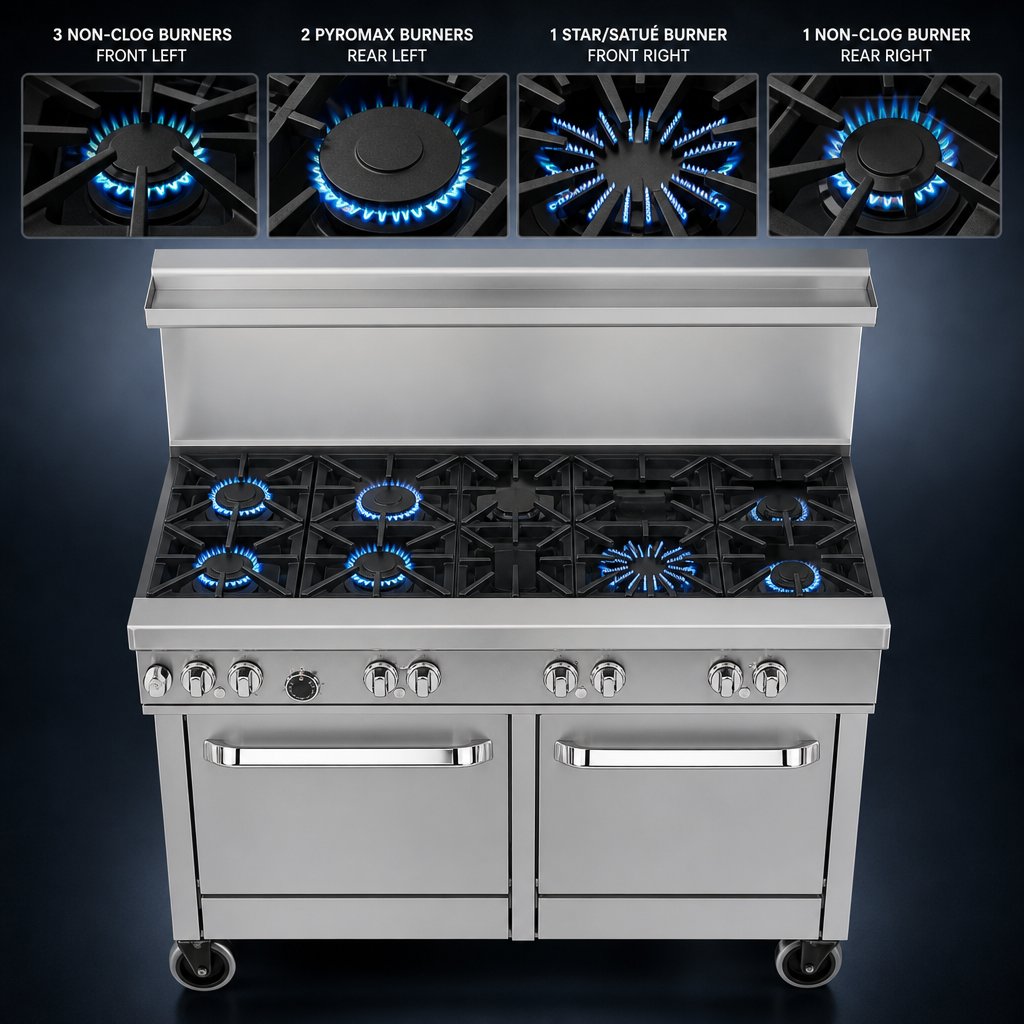

- High-Output Burners – (3) 33 K BTU non-clog, (2) 40 K BTU Pyromax™, (1) 33 K BTU star/sauté and (1) 33 K BTU non-clog rear right.

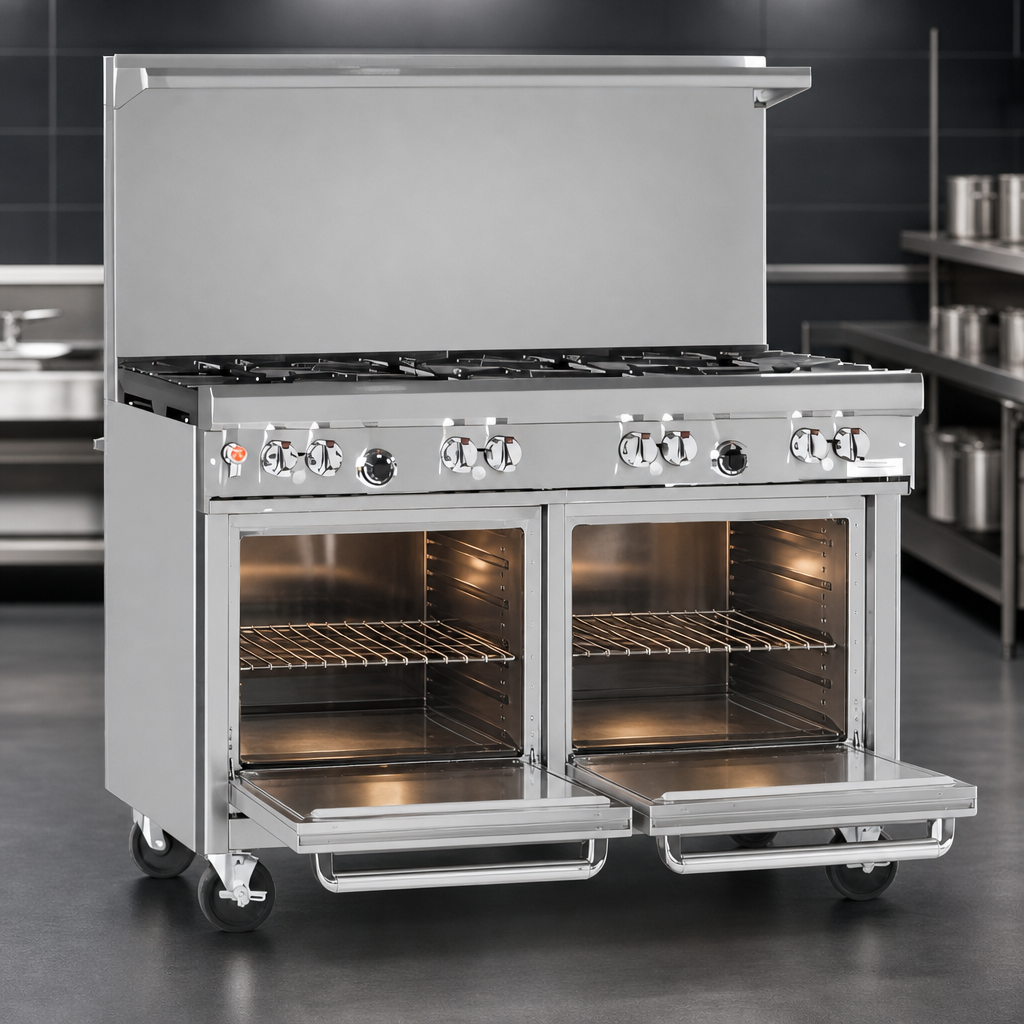

- Two 45 K BTU Space-Saver Ovens with battery spark ignition, 175 °F–550 °F thermostat and porcelain-enameled interiors.
- Cast-Iron Grates – four removable sections; rear grate accepts stockpots up to 14".
- 22.5" Flue Riser & Heavy-Duty Shelf for pan staging or plate finishing.
- Front-Located Gas Shut-Off & Factory Regulator for quick, code-compliant installation.
- Stainless Steel Construction – front, sides, 4" rail, riser shelf and 6" adjustable legs.
- Standing pilots on open tops; battery spark ignition on ovens for match-free starts.
- Removable drip trays simplify end-of-shift cleanup.
- CSA-certified and NSF-listed for commercial kitchens.
- 1-year parts & labor warranty backed by Southbend’s national service network.
Key Specifications
| Overall width | 48 5⁄8" (1235 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking height | 37" (940 mm) |
| Total BTU (NAT) | 335,000 BTU ⁄ h |
| Oven cavity (each) | 14" H × 19 ½" W × 26 ½" D | 45,000 BTU |
| Burner line-up | 3 × 33 K non-clog, 2 × 40 K Pyromax™, 1 × 33 K star/sauté, 1 × 33 K non-clog |
| Gas connection | ¾" NPT, rear; factory regulator included (7" W.C. NAT, 11" W.C. LP) |
| Ignition | Standing pilot (top) & battery spark (ovens) |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor |
• For best performance, use cookware ≥ 12" in diameter on rear burners only.
• Install the range under a vented hood and maintain required clearances.
• This appliance is intended for commercial use—installation on non-quarry tile floors or improper cleaning procedures may void warranty.
