Southbend (Middleby) 4484EE-3TR Ultimate Gas Ranges
$13,149.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4484EE-3TR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4484EE-3TR Ultimate Gas Ranges
$13,149.00
Unit price
/
Unavailable
Description

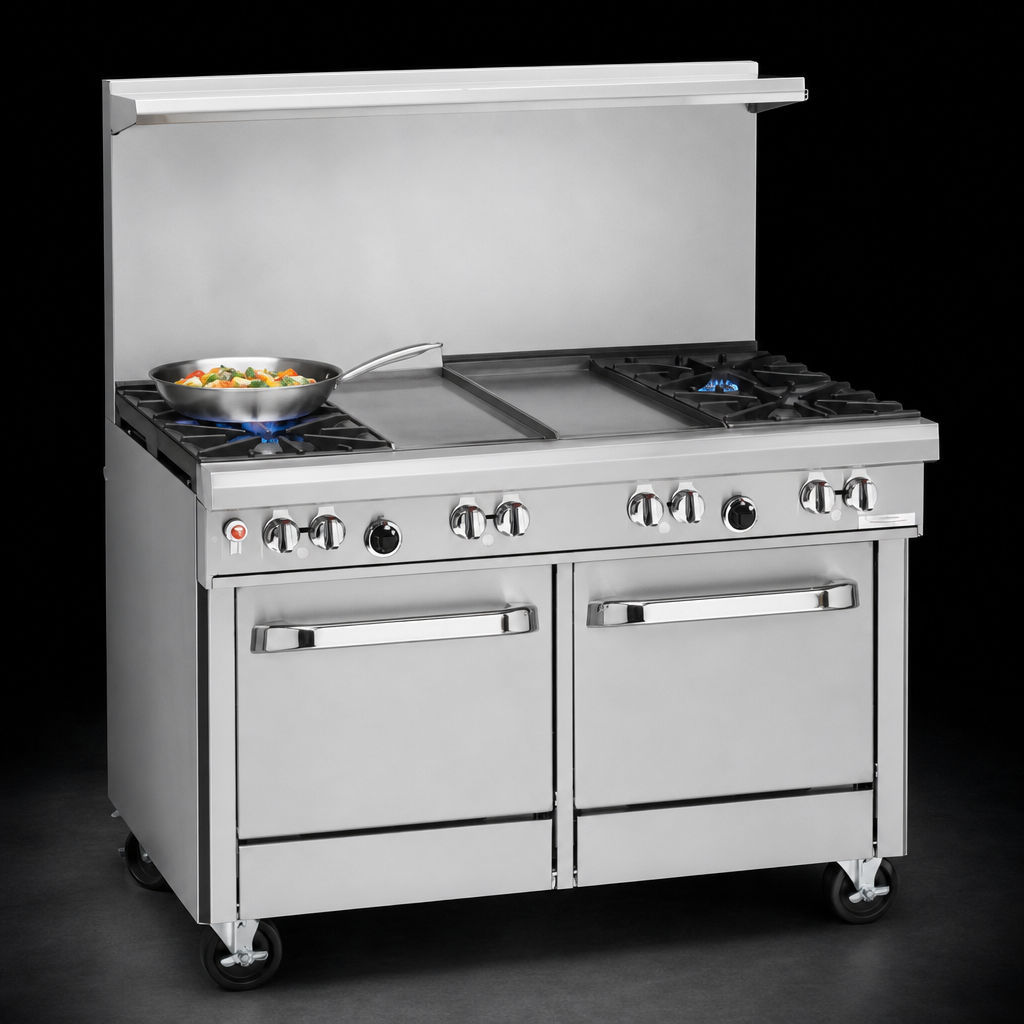

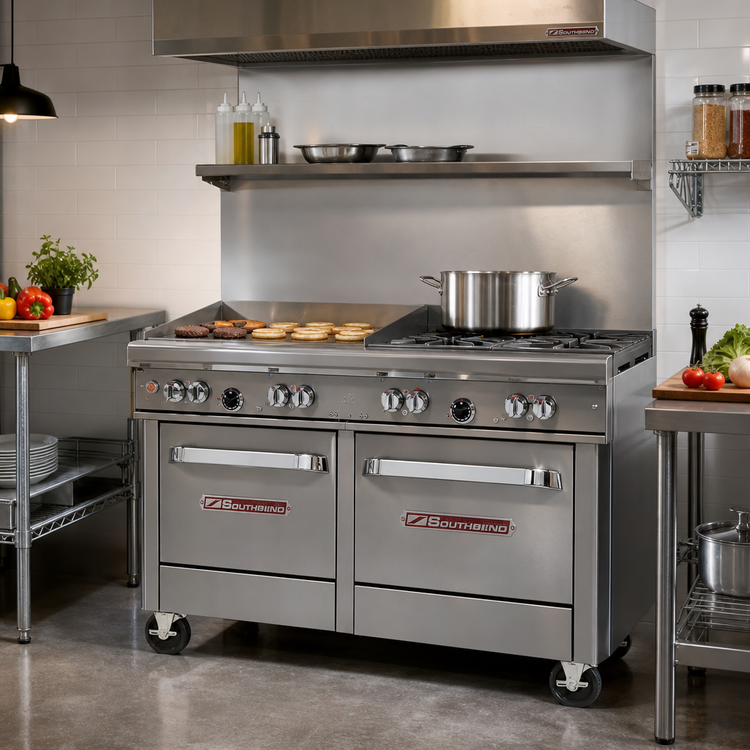

Southbend Ultimate 48" Gas Restaurant Range
36" Right-Hand Thermostatic Griddle • 2-Burner Split Top • Double Space-Saver Ovens • 220,000 BTUBring powerhouse performance to a compact 48 inch footprint. Southbend’s Ultimate Series combines heavy-duty construction, chef-friendly controls and the flexibility today’s kitchens demand – all backed by legendary Middleby reliability.
Why You’ll Love It
- 2 Open Burners, 33,000 BTU each – front star/sauté burner for rapid, even searing; rear lifetime non-clog burner handles stock pots up to 14".

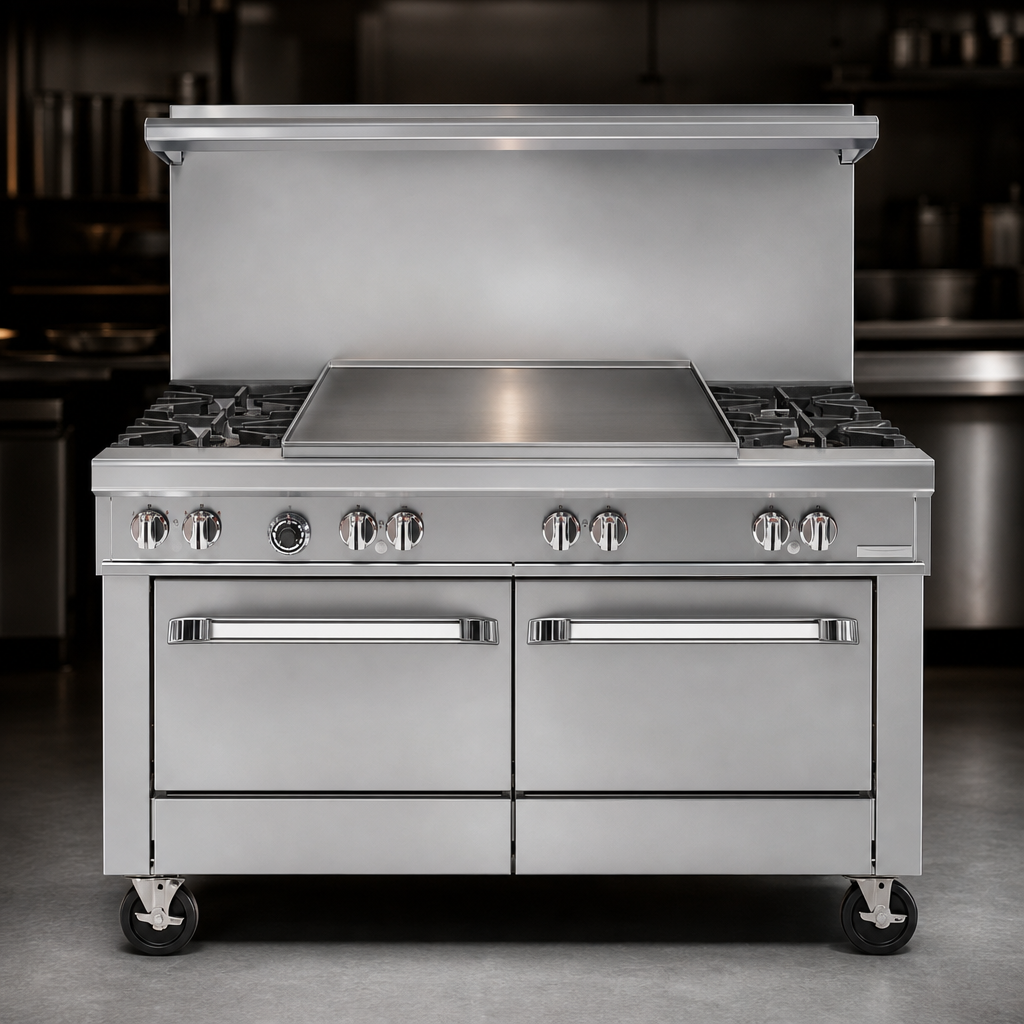

- 36" Thermostatic Griddle (Right) – ½" smooth, polished steel plate with raised sides delivers consistent heat for breakfast, burgers or sauté work (64,000 BTU).
- Double Space-Saver Ovens – two 45,000 BTU cavities (175-550 °F) with battery spark ignition and one rack each; porcelain enamel interiors wipe clean fast.
- One-Piece Cast-Iron Grates over a 27"-deep cook surface – easy to remove and built to last.
- Standing pilots on the cook top for instant flame recovery; front-mounted gas shut-off and factory pressure regulator included.
- 22½" flue riser with heavy-duty utensil shelf keeps pans within reach and work tops clutter-free.
- Rugged stainless steel front, sides, rail & shelf plus 6" adjustable stainless legs (casters optional).
- Certified cCSAus, CSA Flame, CSA Star & NSF for commercial kitchens.
- Covered by Southbend’s 1-year parts & labor warranty.
At-a-Glance Specifications
| Model / Series | Ultimate 448EE – custom split burner & griddle configuration |
|---|---|
| Total Input | 220,000 BTU/hr (Natural gas) |
| Open Burners | 2 x 33,000 BTU (1 star/sauté front • 1 non-clog rear) |
| Griddle | 36" W x 27" D, ½" plate, thermostatic, 64,000 BTU |
| Ovens | 2 space-saver (14"H × 19.5"W × 26.5"D each) • 45,000 BTU each • (1) rack per oven |
| Exterior Dimensions | 48⅝"W × 34"D × 59½"H (to top of flue) |
| Cooking Surface Height | 37" |
| Gas Connection | ¾" NPT (rear, factory regulator supplied) |
| Electrical | None required – battery ignition on ovens |
| Construction | Stainless steel front, sides, 4" front rail & 22½" flue shelf • 6" adjustable S/S legs |
| Clearances | 0" sides / 0" rear to non-combustible; 10" sides & rear to combustible |
| Certifications | NSF • cCSAus • CSA Flame • CSA Star |
Includes Southbend’s one-year limited parts & labor warranty. Extended coverage and start-up services available – ask your Pitco Sales Representative for details.
Commercial Installation Required: Install under a vented hood with a ¾" gas supply at 7" W.C. minimum (11" W.C. for LP). Oversized cookware should not overhang the 4" front rail. This equipment is not approved for residential use.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
48.63in
Depth
34.0in
Shipping Weight
735.0lbs
Exterior Finish
stainless steel front & sides
Top
(2) open burners, (1) 36" griddle with thermostats
Vent
backriser with hi-shelf
Plate Thickness
.500" = 1/2"
Base
(2) standard / space saver ovens
Specifications
Ultimate Restaurant Range, gas, 48", (1) star/sauté front, (1) non-clog burners rear, standard grates, (1) 36" griddle right, thermostatic controls, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 220,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
