Southbend (Middleby) 4484EE-2TR Ultimate Gas Ranges
Description

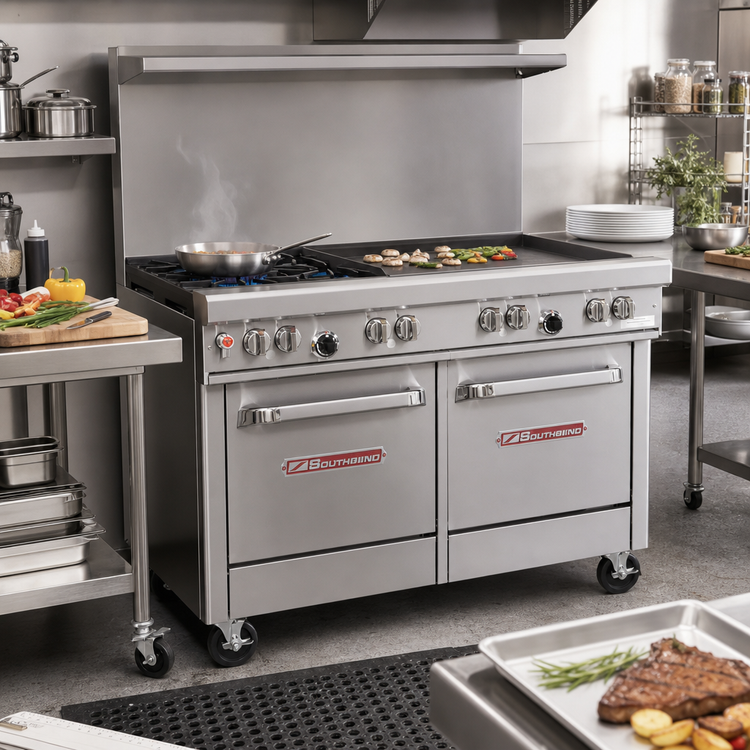

Southbend Ultimate 48" Restaurant Range
with 24" Thermostatic Griddle & Double Space-Saver Ovens
270,000 BTU | Natural Gas | Model 448EE-24T-R
Built for relentless commercial use, the Southbend Ultimate Series packs four high-performance burners, a precision-controlled griddle and two independent ovens into one 48-inch footprint. From flash-sauté to all-day prep, this powerhouse keeps every cooking style within arm’s reach so your line can move faster and plate hotter.
Key Features

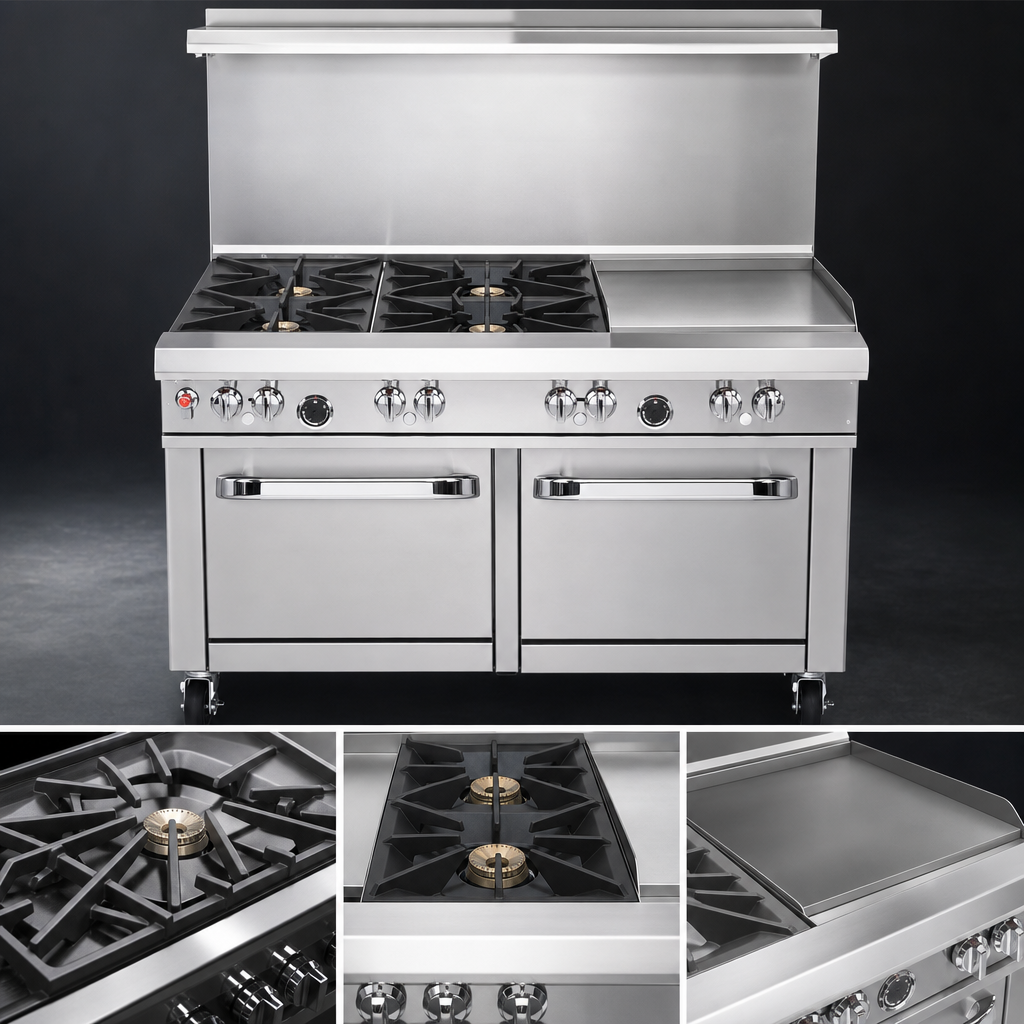

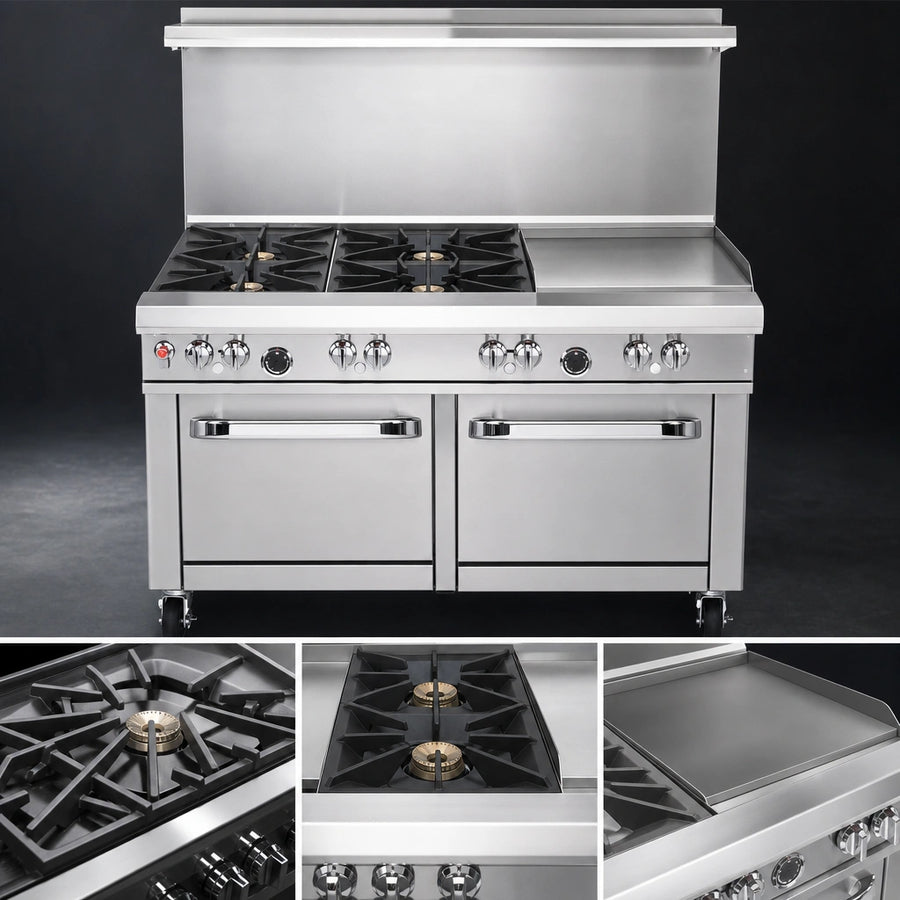

- Four open burners – (2) 33,000 BTU star/sauté burners in front + (2) 33,000 BTU non-clog burners in rear
- Right-side 24" griddle, ½" polished steel plate, 48 kBTU with precise thermostatic control (175 °F – 550 °F)
- (2) 45,000 BTU space-saver ovens, each supplied with one rack and two positions
- Battery-spark ignition for ovens; standing pilots on the cooktop
- 22½" flue riser with integrated heavy-duty shelf for plate warming or utensil storage
- Rugged stainless-steel construction on front, sides, shelf and 6" adjustable legs
- Removable cast-iron grates accept stock pots up to 14" diameter
- Front-mounted manual gas shut-off and factory-installed ¾" regulator
- Certified cCSAus, CSA Flame & Star and NSF for gas safety & sanitation
- Backed by a 1-year parts & labor warranty
Performance Specifications
| Total Input | 270,000 BTU/hr (Natural Gas) |
|---|---|
| Open Burners | (2) Star/sauté 33 kBTU front | (2) Non-clog 33 kBTU rear |
| Griddle | 24" W × 27" D, ½" plate, 48 kBTU, thermostatic |
| Ovens (each) | 45 kBTU; interior 19½" W × 26½" D × 14" H; 175 °F – 550 °F |
| Cooking Surface Height | 37" |
| Overall Dimensions | 48 5⁄8" W × 34" D × 59½" H (to top of riser shelf) |
| Gas Connection | ¾" NPT (left side when griddle is on right) | Min. inlet 7" W.C. |
| Electrical | None required – battery ignition |
| Shipping Weight | Approx. 735 lb |
Why Operators Love the Ultimate Series
- Multifunction design consolidates sautéing, boiling, searing, grilling and baking into one space-saving unit.
- Porcelain-enameled, coved-corner oven cavities resist corrosion and wipe clean fast.
- Lift-off grates, full-width drip trays and front-serviceable components shorten daily maintenance time.
- Made in the USA and supported nationwide by authorized Southbend service agencies.
