Southbend (Middleby) 4484EE-2GR Ultimate Gas Ranges
Description

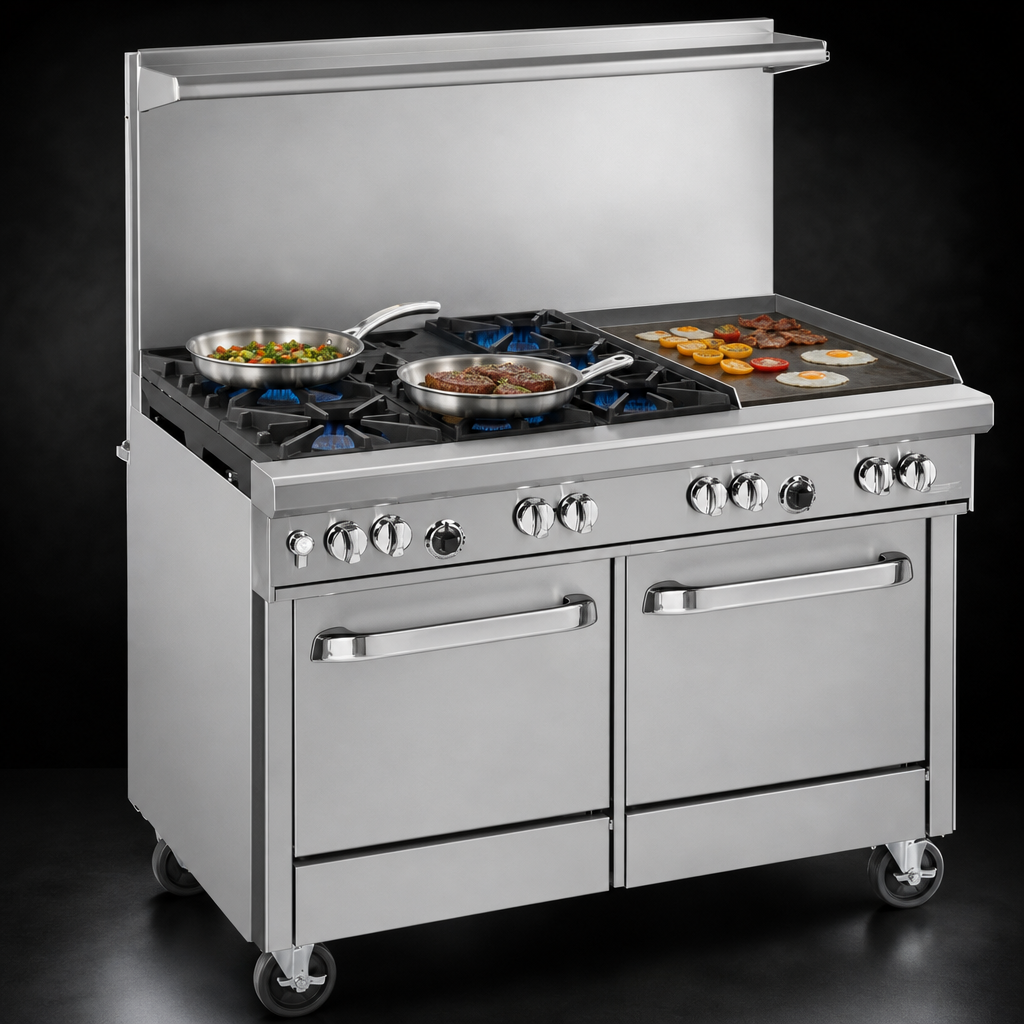

Ultimate 48" Gas Restaurant Range – Right-Side 24" Griddle & Double Space-Saver Ovens
Model 448 EE | 270,000 BTU | Southbend (a Middleby Brand)Engineered for high-volume kitchens, the Southbend Ultimate Series packs premium performance into a space-friendly 48 inch footprint. With a powerful mix of star/sauté and non-clog burners, a full-size 24 inch griddle, and two independent space-saver ovens, this range gives chefs the versatility to sear, sauté, grill and bake simultaneously—without slowing down the line.
Why You’ll Love It
- 4-burner configuration: (2) 33 k BTU star/sauté burners up front for fast, even heat & (2) 33 k BTU lifetime non-clog burners in back for stock pots and pans up to 14".

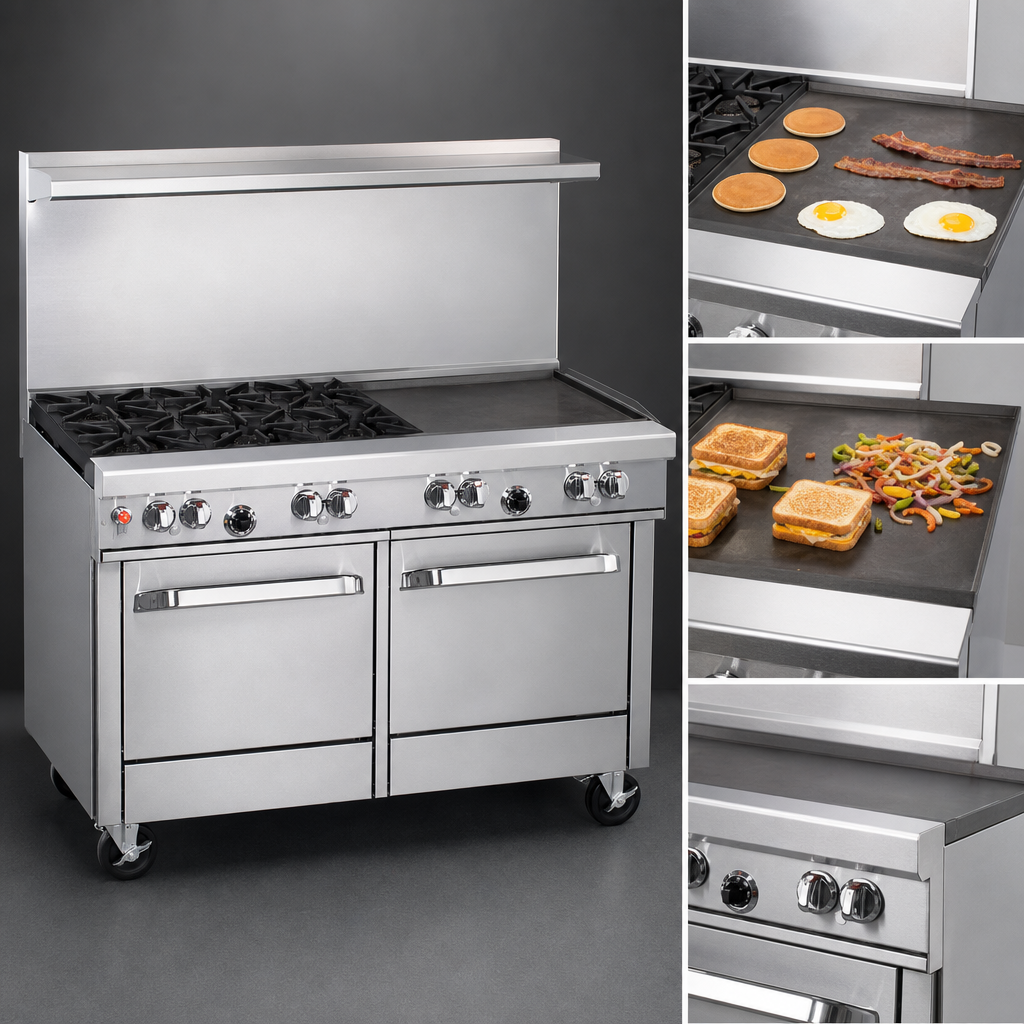

- 24" right-side griddle with ½" smooth, polished steel plate—ideal for breakfast favorites, burgers, or tortillas.
- Dual space-saver ovens (45 k BTU each) with battery-spark ignition and porcelain-enameled, coved-corner cavities for easy clean-up.
- 22½" flue riser with heavy-duty shelf keeps utensils, spices, or smallwares within arm’s reach.
- Front-mounted manual gas shut-off plus factory-installed regulator for fast line changes and safety.
- All-stainless front, sides, rail, shelf, and 6" adjustable legs built to withstand years of commercial abuse.
- Removable cast-iron top grates & two full-length drip trays streamline end-of-shift cleaning.
- Certified cCSAus, CSA Flame, CSA Star & NSF – ready for code inspections nationwide.
What’s in the Box
- (1) Ultimate Series 48" range with burner / griddle / oven package shown
- (2) Nickel-plated oven racks (1 per oven)
- Factory-installed ¾" pressure regulator
- Installation & operation manual
- One-year limited parts & labor warranty
Specifications
| Overall width | 48 5⁄8" |
|---|---|
| Overall depth | 34" |
| Cook-top height | 37" |
| With 22½" flue riser | 59½" H |
| Total BTU (NAT) | 270,000 BTU / hr |
| Open burners | (2) 33 k BTU star/sauté (front) + (2) 33 k BTU non-clog (rear) |
| Griddle | 24" W × 27" D, ½" plate, 48 k BTU |
| Ovens | (2) Space-Saver, 45 k BTU each, 175 – 550 °F thermostat |
| Oven interior (each) | 14" H × 19½" W × 26½" D (fits full-size sheet pans lengthwise) |
| Gas connection | ¾" NPT female, left rear (moves to opposite side if griddle ordered left) |
| Min. inlet pressure | Natural Gas 7" W.C. / LP 11" W.C. |
| Electrical | None required (battery-spark ignition) |
| Shipping weight | Approx. 735 lb |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
Peace-of-Mind Warranty
Covered by Southbend’s 1-year limited parts & labor warranty. Service must be performed by an authorized Southbend agency. Full terms available at southbendnc.com/service-and-parts.
- Intended for commercial use only—install under a properly sized vent hood.
- When using cookware 12" or larger, place pots on rear burners to prevent excess heat on the front rail.
- For non-quarry tile floors, contact the factory for alternative leg options; damage from improper installation is not covered under warranty.
