Southbend (Middleby) 4484DC-7R Ultimate Gas Ranges
Description

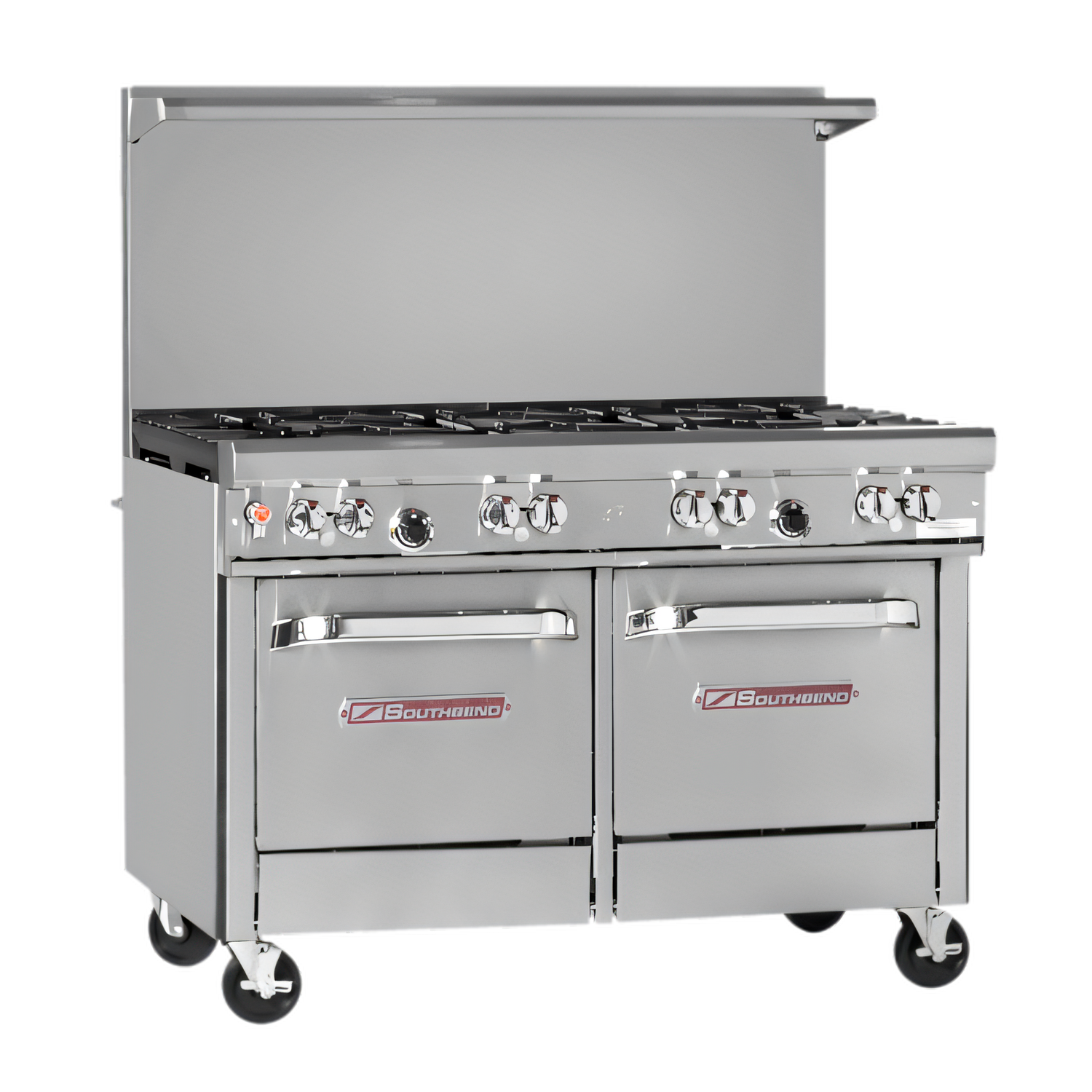

Ultimate 48" Gas Restaurant Range – Pyromax / Star Combo
Southbend Model 448 | 271,000 BTU | CSA & NSF ListedEngineered for high-volume kitchens that refuse to compromise on speed or durability, the Southbend Ultimate Series 48" Range pairs four blistering-hot Pyromax burners with precision star and non-clog burners, a full-size standard oven, and a stainless cabinet base. From rapid searing to all-day simmering, this custom configuration delivers the power and versatility you need on a single, space-saving platform.
Why You’ll Love It
- 271,000 BTU of total fire-power – Instant recovery and high production capacity.
- 4 × 40,000 BTU Pyromax burners on the right side with patented three-piece design for easy cleaning and lifetime clog-free performance.
- Split left bank – Front star/sauté burner (33 k) for even pan coverage, rear non-clog burner (33 k) for stock pots up to 14".
- Full-size standard oven (45 k) with battery-spark ignition, 175 – 550 °F thermostat and porcelain enamel interior.
- 18" stainless cabinet base provides dry storage right where you need it (doors available at no charge).
- 22-½" flue riser with integrated heavy-duty shelf keeps pans, spices and plating trays within reach.
- Front-mounted gas shut-off and factory-installed regulator for quick, code-compliant hook-up.
- Rugged stainless front, sides, shelf & 6" adjustable legs stand up to the busiest cooklines.
- Backed by a 1-year parts & labor warranty and Southbend’s nationwide service network.

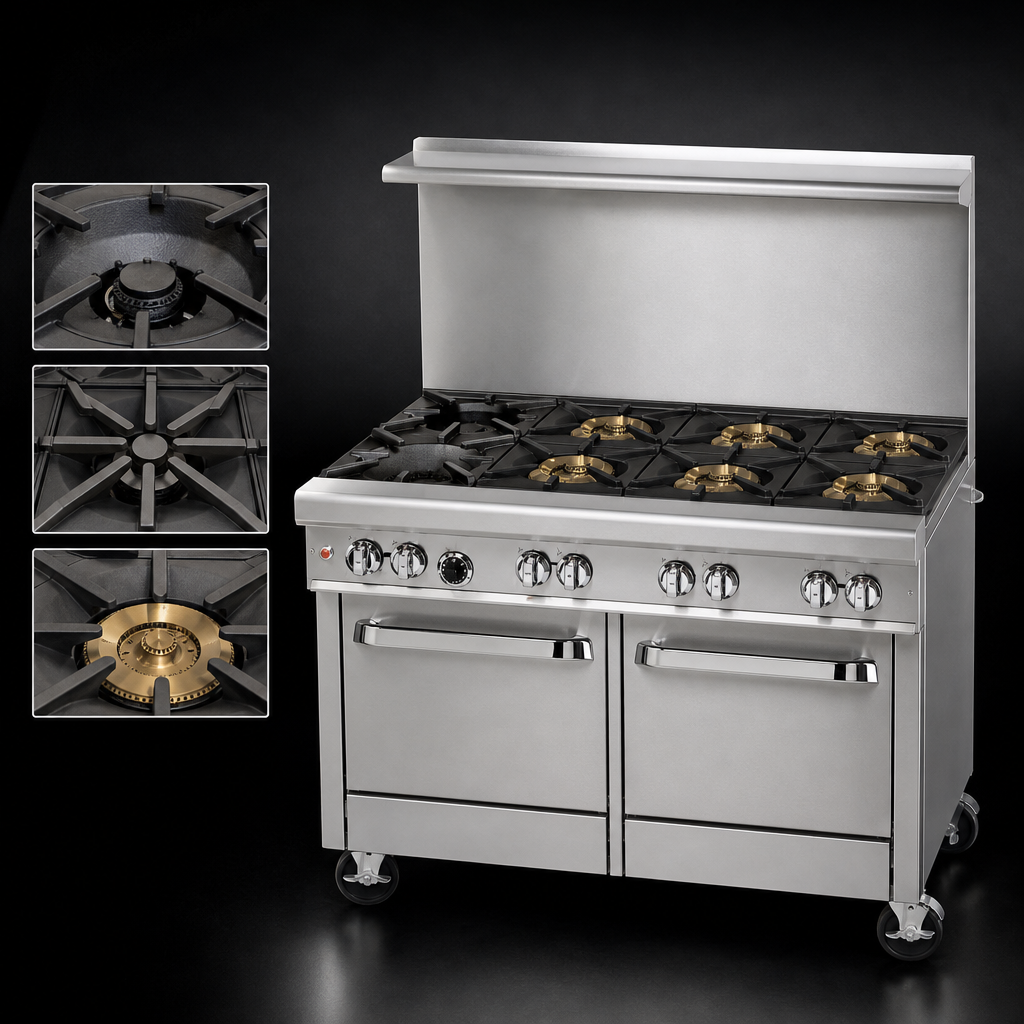

Burner Configuration
| Right-side bank | 4 × Pyromax open burners, 40,000 BTU each (160 k total) |
|---|---|
| Left-front | 1 × Star/sauté burner, 33,000 BTU |
| Left-rear | 1 × Non-clog burner, 33,000 BTU |
| Ignition (top) | Standing pilots |

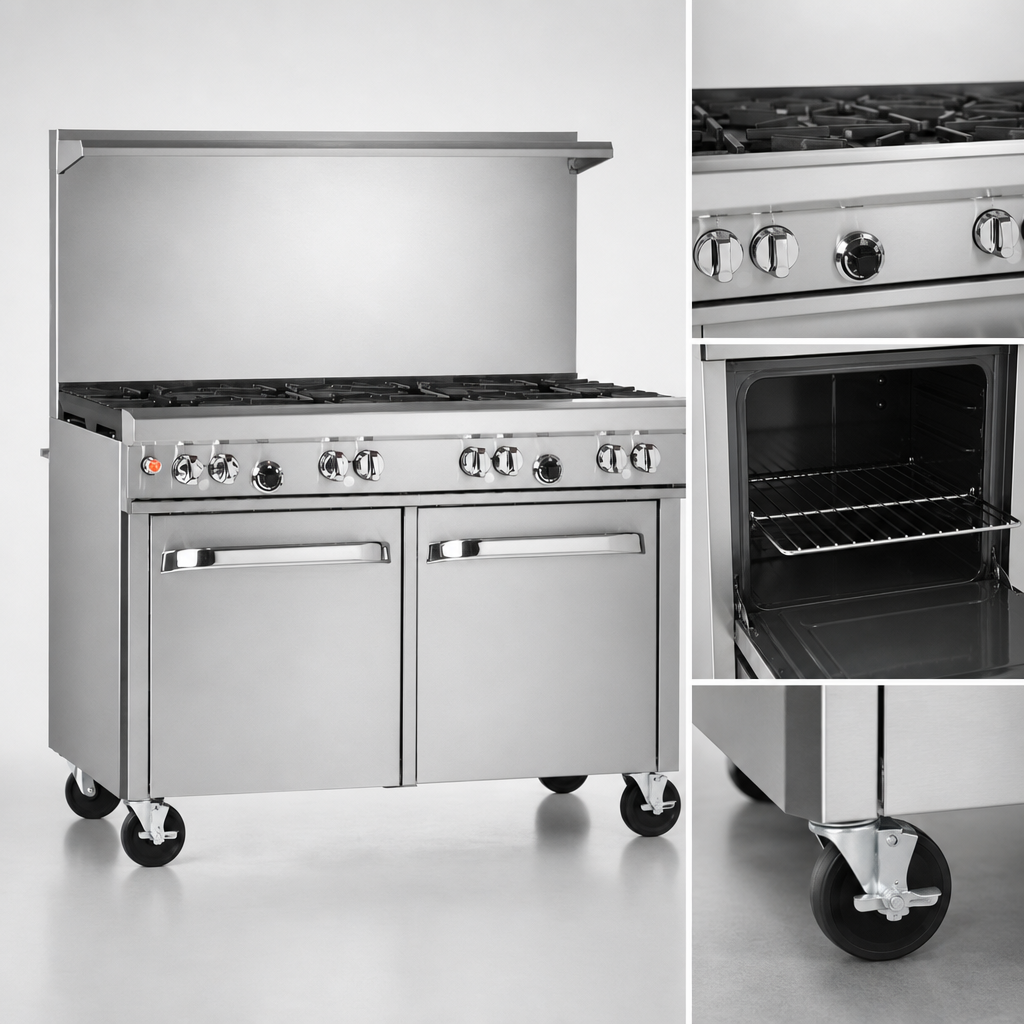

Standard Oven
| BTU / Heat Source | 45,000 BTU, U-shaped burner |
|---|---|
| Ignition | Battery-spark (no external power required) |
| Interior (H × W × D) | 14" × 26" × 26.5" – fits full-size sheet pans both directions |
| Thermostat Range | 175 °F – 550 °F (79 °C – 288 °C) |
| Included Rack(s) | 1 heavy-duty rack, 2-position side rails |
Technical Data at a Glance
| Overall Width | 48-5/8" |
|---|---|
| Depth (inc. rail) | 34" |
| Cook-surface Height | 37" |
| Total Gas Input | 271,000 BTU/hr |
| Gas Connection | 3/4" NPT (left or right depending on griddle/charbroiler options) |
| Operating Gas Pressure | Natural – 7" W.C. LP – 11" W.C. |
| Crated Weight | Approx. 335 lb |
| Certifications | CSA, NSF |
What’s in the Box
- Ultimate 48" Range with burners, oven & cabinet base assembled
- 22-½" flue riser with storage shelf
- 1 oven rack
- Factory-installed pressure regulator
- 6" stainless adjustable legs
- Owner’s manual & warranty registration
Cabinet doors, extra oven racks, casters, quick-disconnect hoses and other accessories are available upon request.
Peace-of-Mind Warranty
Southbend covers the Ultimate Series with a one-year parts & labor warranty. Service is provided by a nationwide network of Southbend-authorized agencies. Full terms available at southbendnc.com/service-and-parts.
- Unit is intended for commercial use only and must be installed under a properly sized vent hood.
- 6" legs or casters are required when placing on combustible flooring.
- Limit oversized cookware (⌀ 12" or larger) to the rear burners to prevent excessive heat at the front rail.
- Clearances: 0" sides & rear to non-combustible construction; 10" sides & rear to combustibles.
