Southbend (Middleby) 4484DC-7L Ultimate Gas Ranges
$11,160.00
Unit price
/
Unavailable
Description
Ultimate™ 48" Gas Restaurant Range
Model 448-DC | 4 Pyromax + Star/Sauté + Non-Clog | Standard Oven & Cabinet BasePut Southbend’s highest-output burners and rock-solid construction to work on your cookline. The Ultimate Series delivers 271,000 BTU of searing power, a full-size standard oven, and built-in stainless storage—all in a space-saving 48" footprint.
Why You’ll Love It
- Massive fire power – 4 Pyromax burners (40 K BTU each) plus a 33 K BTU star/sauté and a 33 K BTU non-clog burner.
- Full-depth cooking surface – 27" deep cast-iron grates hold stock pots up to 14" without crowding.
- Precision baking & roasting – 45 K BTU standard oven with 175-550 °F thermostat and porcelain interior.
- Built for the long haul – All-stainless front, sides, shelf, 4" front rail & 6" adjustable legs.
- Easy service & safety – Front-located manual gas shut-off and factory-installed 3/4" pressure regulator.
- Added storage – 18" stainless cabinet base keeps hotel pans, lids or smallwares within reach.
- 22-1/2" flue riser with heavy-duty shelf for plating or small equipment.
- Standing pilots for open tops; battery-spark ignition for the oven—no electric hook-up required.
- Certified CSA & NSF for commercial kitchens.
- Backed by Southbend’s 1-year parts & labor warranty.
Technical Specs
| Overall Width | 48 5/8" / 1235 mm |
|---|---|
| Overall Depth | 42 1/8" / 1070 mm |
| Work-top Height | 37" / 940 mm |
| Height w/ Shelf | 59 1/2" / 1511 mm |
| Burner Configuration | 4 × 40 K BTU Pyromax (left) • 1 × 33 K BTU Star/Sauté (front right) • 1 × 33 K BTU Non-Clog (rear right) |
| Oven | Standard | 45 K BTU | 14" H × 26" W × 26.5" D | (1) rack, 2 positions | 175-550 °F |
| Cabinet Base | 18" stainless storage, open (door optional) |
| Total Input | 271,000 BTU/hr (Natural Gas) |
| Gas Connection | 3/4" NPT (female), rear; min. inlet pressure 7" W.C. |
| Shipping Weight | ≈ 735 lb / 334 kg |
| Warranty | 1-year parts & labor (factory authorized service) |

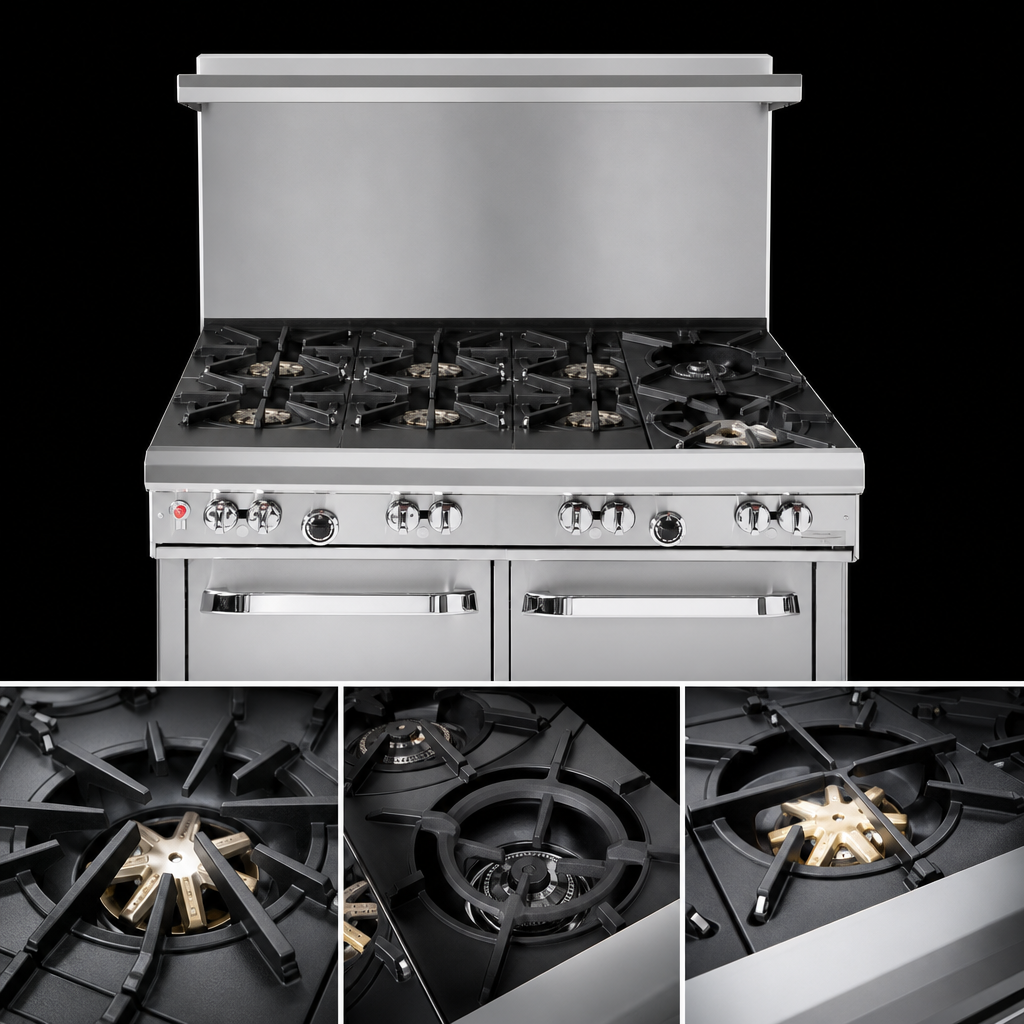

Performance-Driven Burner Line-up
- Pyromax® – Patented three-piece, easy-clean design with built-in drip ring prevents port clogging and delivers a blistering 40,000 BTU for rapid stock or wok work.
- Star/Sauté – Cast-iron star pattern spreads 33,000 BTU evenly across smaller sauté pans.
- Standard Non-Clog – 33,000 BTU with lifetime clog-free ports—ideal for sauces or holding.
For commercial use only. 6" legs (included) or casters are required for installation on combustible floors.
Always install under a vented hood and connect with the recommended 3/4" gas flex-hose and restraining device.
Oversized cookware (12"+ diameter) should be used on rear burners only to avoid overheating the front rail.
Upgrade today with Middleby Equipment Financing—fast approvals, fixed monthly payments, and potential Section 179 tax savings.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
48.63in
Depth
34.0in
Shipping Weight
735.0lbs
Exterior Finish
stainless steel front & sides
Base
(1) standard oven, (1) cabinet
Vent
backriser with hi-shelf
Top
(6) open burners
Specifications
Ultimate Restaurant Range, gas, 48", (4) pyromax burners left, (1) star/sauté burner front right, (1) non-clog burner rear right, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 271,000 BTU, CSA, NSF
