Southbend (Middleby) 4484DC-5R Ultimate Gas Ranges
$11,160.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4484DC-5R Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4484DC-5R Ultimate Gas Ranges
$11,160.00
Unit price
/
Unavailable
Description

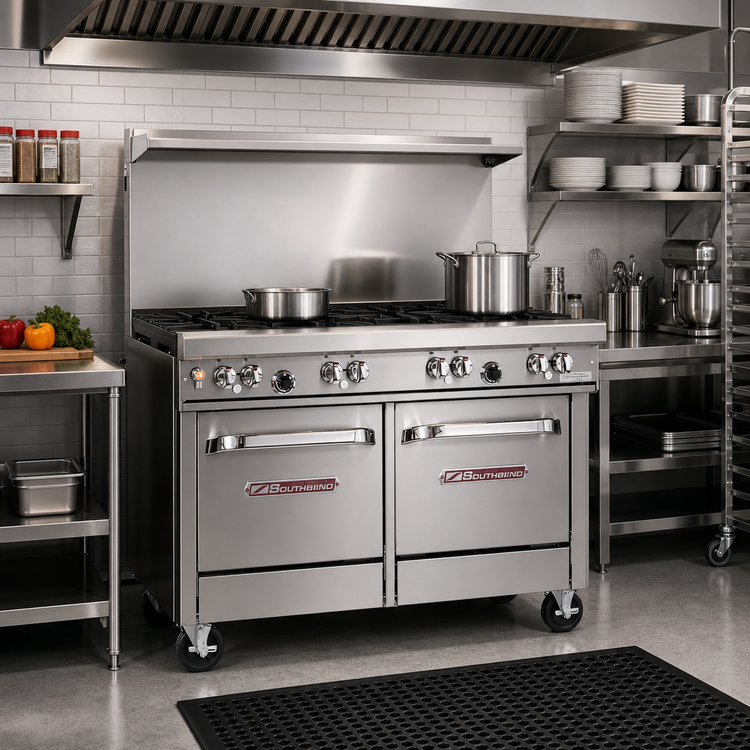

Southbend Ultimate 48" Gas Restaurant Range – Split-Top 7-Burner w/ Standard Oven & Cabinet
Model 448 | 290,000 BTU | CSA & NSF CertifiedBuilt in the USA for kitchens that refuse to compromise, the Southbend Ultimate Series 48" range delivers massive firepower, rock-solid construction and flexible configuration in a single, space-saving footprint. A custom 7-burner open top, full-size oven and stainless storage cabinet make it the ultimate all-day workhorse for demanding restaurant lines, hotels and culinary schools.

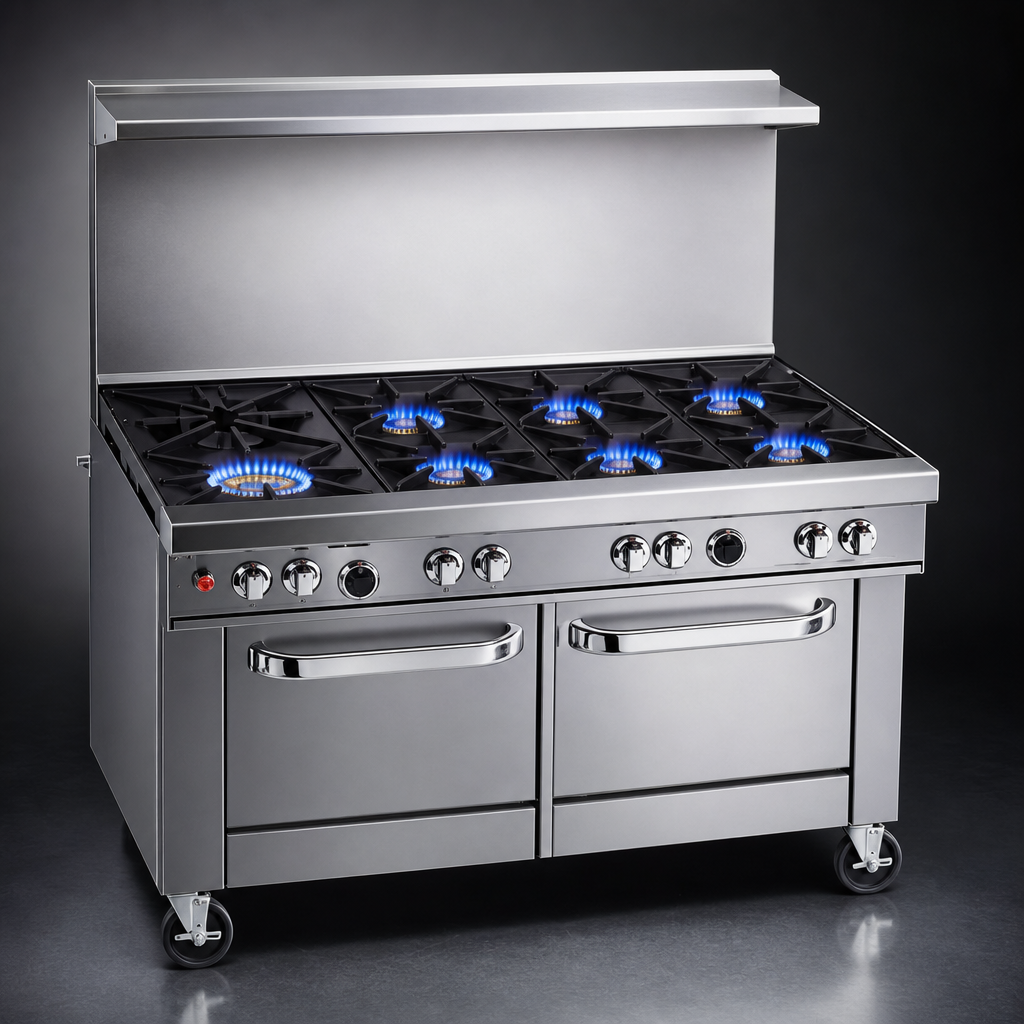

Custom Split-Top Burner Layout
- (3) 33,000 BTU clog-free cast-iron burners – front right
- (1) 33,000 BTU star/sauté burner – front left for lightning-fast pan work
- (1) 33,000 BTU non-clog burner – rear left handles stock pots up to 14"
- (2) 40,000 BTU Pyromax™ high-output burners – rear right for rapid boiling & searing
- Standing pilots on all open burners for instant, match-free ignition
- Four removable, heavy cast-iron grate tops span the full 27" deep cook surface

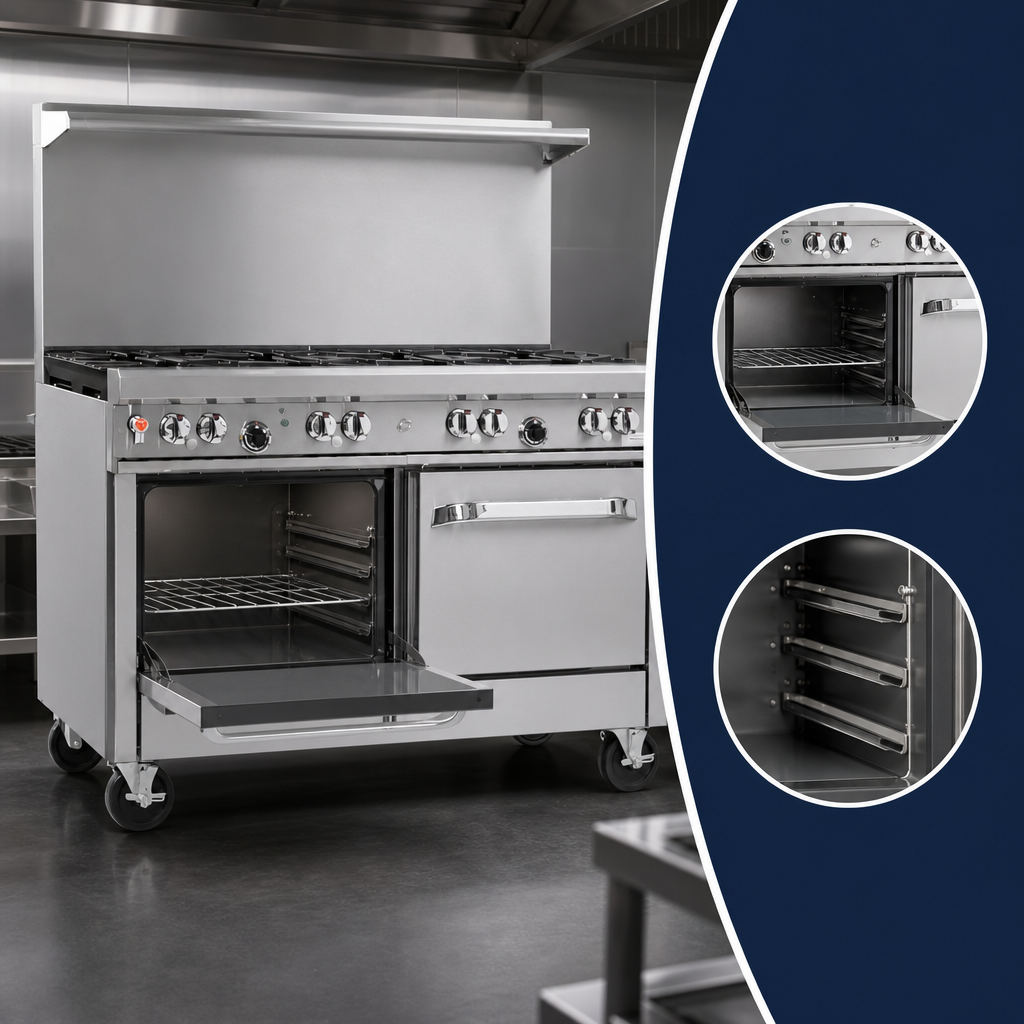

High-Capacity Standard Oven
- 45,000 BTU burner with battery spark ignition – no external power required
- Thermostat range 175 – 550 °F (79 – 288 °C)
- Porcelain-enameled cavity: 14" H × 26" W × 26.5" D – fits full-size sheet pans both directions
- Includes 1 heavy-duty rack with two position rails; spring-assisted door for smooth action
Integrated Stainless Storage Cabinet
- 18" wide cabinet base keeps sheet pans, spices or smallwares within arm’s reach
- Optional hinged doors available at no charge – just ask when ordering
Built for the Long Haul
- One-piece stainless front, sides, 4" front rail & flue riser shelf – easy to clean, corrosion-resistant
- 22-1/2" flue riser with heavy-duty shelf for plating or holding small equipment
- 6" stainless adjustable legs for perfect leveling; optional casters available
- Front-mounted manual gas shut-off & factory-installed 3/4" regulator
- CSA Gas, CSA Sanitation & NSF listings for code compliance nationwide
- Backed by a 1-year parts & labor warranty with nationwide authorized service
Technical Specifications
| Overall width | 48-5/8" |
|---|---|
| Cook surface height | 37" |
| Depth (to rail) | 34" |
| Total input | 290,000 BTU/hr (245,000 BTU top + 45,000 BTU oven) |
| Burners | 3 × 33 kBTU non-clog, 1 × 33 kBTU star, 1 × 33 kBTU non-clog, 2 × 40 kBTU Pyromax |
| Gas connection | 3/4" NPT female – 7" W.C. Natural Gas (LP kit optional) |
| Oven interior | 14" H × 26" W × 26.5" D porcelain enamel |
| Grate area | 27" deep, 12" center-to-center spacing |
| Certifications | CSA Gas, CSA Sanitation, NSF |
| Warranty | 1-year parts & labor |
Need a different oven style, rear step-up burners or thermostatic griddle? The Ultimate Series offers dozens of factory options – contact us for a custom quote.
Installation Notice: This appliance is intended for commercial use under a properly ventilated hood. Maintain 0" clearance to non-combustible surfaces (10" to combustible), and use an ANSI Z21.69 compliant 3/4" flex hose with a restraining device.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
48.63in
Depth
34.0in
Shipping Weight
735.0lbs
Exterior Finish
stainless steel front & sides
Top
(7) open burners
Vent
backriser with hi-shelf
Base
(1) standard oven, (1) cabinet
Specifications
Ultimate Restaurant Range, gas, 48", (3) non-clog burners front right, (2) pyromax burners rear right, (1) star/sauté burner front left, (1) non-clog rear left, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 290,000 BTU, CSA, NSF
