Southbend (Middleby)  |  Ultimate  |  SKU: 4484DC-5L

Southbend (Middleby) 4484DC-5L Ultimate Gas Ranges

$11,160.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

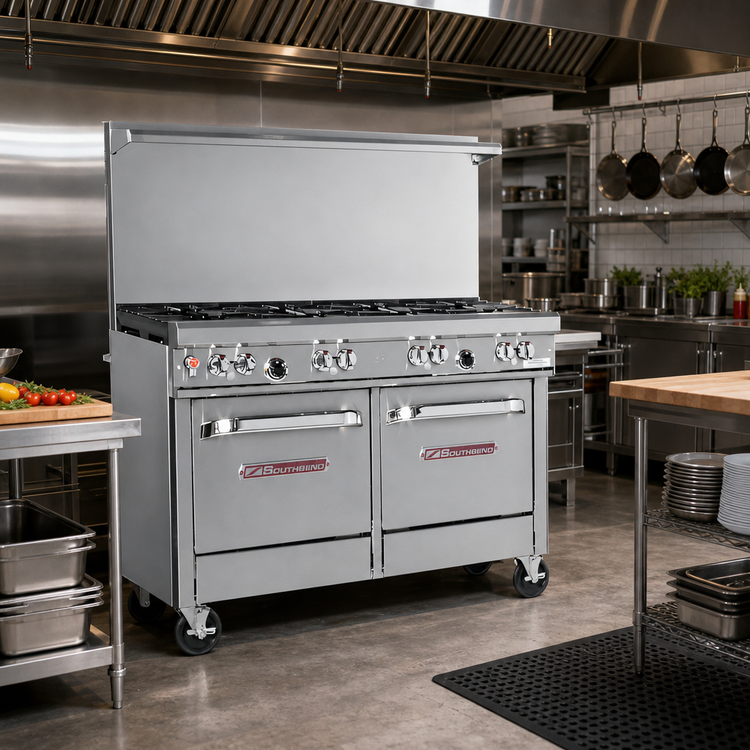

Southbend Ultimate 48" Gas Restaurant Range – Custom 7-Burner / Standard Oven

Model 448 • 290,000 BTU/hr • CSA & NSF Listed

Built to survive the rush and engineered for precision, the Southbend Ultimate Range combines clog-free open burners, high-output Pyromax power, and a heavy-duty oven in one stainless-steel workhorse.

Highlights

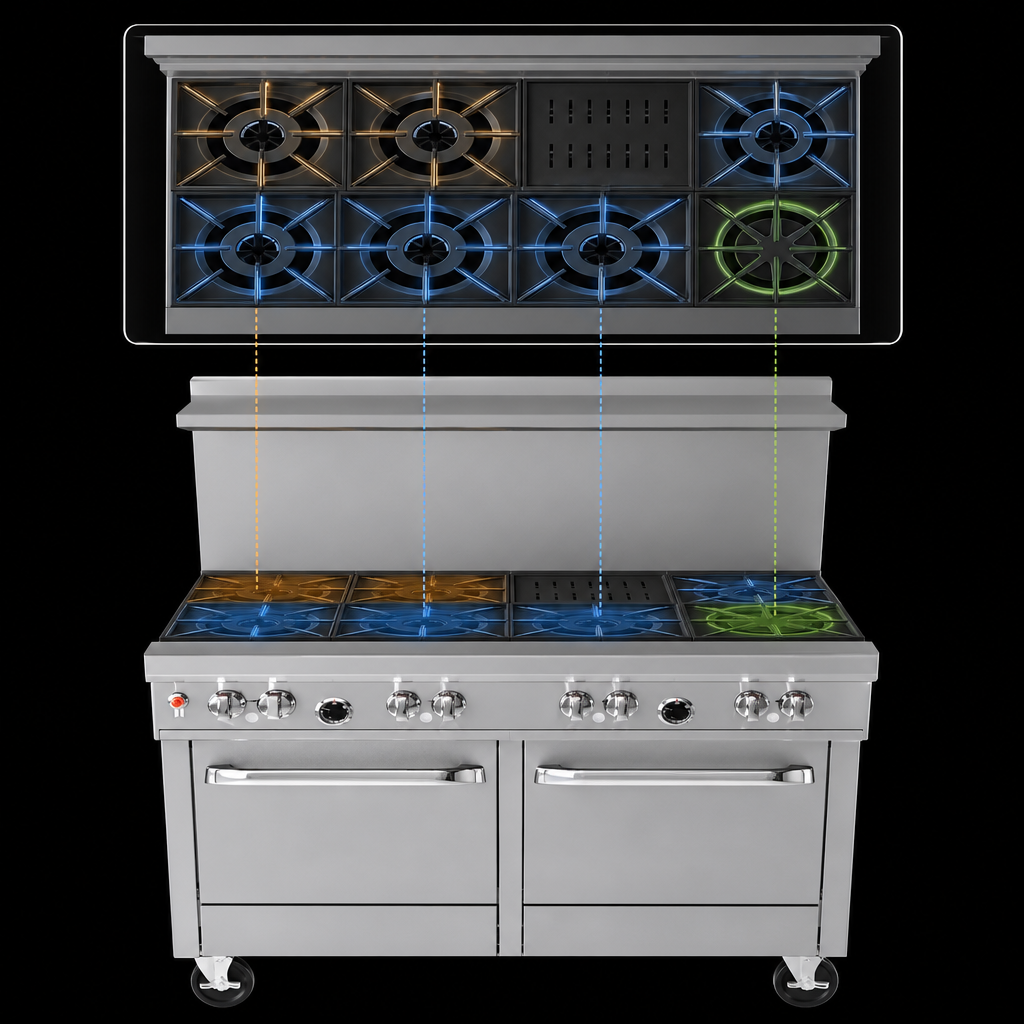

  • Custom 7-burner top: 3 × 33 K BTU non-clog (front left), 2 × 40 K BTU Pyromax (rear left), 1 × 33 K BTU star/saute (front right), 1 × 33 K BTU non-clog (rear right)
  • Lifetime clog-free cast-iron burners with removable grates that accept up to 14" stock pots in the rear.

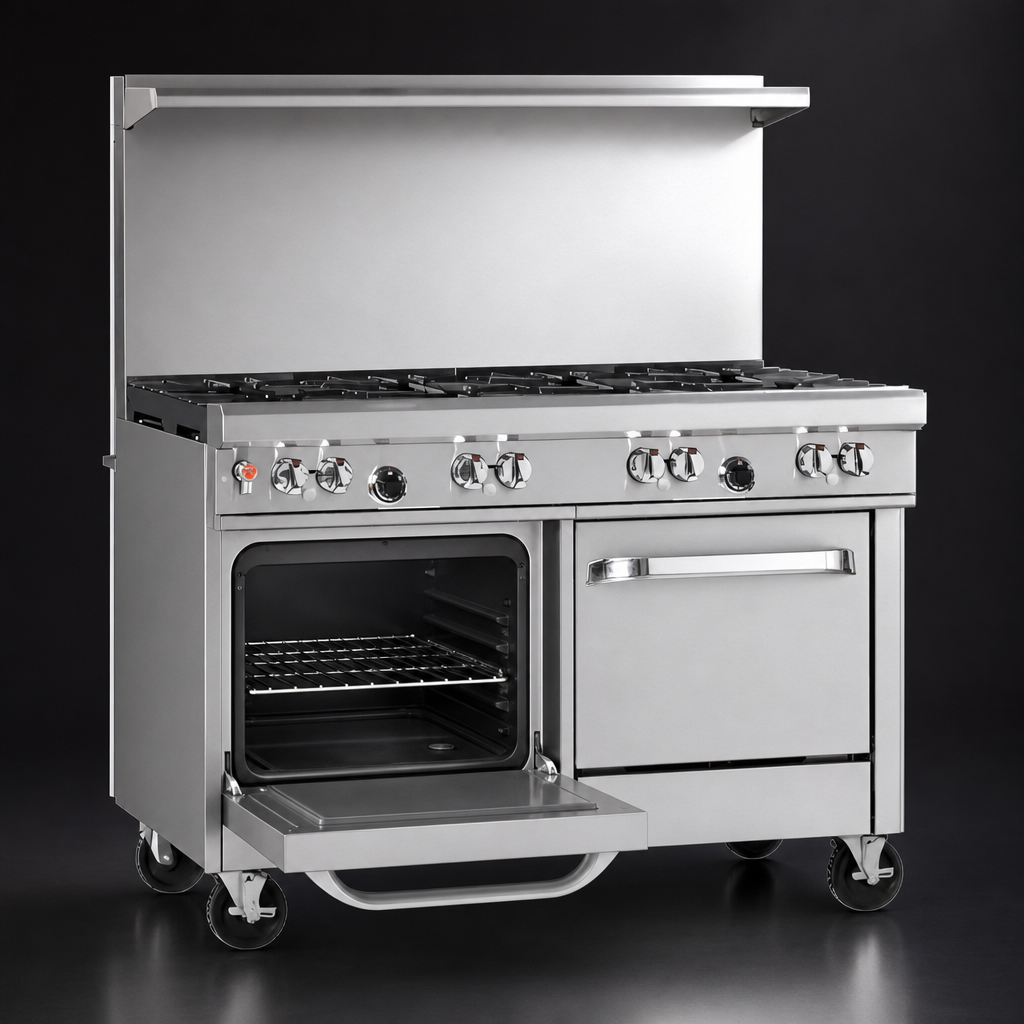

  • 45 K BTU standard oven with battery-spark ignition and a 175 °F–550 °F thermostat.
  • 18" stainless cabinet base adds dry storage right where you need it.
  • 22 ½" flue riser with heavy-duty overshelf keeps pans and seasonings close at hand.
  • Front-panel manual gas shut-off and factory-installed ¾" regulator for quick, secure hook-ups.
  • Rugged stainless front, sides, rail & legs—easy to clean, impossible to intimidate.
  • Ships with one oven rack and 6" adjustable stainless legs (casters optional).
  • Backed by a 1-year parts & labor warranty from Southbend.

Specifications

Overall width 48 5/8" (1235 mm)
Depth (to front rail) 34" (864 mm)
Cooking surface height 37" (940 mm)
Open-top BTU 245,000 BTU/hr
Oven BTU 45,000 BTU/hr (standard, battery-spark)
Total gas input 290,000 BTU/hr
Oven capacity 14"H × 26"W × 26 ½"D — fits full-size sheet pans either direction
Gas connection ¾" NPT (rear) • Natural 7" W.C. / LP 11" W.C.
Electrical None required (battery spark)
Construction Stainless front, sides & shelf • 4" rail • 22 ½" flue riser with shelf • 6" adjustable legs
Certifications CSA Flame • CSA Sanitation • NSF
Warranty 1-year parts & labor (USA/Canada)

Why Chefs Choose the Ultimate Series

  • Pyromax burners reach white-hot heat fast—perfect for woks, rapid boils and big stock pots.
  • Star/saute burner’s radial flame pattern eliminates hot spots for finishing sauces and delicate proteins.
  • Non-clog burners are cast in a single piece—no screws, no downtime, lifetime warranty against blockage.
  • Battery-powered ignition keeps your kitchen running during power outages.
  • Front gas shut-off and slide-out drip trays simplify daily cleaning and maintenance.
Commercial installation only. Install under a vented hood with 10" rear & side clearance to combustibles. For cookware 12" Ø or larger, use the rear burners to protect front-rail components.

Need flexible payments? Ask about Middleby Equipment Financing and turn this purchase into predictable monthly installments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Exterior Finish

stainless steel front & sides

Top

(7) open burners

Vent

backriser with hi-shelf

Base

(1) standard oven, (1) cabinet

Specifications

Ultimate Restaurant Range, gas, 48", (3) non-clog burners front left, (2) pyromax burners rear left, (1) star/sauté burner front right, (1) non-clog rear right, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 290,000 BTU, CSA, NSF
