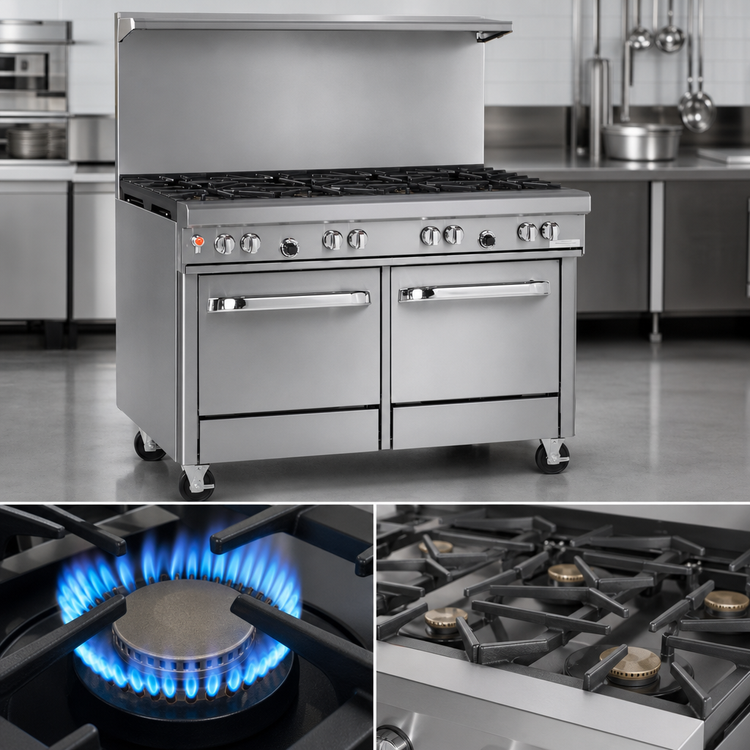

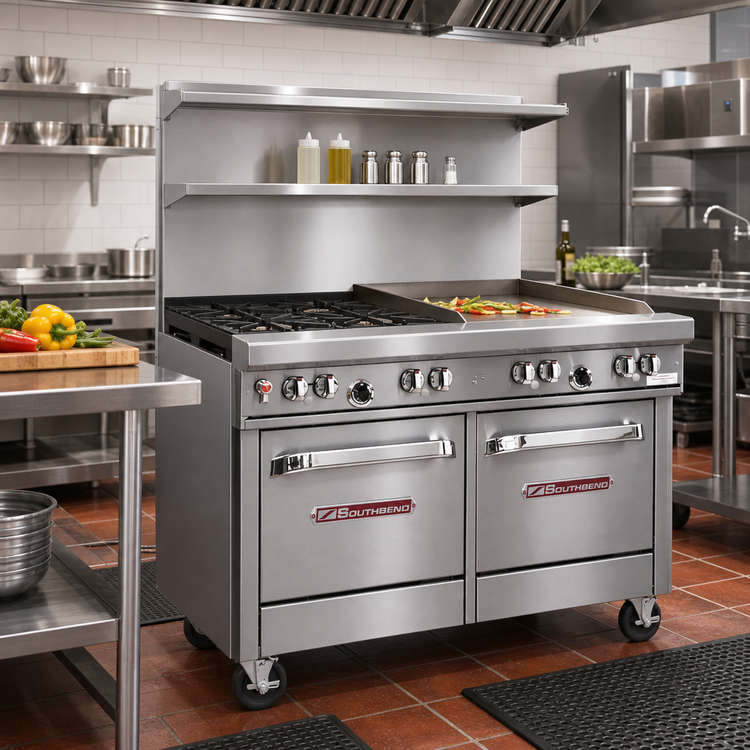

Southbend “Ultimate” 48" Gas Restaurant Range

Built for chefs who demand uncompromising power, flexibility, and durability, the Southbend Ultimate 48" range combines heavy-duty open burners, a spacious steel griddle, and a high-performance oven in one rock-solid platform. From quick sears to all-day sauté stations, this range delivers 175,000 BTU of total cooking muscle while its all-stainless exterior keeps your kitchen looking sharp shift after shift.

Key Performance Features

• (1) 33,000 BTU Star/Sauté burner – broad flame pattern for fast, even heat.
• (1) 33,000 BTU lifetime non-clog burner (rear) – stays clean, handles up to a 14" stock pot.
• 36" right-side griddle, 1/2" polished steel plate, 64,000 BTU – perfect for burgers, breakfast, or sauté work.
• 45,000 BTU standard oven with battery spark ignition, 175 – 550 °F thermostat, includes (1) rack.
• 18" stainless cabinet base (left) provides dry storage under the cooktop.
• 22-1/2" flue riser with heavy-duty overshelf maximizes vertical space.
• Front-mounted manual gas shut-off valve for whole-range safety.
• Four removable cast-iron top grates; two full-width crumb trays for fast cleanup.
• 6" stainless steel adjustable legs (casters optional).
• Factory-installed 3/4" gas pressure regulator.

Built to Last

• All-stainless front, sides, shelf, and flue riser resist corrosion in the harshest kitchens.
• Double-sided porcelain-enameled oven cavity with coved corners wipes clean easily.
• Spring-assisted oven door prevents sagging and operator fatigue.
• One-piece cast burners and heavy grates are designed for years of high-heat service.

Certifications & Warranty

• cCSAus, CSA Flame, CSA Star, NSF listed for gas safety and sanitation.
• 1-year limited parts & labor warranty backed by Southbend’s nationwide service network.

Technical Specifications

Full engineering drawings, installation manual, and CAD files are available at southbendnc.com.
