Southbend (Middleby) 4484DC-3CR Ultimate Gas Ranges

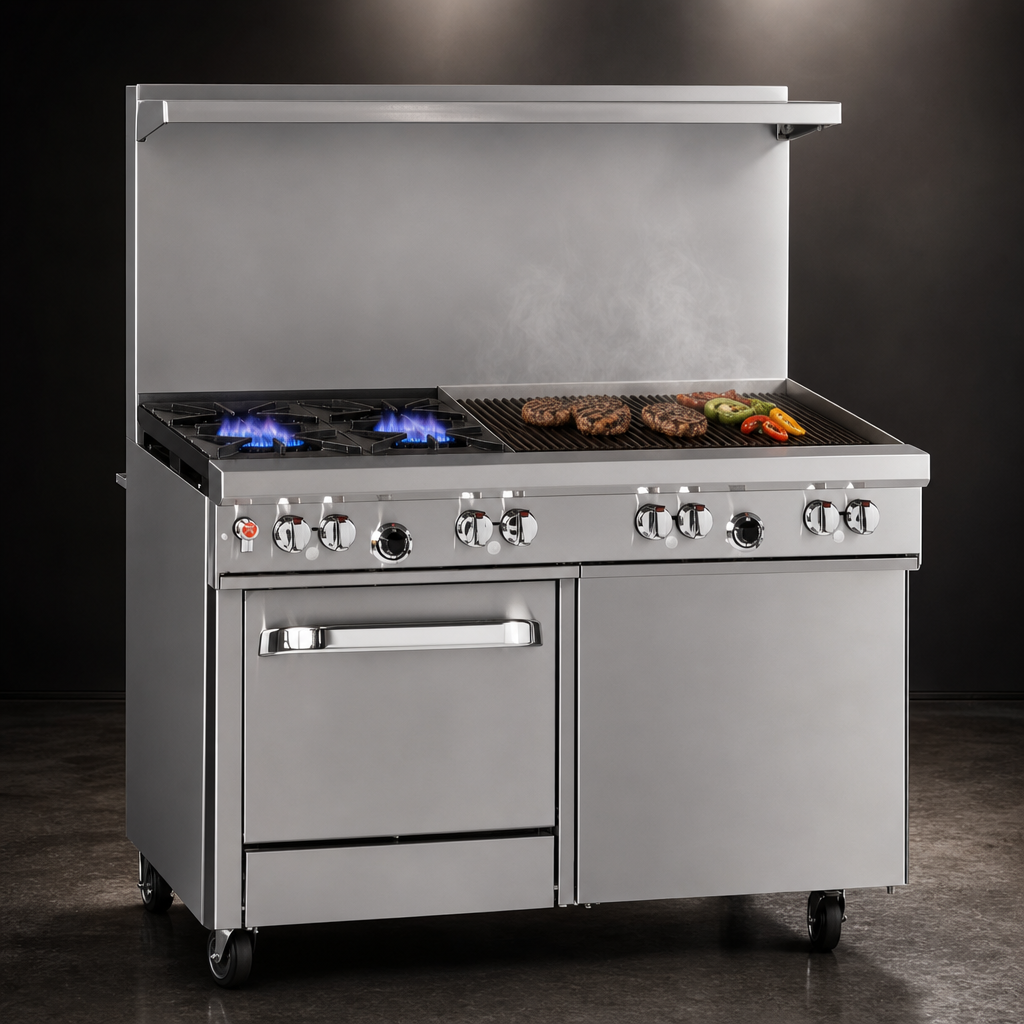

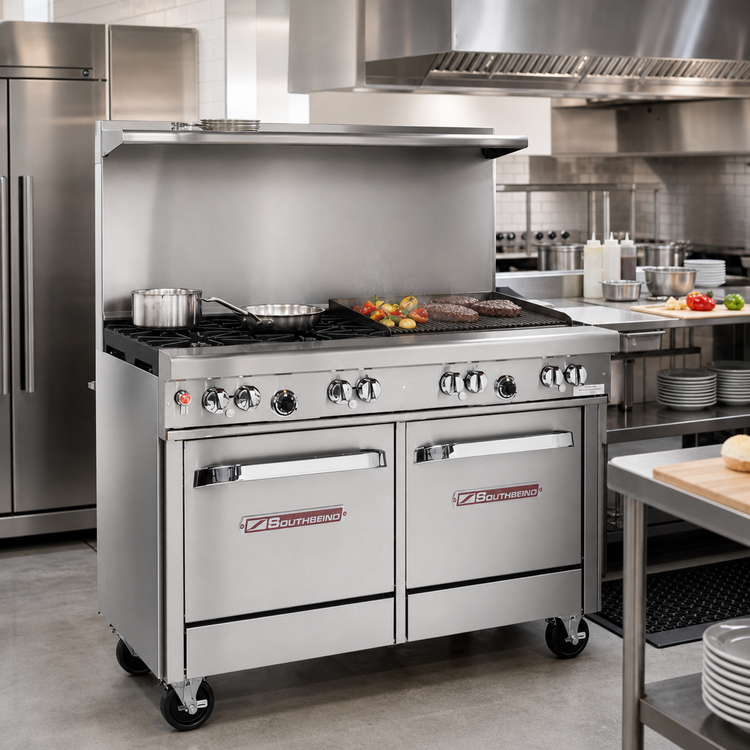

Ultimate 48" Gas Restaurant Range – 2-Burner / 36" Charbroiler Combo

Purpose-built for high-volume kitchens that refuse to compromise on versatility or power, the Southbend Ultimate 48" Restaurant Range combines precision open-top cooking, a heavy-duty charbroiler and a full-size standard oven in one rugged, stainless-steel platform delivering 207,000 BTU of total firepower.

Highlights & Advantages

• Two open burners (12" section, left) – front star/​sauté burner (33 k BTU) for rapid, even heat; rear lifetime non-clog burner (33 k BTU) sized to support up to 14" stock pots.
• 36" charbroiler (right) – ⅝" thick cast-iron grate sections with standing pilots deliver a blistering 96 k BTU for steak-house sear marks and smoky flavor.

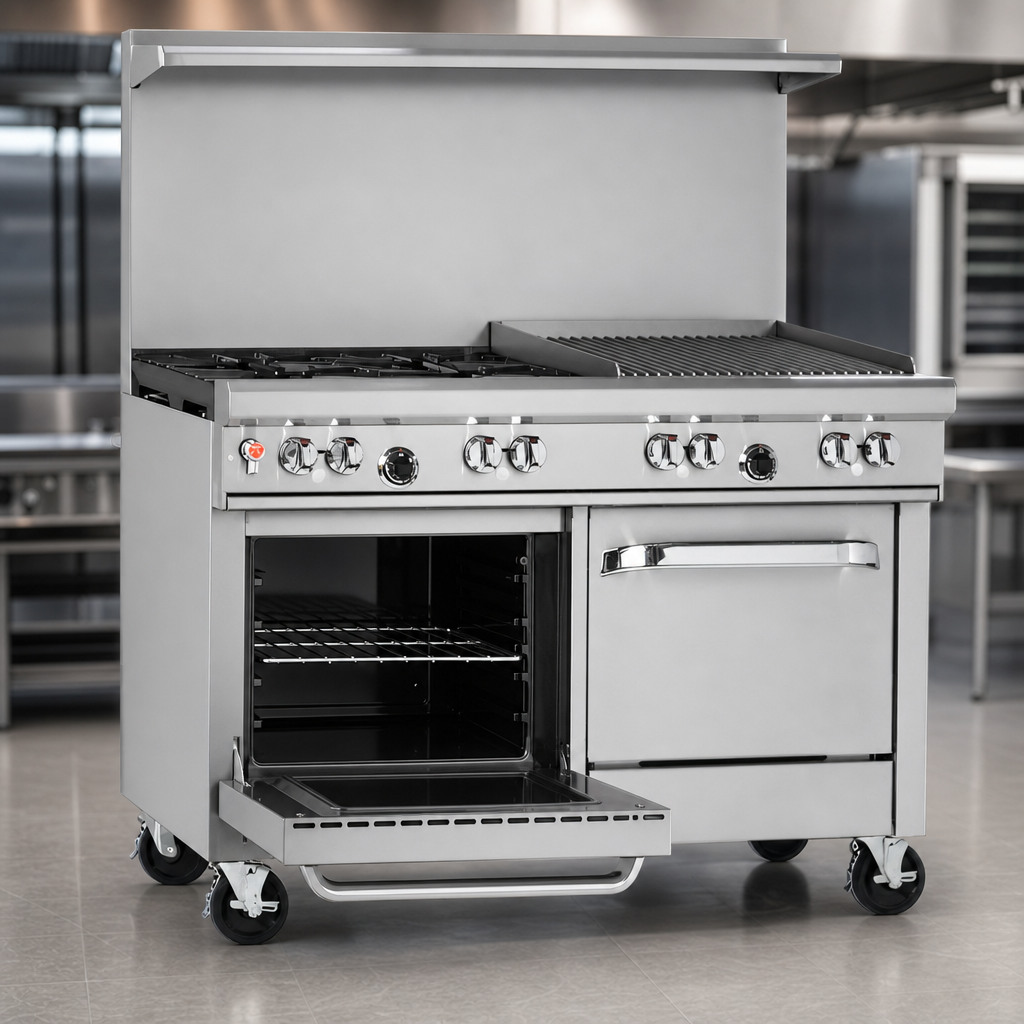

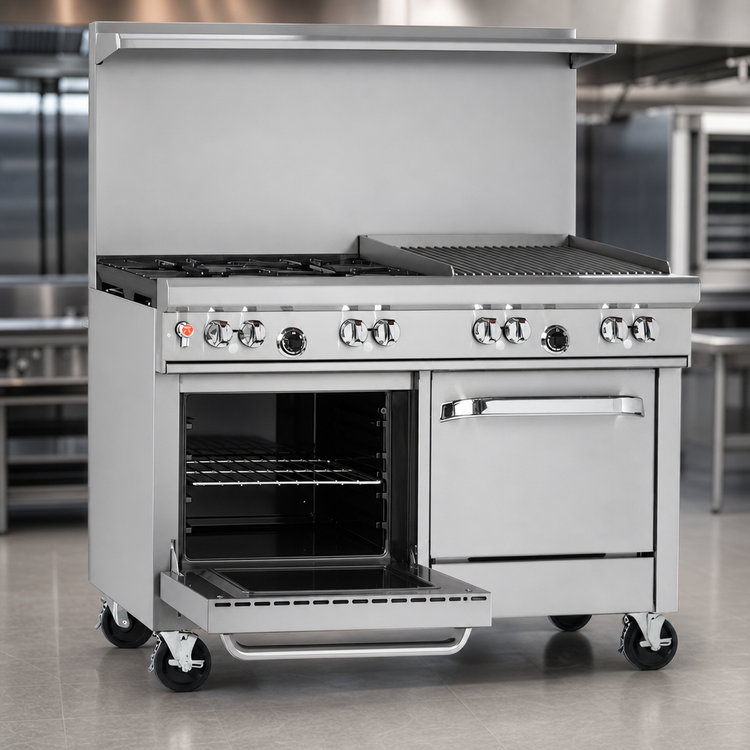

• Full-size standard oven – 45 k BTU with battery-spark ignition, 175 °F–550 °F thermostat and porcelain-enamel cavity; includes one rack with two positions.
• 18" stainless cabinet base under the charbroiler keeps sheet pans, seasoning or smallwares within arm’s reach (optional doors available).
• 22½" flue riser with integrated shelf – perfect for pan storage or plate warming.
• Front-mounted manual gas shut-off plus factory-installed regulator for fast installation.
• All-stainless front, sides, undershelf & 6" adjustable legs for lasting corrosion resistance and effortless cleaning.
• CSA & NSF certified for gas safety and sanitation compliance.

Unmatched Cooking Performance

• Total input: 207,000 BTU/h (natural gas or LP).
• Standing pilots on all open burners & broiler for instant, reliable ignition.
• Battery-spark oven ignition—no electrical connection required when ordered without convection.
• 27" deep cooktop with 4" stainless bull-nose rail keeps plating space cool and safe.

Built for the Rush

• Double-sided, fully porcelain-enamel oven liner with coved corners for easy wipe-out.
• Removable cast-iron grates and drip trays streamline nightly cleaning.
• Spring-assisted oven door withstands constant opening during peak service.
• Factory 1-year parts & labor warranty backed by Southbend’s nationwide authorized service network.

At-a-Glance Specifications

Certifications: CSA Gas / Sanitation • NSF / ANSI 4

Warranty

1-year limited parts & labor. See southbendnc.com/service-and-parts for full terms.
