Southbend Ultimate 48-Inch Gas Restaurant Range with 4 Burners, 24-Inch Thermostatic Griddle, Standard Oven, and Cabinet Base
Southbend Ultimate 48-Inch Gas Restaurant Range with 4 Burners, 24-Inch Thermostatic Griddle, Standard Oven, and Cabinet Base
Stainless steel front, sides, and shelf; 225,000 BTU; 6-inch adjustable legs
A versatile 48-inch gas range that combines four burners, a 24-inch thermostatic griddle, and a standard oven on a durable stainless steel frame.
- Combines a 4-burner cooktop, 24-inch griddle, standard oven, and cabinet base in one unit.
- 24-inch smooth polished steel griddle uses thermostatic controls for precise heat management.
- Standard oven includes standing pilot ignition, battery spark ignition, and a 175°F to 550°F temperature range.
- Stainless steel front, sides, and shelf help deliver long-lasting commercial durability.
- Includes one oven rack, a 22.5-inch flue riser with shelf, and 6-inch adjustable legs.
- 225,000 BTU output is built for demanding high-volume kitchen operation.
Overall Dimensions:
48.63"W x 34.0"D x 59.5"HProduct Weight:

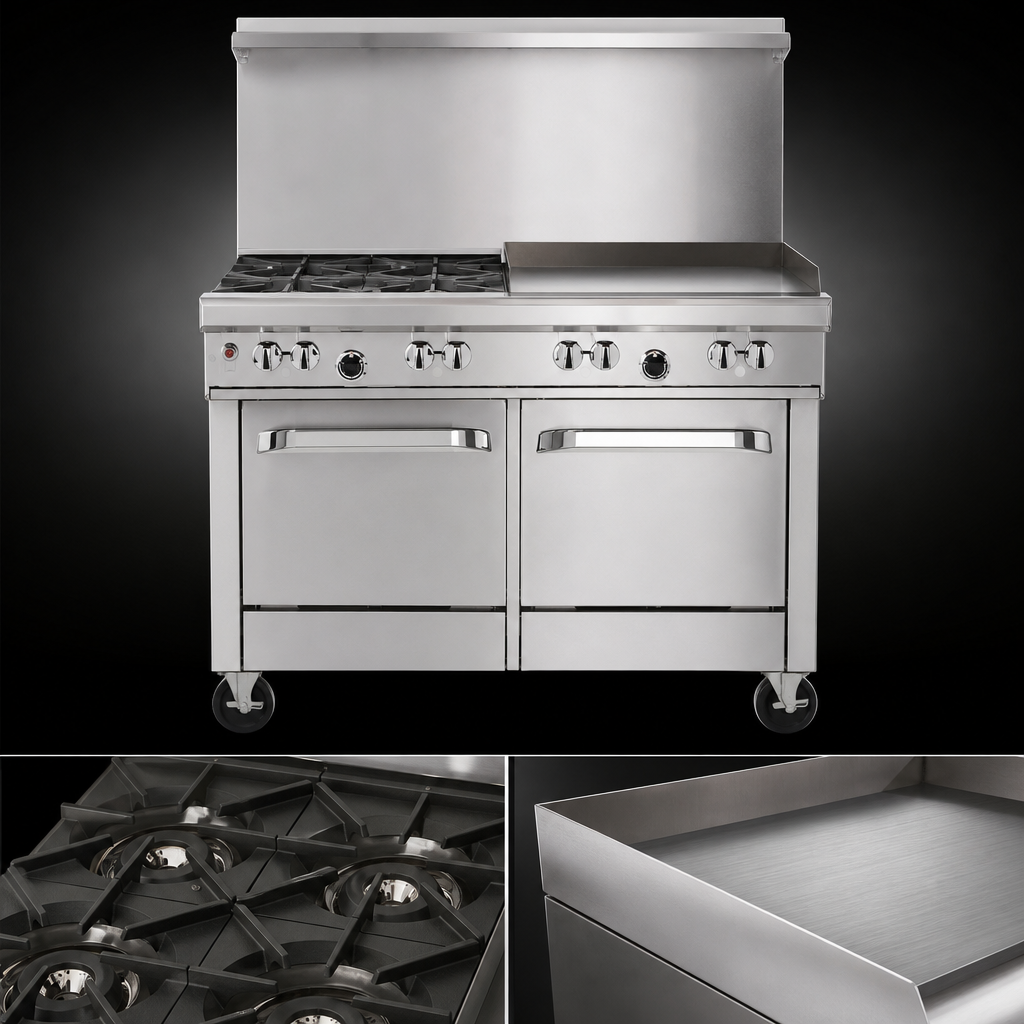

735.0 lbCombination Top Configuration
Four-burner top with a split front/rear burner layout and standard cast iron grates for flexible cooking.

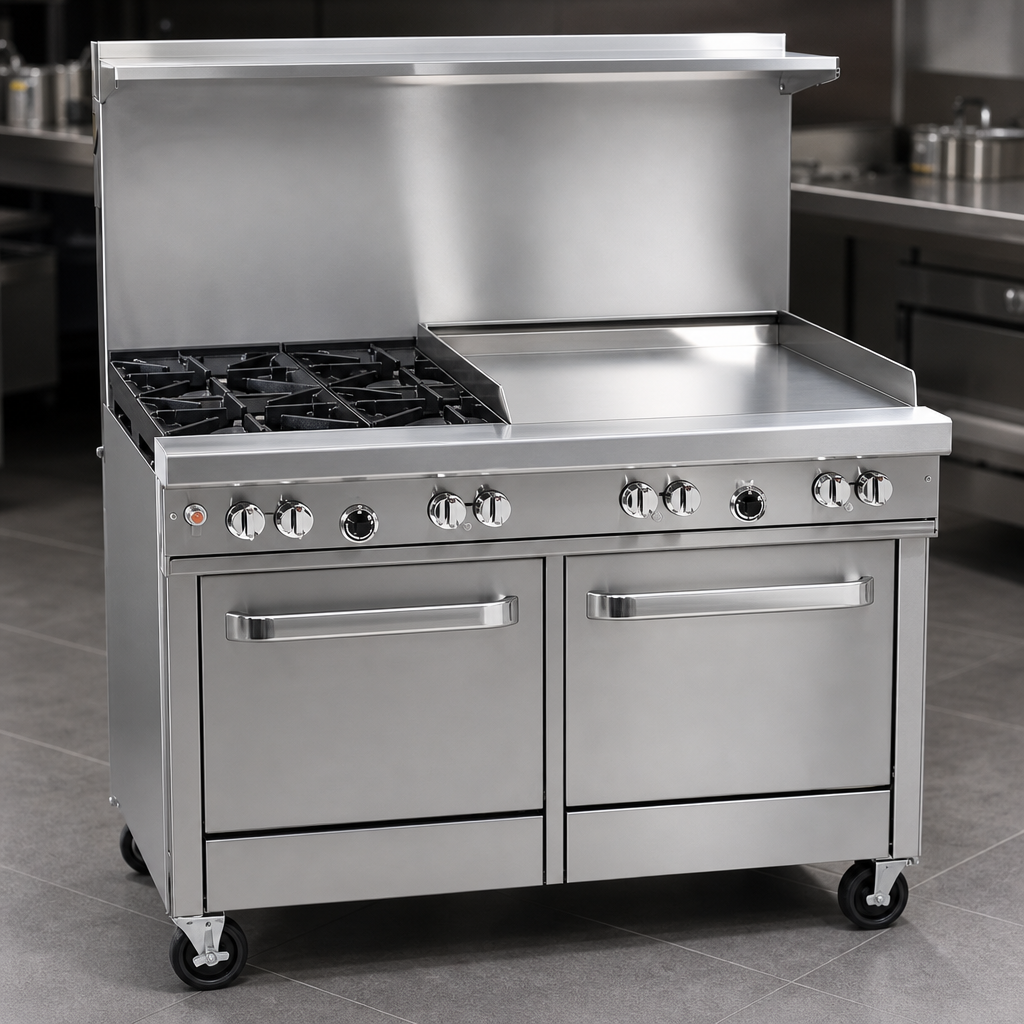

24-Inch Thermostatic Griddle
Smooth polished steel griddle with thermostatic controls for consistent flat-top cooking.
Standard Oven Base
Includes a standard oven with standing pilot, battery spark ignition, and a 175°F to 550°F thermostat range.
Porcelain Enamel Oven Interior
Double-sided porcelain enamel oven cavity is designed for easier cleaning and corrosion resistance.
Counterbalanced Oven Door
Spring-assisted, counterweight oven door helps support smoother opening and closing.
Stainless Steel Construction
Stainless steel front, sides, and shelf provide a durable commercial-grade exterior.
Flue Riser With Shelf
22.5-inch flue riser includes a heavy-duty shelf for added convenience and space utilization.
Service-Friendly Details
Factory-installed regulator, front gas shut-off, removable drip trays, and 6-inch adjustable legs support installation and maintenance.
Certifications & Compliance
Warranty & Protection
1-year parts and labor limited warranty.
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
