Southbend (Middleby)  |  Ultimate  |  SKU: 4484DC-2CR

Southbend (Middleby) 4484DC-2CR Ultimate Gas Ranges

$13,408.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

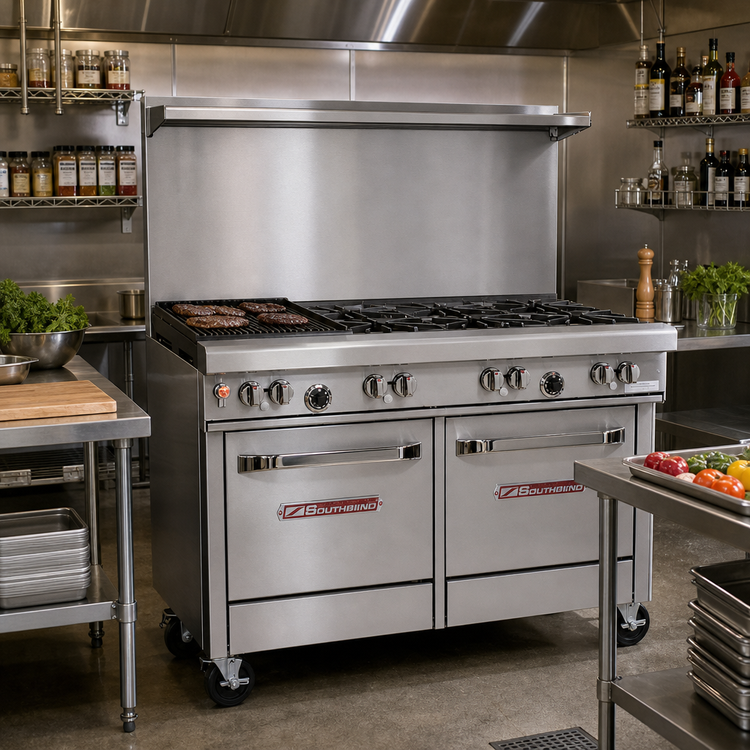

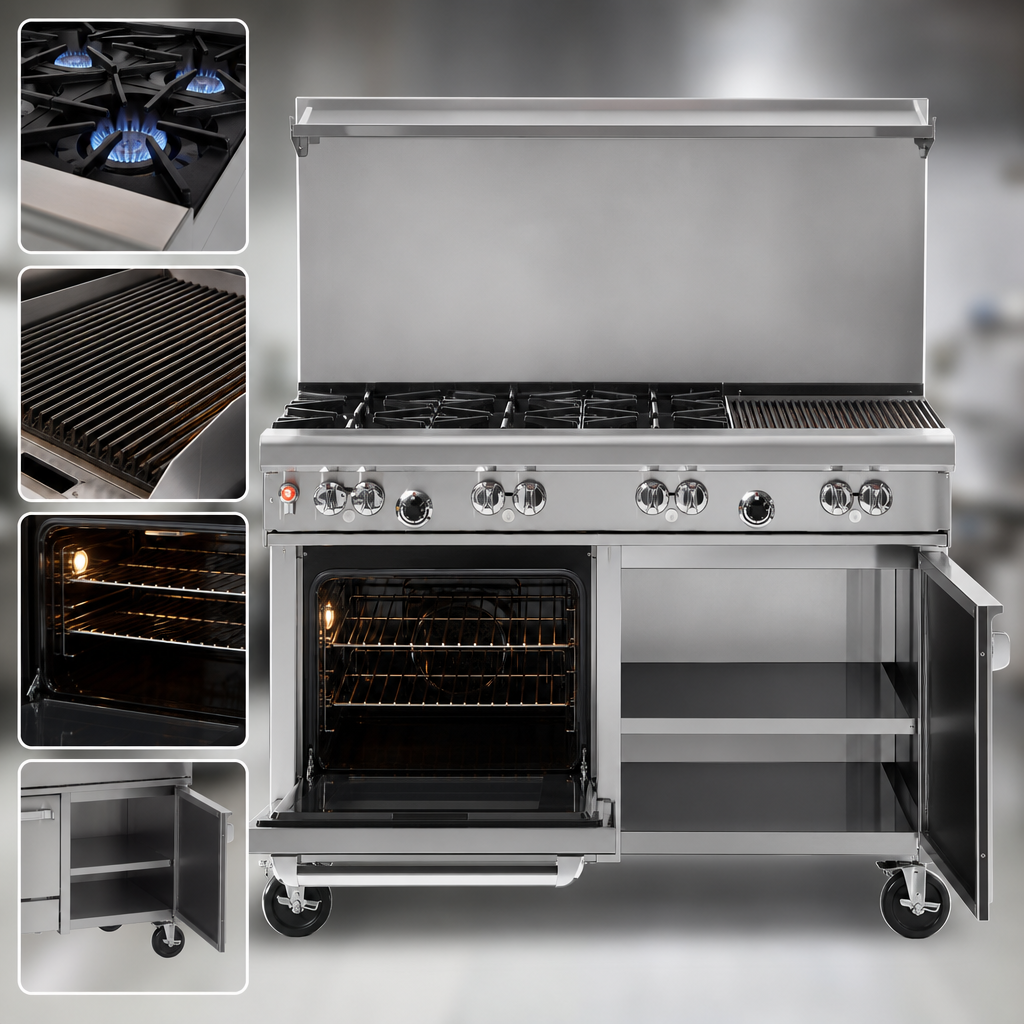

Southbend Ultimate 48" Gas Restaurant Range with 24" Charbroiler

Model 448DC - 4 Open Burners • Standard Oven • Cabinet Base

Give your kitchen the fire-power and flexibility it deserves. The Southbend Ultimate 48" Restaurant Range combines heavy-duty open burners, a high-output charbroiler, and a full-size oven—all inside a rugged, stainless-steel frame that’s built for nonstop commercial service.

Why You’ll Love It

  • Split burner layout – (2) 33 000 BTU star/​sauté burners in front for rapid searing, plus (2) 33 000 BTU non-clog burners in back for stock pots and sauces.
  • Built-in 24" charbroiler (right) – 64 000 BTU cast-iron grate section puts steak-house marks on proteins without a separate piece of equipment.
  • Full-size standard oven (left) – 45 000 BTU, 175-550 °F thermostat, porcelain-enameled cavity, one rack included.
  • Convenient cabinet base (right) – stainless-steel storage keeps sheet pans, hotel pans or utensils within reach (doors available at no charge; ask when ordering).
  • All-stainless exterior – front, sides, 4" front rail, 22-½" flue riser & chef’s shelf resist corrosion and wipe clean fast.
  • Simple, service-friendly ignition – standing pilots on the cooktop; battery spark ignition on the oven for match-free starts.
  • Front gas shut-off & factory regulator make installation and daily operation safe and straightforward.
  • 6" adjustable stainless legs level the unit on uneven floors and meet health-code clearance requirements.
  • Certified to CSA & NSF standards and backed by a 1-year parts & labor warranty.

Technical Specifications

Overall width 48 5⁄8" (1235 mm)
Overall depth 34" (864 mm)
Cooking-surface height 37" (940 mm)
Height w/ 22-½" flue riser 59 ½" (1511 mm)
Open burners (2) star 33 000 BTU + (2) non-clog 33 000 BTU
Charbroiler section 24" cast-iron grate, 64 000 BTU
Oven type / output Standard bake oven, 45 000 BTU, thermostat 175-550 °F
Rack positions / included racks 2 positions / 1 rack
Total input (natural gas) 241 000 BTU/hr
Gas connection ¾" NPT (left-hand side when charbroiler is on right)
Clearances 0" sides & rear to non-combustible; 10" sides & rear to combustible†
Agency approvals CSA, NSF
Warranty 1 year parts & labor (see Southbend limited warranty)

What’s Included

  • Southbend Ultimate 448DC range configured exactly as listed above
  • 1 removable oven rack
  • Factory-installed 22-½" flue riser with heavy-duty shelf
  • Pressure regulator (shipped installed)
  • Owner’s/installation manual
Important installation & use notes
  • Unit must be installed under a vented hood and connected to a ¾" gas supply delivering a minimum of 7" W.C. (natural gas) or 11" W.C. (propane).
  • Charbroiler sections are approved for non-combustible locations only.
  • Limit cookware larger than 12" to the rear burners to prevent overheating of the front rail.
  • Do not cover charbroiler grates with sheet pans during cleaning; reflected heat can cause damage not covered by warranty.

†Clearances shown are minimums; always verify local fire and building codes.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Base

(1) standard oven, (1) cabinet

Vent

backriser with hi-shelf

Top

(4) open burners, (1) 24" charbroiler

Exterior Finish

stainless steel front & sides

Specifications

Ultimate Restaurant Range, gas, 48", (2) star/sauté front, (2) non-clog burners rear, standard grates, 24" charbroiler right, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 241,000 BTU, CSA, NSF
