Southbend (Middleby) 4484AC Ultimate Gas Ranges
Description

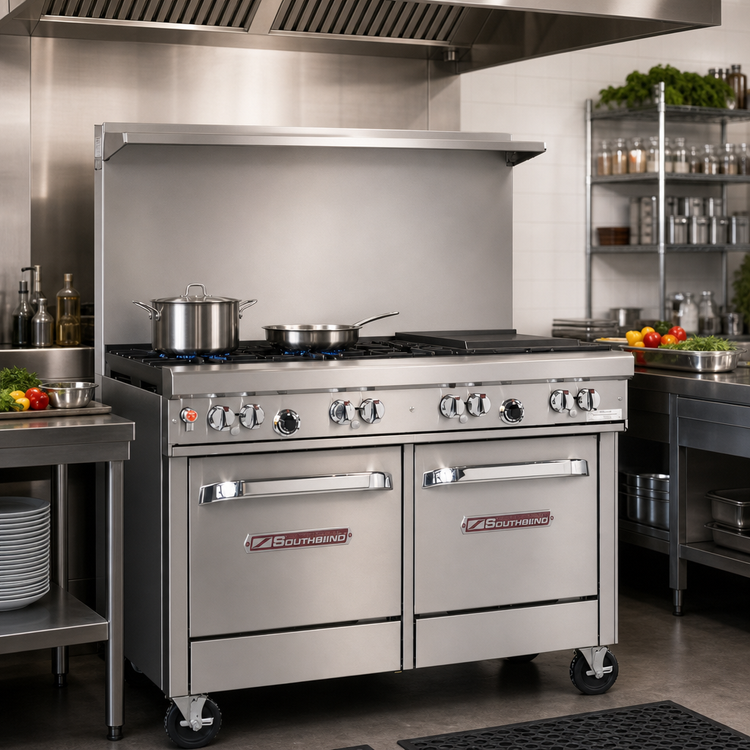

Southbend Ultimate 48" Gas Restaurant Range w/ Convection Oven & Cabinet
Model 448AC | 296,000 BTU | Natural GasBuilt for kitchens that run at full throttle, the Southbend Ultimate Series 48-inch range couples heavy-duty construction with chef-focused versatility. Eight high-performance burners, a high-efficiency convection oven, and a handy stainless storage cabinet give you the power and organization you need to crush every service.
Key Features

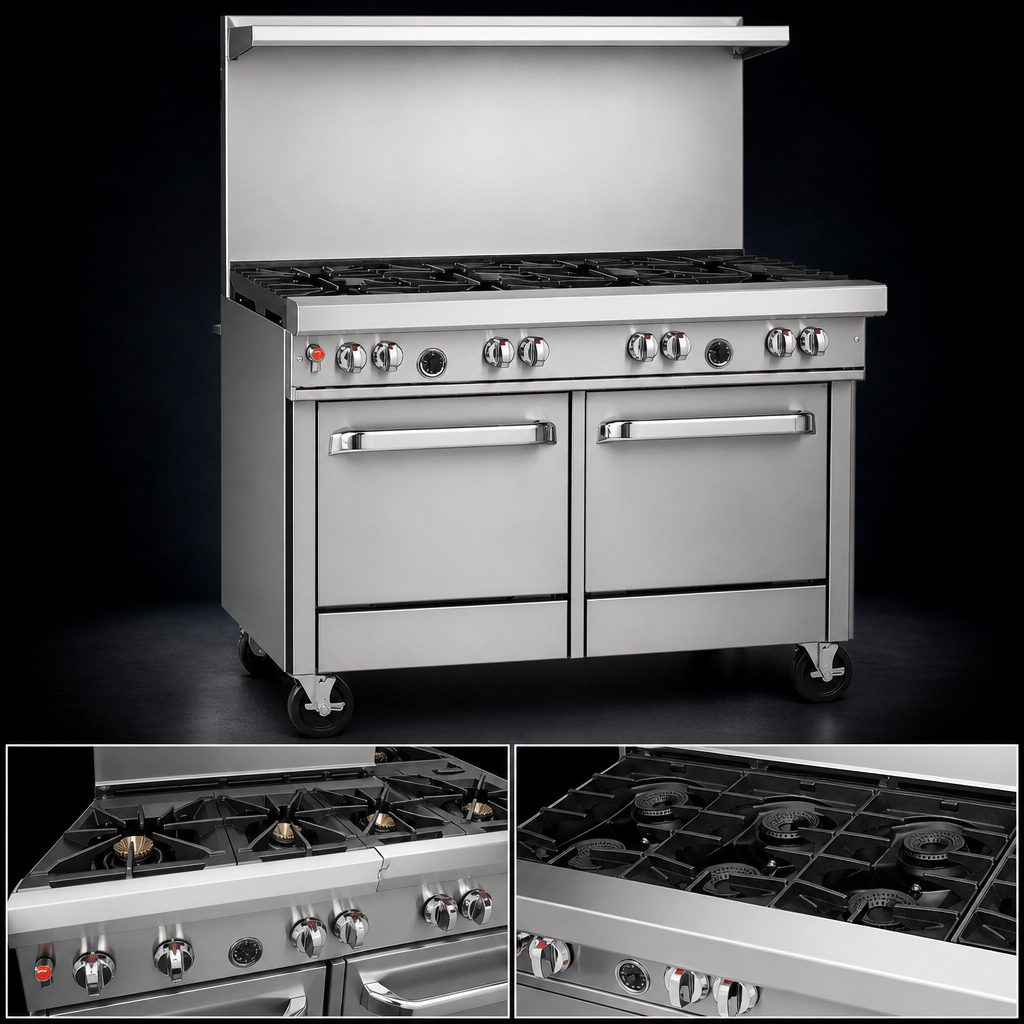

- (4) 33,000 BTU star/sauté burners in front for rapid, even heat.
- (4) 33,000 BTU lifetime-clog-free cast-iron burners in the rear—perfect for large stock pots up to 14″.

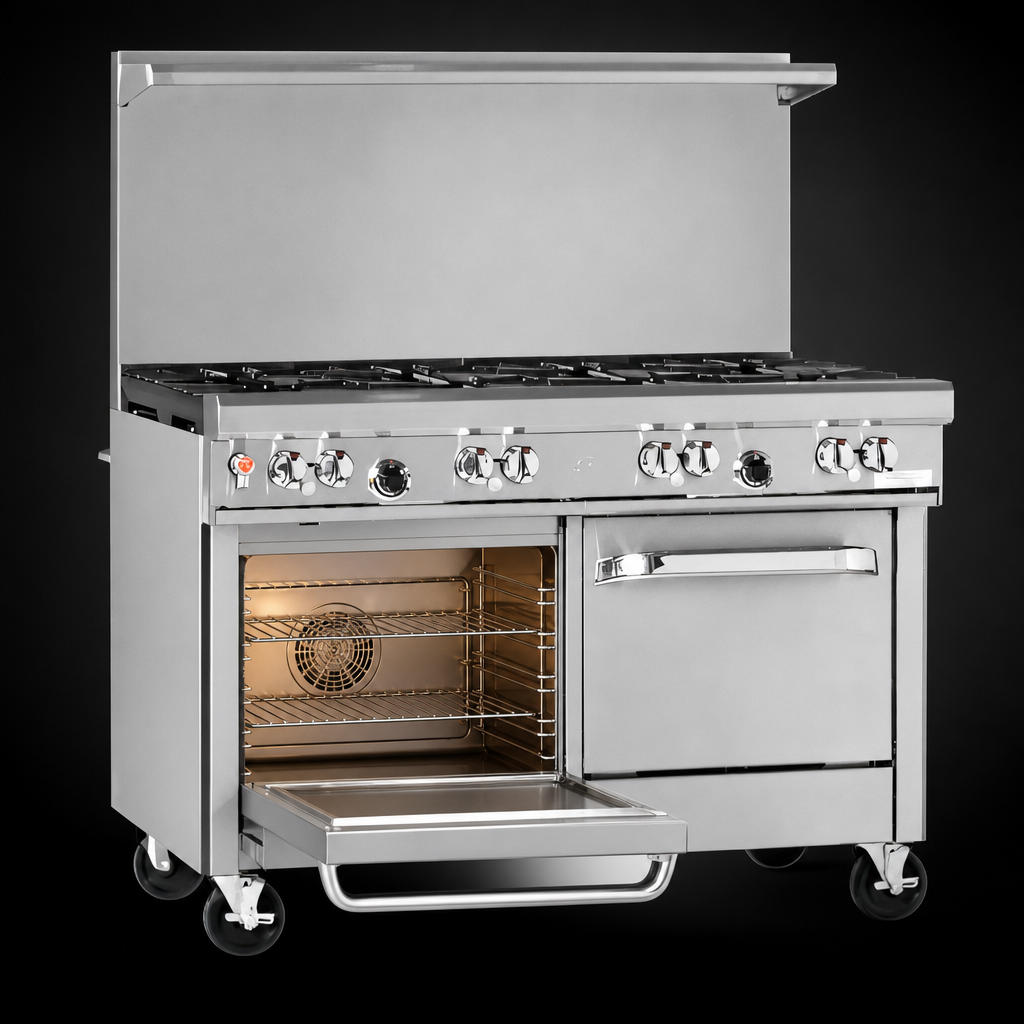

- 32,000 BTU convection oven with battery-spark ignition, porcelain interior, and (3) chrome racks on 5-position rails.
- 18″ stainless steel cabinet base keeps pans, smallwares, or dry goods right where you need them.
- 22.5″ flue riser with heavy-duty shelf adds convenient plating or warming space.
- One-piece stainless front, sides, rail & shelf for fast wipe-downs and long service life.
- Front-mounted manual gas shut-off plus factory-installed ¾″ pressure regulator.
- Standing pilots on open burners for instant lighting; 6″ adjustable stainless legs included.
- CSA & NSF listed for safety and sanitation compliance.
Specifications
| Specification | Details |
|---|---|
| Model | 448AC (Ultimate Series) |
| Overall Width | 48 ⅝″ / 1235 mm |
| Overall Depth | 42 ⅛″ / 1070 mm |
| Cooking Surface Height | 37″ / 940 mm |
| Open Burners | (4) Star 33,000 BTU + (4) Non-clog 33,000 BTU |
| Oven | 32,000 BTU convection; interior 14″H × 26″W × 24″D – fits full-size sheet pans both ways |
| Base (Right) | 18″ stainless cabinet with shelf |
| Total Input | 296,000 BTU/hr (Natural Gas) |
| Gas Connection | ¾″ NPT; 7″ W.C. minimum (Nat) / 11″ W.C. (LP convertible) |
| Electrical | 115 V / 60 Hz / 1 ph, 5.9 A – supplied with 6′ cord & NEMA 5-15P plug |
| Shipping Weight | ≈ 735 lb / 334 kg |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
Benefits at a Glance
- Lifetime-guaranteed non-clog burners reduce downtime and service calls.
- Convection fan ensures even baking & roasting, or switch it off to run as a standard oven.
- Modular design lets you mix oven, cabinet, refrigerated, or griddle bases across the Ultimate line.
- Backed by Middleby’s nationwide service network for rapid parts and support.
• Oversized cookware (12″ +) should be used on rear burners to avoid excess heat on the front rail.
• Intended for commercial use only; install under a properly sized vent hood.
