Southbend (Middleby) 4484AC-7R Ultimate Gas Ranges
$13,476.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4484AC-7R Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4484AC-7R Ultimate Gas Ranges
$13,476.00
Unit price
/
Unavailable
Description

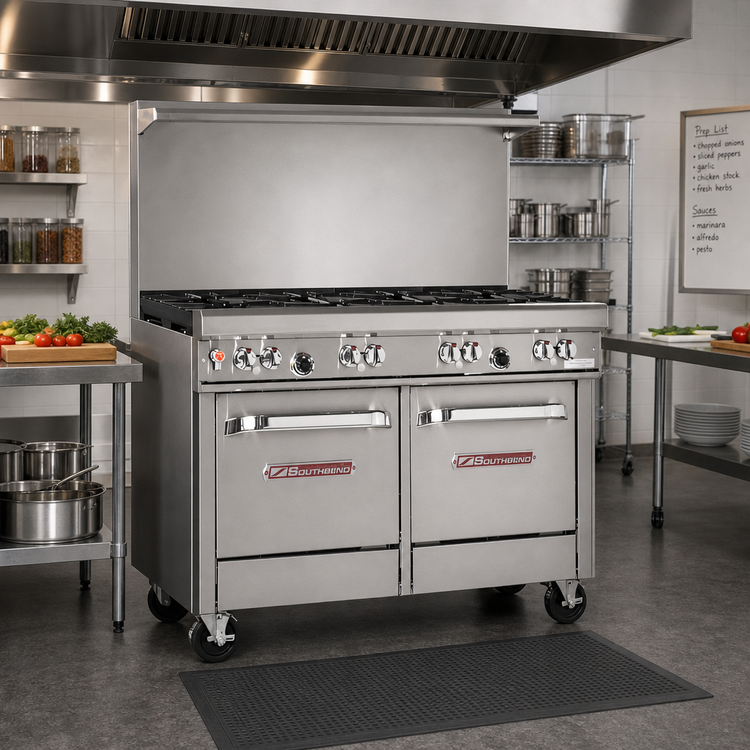

Southbend Ultimate 48" Gas Restaurant Range – Pyromax/Star/Convection (Model 448-AC)
258,000 BTU • Natural Gas • CSA & NSF CertifiedHarness extreme top-end firepower and precision baking in one rock-solid platform. The Ultimate 48" Series range fuses Southbend’s patented Pyromax burners with a high-performance convection oven and stainless storage base—perfect for high-volume restaurants, hotels, and institutional kitchens.
Key Features

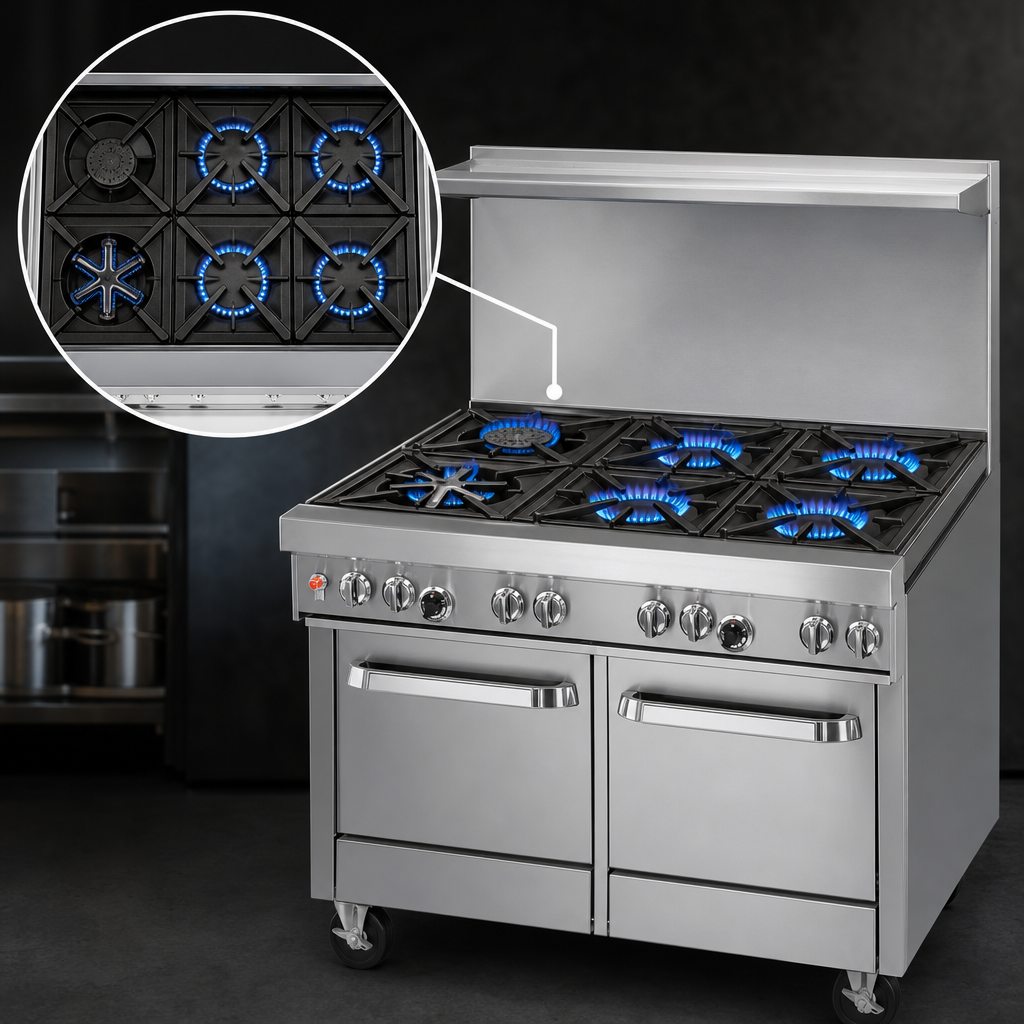

- Six open burners, six different strengths – 4 × 40,000 BTU Pyromax (right), 1 × 33,000 BTU star/sauté (front left), 1 × 33,000 BTU non-clog (rear left).

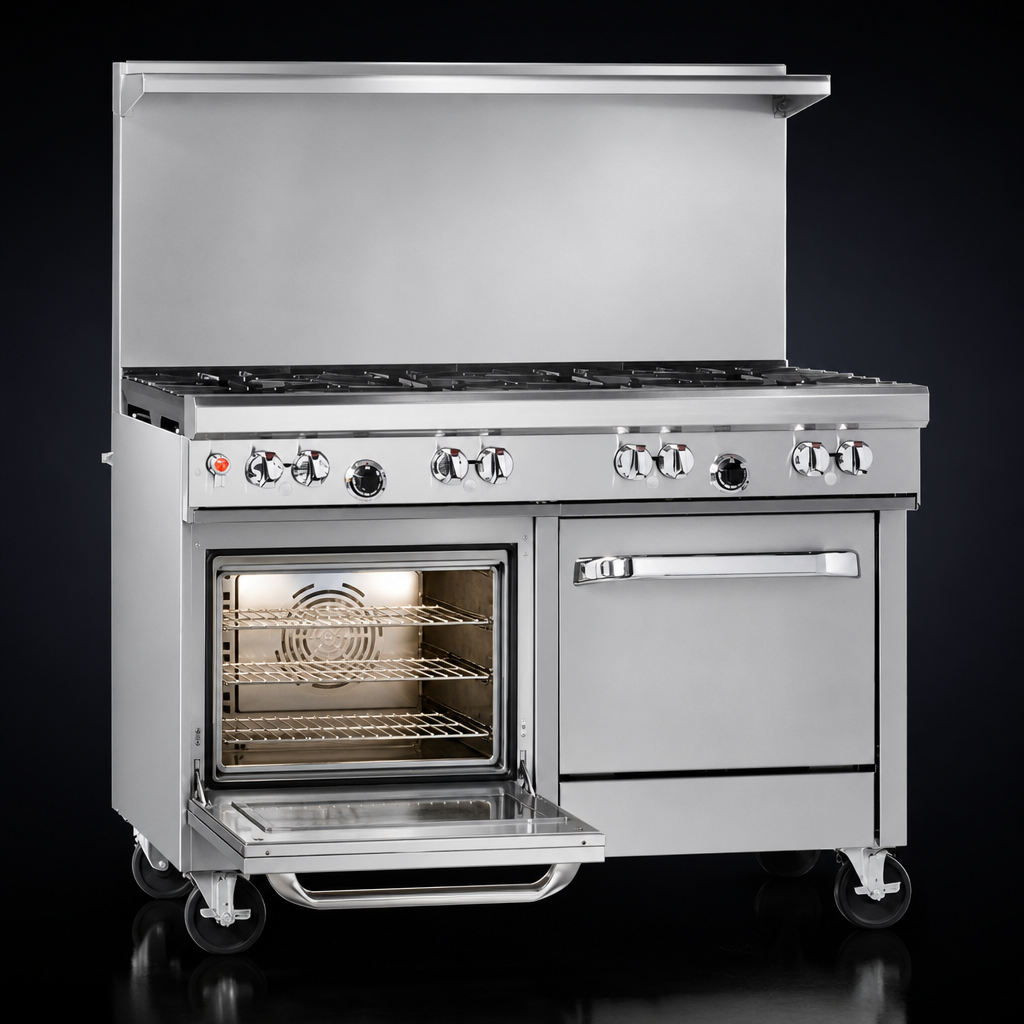

- 32,000 BTU convection oven with battery-spark ignition—no pilot relighting or electrical hard-wiring.
- 18" stainless cabinet base keeps cookware & pans within reach.
- 27"-deep cooking surface with removable cast-iron grates; rear grates accept up to a 14" stockpot.
- 22 1/2" flue riser with heavy-duty shelf adds convenient plating or small-wares space.
- Front-mounted manual gas shut-off and factory-installed regulator for safer, faster installs.
- All-stainless front, sides, shelf & 6" adjustable legs for lasting durability and easy cleanup.
- Backed by a 1-year parts & labor warranty and nationwide Southbend service network.
Why Chefs Choose Ultimate
- Pyromax jets hit woks and stockpots with concentrated heat—ideal for rapid boils and flash sears.
- Star/sauté burner’s radial flame pattern delivers even pan coverage for delicate reductions.
- High-efficiency, 1/2 hp fan drives uniform airflow, eliminating hot spots for cookies, roasts, and sheet-pan dinners.
- Integrated storage base frees up shelving and keeps mise en place tidy.
- Standing pilots on the top mean instant ignition—no lost time during service.
Specifications
| Exterior width | 48 5/8" (1235 mm) |
|---|---|
| Exterior depth | 42 1/8" (1070 mm) |
| Cooking surface height | 37" (940 mm) |
| Flue riser height | 22 1/2" |
| Total BTU input | 258,000 BTU/hr |
| Burner configuration | 4 × 40 k Pyromax • 1 × 33 k Star • 1 × 33 k Non-clog |
| Oven type / BTU | Convection / 32,000 BTU |
| Oven cavity (H × W × D) | 14" × 26" × 24" |
| Racks supplied | 3 (5 positions) |
| Gas connection | 3/4" NPT (right rear) |
| Electrical (oven fan) | 115 V, 5.9 A, 6' cord & plug |
| Construction | Stainless steel front, sides, shelf & legs |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
Included with Your Range
- (3) chrome oven racks
- Factory-installed pressure regulator
- 22 1/2" flue riser with shelf
- 6" stainless adjustable legs
- Owner’s manual & warranty registration
Popular Accessories (sold separately)
- Swivel locking casters
- 5" or 10" low-profile flue risers
- Full cabinet doors (no-charge option)
- Extra oven racks
- Quick-disconnect gas hose kits
- Salamander / cheesemelter mounting brackets
Installation note: Unit is intended for use under a properly sized, vented hood.
Maintain 10" clearance to combustibles on sides & rear.
For floors other than quarry tile, cement, or natural stone, consult the factory before installation.
Looking to spread out the cost? Ask us about Middleby Equipment Financing for low, fixed monthly payments.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
48.63in
Depth
44.5in
Shipping Weight
735.0lbs
Top
(6) open burners
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Base
(1) convection oven, (1) cabinet
Specifications
Ultimate Restaurant Range, gas, 48", (4) pyromax burners right, (1) star/sauté burner front left, (1) non-clog burner rear left, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 258,000 BTU, CSA, NSF
