Southbend (Middleby) 4484AC-7L Ultimate Gas Ranges
Description

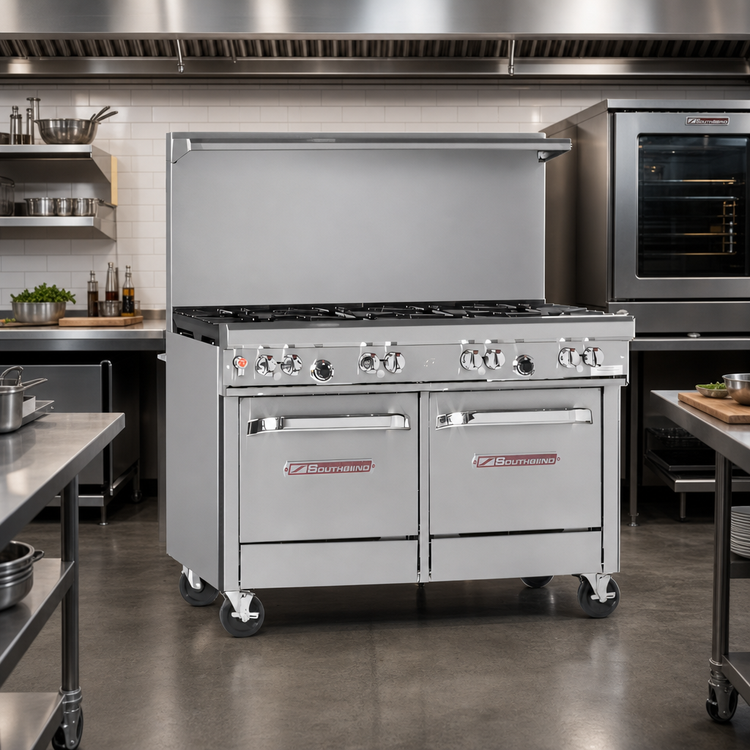

Southbend Ultimate 48″ Gas Restaurant Range – Pyromax & Split Burners with Convection Oven
Model 448AC-7 | 258,000 BTU | CSA & NSF CertifiedBring uncompromising power and flexibility to the line. Four high-output Pyromax burners, a split pair of versatile star and non-clog burners, and a full-size convection oven are packed into one rugged 48-inch footprint—exactly what growing kitchens need to cook, sauté, simmer and bake without slowing down.
Key Features
- Total 258,000 BTU firing rate handles the busiest rushes with ease.

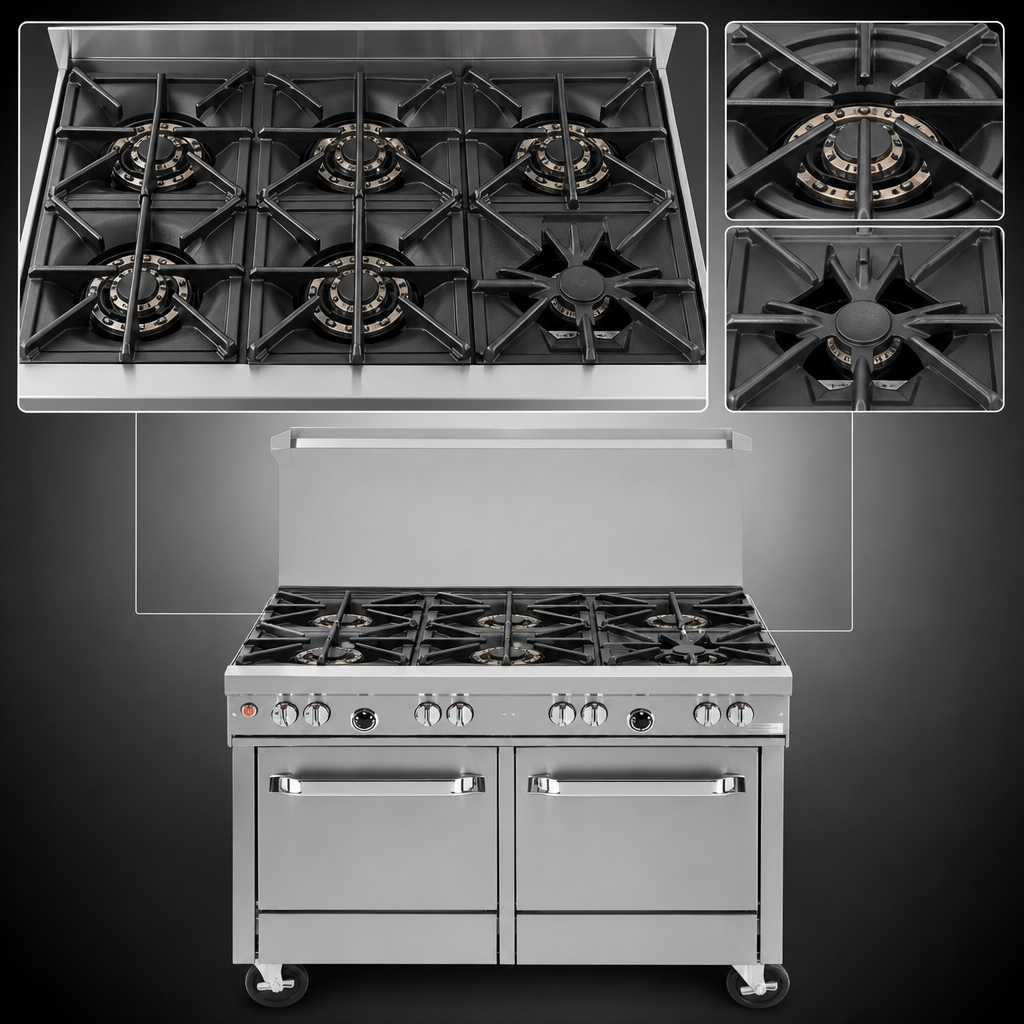

- (4) 40,000 BTU Pyromax burners on the left for lightning-fast boils and wok-style searing.
- (1) 33,000 BTU star/sauté burner (front right) delivers even, edge-to-edge heat for pans.
- (1) 33,000 BTU non-clog burner (rear right) accepts up to a 14″ stock pot without flame lift.

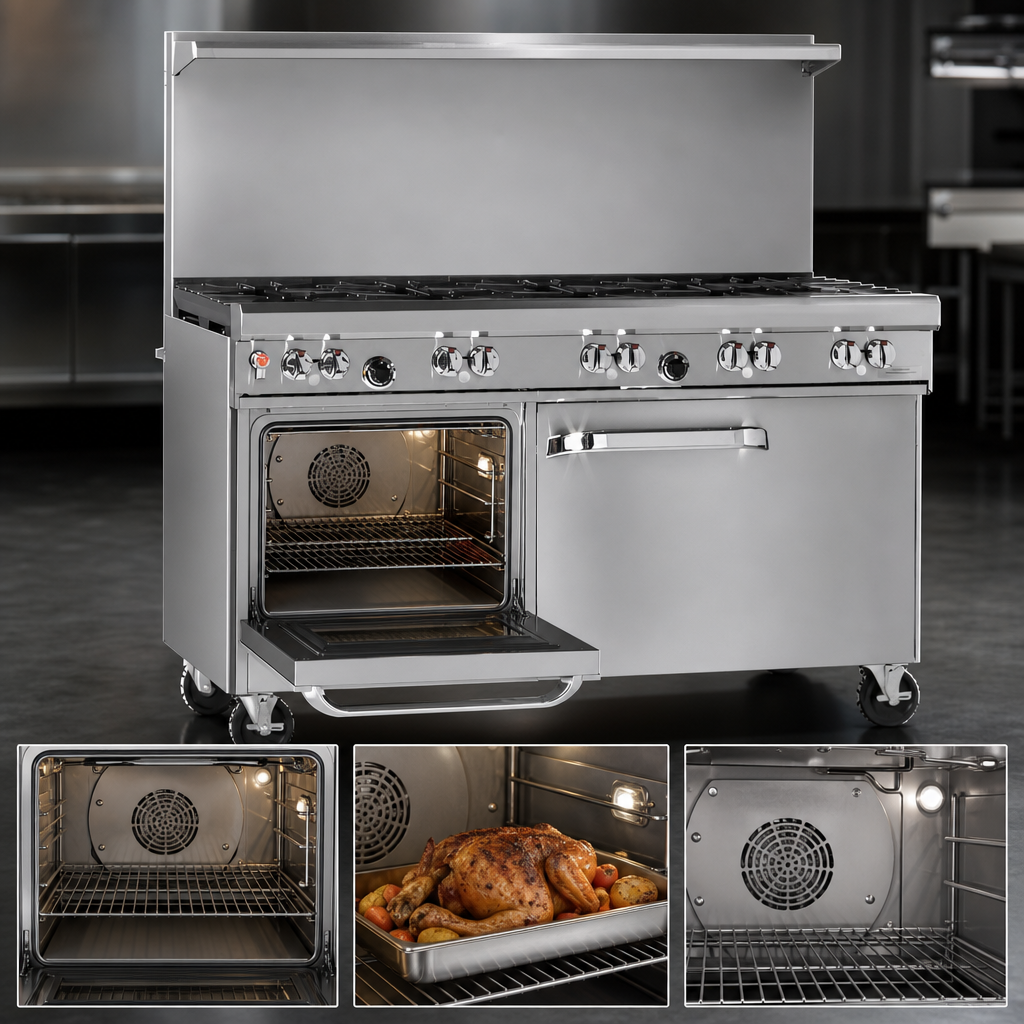

- 32,000 BTU convection oven, 175–550 °F thermostat, battery-spark ignition and three chrome racks (five positions).
- 18″ stainless-steel cabinet base keeps hotel pans, sheet trays and utensils organized.
- 22½″ flue riser with heavy-duty shelf adds extra plating or small-wares space.
- All-stainless front, sides and shelf plus 6″ adjustable legs for long-lasting, easy-to-clean durability.
- Front-mounted main gas shut-off and factory regulator speed up installation & servicing.
- 1-year parts & labour warranty from Southbend.
Performance & Utilities
| Overall Dimensions (W × D × H) | 48.63″ × 42.13″ × 59.50″ (top of flue) |
|---|---|
| Cooking Surface Height | 37″ |
| Open-Top Configuration | 4 × Pyromax 40 k BTU • 1 × Star 33 k BTU • 1 × Non-clog 33 k BTU |
| Convection Oven Capacity | 26″ W × 24″ D × 14″ H porcelain cavity (fits full-size pans either way) |
| Oven Output / Range | 32,000 BTU • 175–550 °F |
| Total Input | 258,000 BTU/hr |
| Gas Connection | ¾″ NPT, Natural 7″ W.C. (LP 11″ W.C. field-convertible) |
| Electrical (oven fan) | 115 V, 60 Hz, 1 ph, 5.9 A — 6′ cord & 3-prong plug |
| Shipping Weight | Approx. 735 lb |
| Certifications | CSA • NSF |
What’s in the Box
- (4) Heavy-duty cast-iron Pyromax grates
- (2) Cast-iron grates for star & non-clog burners
- (3) Chrome oven racks
- 22½″ flue riser shelf
- 6″ stainless adjustable legs
- Factory pressure regulator & battery pack (ignition)
