Southbend (Middleby) 4484AC-6R Ultimate Gas Ranges
Description

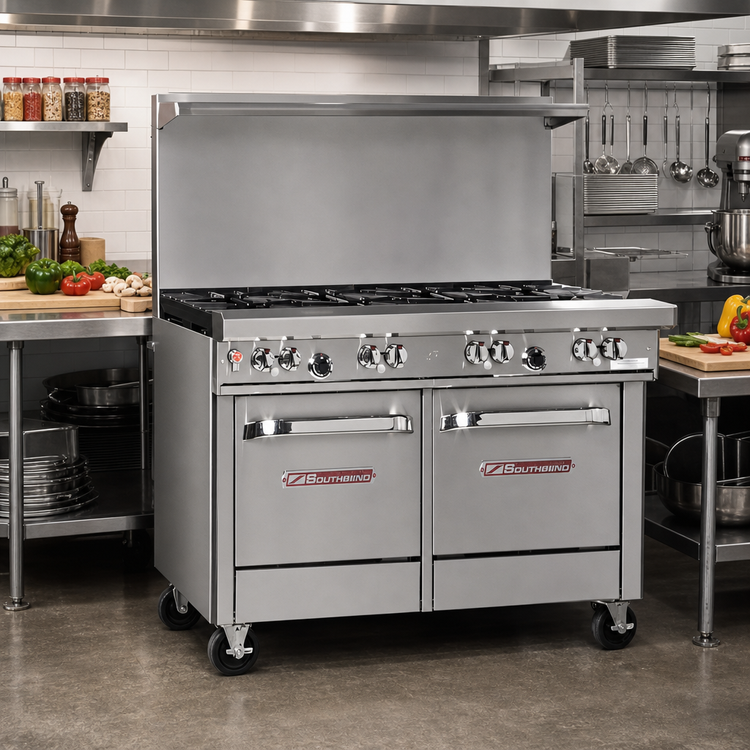

Ultimate 48" Gas Restaurant Range
4 Star/Sauté • 2 Pyromax • 1 Non-Clog | Convection Oven + Cabinet Base | 277,000 BTUBuilt for high-volume kitchens that refuse to compromise on speed, power or consistency, the Southbend Ultimate 48" Restaurant Range delivers a custom burner layout, a full-size convection oven and a stainless cabinet base – all in one rock-solid, stainless package that’s CSA & NSF approved.
Why You’ll Love It
-

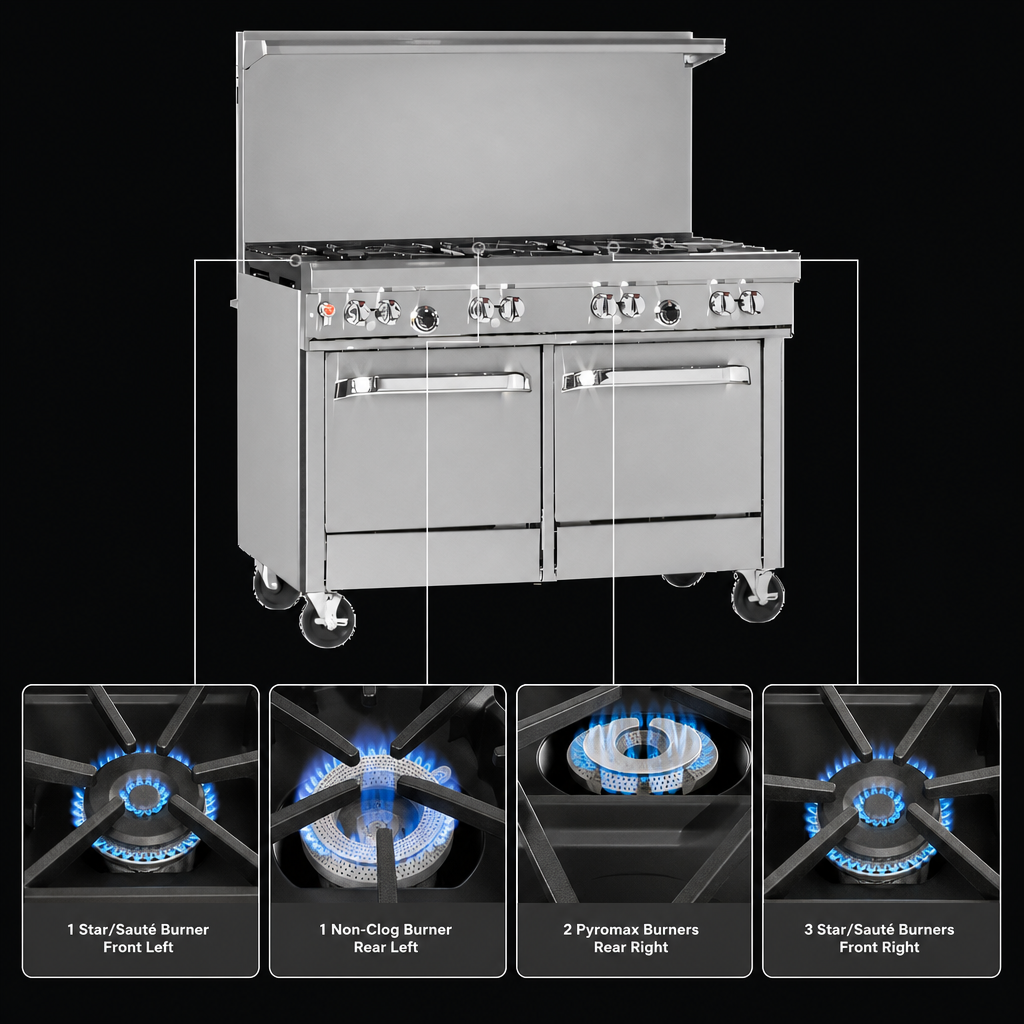

Custom burner mix for maximum flexibility
• 4 × 33,000 BTU star/sauté burners (even heat for sauté pans)
• 2 × 40,000 BTU Pyromax burners (rapid boil & stock-pot power)

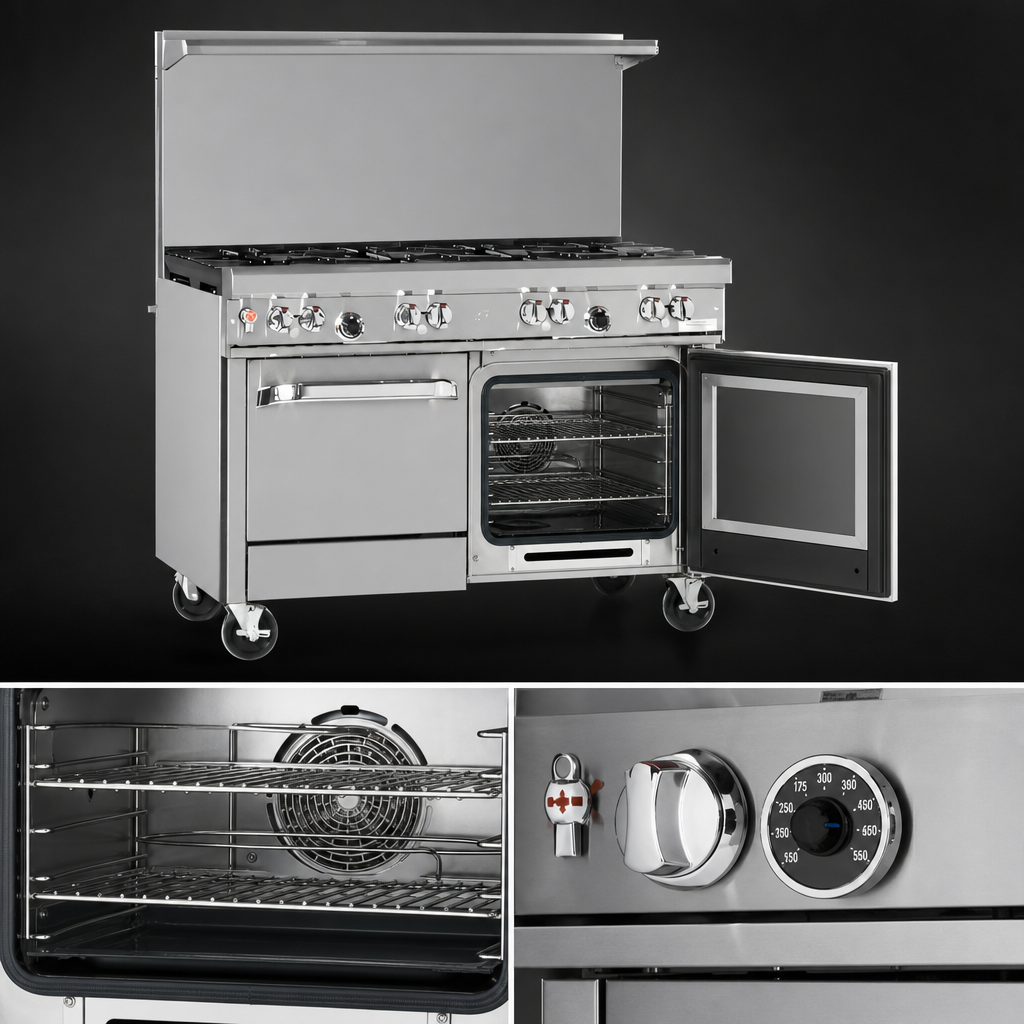

• 1 × 33,000 BTU non-clog burner (lifetime cast-iron design) - Full-size convection oven – 32,000 BTU, 175-550 °F, battery-spark ignition, three chrome racks with five positions.
- 18" Stainless cabinet base keeps sheet pans, stock pots or hotel pans close at hand.
- 22-1/2" flue riser with heavy-duty overshelf for plating and smallwares.
- 4" stainless front rail with front-mounted gas shut-off for fast, safe service changes.
- Rugged construction – all stainless front, sides, shelf & 6" adjustable legs.
- Removable cast-iron grates hold cookware up to 14" ⌀ and lift out for easy cleaning.
- Factory-installed 3/4" regulator, standing pilots for open burners, and battery-spark oven ignition – no external power required for the top.
- Covered by Southbend’s 1-year parts & labor warranty.
Technical Specs
| Width | 48-5/8" (1235 mm) |
|---|---|
| Depth | 34" (864 mm) |
| Cook-top Height | 37" (940 mm) |
| Overall Height w/ Riser | 59-1/2" (1511 mm) |
| Open Top BTU | 245,000 BTU (4 Star + 2 Pyromax + 1 Non-Clog) |
| Convection Oven BTU | 32,000 BTU |
| Total Input | 277,000 BTU/hr |
| Oven Interior | 14"H × 26"W × 24"D – fits full-size sheet pans E-W or N-S |
| Gas Connection | 3/4" NPT (left or right side, factory regulator included) Min. inlet: 7" W.C. Nat. or 11" W.C. LP |
| Electrical (oven motor) | 115 V, 5.9 A, 6' cord & 3-prong plug |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend Limited Warranty) |
Tip: For best performance with oversized (12"+ ⌀) cookware, place pots on the rear burners to keep excessive heat away from the front control rail.
