Southbend (Middleby) 4484AC-6L Ultimate Gas Ranges
Description
Southbend “Ultimate” 48" Gas Restaurant Range
7-Burner Top | Convection Oven + Cabinet Base | 277,000 BTUEngineered for the high-pressure pace of modern kitchens, the Southbend Ultimate 48" range fuses extreme burner power with the even-bake consistency of a full-size convection oven. Its rugged stainless body, front-mounted gas shut-off, and easy-clean porcelain interior make it the go-to platform for chefs who expect equipment to work as hard as they do.
Custom burner configuration
- (3) 33,000 BTU Star/Sauté burners – front left
- (2) 40,000 BTU Pyromax burners – rear left
- (1) 33,000 BTU Star/Sauté burner – front right
- (1) 33,000 BTU Non-Clog burner – rear right
- Lift-off, cast-iron grates accept pots up to 14" Ø
- Standing pilots for instant lighting on all open burners

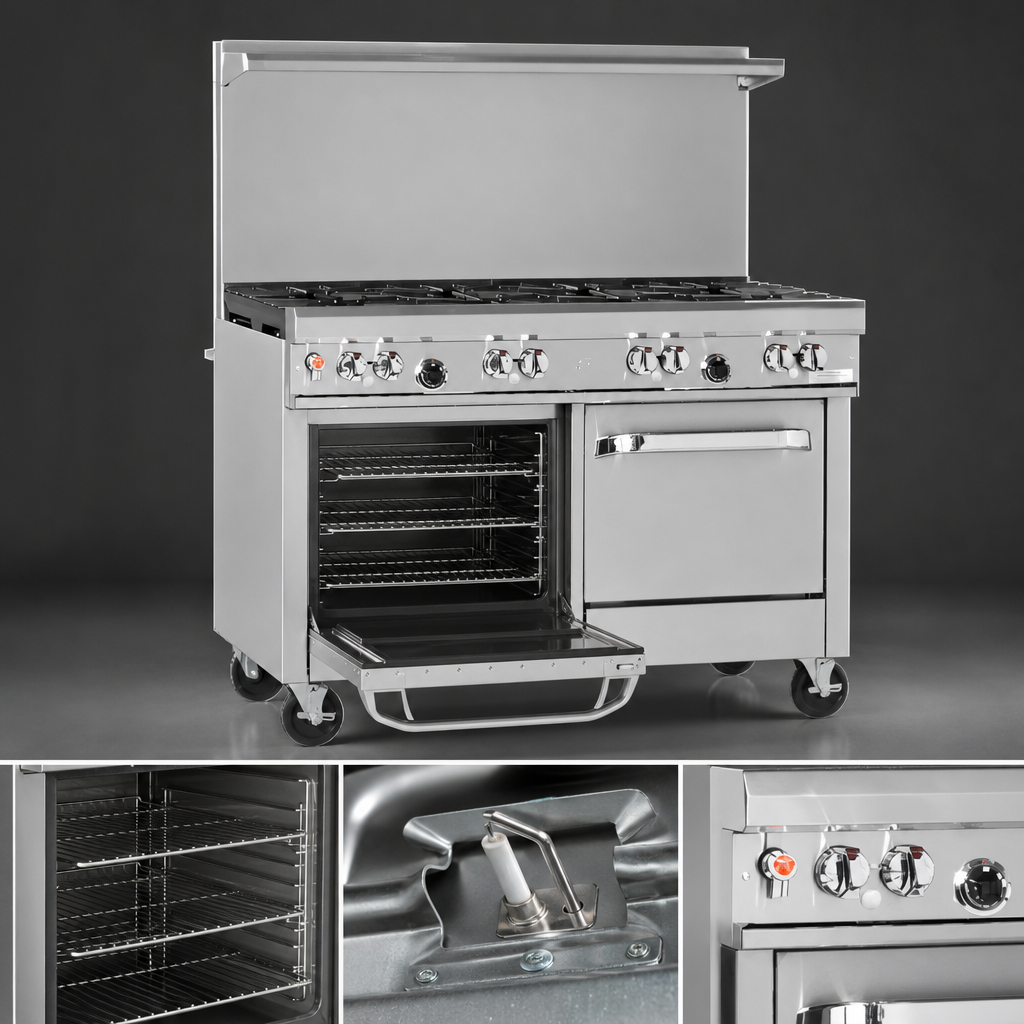

High-performance convection oven
- 32,000 BTU burner with battery-spark ignition
- Temperature range: 175 °F – 550 °F (79 °C – 288 °C)
- Porcelain-enameled cavity: 14" H × 26" W × 24" D
- (3) chrome racks with 5 height positions
- 1/2 hp, 1710 rpm fan motor (115 V, 5.9 A cord & plug)
- On/Off blower switch lets oven run in standard mode
Built for life on the line
- Stainless steel front, sides, 22-1/2" flue riser & heavy-duty shelf
- 4" full-width stainless landing rail—ideal for plating
- 6" adjustable stainless legs
- Front-mounted manual shut-off and factory 3/4" regulator
- 18" stainless cabinet base keeps sheet pans within reach
Certifications & warranty
- CSA Design & Sanitation listed
- NSF certified for commercial foodservice
- 1-year limited parts & labor warranty (see details)
Technical specifications
| Series / model | 448-AC (Convection oven + cabinet base) |
|---|---|
| Overall width | 48 5/8" (1235 mm) |
| Overall depth | 42 1/8" (1070 mm) |
| Cooking surface height | 37" (940 mm) |
| Top of flue | 59 1/2" (1511 mm) with 22-1/2" riser |
| Total BTU input | 277,000 BTU/hr |
| Gas connection | 3/4" NPT (left or right, field convertible) |
| Required inlet pressure | Natural 7" W.C. | LP 11" W.C. |
| Electrical (oven fan) | 115 V / 60 Hz / 1-ph / 5.9 A – factory cord & 3-prong plug |
| Oven cavity | 14" H × 26" W × 24" D (3 racks included) |
| Construction | Stainless steel exterior, porcelain oven interior |
Looking for caster kits, salamander mounts, or flame-failure safety valves? Our team can add any Southbend factory option to this range before it ships.
