Southbend (Middleby)

Ultimate 48-Inch Gas Restaurant Range with Star/Sauté Burner, Non-Clog Burner, 36-Inch Griddle, Convection Oven and Cabinet Base

SKU: 4484AC-3G
$15,683.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Ultimate 48-Inch Gas Restaurant Range with Star/Sauté Burner, Non-Clog Burner, 36-Inch Griddle, Convection Oven and Cabinet Base

Standing Pilot, 162,000 BTU, Stainless Steel Front/Sides/Shelf, 6-Inch Adjustable Legs

This all-in-one 48-inch range combines burners, a 36-inch griddle, a convection oven, and cabinet storage in one rugged stainless steel platform built for high-volume kitchens.

  • 48-inch gas restaurant range with a mixed cooktop: star/sauté burner, non-clog burner, and 36-inch griddle
  • Includes a convection oven and a cabinet base for versatile production and storage
  • 162,000 BTU total output with standing pilot and battery spark oven ignition
  • Stainless steel front, sides, and shelf with 6-inch adjustable legs
  • 22.5-inch flue riser with shelf and front manual gas shut-off
  • Convection oven includes 3 racks, porcelain enamel interior, and spring-assisted door

Overall Dimensions:

48.63"W x 44.5"D x 59.5"H

Product Weight:

735.0 lb

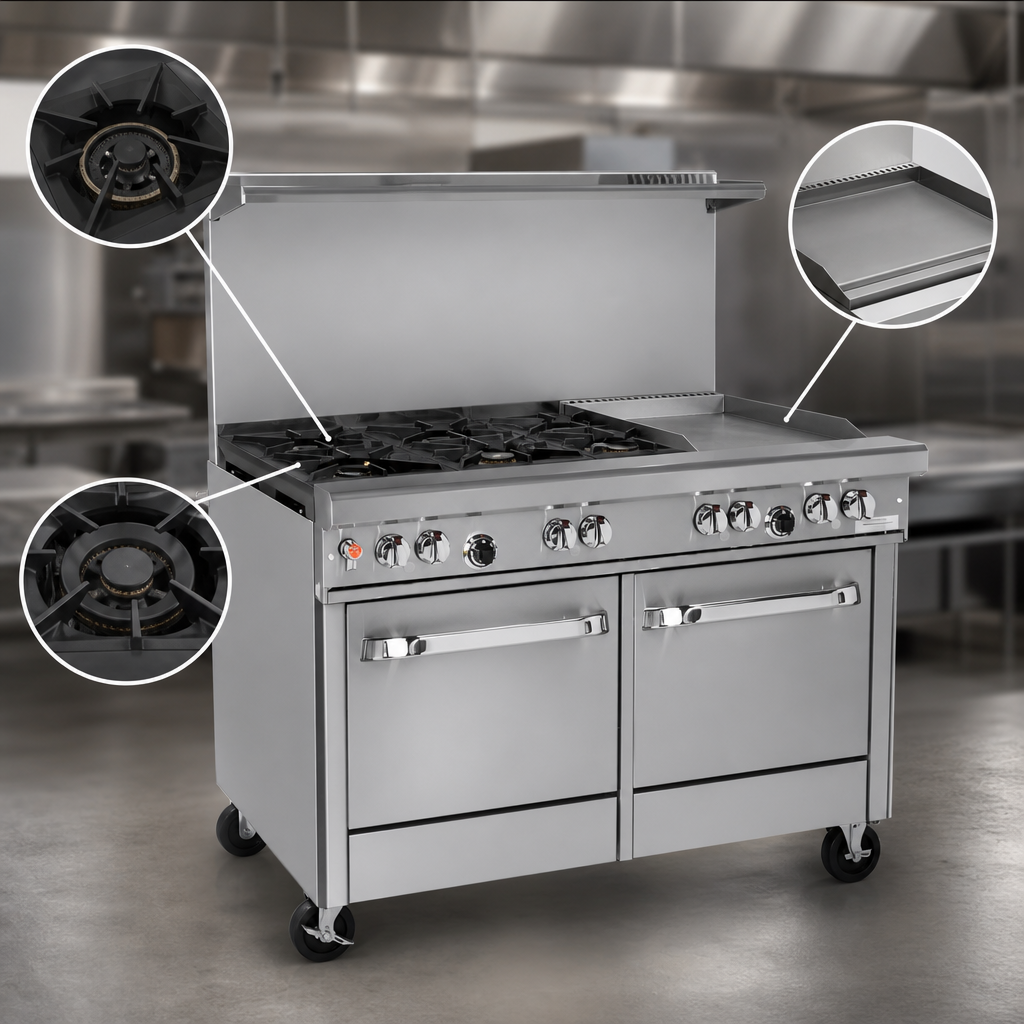

Mixed Cooktop Layout

One star/sauté front burner, one non-clog rear burner, and a 36-inch griddle provide flexible cooking zones.

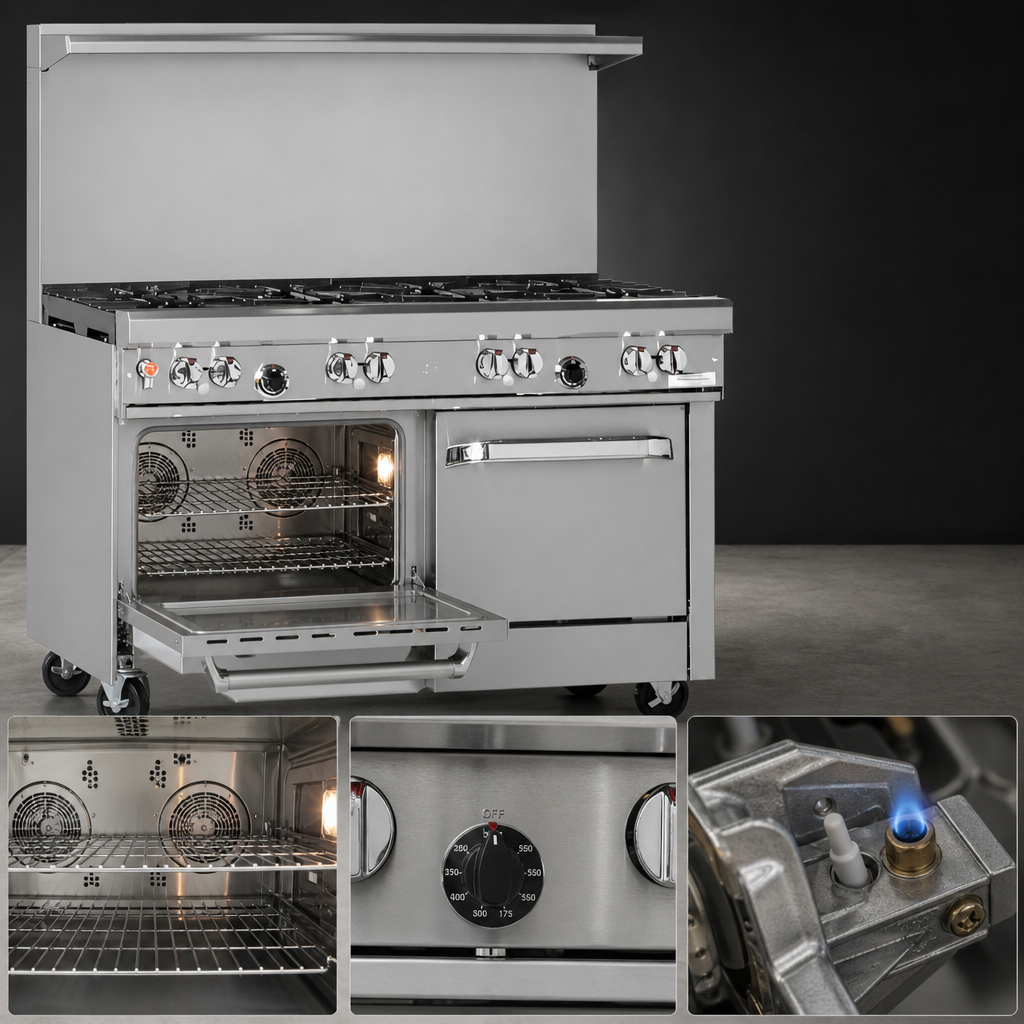

Convection Oven Base

Includes a convection oven with standing pilot, thermostat control from 175°F to 550°F, and battery spark ignition.

Three Oven Racks Included

Comes with 3 racks and 5-position side rails for different pan configurations.

Cabinet Base Storage

Built-in cabinet base adds under-range storage space.

Stainless Steel Construction

Stainless steel front, sides, and shelf are built for durability and easy cleanup.

Porcelain Enamel Oven Interior

Double-sided porcelain enamel cavity with coved corners helps simplify cleaning.

Flue Riser With Shelf

22.5-inch flue riser includes a heavy-duty shelf for holding or staging.

Manual Gas Shut-Off and Regulator

Front-located shut-off and factory-installed regulator are included.

Adjustable Support Legs

6-inch stainless steel adjustable legs come standard.

162,000 BTU Total Output

High-output gas cooking power supports demanding commercial kitchen production.

Type Restaurant Range
Style Ultimate
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain Enamel
BTU 162,000 BTU
Voltage 115 Volts
Hertz 60 Hz
Cooking Surface Width 48.63 Inches
Cooking Surface Depth 27 Inches
Country of Origin USA
Shipping Width 49 Inches
Shipping Depth 45 Inches
Shipping Height 60 Inches
Shipping Weight 735 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes one star/sauté front burner, one non-clog rear burner, a 36-inch griddle, one convection oven, and one cabinet base.
The convection oven features standing pilot operation, battery spark ignition, a 175°F to 550°F thermostat range, and 3 included racks.
The range is rated at 162,000 BTU total.
The unit has a stainless steel front, sides, and shelf, plus a porcelain enamel oven interior.
Southbend lists a 1-year limited parts and labor warranty, with warranty service performed by an authorized service agency.
