Southbend (Middleby) 4484AC-2GR Ultimate Gas Ranges
Description
Southbend “Ultimate” 48" Restaurant Range
2 Star/Sauté + 2 Non-Clog Burners | 24" Right-Side Griddle | Convection Oven & Cabinet BaseBuilt for serious, high-volume kitchens, the Southbend Ultimate 48" Range (Model 448-Split/Griddle-R-A/C) packs 212,000 BTU of cooking power into a space-saving footprint. From rapid–response sauté work to all-day stock production, plus a full-size convection oven and dry-storage cabinet, this is the single station that does it all.
Why You’ll Love It

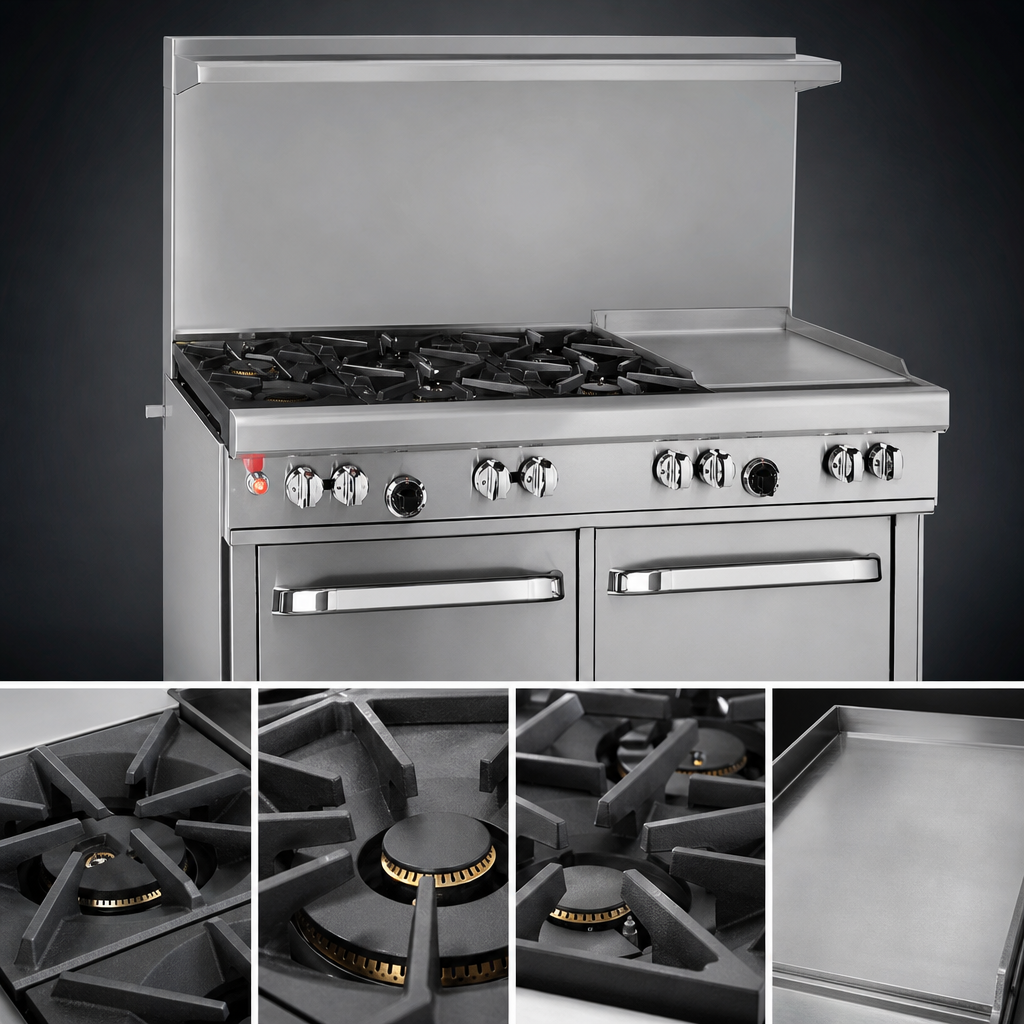

- Versatile top configuration – two 33 k BTU star burners up front for quick, even sautéing and two clog-free 33 k BTU rear burners built to handle up to 14" stock pots.
- High-output 24" griddle (right side) with a 48 k BTU smooth ½" polished steel plate—perfect for breakfast, smash burgers, or searing proteins.
- Full-size convection oven (32 k BTU) with 5-position rack guides and three standard racks for consistent baking and roasting.
- 18" stainless cabinet base keeps sheet pans, sauté pans, or smallwares right where you need them.
- Rugged construction – stainless front, sides, shelf, and 6" adjustable legs withstand the toughest commercial environments.
- Operator-friendly features: front gas shut-off, standing pilots for open burners, battery-spark ignition for the oven, and removable cast-iron grates for easy cleaning.
- Certified & warrantied – cCSAus, CSA Flame & Star, NSF listed and backed by a 1-year parts & labor warranty.
At-a-Glance Specifications
| Overall width | 48 5/8" (1235 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking-surface height | 37" (940 mm) on 6" adjustable legs |
| Flue riser | 22.5" with heavy-duty shelf |
| Total BTU input | 212,000 BTU /hr (Natural Gas) |
| Open burners | (2) Star/Sauté 33 k BTU + (2) Non-Clog 33 k BTU |
| Griddle | 24" right-side, 48 k BTU, ½" smooth steel |
| Oven cavity | Convection, 32 k BTU, 14"H × 26"W × 24"D; 3 racks / 5 positions |
| Gas connection | 3⁄4" NPT, 7" W.C. (NG) – located on left rear* |
| Electrical (oven fan) | 115 V / 60 Hz / 1 ph, 5.9 A, 6' cord & 3-prong plug |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1 year parts & labor (see Southbend warranty for details) |
*Gas connection shifts to right side if griddle is ordered on the left.
Perfect For
- Full-service restaurants and hotel kitchens
- High-volume breakfast houses
- Ghost-kitchen production lines
- Culinary schools & chef-driven concepts seeking maximum versatility in minimal space
Upgrade your line with the power, flexibility, and reliability of Southbend’s Ultimate Series. Add this 48" all-in-one workhorse to your cart—or contact us for expert assistance configuring the perfect range for your kitchen.
