Southbend (Middleby) 4483EE-7R Ultimate Gas Ranges
$10,902.00
Unit price
/
Unavailable
Description

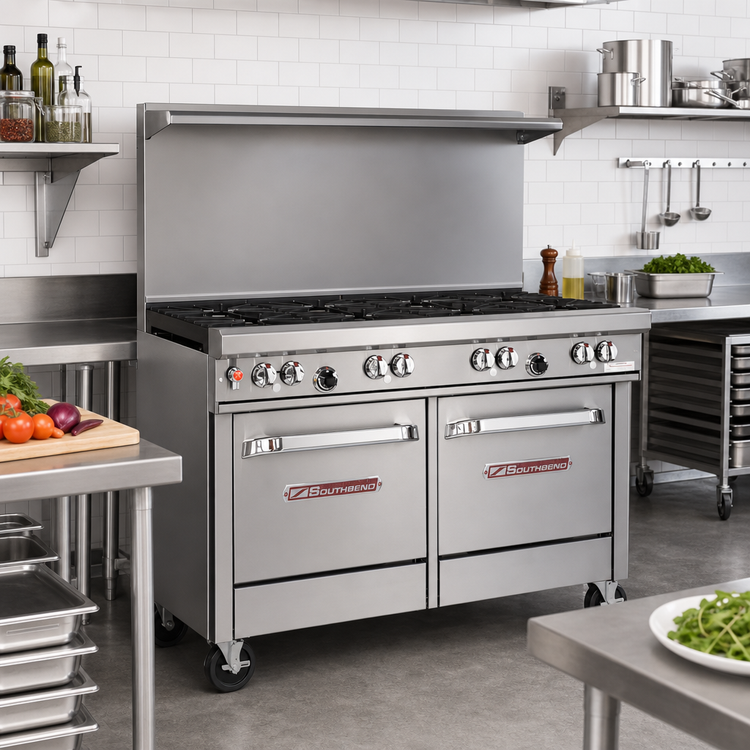

Southbend Ultimate 48" Gas Restaurant Range
Model 448EE – Pyromax & Star Burners / Double Space-Saver OvensBring uncompromising power and durability to your cookline. With six high-performance open burners and two independent ovens, this 48-inch Southbend Ultimate range is built to keep pace with the busiest commercial kitchens.
Key Performance Features
- 4 × Pyromax™ burners (40,000 BTU each) on the right – patented three-piece, clog-free design for extreme output and easy cleaning.
- 2 × Cast-iron star/sauté burners (33,000 BTU each) on the left for fast, even heat distribution.
- Total open-top power: 226,000 BTU/hr – boil, sauté and sear simultaneously.

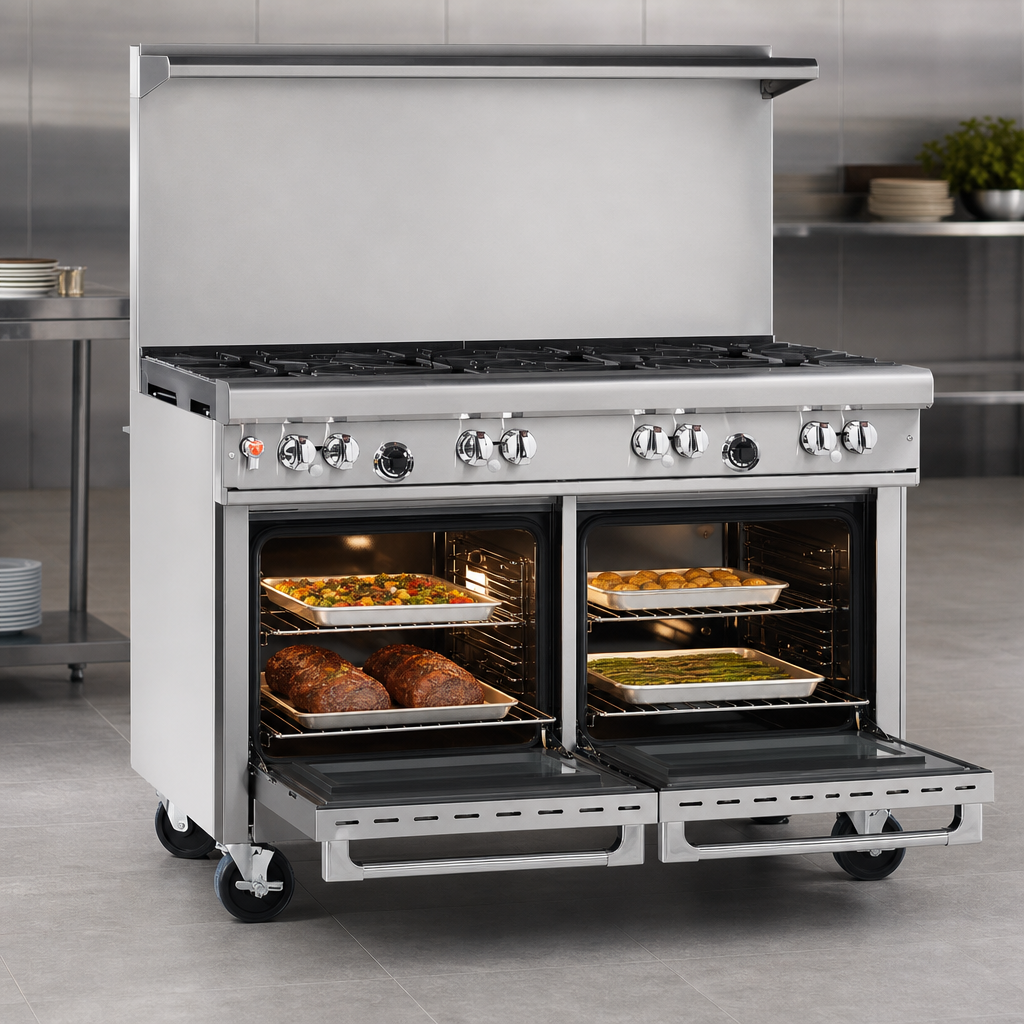

- Two space-saver ovens (45,000 BTU each) with battery-spark ignition and porcelain-enameled cavities for superior cleanability.
- Each oven ships with a heavy-duty rack and two-position side rails.
- 22½" flue riser with integrated shelf keeps pans, spices or plating essentials right where you need them.
- Stainless steel front, sides, shelf and 6" adjustable legs stand up to daily wear and tear.
- Front-mounted manual gas shut-off & factory-installed ¾" regulator for straightforward installation and service.
- CSA & NSF listed – ready for code-compliant operation out of the box.
Specifications
| Width | 48 5/8" (1235 mm) |
|---|---|
| Depth | 34" (864 mm) |
| Height – cook top / overall | 37" (940 mm) / 59.5" (1511 mm) |
| Cooking surface depth | 27" (686 mm) |
| Open-top BTU | 226,000 BTU/hr |
| Oven BTU (each) | 45,000 BTU/hr |
| Total BTU | 316,000 BTU/hr |
| Oven interior (each) | 14"H × 19½"W × 26½"D |
| Gas connection | ¾" NPT female – min. 7" W.C. (Natural) |
| Ignition | Standing pilot (top) / battery spark (ovens) |
| Legs | 6" stainless, adjustable |
| Construction | Stainless front, sides & shelf; cast-iron grates |
| Certification | CSA, NSF |
| Warranty | 1-year parts & labor |
What’s Included
- (1) Oven rack per cavity
- Factory pressure regulator
- 22½" flue riser with shelf
- User & installation manual
Important Installation & Use Notes
• Install under an appropriately sized ventilation hood.
• For cookware 12" + in diameter, use rear burners to prevent excess heat build-up in the front rail.
• Commercial appliance – not for residential use.
• Install under an appropriately sized ventilation hood.
• For cookware 12" + in diameter, use rear burners to prevent excess heat build-up in the front rail.
• Commercial appliance – not for residential use.
Need flexible payments? Middleby Equipment Financing can turn your purchase into predictable monthly installments.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
48.63in
Depth
34.0in
Shipping Weight
735.0lbs
Exterior Finish
stainless steel front & sides
Top
(6) open burners
Vent
backriser with hi-shelf
Base
(2) standard / space saver ovens
Specifications
Ultimate Restaurant Range, gas, 48", (4) pyromax burners right, (2) star/sauté burners left, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 316,000 BTU, CSA, NSF
