Description

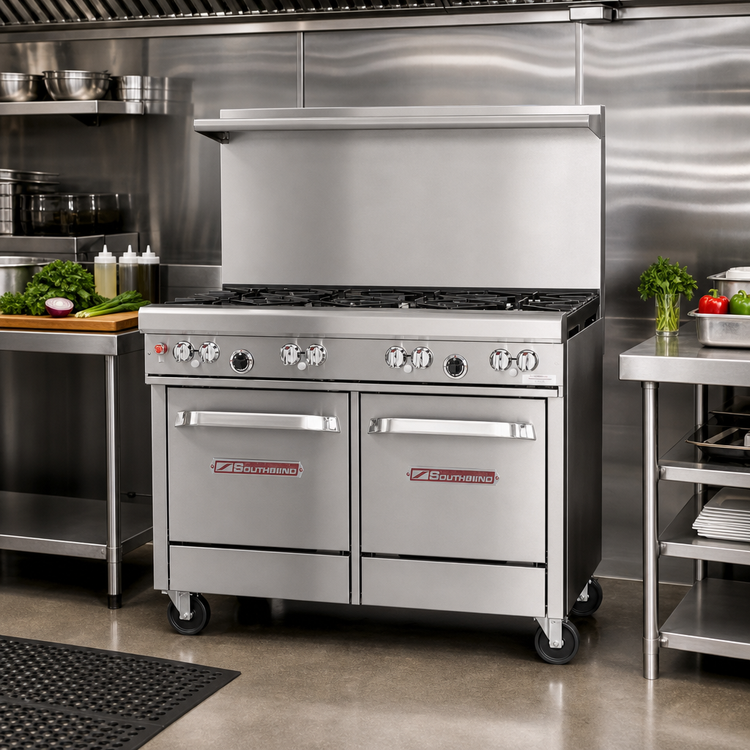

Southbend Ultimate 48" Gas Restaurant Range – 7-Burner / Double Space-Saver Oven
Model 448EE-7B | 335,000 BTU | CSA & NSF ListedGive your kitchen the firepower it deserves. The Southbend Ultimate Series 48" range fuses high-output burners, two full-size ovens, and rugged stainless construction into one space-saving workhorse built for the busiest commercial lines.

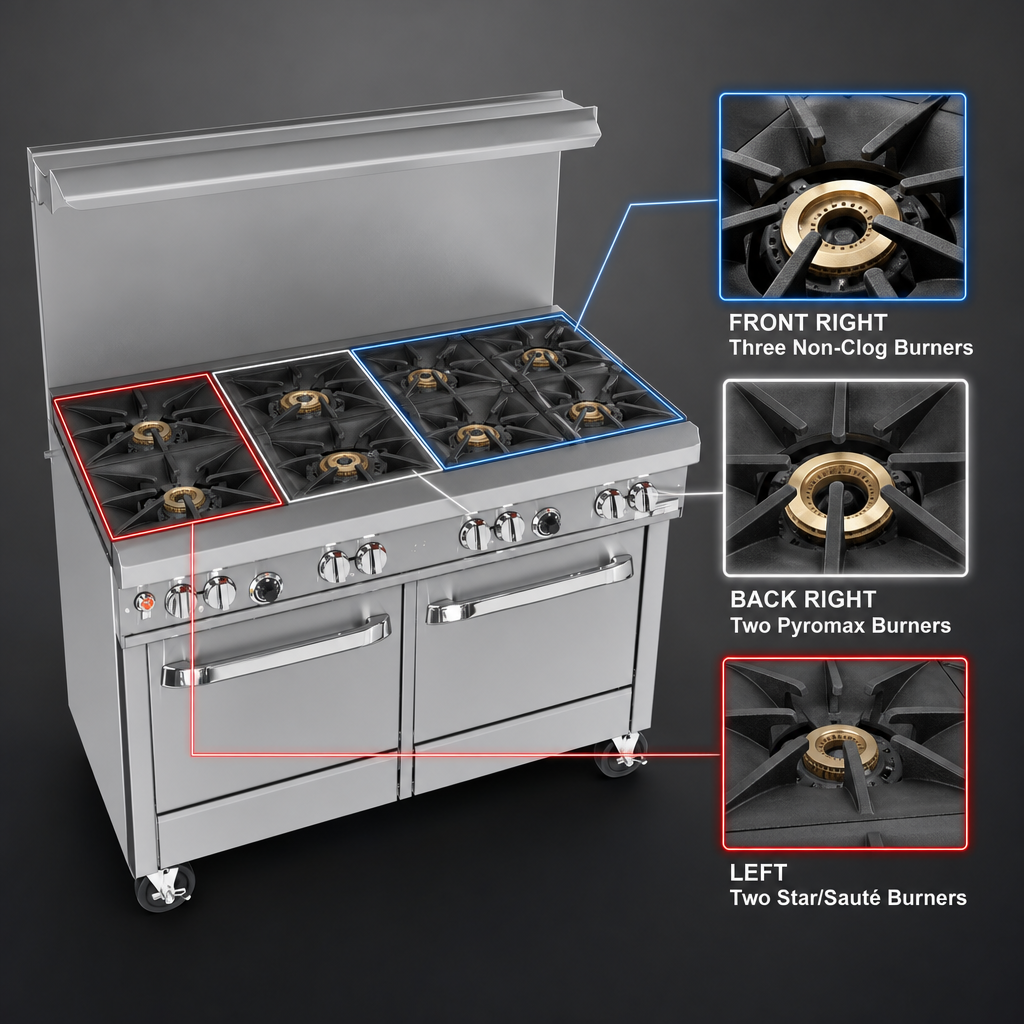

Cooktop Performance
- (3) 33,000 BTU non-clog open burners – lifetime cast-iron design resists grease build-up.
- (2) 40,000 BTU Pyromax™ burners – patented high-output triple-ring burners dominate heavy stockpots.
- (2) 33,000 BTU star/sauté burners – wide flame pattern ensures even heat across pans.
- Four removable cast-iron grate tops; rear grate holds up to a 14" stock pot.
- Front-mounted manual gas shut-off for the entire range.
- Reliable standing pilots on all open burners.

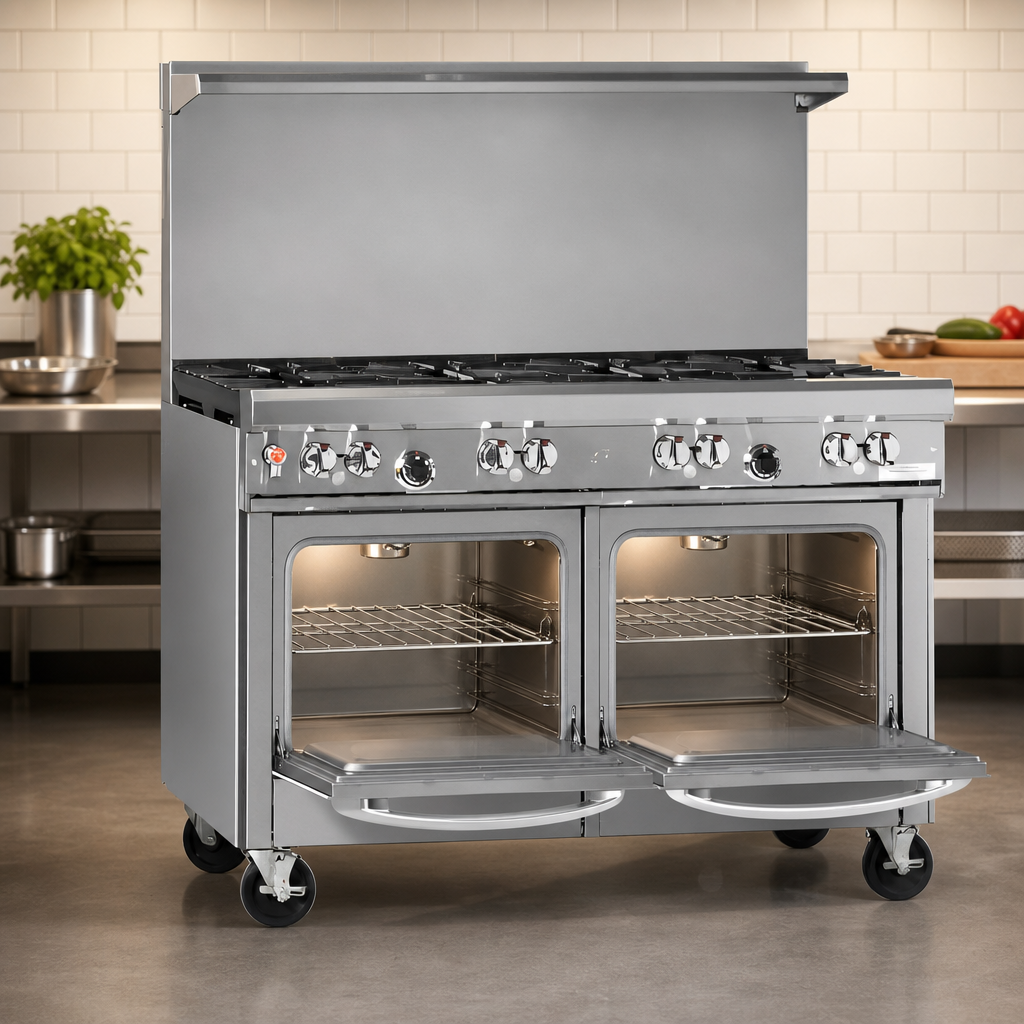

Double Space-Saver Ovens
- (2) 45,000 BTU standard ovens with battery-spark ignition.
- Porcelain-enameled cavities: 14"H × 19 ½"W × 26 ½"D – easy to wipe clean.
- Thermostat range: 175 °F – 550 °F (79 °C – 288 °C).
- Each oven includes one rack with two-position side rails.
- Spring-assisted, counter-weight doors for effortless operation.
Built to Survive the Rush
- Stainless-steel front, sides, 4" front rail, and 22 ½" flue riser with heavy-duty shelf.
- 37" cooking height on 6" adjustable stainless legs (casters optional).
- Factory-installed ¾" gas pressure regulator.
- Front-located manual shut-off valve for fast serviceability.
- Backed by Southbend’s 1-year parts & labor warranty.
At-a-Glance Specifications
| Width | 48 5⁄8" (1235 mm) |
|---|---|
| Depth | 34" (864 mm) |
| Cooking Surface Height | 37" (940 mm) |
| Overall Height (to shelf) | 59 1⁄2" (1511 mm) |
| Total BTU Input | 335,000 BTU/hr (Natural Gas) |
| Burner Configuration | 3 × 33 k BTU non-clog, 2 × 40 k BTU Pyromax, 2 × 33 k BTU star |
| Ovens | 2 × 45 k BTU space-saver standard ovens |
| Gas Connection | ¾" NPT female | 7" W.C. min. inlet (Natural) |
| Ship Weight | Approx. 735 lb (334 kg) |
| Agency Approvals | CSA, NSF |
Installation Note: Unit is intended for commercial use under a vented hood. If installing on flooring other than quarry tile, cement, or natural stone, contact Southbend for approved leg or caster options.
Oversized Cookware: Pots 12" or larger should be used on rear burners only to prevent excessive heat on the front rail and controls.
Flexible financing available through Middleby Equipment Financing. Learn more & apply.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
48.63in
Depth
34.0in
Shipping Weight
735.0lbs
Exterior Finish
stainless steel front & sides
Top
(7) open burners
Vent
backriser with hi-shelf
Base
(2) standard / space saver ovens
Specifications
Ultimate Restaurant Range, gas, 48", (3) non-clog burners front right, (2) pyromax burners back right, (2) star/sauté burners left, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 335,000 BTU, CSA, NSF
