Southbend (Middleby) 4483EE-5L Ultimate Gas Ranges
Description

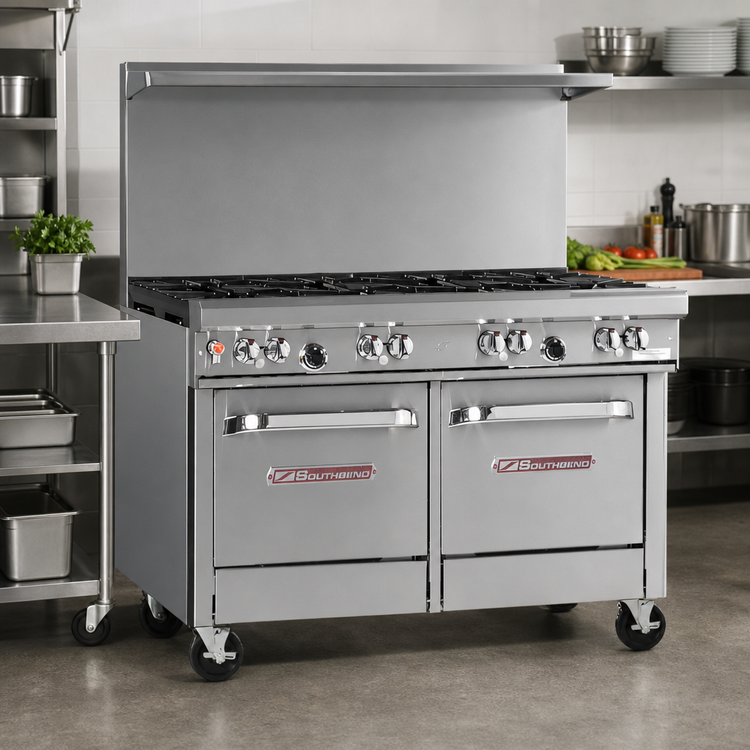

Southbend “Ultimate” 48" Gas Restaurant Range – Custom 7-Burner / Double Space-Saver Oven
335,000 BTU • Natural Gas • Model 448-EE (CSA, NSF)Built for high-volume kitchens that refuse to compromise on power or flexibility, the Southbend Ultimate Series 48" range layers three different burner styles with twin space-saver ovens in a rugged, all-stainless chassis. From rapid wok searing to low-simmer sauces, every zone is dialed-in for culinary control.
Why This Range Rocks
- Custom 7-burner top – 3× 33 K non-clog, 2× 40 K Pyromax, 2× 33 K star/ sauté (total 245 K BTU)

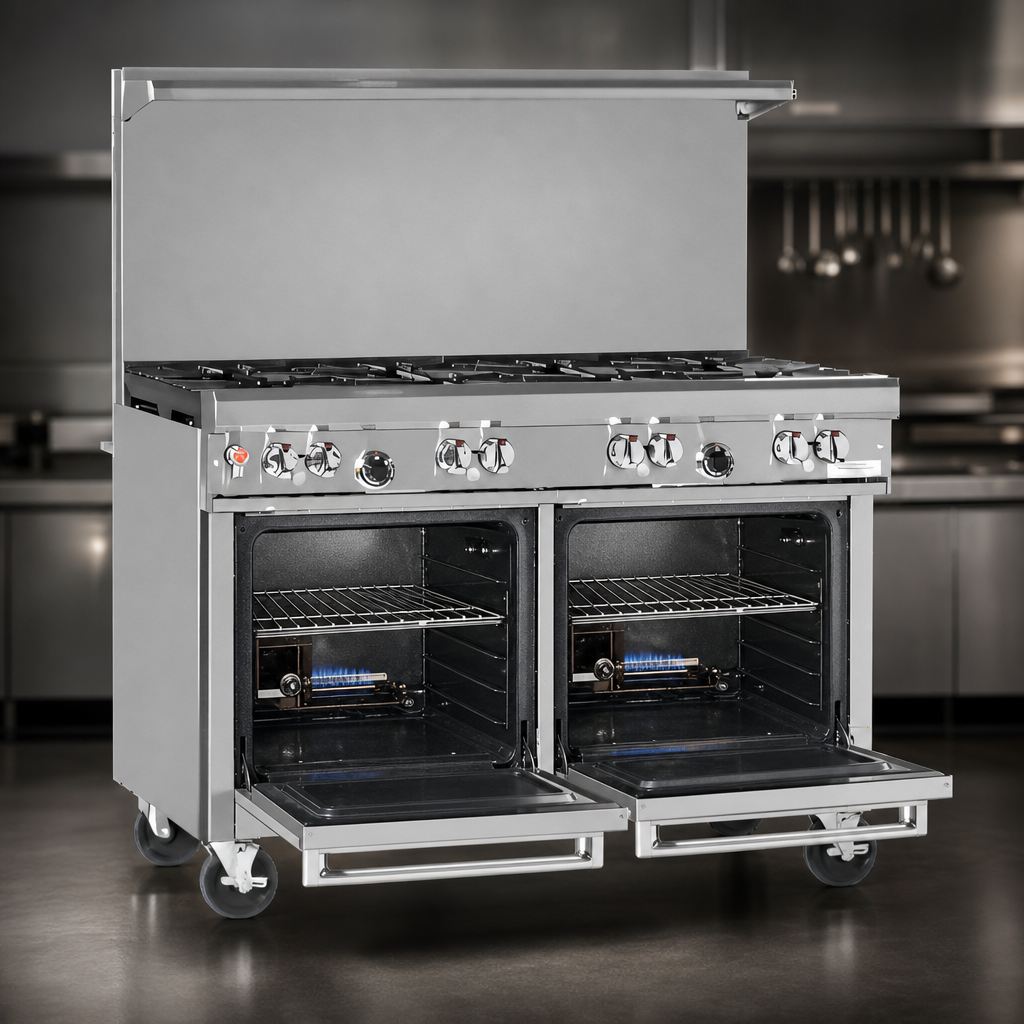

- Dual 45 K BTU space-saver ovens with battery-spark ignition and porcelain interiors
- 22 ½" flue riser with heavy-duty storage shelf keeps essentials within reach
- Front-mounted gas shut-off plus factory-installed ¾" regulator for fast installs
- Four removable cast-iron top grates accept up to 14" stock pots
- All stainless steel front, sides, shelf & 6" adjustable legs—easy to clean, built to last
- Standing pilots on open burners for instant lighting
- Certified to CSA & NSF standards
- 1-year parts & labor warranty serviced by Southbend’s nationwide network

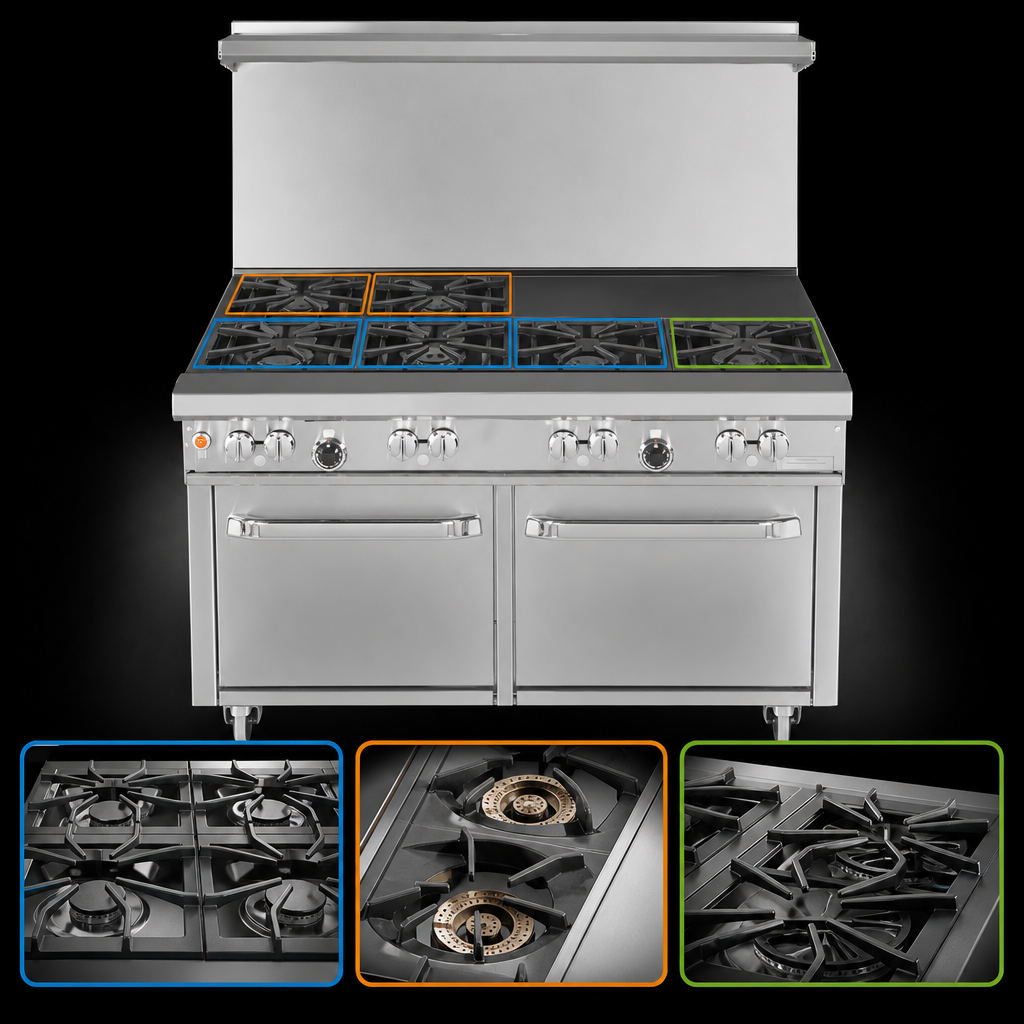

Precision Burner Configuration
- Front-left trio: 3 × 33 K BTU non-clog open burners – great all-purpose heat
- Rear-left duo: 2 × 40 K BTU Pyromax high-output burners – perfect for high-capacity stockpots
- Right-side duo: 2 × 33 K BTU star/ sauté burners – evenly spread flame for delicate pans
At-a-Glance Specs
| Overall width | 48 ⅝" (1235 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Working height | 37" cooking surface • 59 ½" to top of flue shelf |
| Total BTU input | 335,000 BTU/hr (245 K open top • 90 K ovens) |
| Oven type / qty | Space-saver bake ovens × 2 (thermostat 175 – 550 °F) |
| Oven interior | 14" H × 19.5" W × 26.5" D, 1 rack (2 positions) per cavity |
| Gas connection | ¾" NPT (left or right depending on burner mix) |
| Ignition | Standing pilot (top) • Battery spark (ovens) |
| Construction | Stainless steel front, sides, rail, flue shelf & 6" legs |
| Certifications | CSA, NSF, commercial use only |
| Warranty | 1-year limited parts & labor |
Install under a ventilated hood. Minimum rear & side clearance to non-combustible walls: 0". For combustible walls: 10" rear & sides. Use 6" legs or casters on combustible floors.
