Southbend (Middleby)  |  Ultimate  |  SKU: 4483EE-3CR

Southbend (Middleby) 4483EE-3CR Ultimate Gas Ranges

$14,236.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

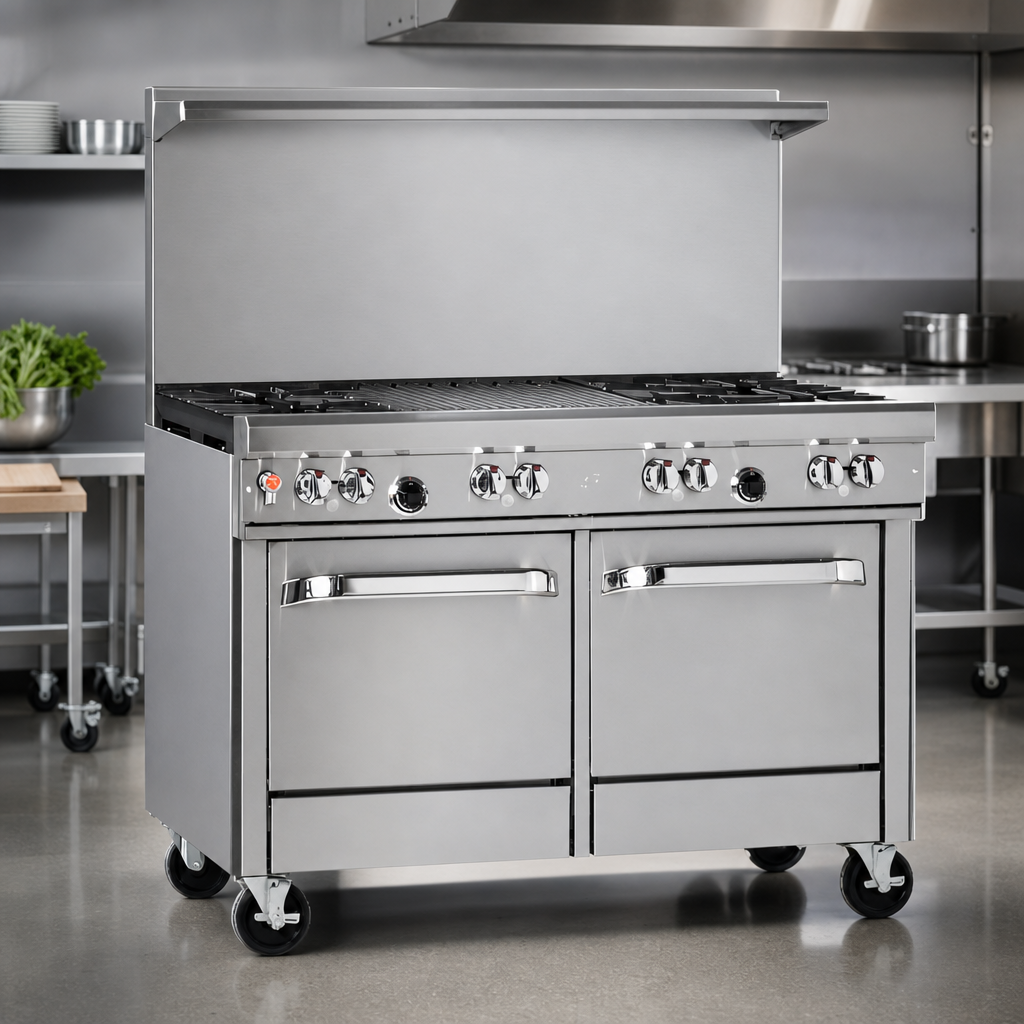

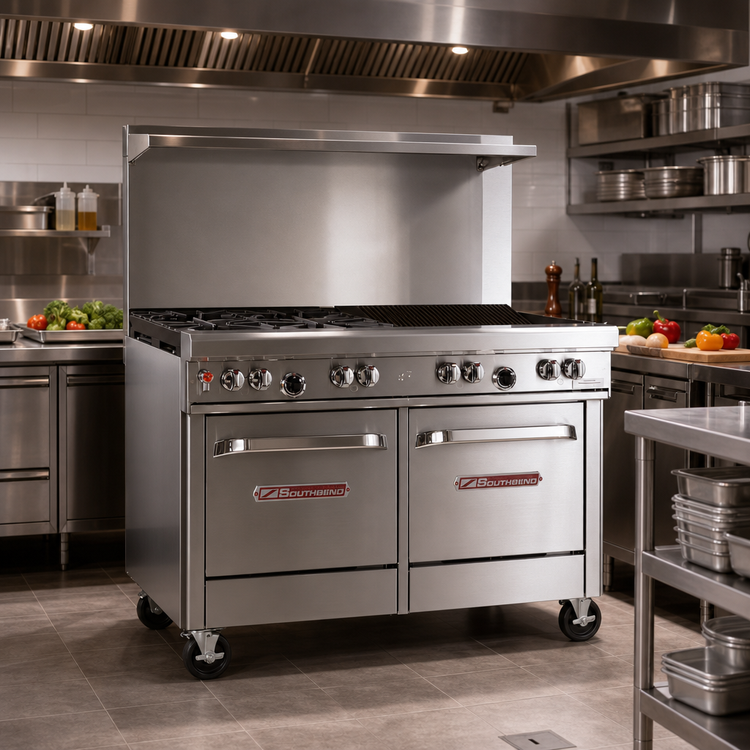

Southbend Ultimate 48" Gas Restaurant Range w/ 36" Charbroiler & Double Space-Saver Ovens

Model 448EE • 252,000 BTU • CSA & NSF Listed

Harness massive, multi-tasking power in a single 48-inch footprint. Southbend’s Ultimate Series range pairs high-output star burners, a full-width charbroiler, and two space-saving ovens to keep sauté pans sizzling, steaks searing, and baked goods turning out perfectly—all shift long.

Key Advantages

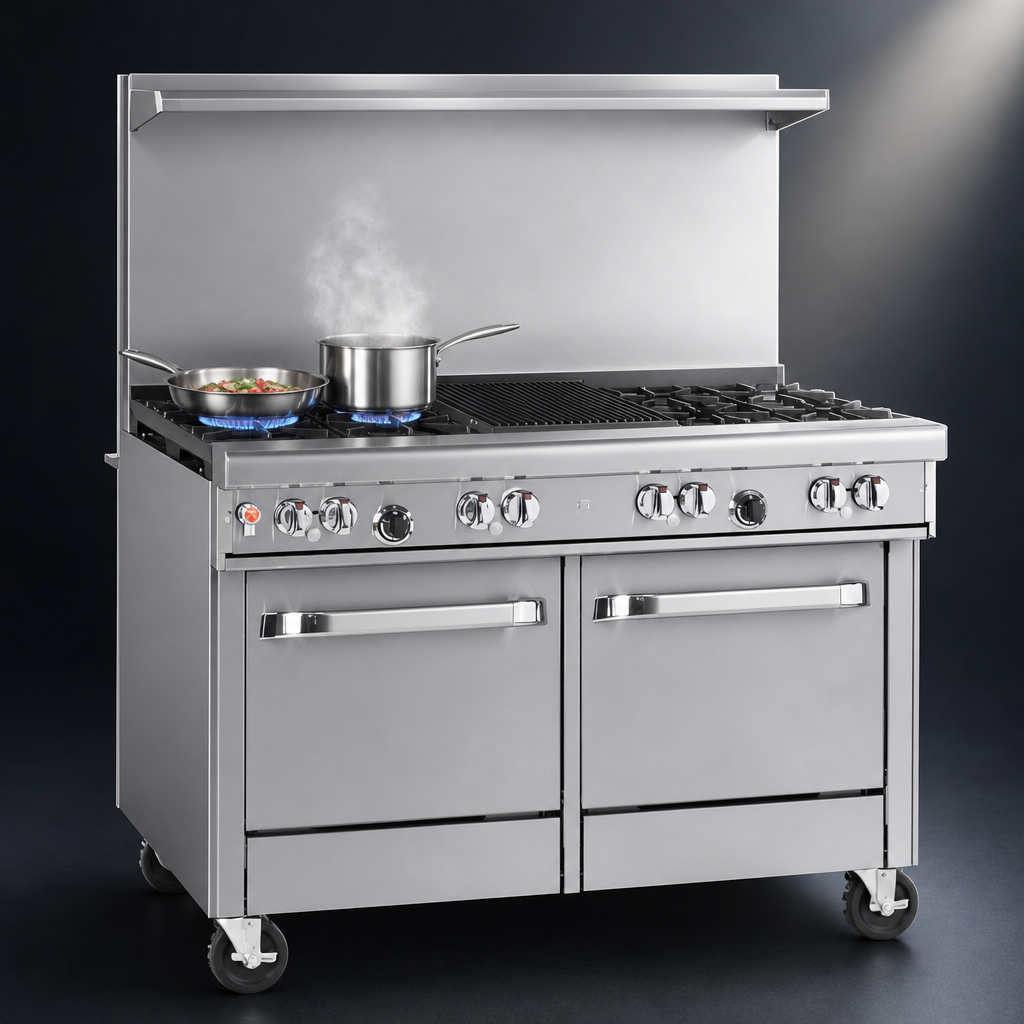

  • (2) 33,000 BTU star/​sauté burners deliver even, edge-to-edge heat for pans or stockpots up to 14".
  • 36" heavy-duty cast-iron charbroiler (96,000 BTU) on the right is ideal for steaks, burgers & seafood.
  • (2) 45,000 BTU space-saver ovens accept full-size sheet pans front-to-back or side-to-side.
  • Battery spark ignition for ovens—no external electricity required.
  • 22-1/2" flue riser with integrated heavy-duty shelf adds convenient plating & pan storage.
  • Front-mounted manual gas shut-off and factory-installed regulator for fast, code-ready hook-up.
  • All-stainless front, sides & shelf plus 6" adjustable legs for durability and easy cleaning.
  • 1-year limited parts & labor warranty backed by Southbend’s nationwide service network.
Specifications
Overall Width 48 5/8" (1235 mm)
Depth 34" (864 mm)
Cooking Surface Height 37" (940 mm)
Flue Riser / Overall Height 22 1/2" riser with shelf  •  59 1/2" overall
Top Configuration (2) star burners  |  36" charbroiler (cast-iron grates)
Base Configuration (2) space-saver ovens, thermostat 175 – 550 °F
Total Input 252,000 BTU/hr (natural gas)
Gas Connection 3/4" NPT (right rear), min. inlet 7" W.C.
Electrical None (battery spark ignition)
Oven Interior (each) 14"H × 19 1/2"W × 26 1/2"D, porcelain-enamel, 1 rack (2 positions)
Certifications CSA • NSF
Warranty 1 year parts & labor
Perfect For
  • High-volume restaurants & chains
  • Steak & chop houses
  • Hotel banquet kitchens
  • Any operation needing char-grilled flavor without adding a standalone broiler
Cleaning Tip: Never place sheet pans over the charbroiler grates while burners are on. Reflected heat can damage internal components and is not covered under warranty.

For best results, install under a vented hood and limit oversized cookware (>12") to the rear burners.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Base

(2) standard / space saver ovens

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (1) 36" charbroiler

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 48", (2) star/sauté burners with standard grates, 36" charbroiler right, (2) space saver ovens with battery spark ignition, standing pilot, 22-1/2" flue riser with heavy duty shelf, stainless steel front, sides and shelf, 6" adjustable legs, 252,000 BTU, CSA, NSF
