Southbend (Middleby)  |  Ultimate  |  SKU: 4483EE-2TR

Southbend (Middleby) 4483EE-2TR Ultimate Gas Ranges

$12,770.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

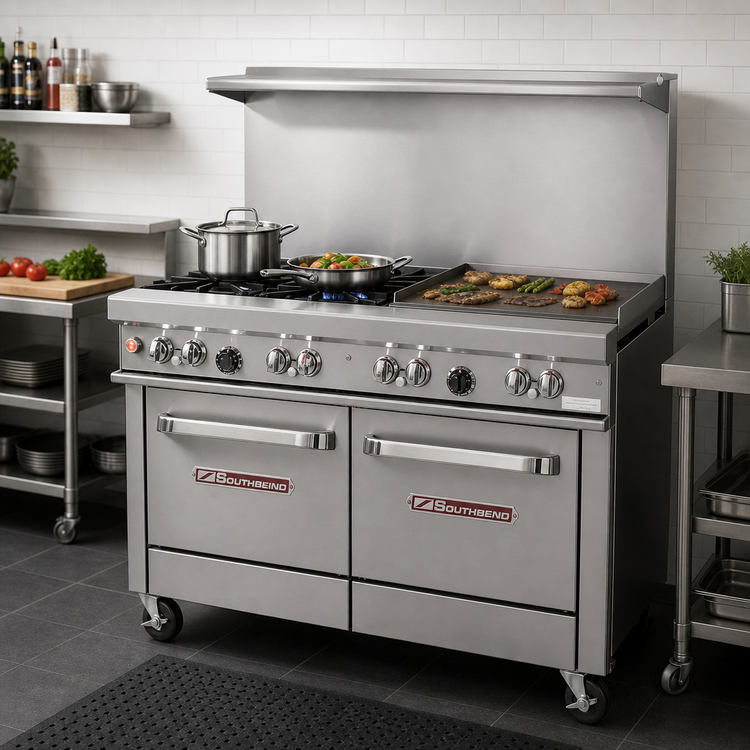

Southbend Ultimate 48″ Gas Restaurant Range

4 Star/Sauté Burners • 24″ Right-Side Thermostatic Griddle • Double Space-Saver Ovens

Engineered for the punishing pace of busy commercial kitchens, the Ultimate 48″ Series packs 270,000 BTU of cooking power into a rock-solid, all-stainless cabinet only 48-5/8″ wide. Four high-output star burners, a precision 24″ griddle, and two independent space-saving ovens let your team sauté, sear, griddle and bake simultaneously—without sacrificing valuable line space.

Why You’ll Love It

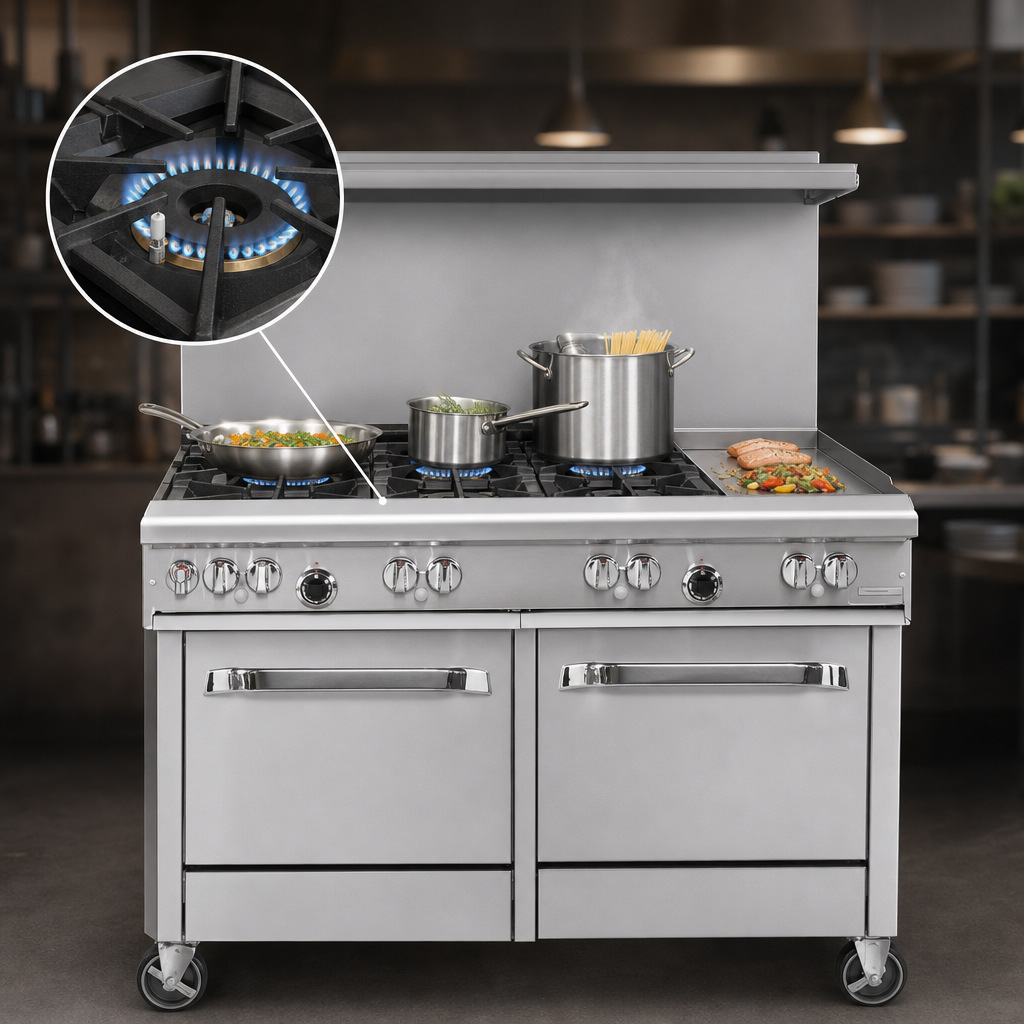

  • High-Output Star Burners – four 33,000 BTU NAT cast-iron burners with standing pilots deliver even heat across the entire pot or pan.
  • 24″ Thermostatic Griddle (Right) – ½″ smooth polished steel plate with 175-550 °F thermostat control; perfect for breakfast fare, burgers or finishing steaks.
  • Double Space-Saver Ovens – two 45,000 BTU cavities (19-½″ W x 26-½″ D x 14″ H) with porcelain interiors, battery spark ignition and one rack each.
  • Built-In Durability – stainless steel front, sides, shelf and 4″ front rail; 6″ adjustable stainless legs handle uneven floors.
  • Easy Service & Safety – front mounted gas shut-off, factory pressure regulator and removable drip trays simplify daily operation.
  • 22-½″ flue riser with heavy-duty shelf keeps cookware close at hand.
  • cCSAus, CSA Flame, CSA Star & NSF listed for worry-free code compliance.
  • Backed by Southbend’s 1-year parts & labor warranty.
At-a-Glance Specs
Overall Width 48-5/8″ (1235 mm)
Depth (to front rail) 34″ (864 mm)
Cooking Surface Height 37″ (940 mm)
Overall Height w/ Riser 59-½″ (1511 mm)
Open Top Burners 4 × 33,000 BTU NAT star burners (132,000 BTU total)
Griddle 24″ W × 27″ D, 48,000 BTU NAT, thermostatic
Ovens 2 space-saver ovens, 45,000 BTU each (90,000 BTU total)
Total Input 270,000 BTU/hr (Natural Gas)
Gas Connection ¾″ NPT (rear), 7″ W.C. NAT / 11″ W.C. LP min. inlet
Crated Weight Approx. 735 lb (334 kg)
Certifications cCSAus, CSA Flame, CSA Star, NSF
What’s Included

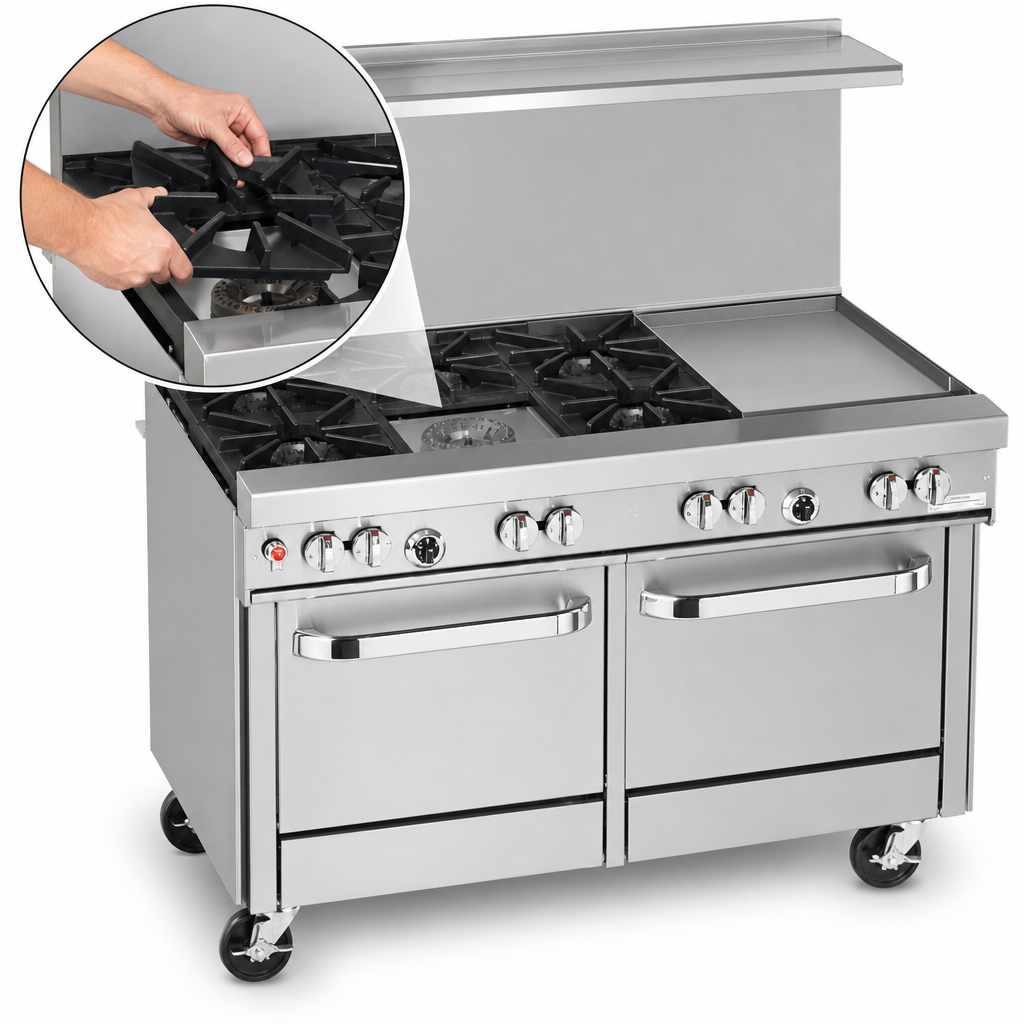

  • (4) removable cast-iron grate tops
  • (2) oven racks (1 per oven)
  • 22-½″ flue riser with storage shelf
  • Factory-installed pressure regulator & manual main gas shut-off
Warranty

One-year limited parts & labor warranty. See Southbend warranty statement for full details.

For commercial use only.
Install under a properly vented hood with 6″ legs (or casters) and 0″ rear/side clearance to non-combustibles.
Oversized cookware (12″ Ø+) should be used on the rear burners to avoid overheating the front rail.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Exterior Finish

stainless steel front & sides

Top

(4) open burners, (1) 24" griddle with thermostats

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Base

(2) standard / space saver ovens

Specifications

Ultimate Restaurant Range, gas, 48", (4) star/sauté burners, standard grates, (1) 24" griddle right, thermostatic controls, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 270,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
