Southbend (Middleby) 4483EE-2GR Ultimate Gas Ranges
$11,542.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4483EE-2GR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4483EE-2GR Ultimate Gas Ranges
$11,542.00
Unit price
/
Unavailable
Description
Southbend Ultimate 4481EE 48" Gas Restaurant Range
4 Star/Sauté Burners • 24" Right-Side Griddle • Double Space-Saver Ovens • 270,000 BTUSear, sauté, grill and bake at the same time—all in a rugged 48" footprint. Southbend’s Ultimate Series puts heavy-duty power and all-stainless durability on your cook line, delivering the speed and consistency today’s high-volume kitchens demand.
Key Features

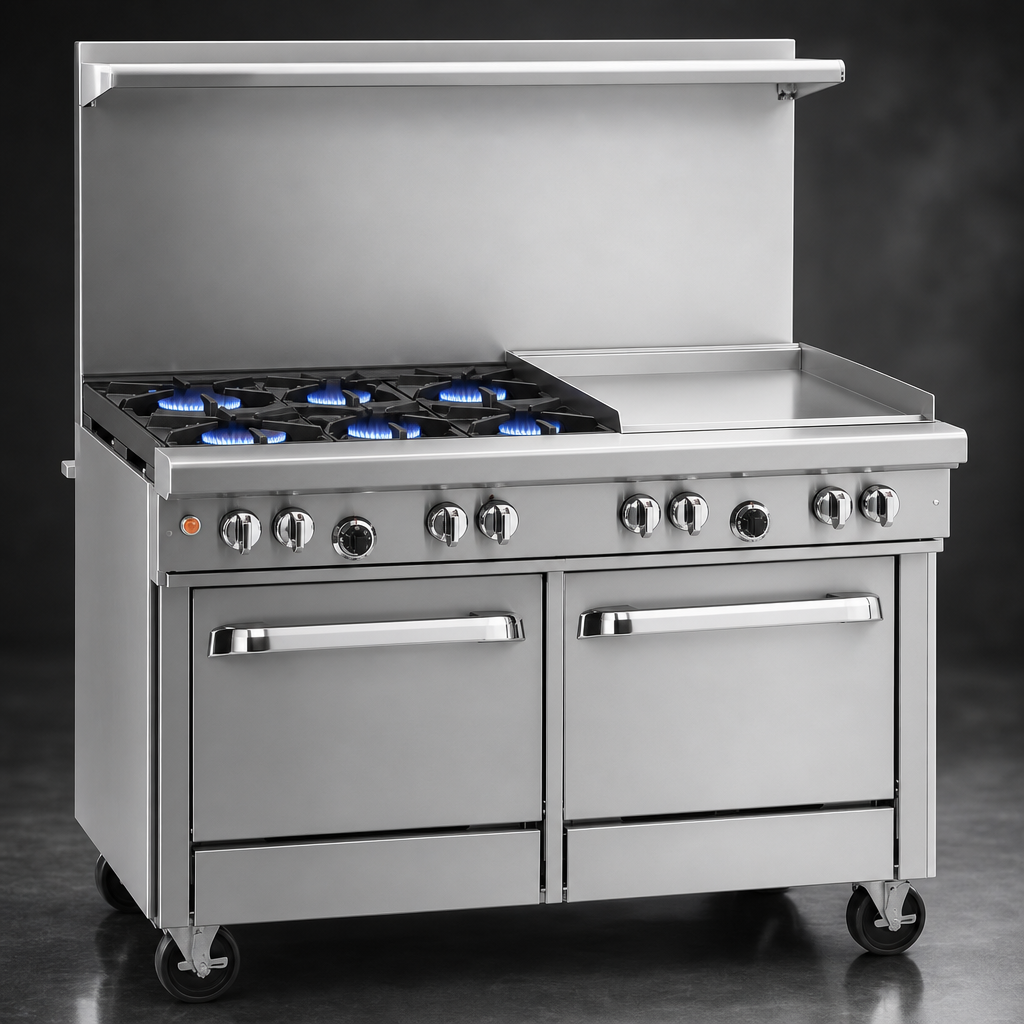

- (4) lifetime clog-free 33,000 BTU cast-iron star/sauté burners for fast, even heat distribution.

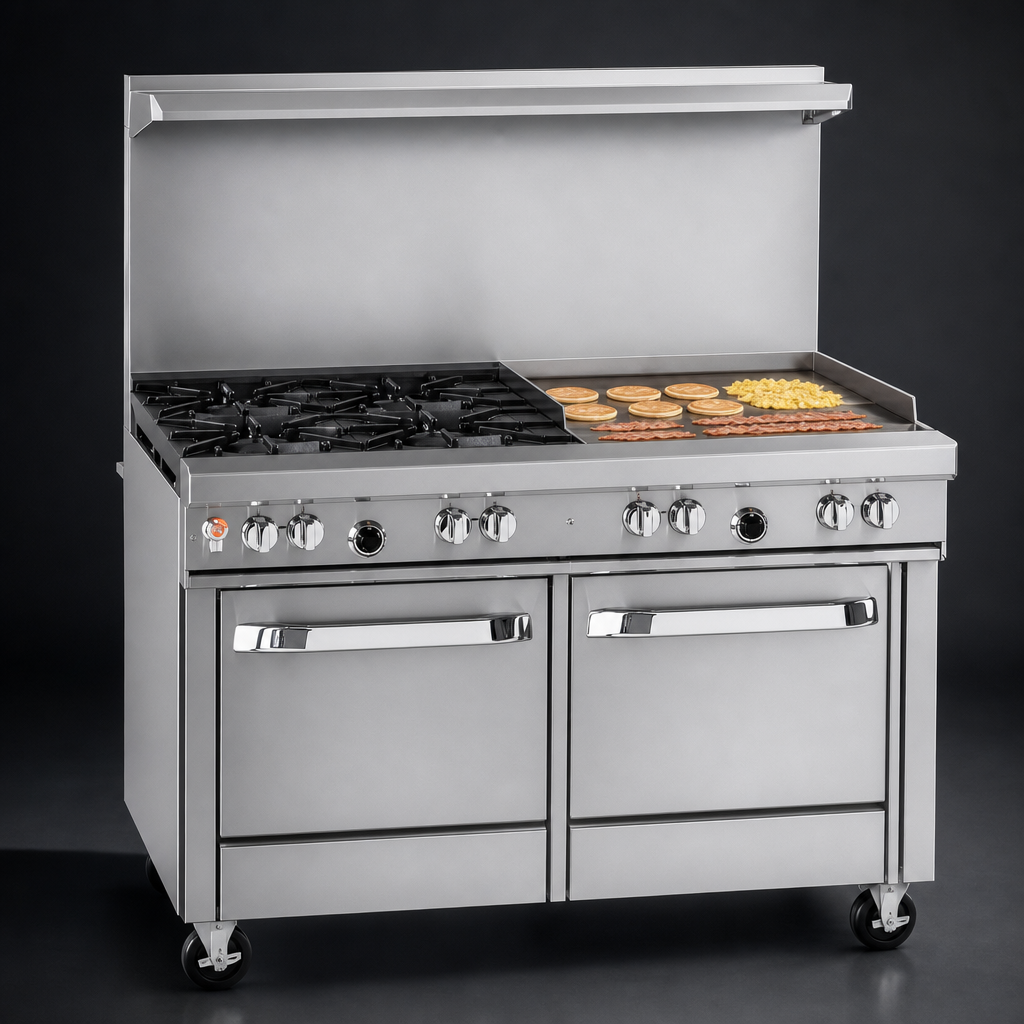

- 24" right-hand griddle with a ½" polished steel plate & raised splash sides, rated at 48,000 BTU.
- (2) 45,000 BTU space-saver ovens with battery spark ignition and 175 – 550 °F thermostats; one rack included per oven.
- 27"-deep cooking surface with removable cast-iron grates (rear grate fits a 14" stock pot).
- Standing pilots for open burners plus a front-mounted manual gas shut-off valve.
- 22 ½" flue riser with integrated stainless shelf keeps plates & smallwares close at hand.
- All-stainless front, sides, rail & shelf; 6" adjustable stainless legs for easy leveling.
- Factory-installed ¾" gas pressure regulator & single ¾" NPT rear gas connection.
- Certified cCSAus, CSA Flame, CSA Star & NSF for safety and sanitation.
At-a-Glance Specs
| Model | 4481EE (Ultimate 48" Series) |
|---|---|
| Overall Dimensions | 48 5/8" W × 34" D × 59 1/2" H (to top of flue) |
| Cooktop Height | 37" |
| Open Burners | (4) Star/Sauté • 33,000 BTU each |
| Griddle | 24" W × 27" D • ½" plate • 48,000 BTU |
| Ovens | (2) Space-Saver ovens • 45,000 BTU each • 19.5" W × 26.5" D × 14" H cavity |
| Total Input | 270,000 BTU/hr (Natural Gas) |
| Gas Connection | ¾" NPT (rear) • 7" W.C. Nat / 11" W.C. LP |
| Shipping Weight | ≈ 735 lb |
| Warranty | 1 year parts & labor |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
What’s Included
- (2) oven racks (one per cavity)
- 22 ½" stainless flue riser & shelf
- 6" adjustable stainless steel legs
- Factory pressure regulator & battery pack for spark ignition
Popular Accessories (sold separately)
- Swivel casters with front locks
- ¾" quick-disconnect gas hose (3 ft, 4 ft or 5 ft)
- Extra oven racks
- Rear-mount salamander or cheesemelter kits
- Stainless cabinet-base doors
Installation Note: Install under a vented hood and keep a 10" clearance from combustible surfaces. 6" legs or casters are required on combustible floors. Commercial use only.
Ask about Middleby Equipment Financing for low monthly payments.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
48.63in
Depth
34.0in
Shipping Weight
735.0lbs
Plate Thickness
.500" = 1/2"
Exterior Finish
stainless steel front & sides
Base
(2) standard / space saver ovens
Top
(4) open burners, (1) 24" griddle
Vent
backriser with hi-shelf
Specifications
Ultimate Restaurant Range, gas, 48", (4) star/sauté burners, standard grates, (1) 24" griddle right, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 270,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
