Southbend (Middleby) 4483EE-2CR Ultimate Gas Ranges
Description

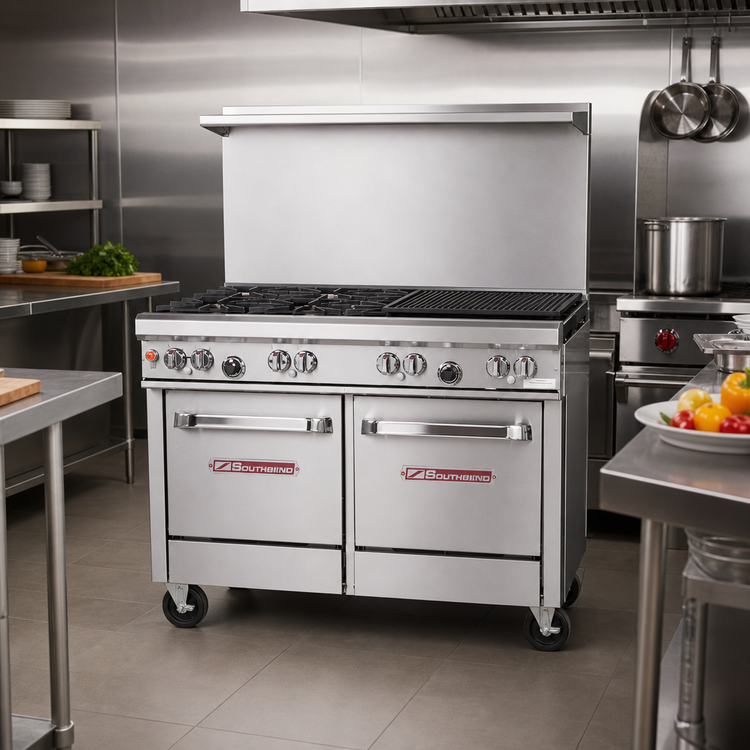

Southbend Ultimate 48" Gas Restaurant Range
Model 448EE – 4 Star Burners • 24" Right-Side Charbroiler • Double Space-Saver Ovens • 286,000 BTUBuilt for high-volume kitchens that refuse to compromise on versatility, the Southbend Ultimate Series 448EE packs powerful open-top cooking, a true broiler station and two fully-featured ovens into a single, 48-inch footprint. Stainless-steel durability, a factory-installed regulator and front-mounted gas shut-off make it service-friendly, while industry-leading 33 K BTU star burners and a removable cast-iron grate system keep your team cooking at peak efficiency.
Why It Belongs on Your Line

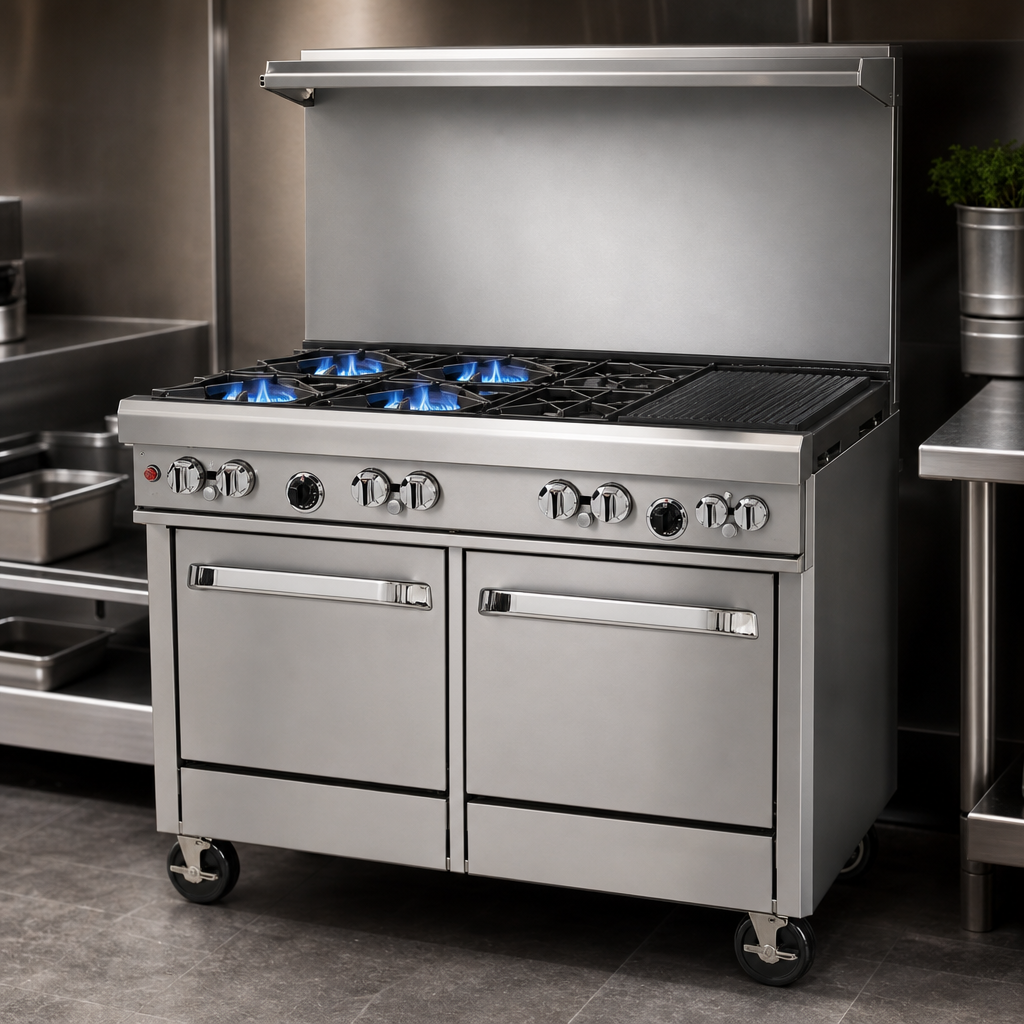

- Four 33,000 BTU cast-iron star/sauté burners provide even, edge-to-edge heat—ideal for high-speed sauté, stock work and delicate reductions.

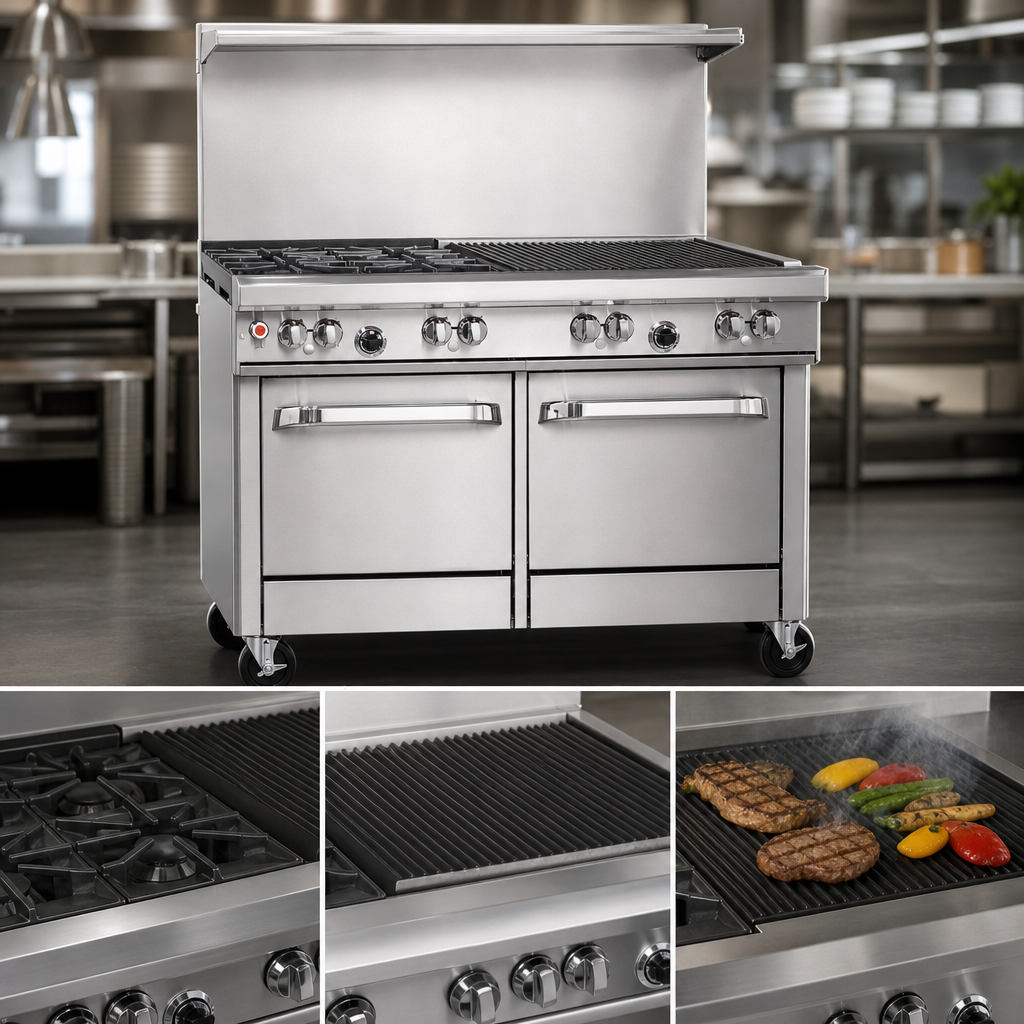

- 24" charbroiler (right side) with removable cast-iron grates delivers intense sear marks and authentic flame-broiled flavor at 64,000 BTU.
- Two space-saver ovens (14"H x 19.5"W x 26.5"D) each produce 45,000 BTU and hold full-size sheet pans front-to-back or left-to-right.
- Battery-spark ignition on ovens plus standing pilots on cooktop for reliable, match-free starts.
- 22-½" flue riser with heavy-duty plate shelf—perfect for holding pans or plated orders in the heat zone.
Built to Take the Heat
- All-stainless front, sides, shelf and 4" front rail resist corrosion and wipe clean fast.
- 6" stainless adjustable legs meet health-code clearances and level easily on uneven floors.
- Front-located manual gas shut-off simplifies daily start-up, shutdown and maintenance.
- Removable one-piece drip trays under the burners speed up end-of-shift cleanup.
- Factory-installed ¾" pressure regulator included.
- CSA & NSF listed for gas safety and sanitation compliance.
At-a-Glance Specs
| Overall Width | 48 5/8" (1235 mm) |
|---|---|
| Overall Depth | 34" (864 mm) |
| Work-Top Height | 37" (940 mm) |
| Overall Height w/ Riser | 59 ½" (1511 mm) |
| Total BTU Input | 286,000 BTU/hr |
| Open Top | (4) Star burners @ 33 K BTU each |
| Charbroiler | 24" right-side, 64 K BTU |
| Ovens | (2) Space-saver, 45 K BTU each; 175 °F – 550 °F thermostat; (1) rack included per oven |
| Gas Connection | ¾" NPT (connection located opposite charbroiler—left rear) |
| Electrical | None required (battery spark ignition) |
| Crated Weight | Approx. 735 lb (334 kg) |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor |
What’s Included
- (4) Removable cast-iron top grates
- (2) Porcelain-lined space-saver ovens with one rack each
- 22-½" flue riser with integrated shelf
- Adjustable 6" stainless legs
- Factory pressure regulator & user manual
- Limit oversized cookware (12" Ø+) to the rear burners to avoid overheating the front rail.
- Never place sheet pans directly over the charbroiler grates during cleaning—heat reflection can cause permanent damage and void the warranty.
- If installing on flooring other than quarry tile, cement, or natural stone, consult the factory for approved mounting solutions.
