Southbend (Middleby) 4483DC Ultimate Gas Ranges
Description

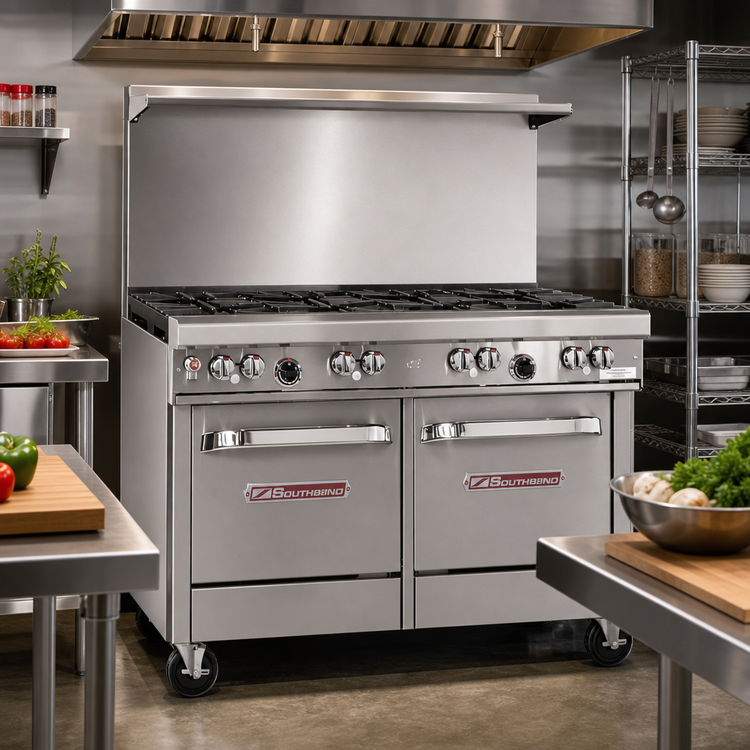

Southbend Ultimate 48" Gas Restaurant Range – 8-Burner / Oven & Cabinet Base
Model 448DC-Star | 309,000 BTU | CSA & NSF ListedDeliver sizzling sauté performance, fast boil times and reliable baking in one space-saving footprint. The Southbend Ultimate Series 48" range combines eight powerful star burners, a full-size standard oven and a stainless cabinet base—built tough to thrive on the busiest cook lines.
Key Features
- 48-5/8" wide commercial gas range with a 37" high cooking surface

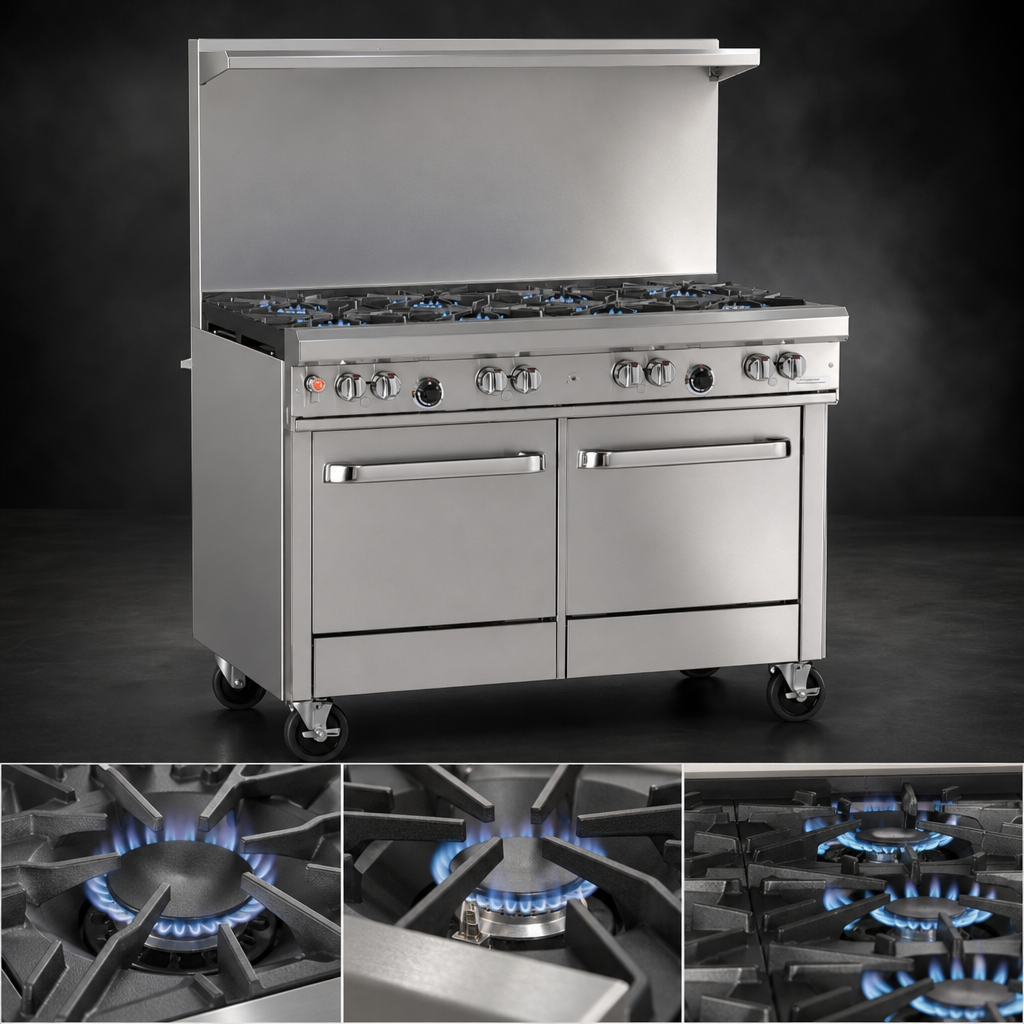

- Eight cast-iron star/sauté burners
- 33,000 BTU each (standing pilot)
- Port design delivers even, edge-to-center flame distribution
- One-piece, clog-free construction for lifetime reliability

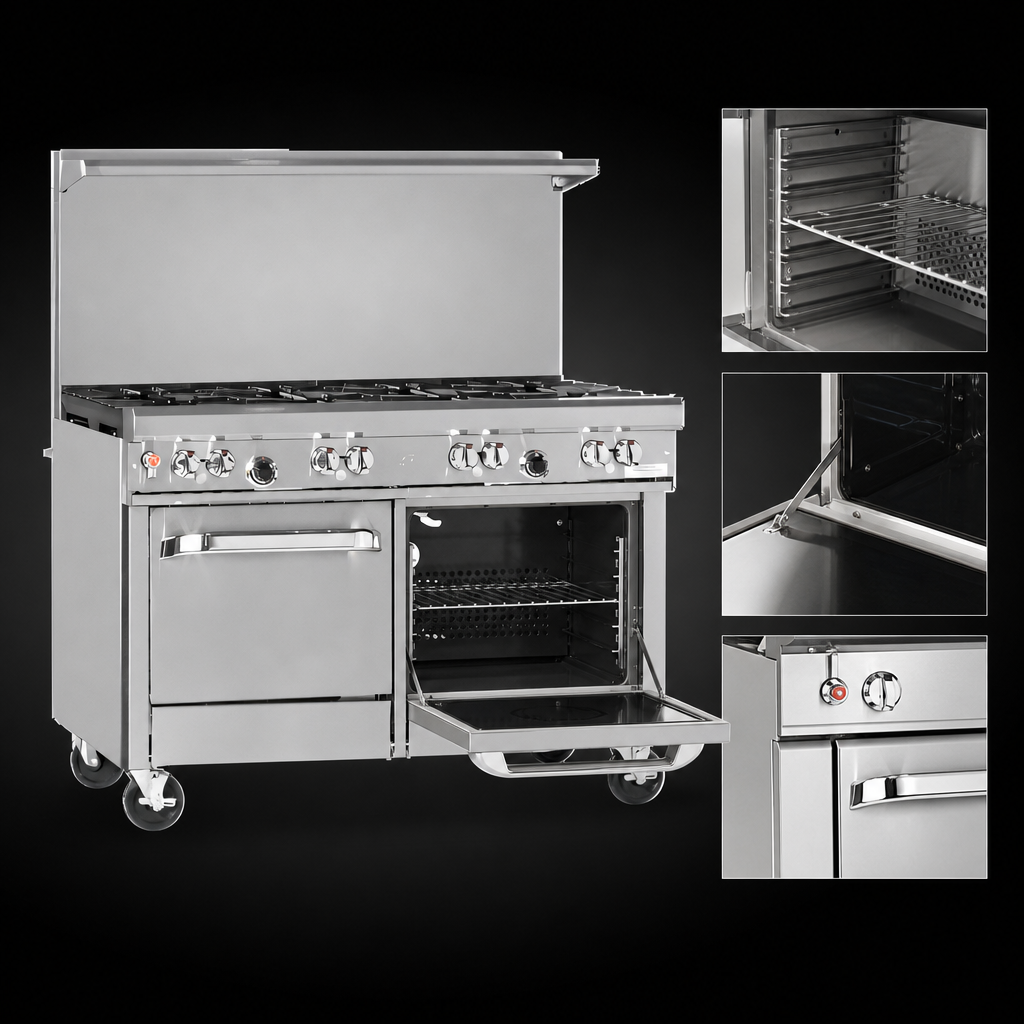

- 45,000 BTU standard oven
- Battery-spark ignition (no electrical hook-up)
- 175 °F – 550 °F thermostat
- Porcelain-enameled interior with coved corners for easy clean-up
- (1) heavy-duty rack, two positions
- 18" stainless steel cabinet base for dry storage (optional doors available)
- 22-1/2" flue riser with heavy-duty landing shelf—perfect for plate & smallware staging
- Front-mounted manual gas shut-off & factory-installed 3/4" regulator
- All-stainless front, sides, shelf & 6" adjustable legs (casters optional)
- One-year limited parts & labor warranty backed by Southbend’s national service network
At-a-Glance Specs
| Overall width | 48-5/8" (1235 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Height w/ flue riser | 59-1/2" (1511 mm) |
| Open-top BTU | 8 × 33,000 BTU = 264,000 BTU |
| Oven BTU | 45,000 BTU |
| Total BTU | 309,000 BTU |
| Oven cavity (W × D × H) | 26" × 26-1/2" × 14" |
| Gas connection | 3/4" NPT female, 7" W.C. Natural Gas |
| Electrical | None (battery ignition) |
| Shipping weight | Approx. 735 lb (334 kg) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
What’s in the Box
- (1) Ultimate Series range, fully assembled
- (1) oven rack
- Factory-installed gas pressure regulator
- Battery for spark ignition
- 6" stainless steel adjustable legs
Popular Accessories (Sold Separately)
- All-swivel locking casters
- Cabinet doors
- Additional oven racks
- 3/4" quick-disconnect gas hose (3-, 4- or 5-ft)
- Rear step-up or split burner configurations
Looking for an easy way to spread out your investment? Ask us about Middleby Equipment Financing and turn this purchase into simple monthly payments.
- Unit must be installed under a properly ventilated hood and on a non-combustible floor, or mounted on 6" legs/casters to maintain clearances.
- When using cookware 12" or larger, place it on rear burners to prevent heat build-up in the front rail.
- This appliance is designed for commercial use only—do not install in residential settings.
